L/LV/LM/LMV-Series
Model L0172
Door Type: Wood or composite, flat
Trim: Escutcheon

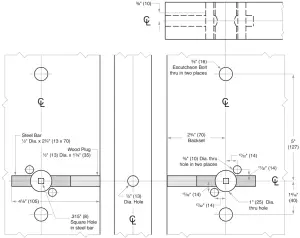

Left Hand (LH) door shown
Dimensions shown in parentheses () are in millimeters.
© 2020 Allegion
L745 Rev. 12/20
www.allegion.com/us
DRAWING IS NOT TO SCALE!
Customer service: 877-671-7011
We can help you find the correct guide for your product and application!
Door preparation template
