VR910M/VR914M
Vandal Resistant Trim
Installation Guide
For use with Mortise Devices
Prepare push side of the door for exit device.
See exit device instructions for preparation.
Prepare pull side of the door for trim.
2a Transfer vertical and horizontal device center lines from push side of the door to pull side.

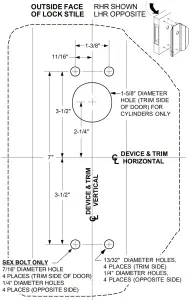

2b Locate and prepare all holes as indicated below.
Install mortise lock.
See mortise lock instructions for preparation.
Customer Service
| 1-877-671-7011 | www.allegion.com/us |

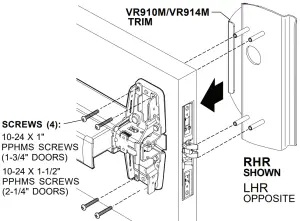

Install exit device and trim.
SEX BOLT ONLY

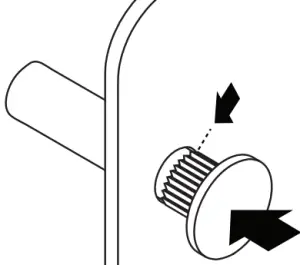

- HOLD TRIM UP AGAINST DOOR AND INSERT SEX BOLT-THRU TRIM AND DOOR UP TO KNURLING ON SEX BOLT.
- HAMMER SEX BOLT UNTIL BACK OF BOLT HEAD IS FLUSH WITH TRIM SURFACE.
- REPEAT FOR THE REMAINING 3 SEX BOLTS.

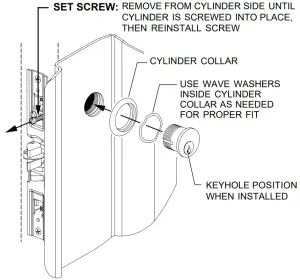

Install cylinder, if using.
