Trim-tex Tear Away L Bead Installation Guide

TRIM-TEX Tear Away L Bead Installation Guide

Introduction

This is the gold standard for finishing drywall around windows, doors and other essentials.

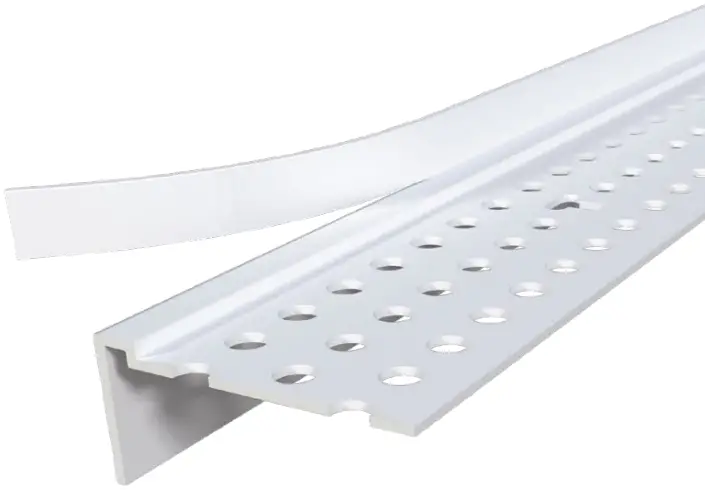

Tear Away Bead features a convenient tear-off strip, which acts as a guide for your taping knife and a protective mask for mudding, resulting in smooth finished edges and far less cleanup

Installation Instruction

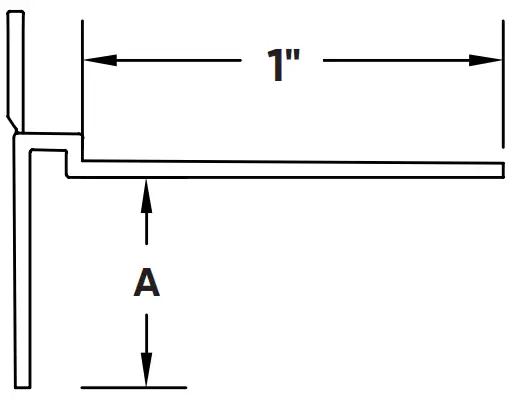

Technical Specs

Scan Below for Installation Video
Scan Me

Before Installation:
Measure, cut and dry fit the bead.

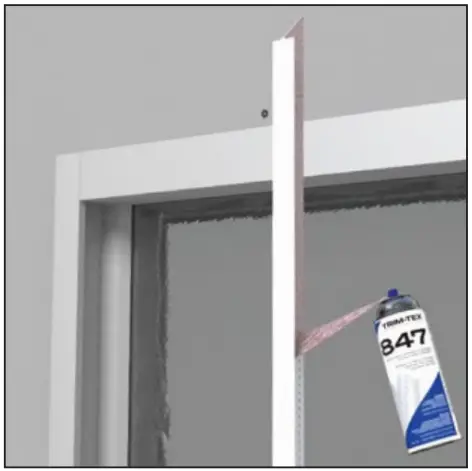

• Step 1:
  Coat the bead with Trim-Tex 847 Spray Adhesive.

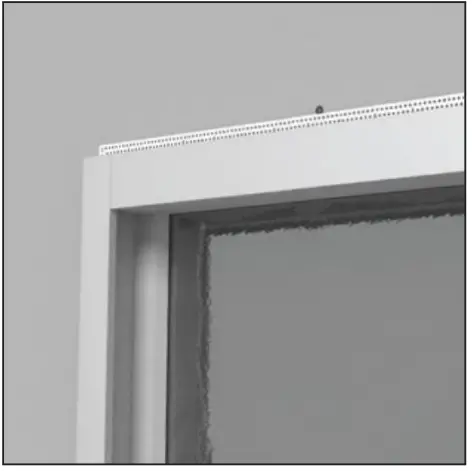

• Step 2:
  Press the bead in place, applying pressure to the mud legs.

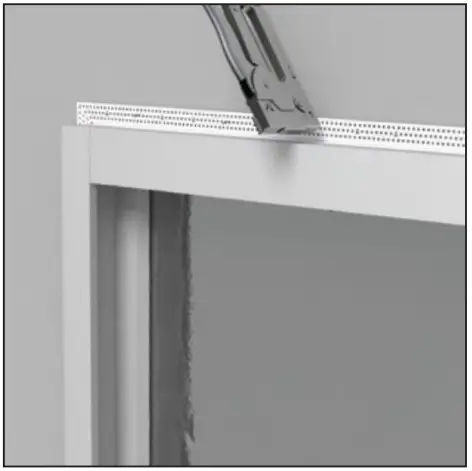

• Step 3:
  Staple every 6”-8” using ½” staples.

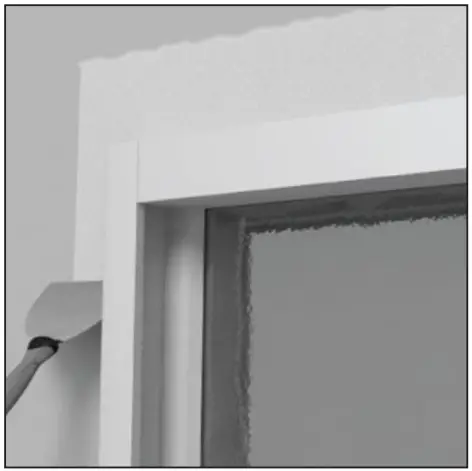

• Step 4:
  Finish with drywall compound.
  Remove tear-off strips prior to sanding.
