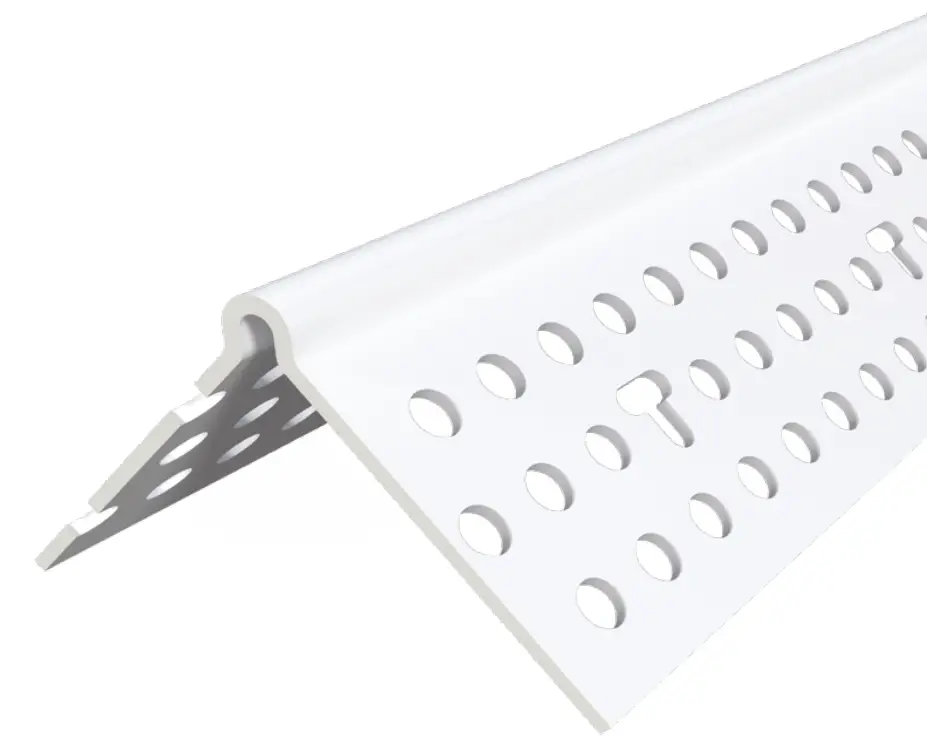

TRIM-TEX Standard Corner Bead
Standard Corner Bead
Vinyl corner beads are more durable, more flexible and more sustainable (each Trim-Tex bead is made from at least 70% recycled materials) than their steel counterparts — and that’s just the tip of the iceberg. Trim-Tex’s Standard Corner Bead is our touchstone for finishing 90-degree corners.
Installation Guide

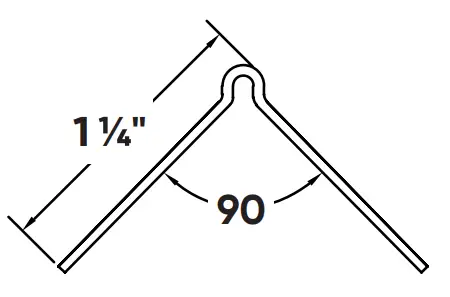

Technical Specs

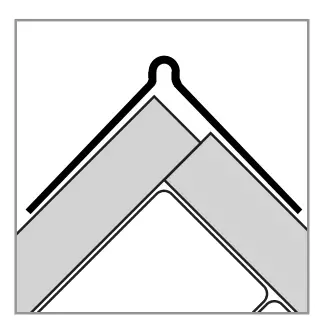

Setback: Standard
Scan Below for Installation Video
Before Installation
Measure, cut and dry fit the bead, leaving a ½” gap at the floor.

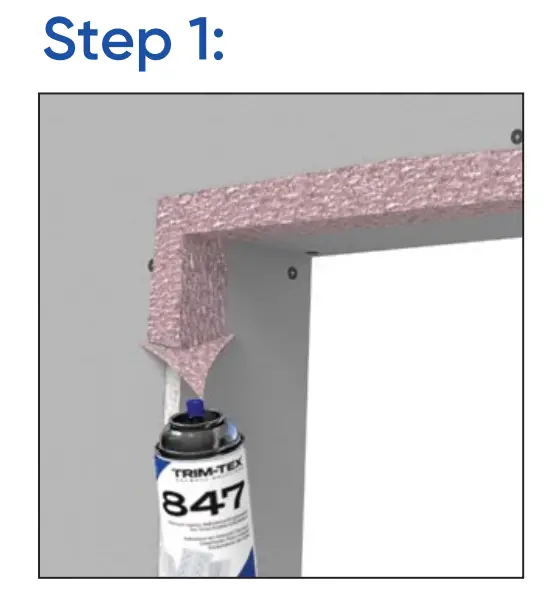

Step 1:
Coat both the bead and edge of drywall with Trim-Tex 847 Spray Adhesive.

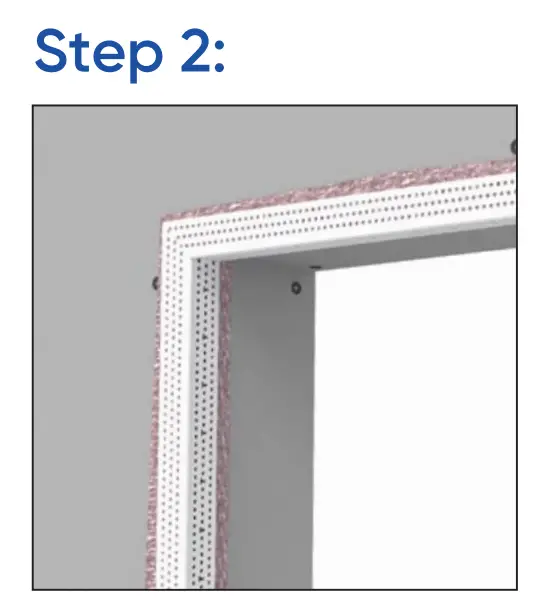

Step 2:
Press the bead in place, applying pressure to the mud legs.

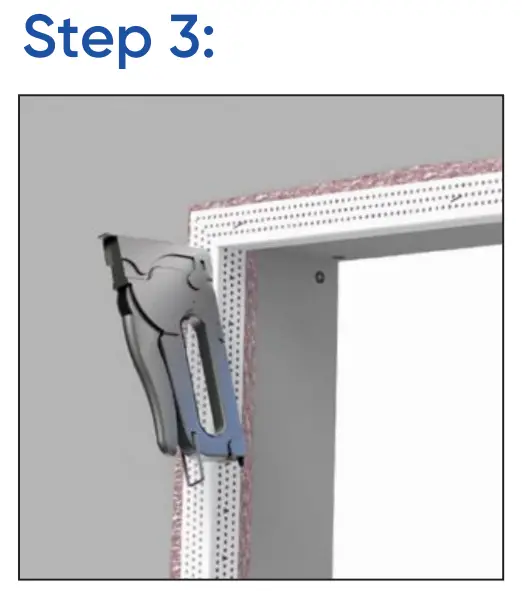

Step 3:
Staple every 6”-8” using ½” staples.

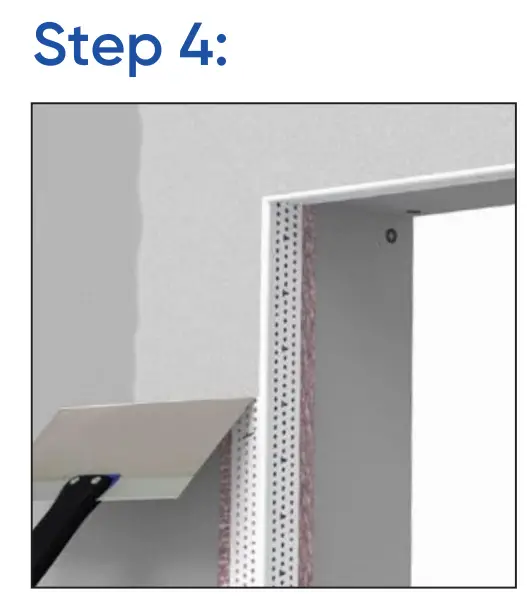

Step 4:
Finish with drywall compound.
