230 Exit Device Trim
Owner’s Manual

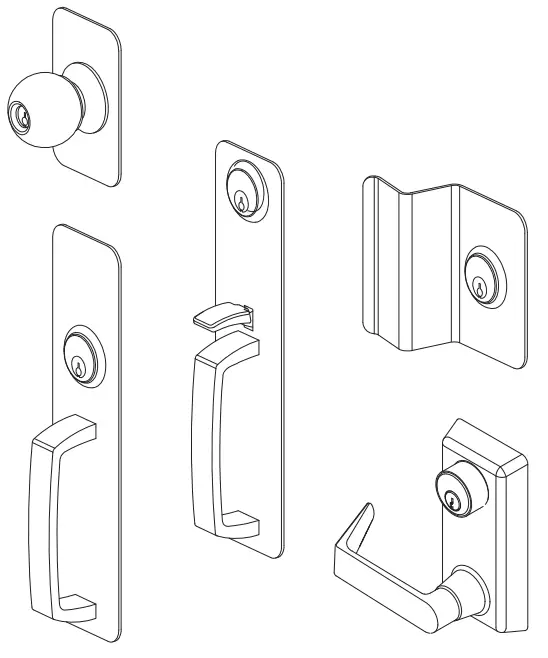

110, 210, & 230
Series Trim
Service manual
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 110, 210, and 230 Series Trim.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the
best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division
Allegion
2720 Tobey Drive
Indianapolis, Indiana 46219
Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale.
Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
110, 210, 230 SERIES TRIM FINISHES
| U.S. Number | BHMA Number | Description |
| – – – – | 526 * | Powder-Coated Chrome |
| US10B | 613 ** | Satin Bronze – Oil Rubbed |
| US19 | 622 | Powder-Coated Matte Black |
* 526 finish not available for 210K/210K-BE trims
| U.S. Number | BHMA Number | Description |
| US26D | 626 ** | Satin Chrome |
| SP28 | 689 | Powder-Coated Aluminum |
| SP313 | 695 | Powder-Coated Dark Bronze |
** 613/626 finishes available for NL Cylinders only

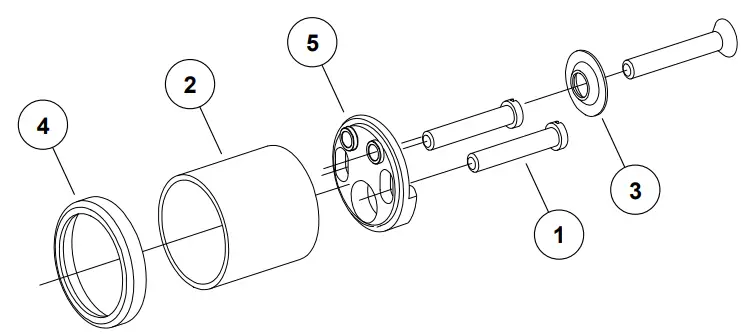

110NL-MD PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 1 | 959055 | 550/555/556 Special Cylinder Screw – 1-3/4” Door | 1 | |
| 1 | 959056 | 550/555/556 Special Cylinder Screw – 2-1/4” Door | 1 | |
| 2 | 960060 | 110NL Cylinder Spacer Collar | 1 | |
| 3 | 961180 | 110NL Cylinder Assembly Countersink Washer | 1 | |
| 4 | 967291 | 110NL-MD Cylinder Collar | 1 | X |
| 5 | 971593 | 110NL Cylinder Assembly Cylinder Disc | 1 |
X in “Finish” column designates finished item; specify finish when ordering.

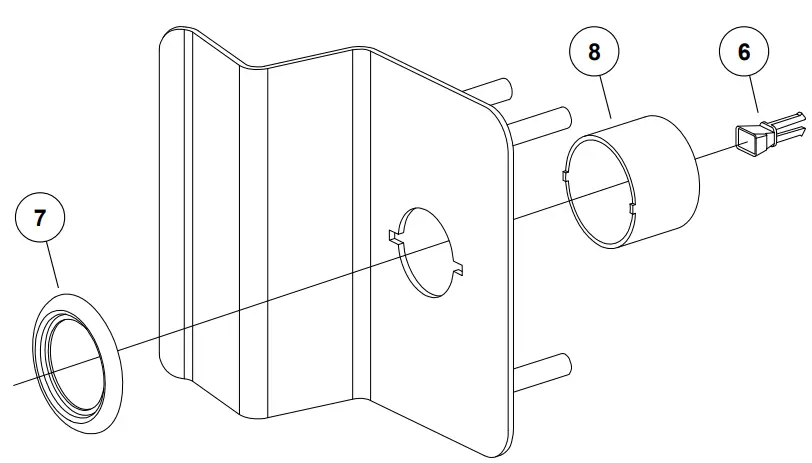

210NL PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 6 | 050156 | Tailpiece Guide Lead Kit | 10 | |
| 7 | 965226 | Cylinder Collar | 1 | X |
| 8 | 968201 | 210/230 Cylinder Retaining Cup | 1 |
X in “Finish” column designates finished item; specify finish when ordering.

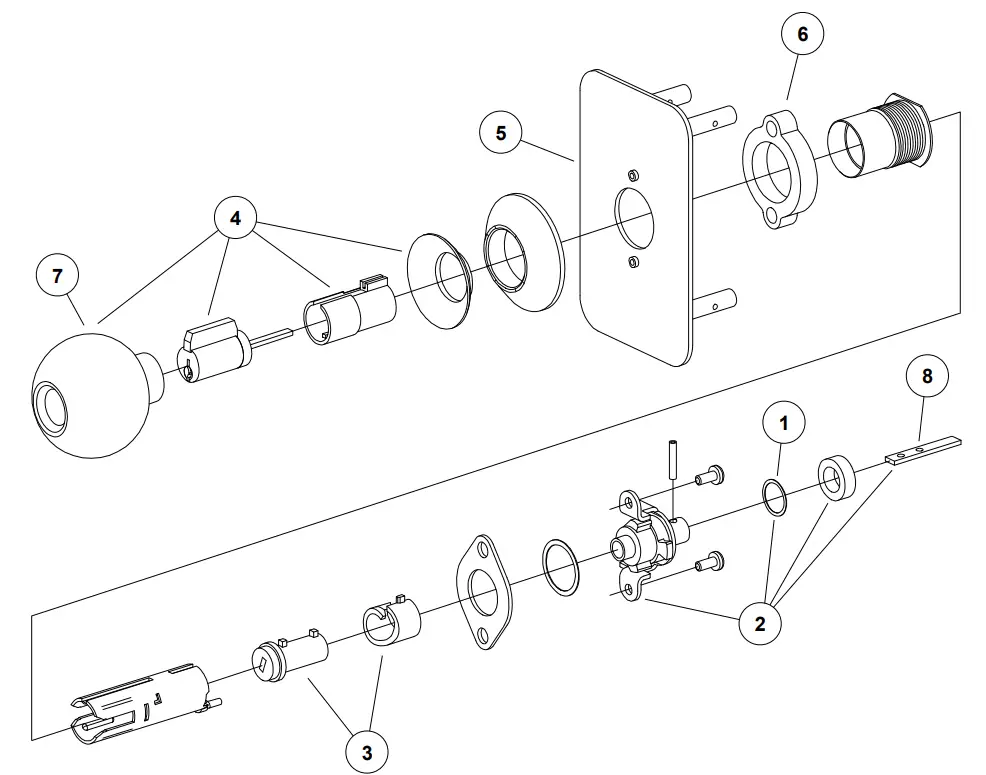

210K, 210K-BE PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 1 | 090103 | 210K Wave Spring Washer Pkg. | 10 | |
| 2 | 109871 | 210K Bracket & Booster Assembly | 1 | |
| 3 | 109872 | 210K Spiral Cam Sub-Assembly | 1 | |
| 4 | 109873 | 210K Cylinder Knob Sub-Assembly | 1 | X * |
| 5 | 109879 | 210K Trim Sub-Assembly | 1 | X * |
| 6 | 969140 | 210K Knob Spacer | 1 | |
| 7 | 969157 | 210K Knob | 1 | X * |
| 7 | 969352 | 210K-BE Knob | 1 | X * |
| 8 | 970979 | 210K/L Spindle Shaft | 1 |
X in “Finish” column designates finished item; specify finish when ordering.
* 526 finish not available for 210K/210K-BE trims

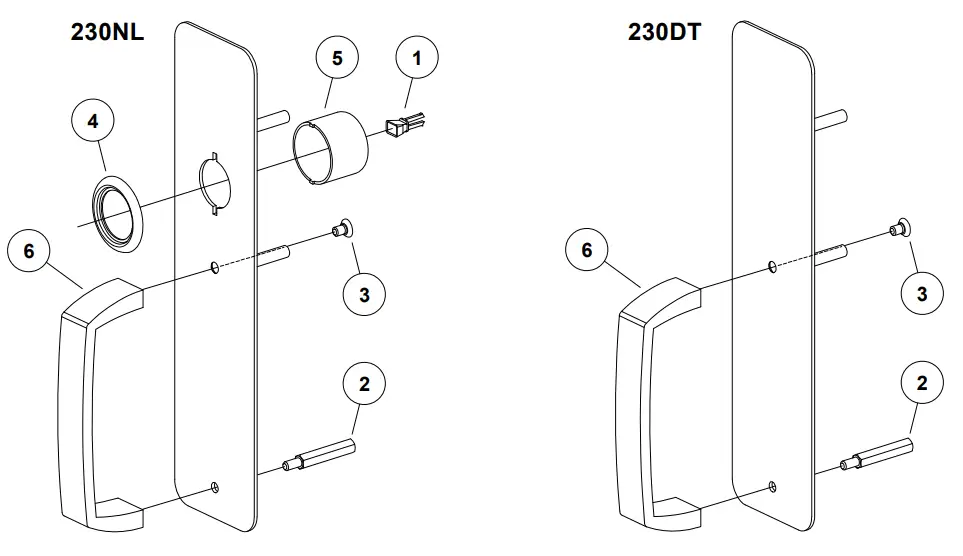

230NL, 230DT PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 050140 | 230DT x 330/350 Screw Pkg. 1-3/4” Door | X | ||
| #12 Countersink Washer | 1 | |||
| 12-24 x 3/4” OPHMS | 1 | |||
| #10 Countersink Washer | 4 | |||
| 10-24 x 3/4” OPHMS | 4 | |||
| 050141 | 230DT x 330/350 Screw Pkg. 1-3/4” Door | X | ||
| #12 Countersink Washer | 1 | |||
| 12-24 x 1-1/4” OPHMS | 1 | |||
| #10 Countersink Washer | 4 | |||
| 10-24 x 1-1/4” OPHMS | 4 | |||
| 1 | 050156 | Tailpiece Guide Lead Kit | 10 | |
| 2 | 956760 | Hex Stud | 1 | |
| 3 | 963579 | 12-24 x 3/8” UFPHMS | 1 | |
| 4 | 965226 | Cylinder Collar | 1 | X |
| 5 | 968201 | 210/230 Cylinder Retaining Cup | 1 | |
| 6 | 969925 | 230 Pull Grip | 1 | X |
X in “Finish” column designates finished item; specify finish when ordering.

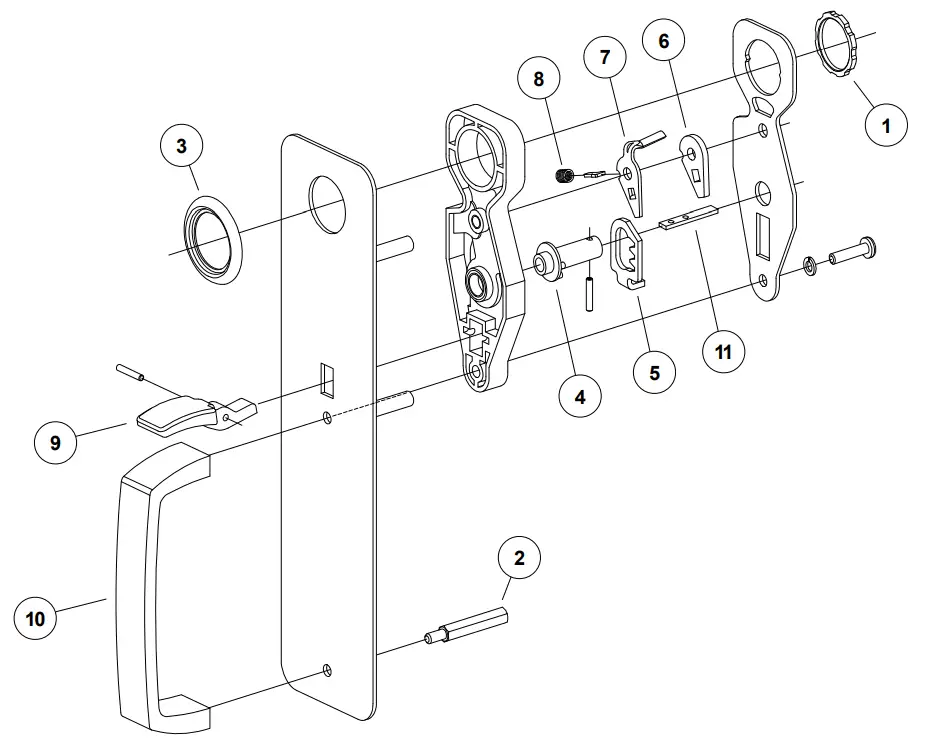

230TP PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 1 | 050526 | 230L Cylinder Locknut | 1 | |
| 2 | 956760 | Hex Stud | 1 | |
| 3 | 965226 | Cylinder Collar | 1 | X |
| 4 | 969903 | 230TP Cam | 1 | |
| 5 | 969904 | 230TP Slider | 1 | |
| 6 | 969906 | 230TP Locking Cam | 1 | |
| 7 | 969908 | 230TP Locking Cam Latch | 1 | |
| 8 | 969909 | 230TPCompression Spring | 1 | |
| 9 | 969910 | 230TP Thumbpiece | 1 | X |
| 10 | 969925 | 230 Pull Grip | 1 | X |
| 11 | 970979 | 210K/L Spindle Shaft | 1 |
X in “Finish” column designates finished item; specify finish when ordering.

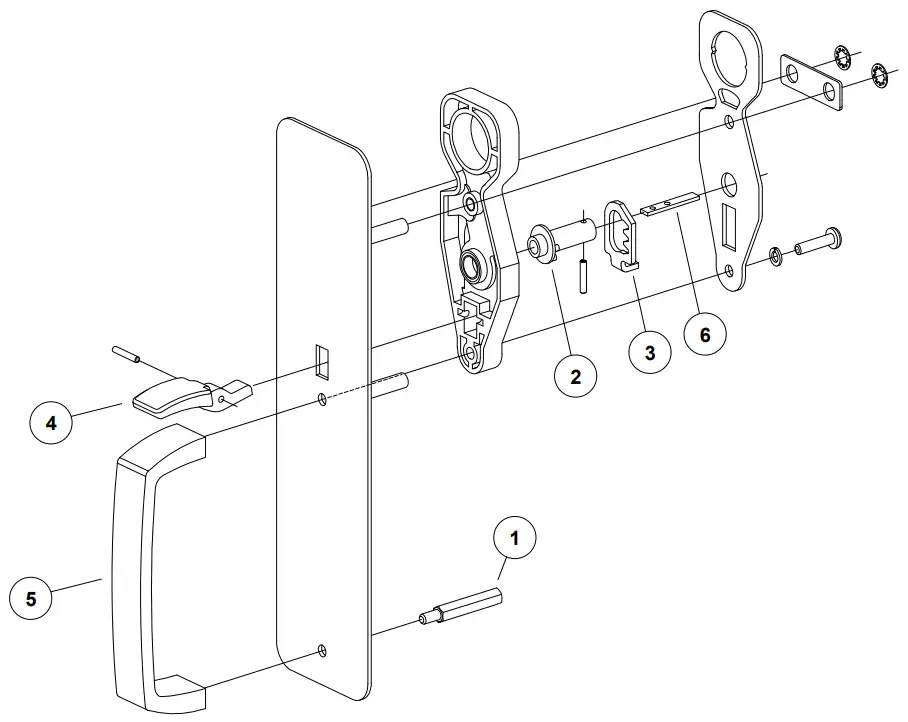

230TP-BE PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 1 | 956760 | Hex Stud | 1 | |
| 2 | 969903 | 230TP Cam | 1 | |
| 3 | 969904 | 230TP Slider | 1 | |
| 4 | 969910 | 230TP Thumbpiece | 1 | X |
| 5 | 969925 | 230 Pull Grip | 1 | X |
| 6 | 970979 | 210K/L Spindle Shaft | 1 |
X in “Finish” column designates finished item; specify finish when ordering.

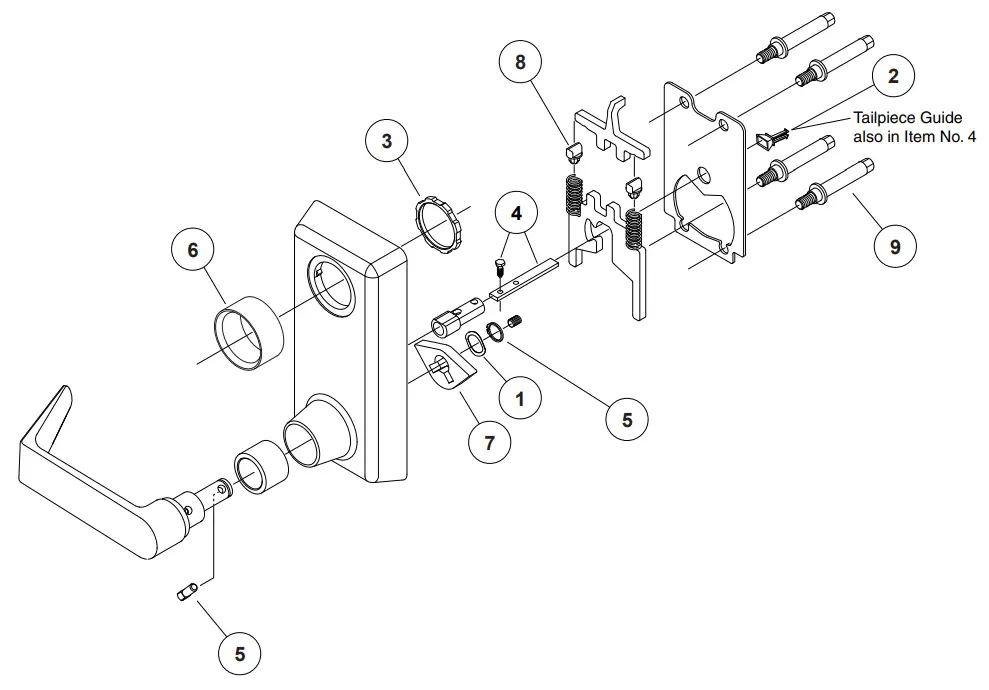

230L PARTS
| Item No. | Part No. | Description | Quantity | Finish |
| 1 | 090103 | Wave Spring Washer Package | 10 | |
| 2 | 050156 | Tailpiece Guide Lead Kit | 10 | |
| 3 | 050526 | 230L Cylinder Locknut | 1 | |
| 4 | 900894 | 230L Tailpiece Auxiliary | ||
| Tailpiece Guide | 1 | |||
| Pine Tree Clip | 1 | |||
| Tailpiece | 1 | |||
| 5 | 050611 | 230L Retaining Ring and Shear Pin * | 1 | |
| 6 | 971249 | 230L Cylinder Collar | 1 | |
| 7 | 050813 | 230L Lever Cam * | 1 | |
| 8 | 971497 | 230L Locking Plunger | 1 | |
| 9 | 971245 | 230L Stud | 1 |
X in “Finish” column designates finished item; specify finish when ordering.
For 230L trim shipped after 3/3/14. If trim is older, replace complete 230L trim.
