HAU8000 Series 50 LED Backlit LCD TV
User Guide

Contents hide

1 List of Parts

2 Installing the LED TV Stand

3 The Connection Panel

4 Wall Mount Kit Specifications (VESA)

5 Specifications

6 Licences

7 Suffix: Parental Rating – Thailand only

8 Documents / Resources

8.1 References

9 Related Posts

List of Parts

The provided accessories may vary depending on the model.

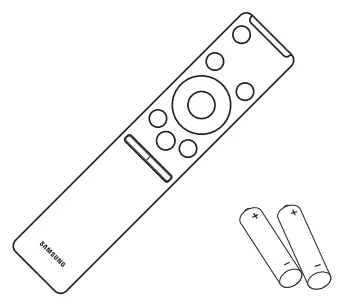

Remote Control & Batteries (AA x 2)

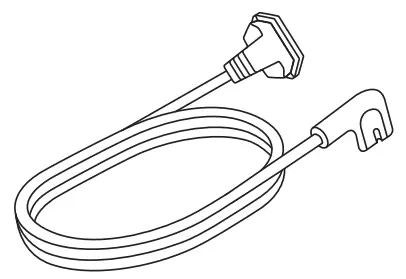

Power Cable
Warranty Card/Quick Setup Guide/Regulatory Guide
(Not available in some locations)

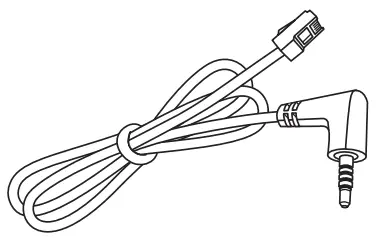

Data Cable
(Not available in some locations)

Installing the LED TV Stand

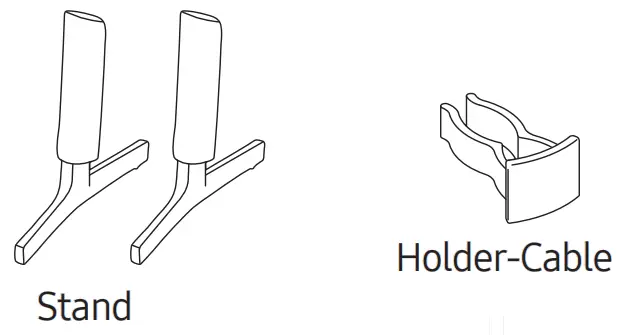

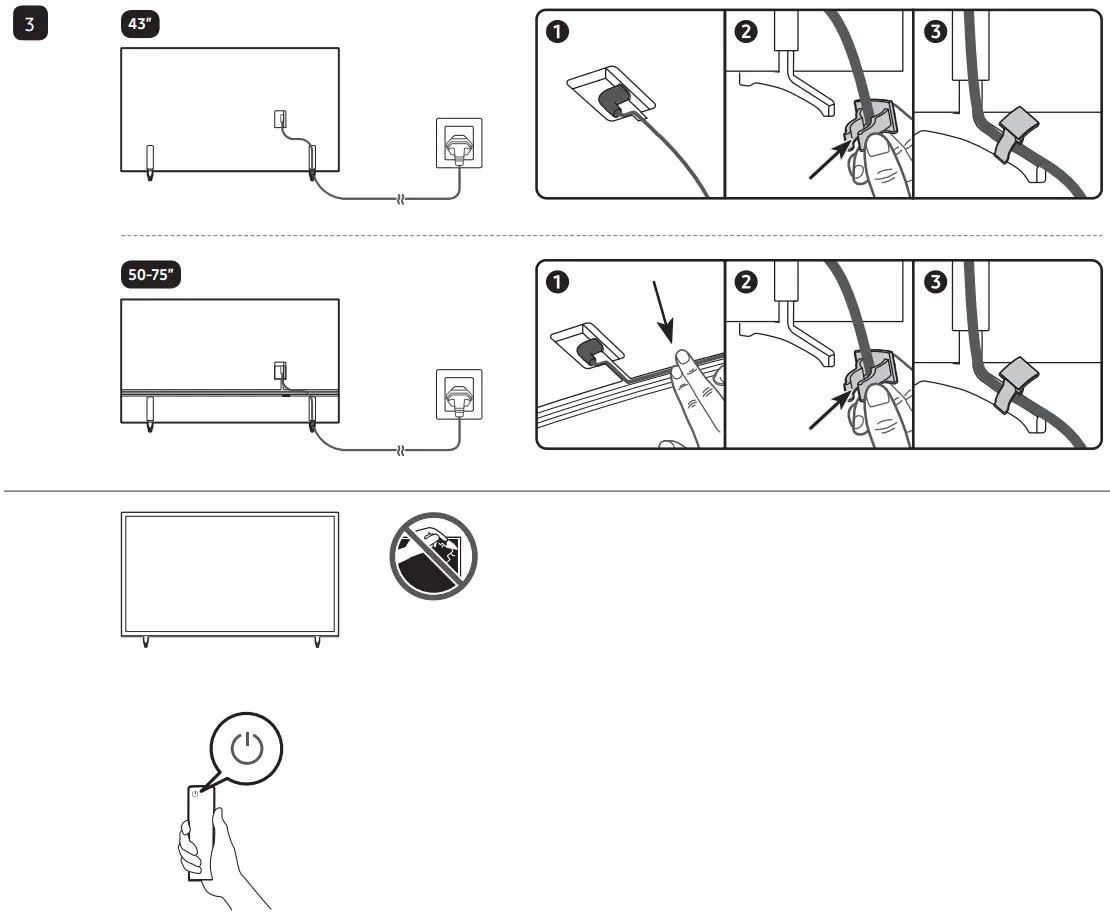

Assembling the Stand and Components
When installing the stand, use the provided components and parts.

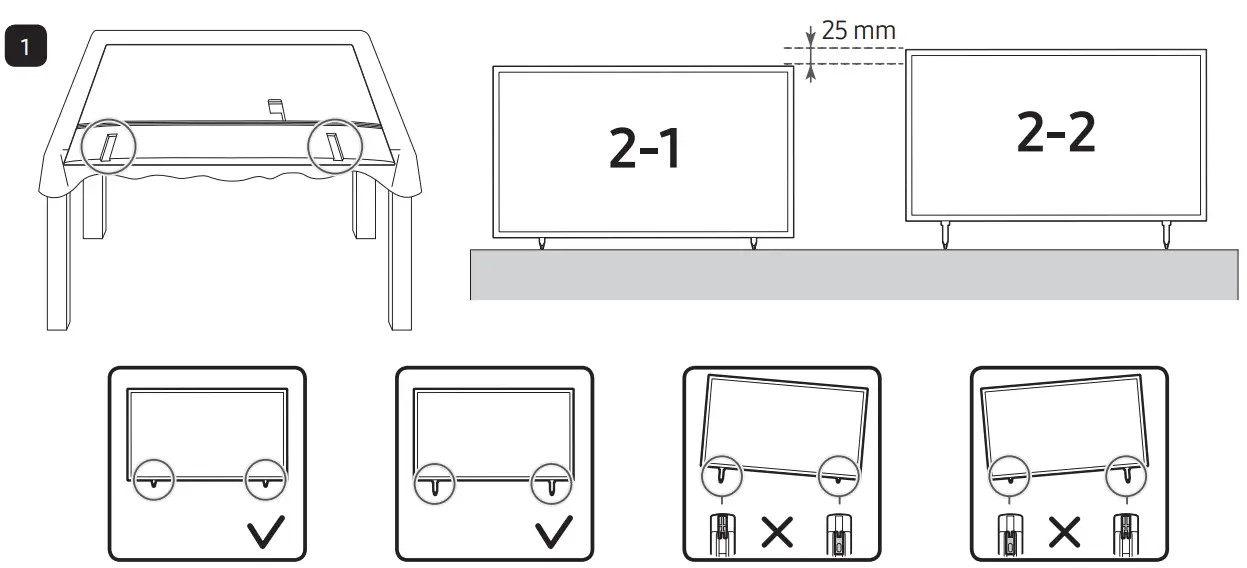

Place a soft cloth over the table to protect the TV, and then place the TV so that its screen faces down toward the table surface.

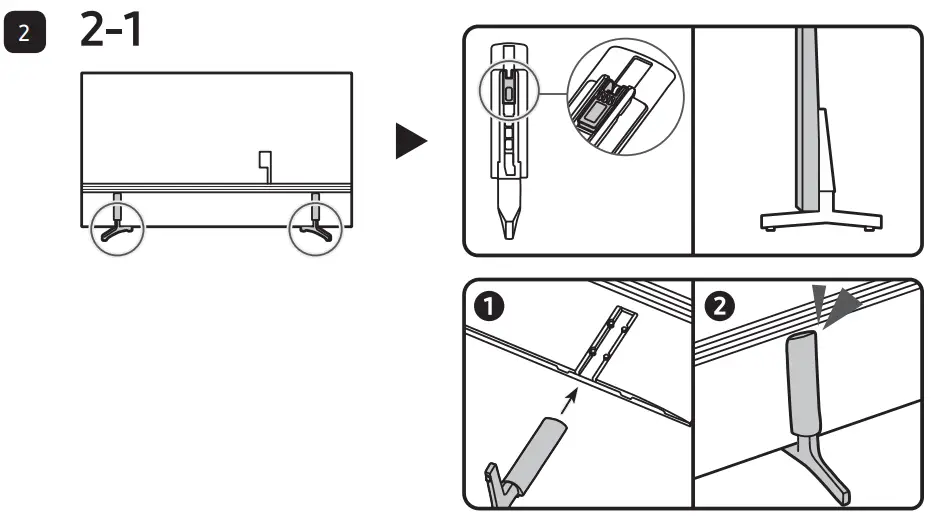

Insert the Stands into the slot on the bottom of the TV.

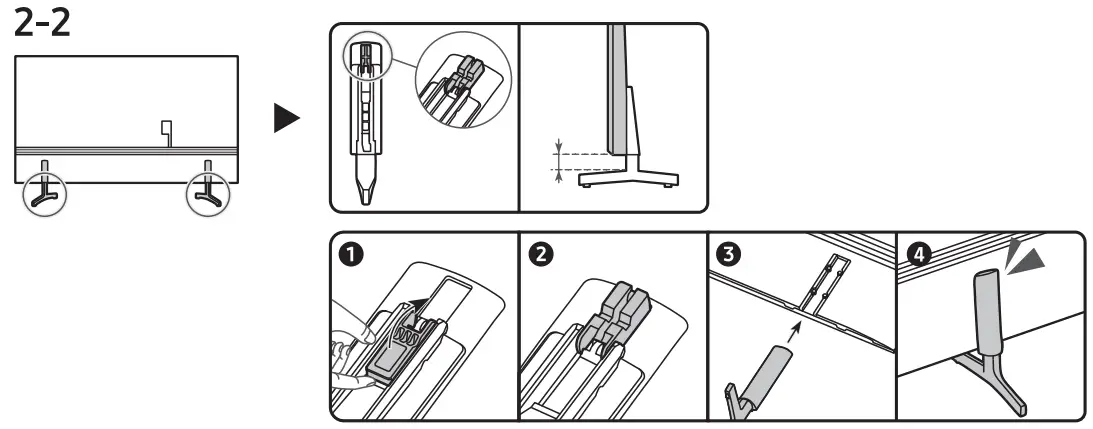

Slide and assemble it to the end line in the direction of arrow.

NOTE

Make sure to distinguish between the front and back of each component when assembling them.
Make sure that at least two persons lift and move the TV.

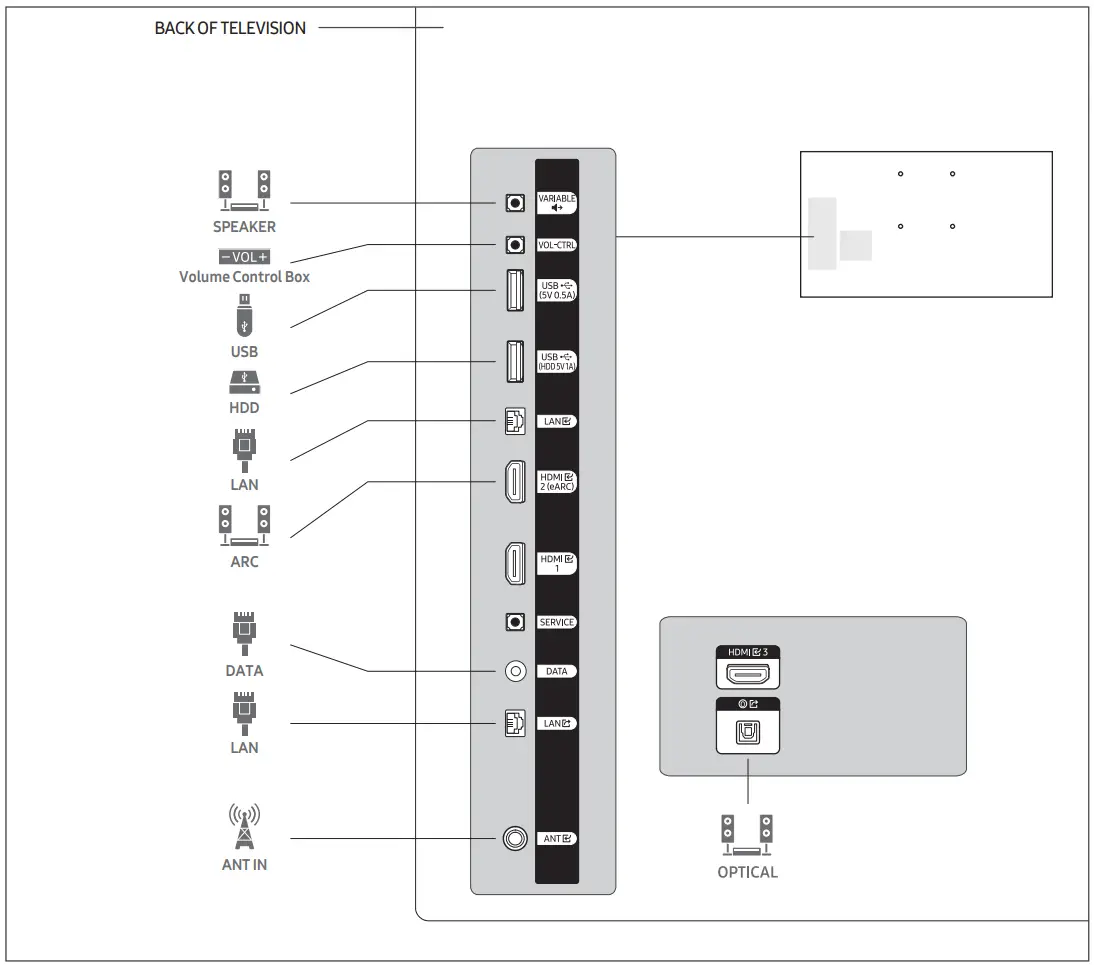

The Connection Panel

Wall Mount Kit Specifications (VESA)

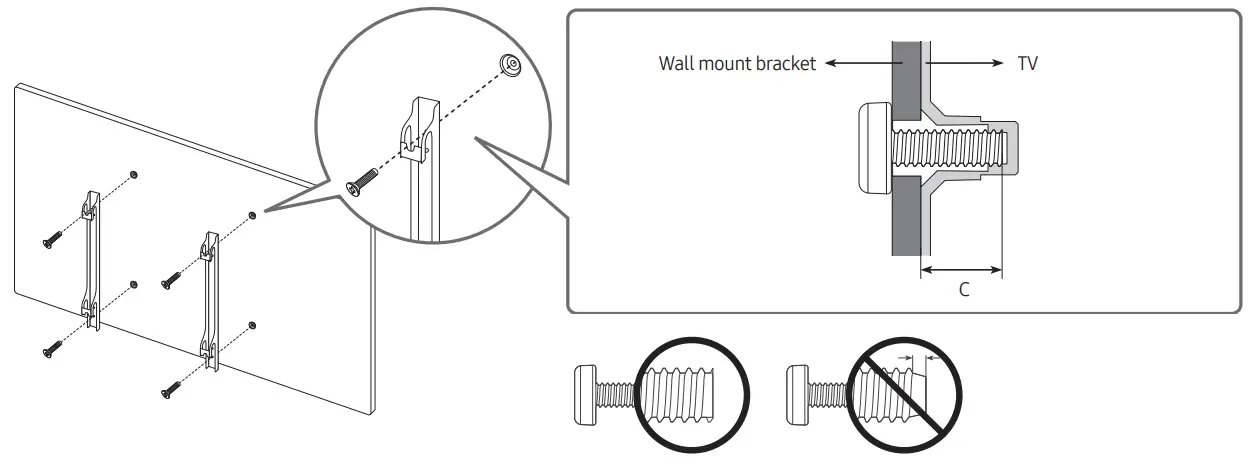

Install your wall mount on a solid wall, perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installing on a ceiling or slanted wall, TV may fall and result in severe personal injury.

Standard dimensions for wall mount kits are shown in the table below.
Samsung wall mount kits contain a detailed installation manual. All parts necessary for assembly are provided.
Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.
Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the consumer fails to follow the product installation instructions.
Do not mount the TV at more than a 15 degree tilt.
Always have two people mount the TV onto a wall.

The Product shape may differ depending on the model.

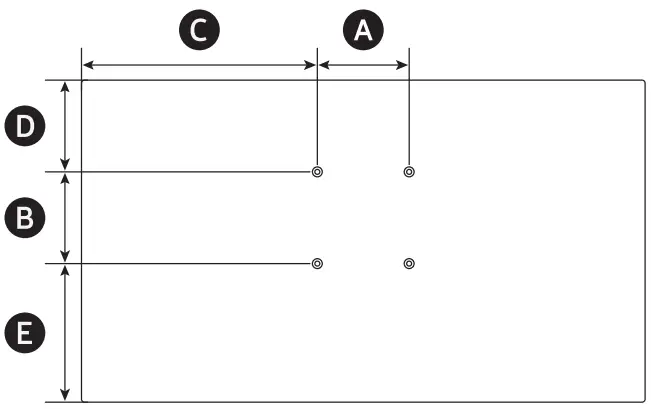

SAMSUNG HAU8000 Series 50 LED Backlit LCD TV - screw hole

TV size in inches	VESA screw hole specs *(A B) in millimetres**	C (mm)	D (mm)	E (mm)	C (mm)	Standard Screw	Quantity
43		382.8	192.2	167.7	11-13	M8	4
50	200 x 200	459.2	207.4	237.
55		516.1	239.3	269.5
65	400 x 300	525.5	264.0	267.9
75	400 x 400	638.4	259.6	300.7

Specifications

Model Name	HG43AU800A	HG50AU800A
Display Resolution	3840 x 2160	3840 x 2160
Screen Size Measured Diagonally	108 cm	125 cm
Sound (Output)	20 W	20 W
Dimensions (W x H x D) Body With stand	96.55 x 55.99 x 2.57 cm 96.55 x 5990 x 20.56 cm	111.83 x 64.46 x 2.57 cm 111.83 x 68.36 x 22.63 cm
Weight Without Stand With Stand	8.4 kg 8.7 kg	11.5 kg 11.8 kg
Model Name	HG55AU800A	HG65AU800A
Display Resolution	3840 x 2160	3840 x 2160
Screen Size Measured Diagonally	138 cm	163 cm
Sound (Output)	20 W	20 W
Dimensions (Wx H x D) Body With stand	123.21 x 70.88 x 2.57 cm 123.21 x 74.78 x 22.63 cm	145.09 x 8319 x 2.57 cm 145.09 x 86.96 x 27.94 cm
Weight Without Stand With Stand	15.5 kg 15.8 kg	20.9 kg 21.4 kg
Model Name	HG75AU800A
Display Resolution	3840 x 2160
Screen Size Measured Diagonally	189 cm
Sound (Output)	20 W
Dimensions (Wx H x D) Body With stand	167.67 x 96.03 x 2.66 cm 167.67 x 100.55 x 3319 cm
Weight Without Stand With Stand	31.4 kg 32.0 kg

Environmental Considerations

Operating Temperature	50 °F to 104 °F (10 °C to 40 °C)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-4 °F to 113 °F (-20 °C to 45 °C)
Storage Humidity	5 % to 95 %, non-condensing

Singapore, Saudi Arabia Only: HG43AU800AW/HG50AU800AW/HG55AU800AW/HG65AU800AW/HG75AU800AW/HG43AU800AU/HG50AU800AU/ HG55AU800AU/HG65AU800AU/HG75AU800AU
This device is a Class B digital apparatus.
The design and specifications are subject to change without prior notice.
For information about the power supply, and more information about power consumption, refer to the label-rating attached to the product.
You can see the label-rating attached to the back of the TV. (For some models, you can see the label-rating inside the cover terminal.)
Your TV and its accessories may look different than the product images presented in this manual, depending on the model.
All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions before installing your TV. Not responsible for typographical or printed errors.
