QUICK SETUP GUIDE

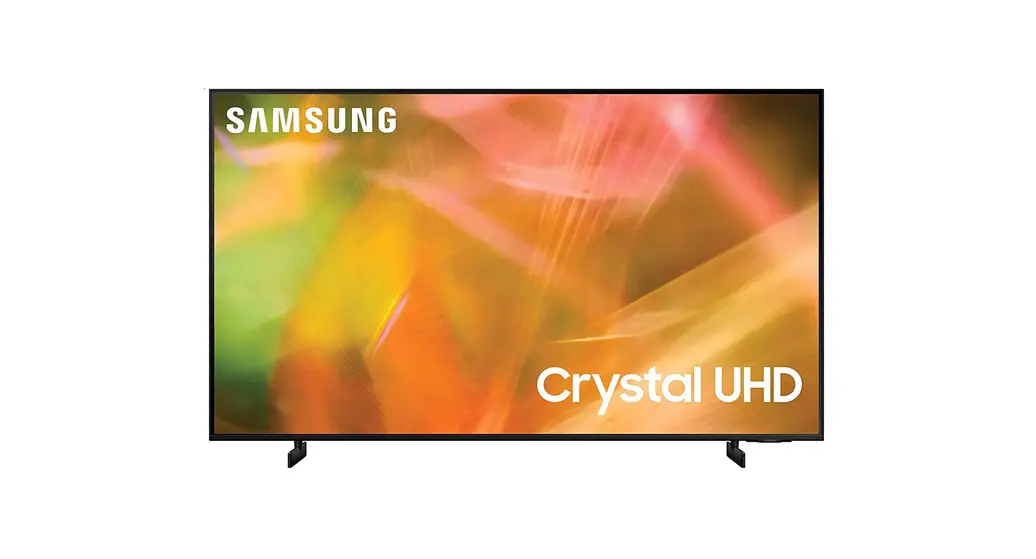

UN43AU8 43 Inch Classic Crystal UHD Smart TV
| o | o | 0 | 0 | 0 | 0 | o | 0 | o | |

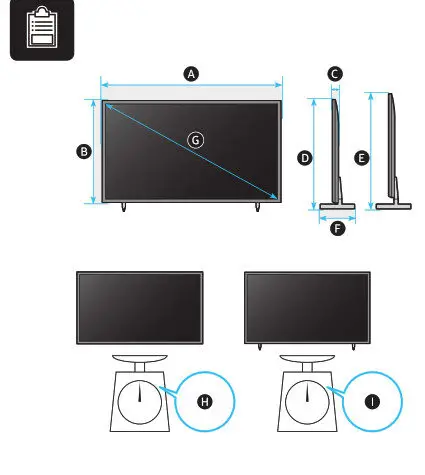

| UN43AU8*** | 38.0 Inches (965.5 mm) | 22.0 Inches (559.8 mm) | 1.0 Inches (25.7 mm) | 23.6 Inches (6001 mm) | 24.6 Inches (625.1 mm) | 77 Inches (1951 mm) | 42 5 Inches. | 18.5 lbs (8.4 kg) | 19.6 lbs (8.9 kg) |
| UN50AU8*** | 44.0 Inches (1118.3 mm) | 25.4 Inches (644.5 mm) | 1.0 Inches (25.7 mm) | 27.0 0 Inches (684.6 mm) | 28.0 Inches (709.6 mm) | 8.9Inches (226.6 mm) | 49.5 Inches | 25.4 lbs (11.5 kg) | 26.9 lbs (12.2 kg) |
| UN55AU8*** | 48.5 Inches (1232.1 mm) | 27.9 9 Inches (708.8 mm) | 1.0 Inches (25.7 mm) | 29.5 Inches (748.8 mm) | 30.5 Inches (773.8 mm) | 8.9 Inches (226.6 mm) | 54.6 Inches | 34.2 lbs (15.5 kg) | 35.7 lbs (16.2 kg) |
| UN60AU8*** | 53.3 Inches (1353.0 mm) | 30.6Inches (776.8 mm) | 1.0 Inches (25.7 mm) | 32.3 Inches (819.3 mm) | 336 Inches (844.3 mm) | 111 Inches (281.8 mm) | 601Inches | 41.0 lbs (18.6 kg) | 43.0 lbs (19.5 kg) |
| UN65AU8*** | 571 Inches (1450.9 mm) | 32.7 Inches (831.8 mm) | 1.0 Inches (257 mm) | 34.4 Inches (874.3 mm) | 35.4 Inches (899.3 mm) | 111 Inches (281.8 mm) | 64.5 Inches | 461 lbs (20.9 kg) | 481 lbs (21.8 kg) |
| UN70AU8*** | 62.0 Inches (1575.9 mm) | 34.6 Inches (8777 mm) | 1.0 Inches (26.6 mm) | 36.2 Inches (920.8 mm) | 37.2 Inches (945.8 mm) | 131 Inches (332.2 mm) | 69.5 Inches | 60.4 lbs (27.4 kg) | 631 lbs (28.6 kg) |
* : 0~9, A~Z

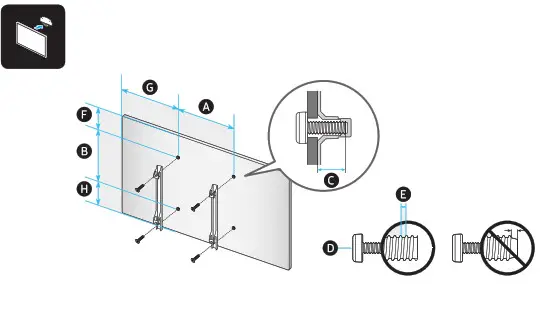

| VESA 0 x 0 (mm) | O(mm) | ex 4 | ©(mm) | O(Inches) | O(Inches) | ©(Inches) | |
| UN43AU8*** | 200 x 200 | 11-13 | M8 | 1.25 | 7.4 | 15.0 | 6.6 |
| UN50AU8*** | 8.1 | 18.0 | 9.3 | ||||
| UN55AU8*** | 9.3 | 20.2 | 10.6 | ||||
| UN60AU8*** | 400 x 300 | 8.2 | 18.7 | 10.5 | |||
| UN65AU8*** | 10.3 | 20.6 | 10.5 | ||||
| UN70AU8*** | 8.5 | 8.5 | 141 |
* : 0~9, A~Z
BN68-12049A
BN68 – 12049A – 04
Scan this QR code with your smartphone to see helpful videos.
