QUICK SETUP GUIDE
GUIDE D’INSTALLATION RAPIDE
QN75QN900AF 75 Inch Class LED Backlit LCD TV

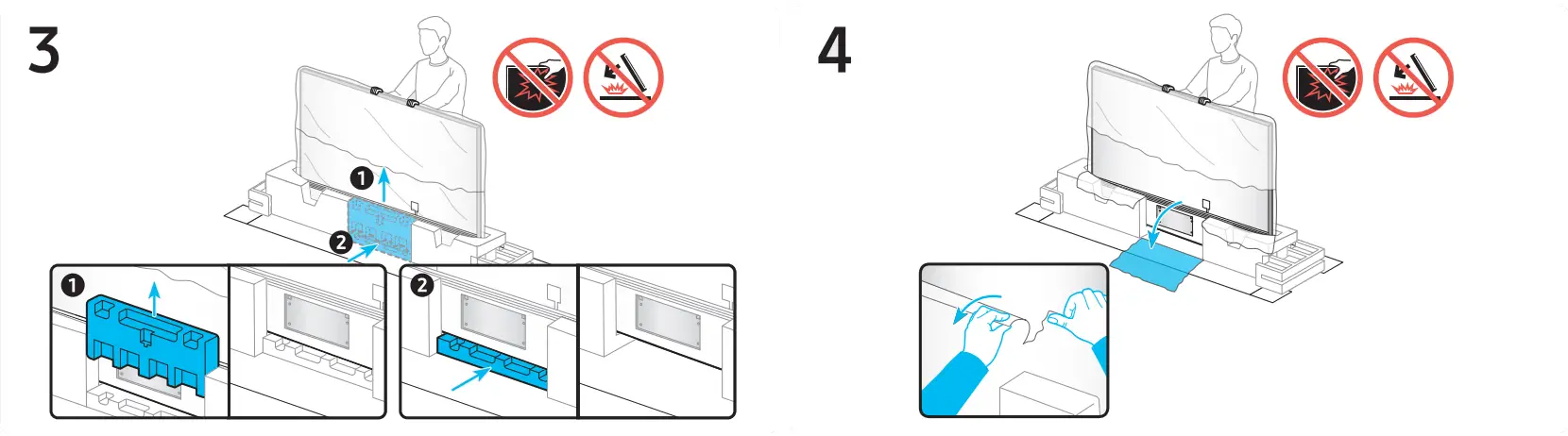

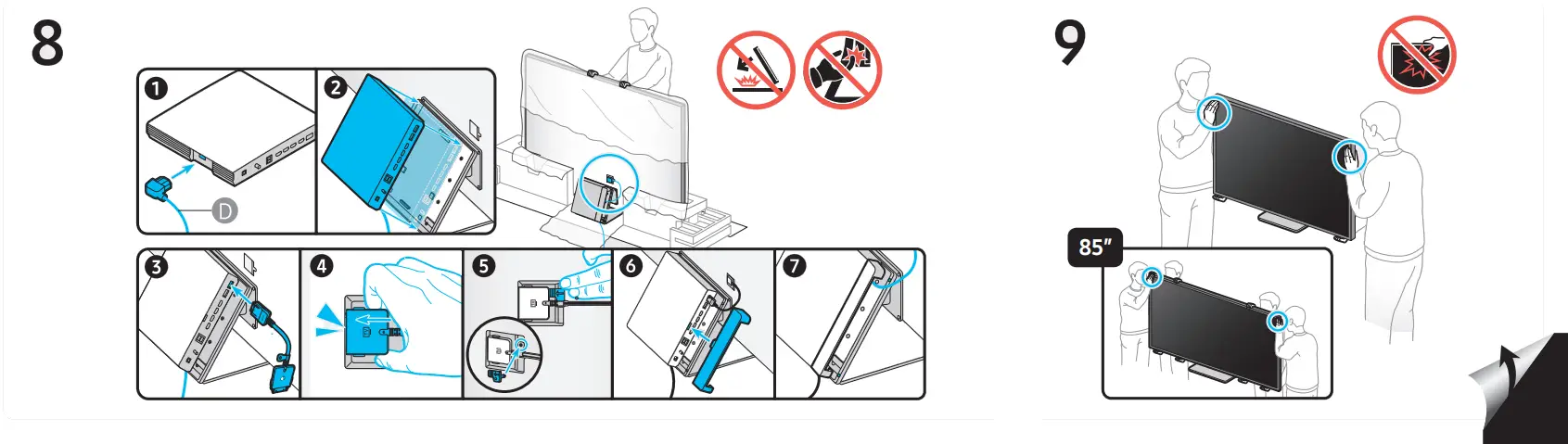

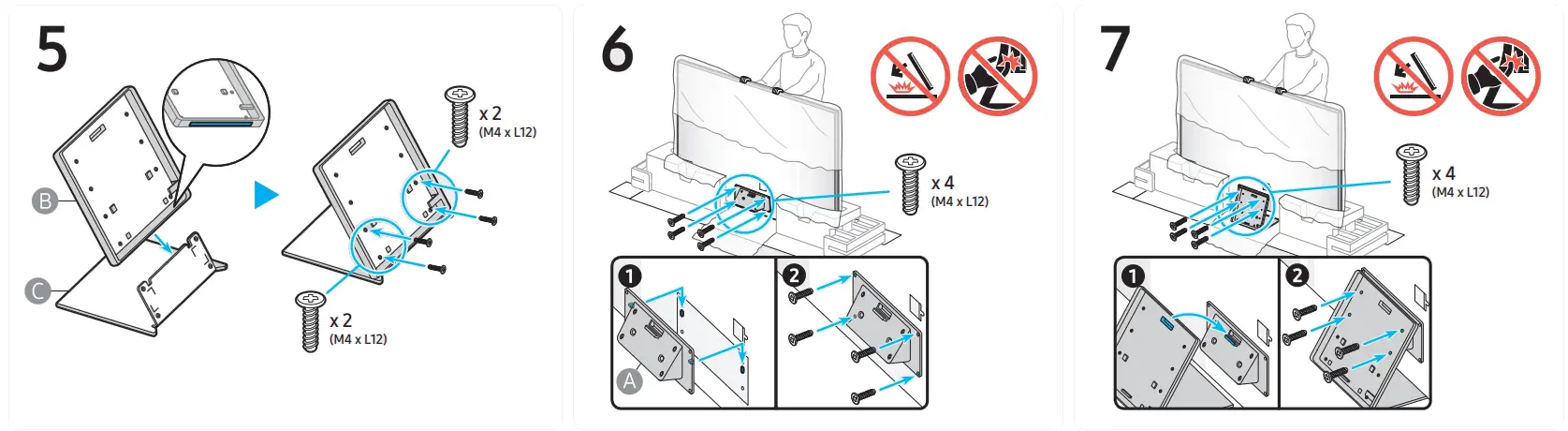

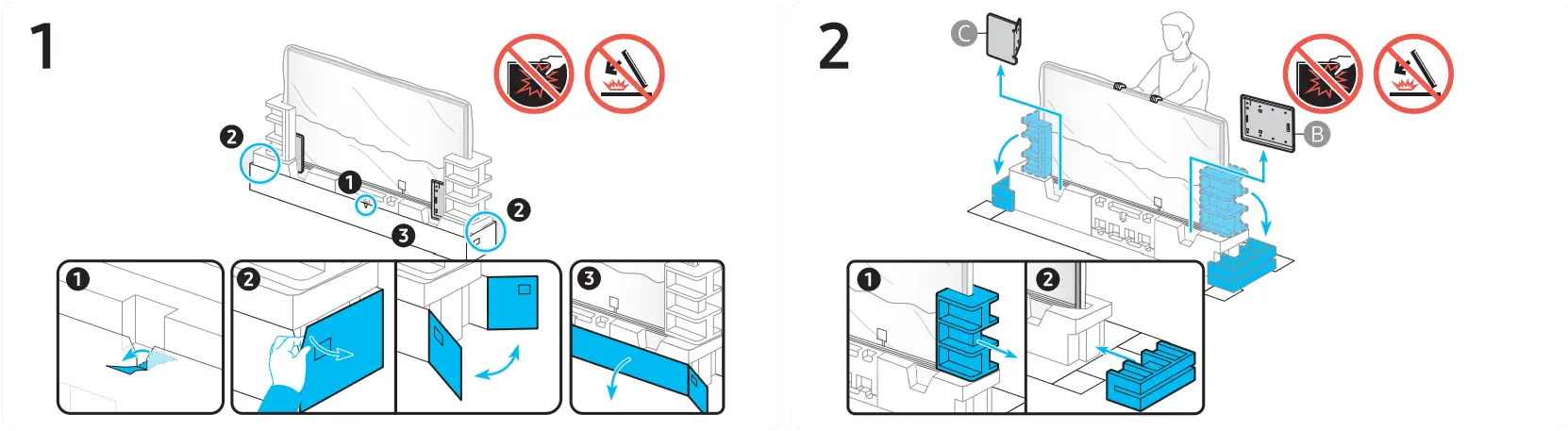

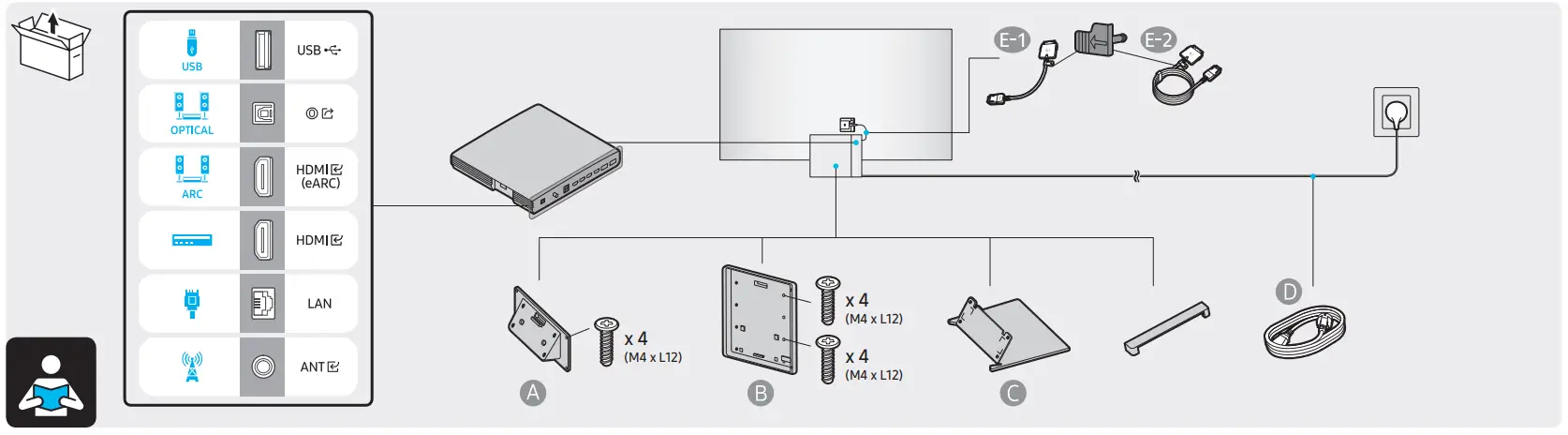

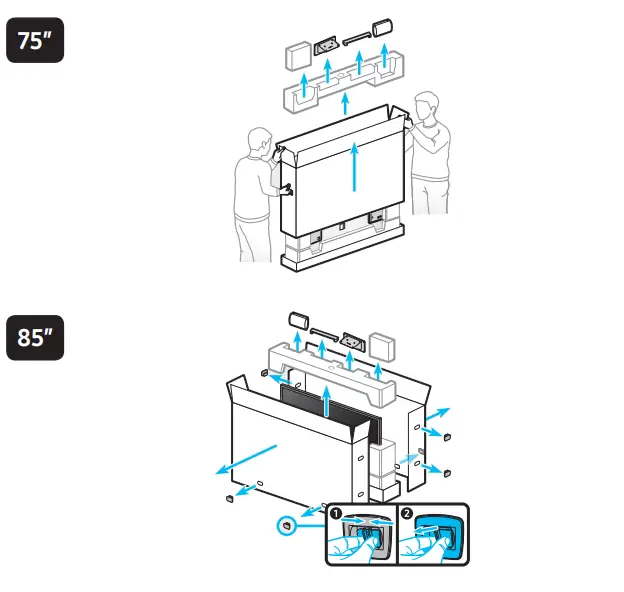

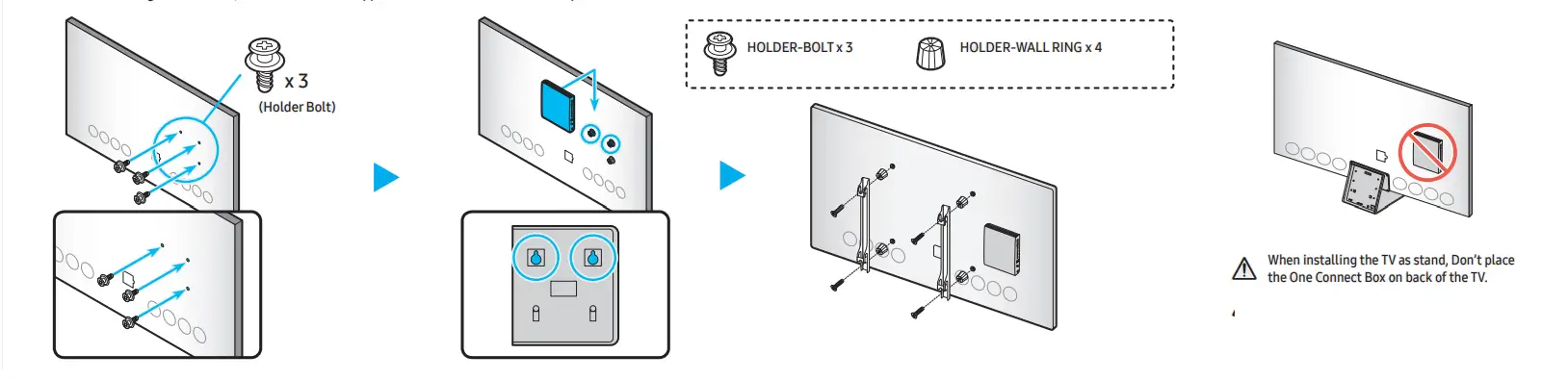

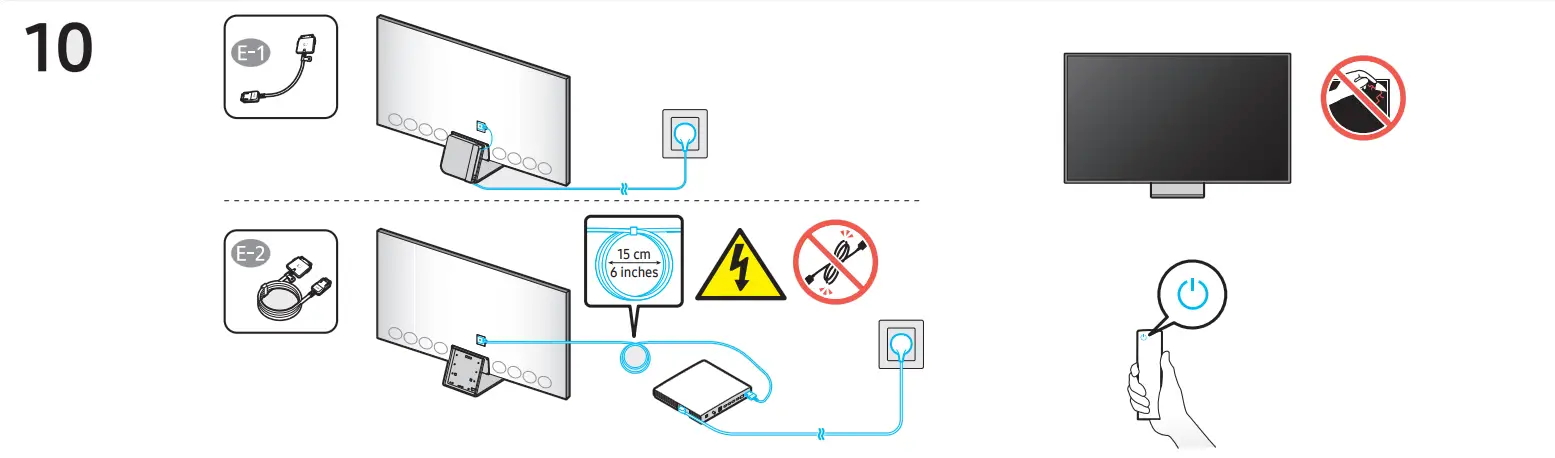

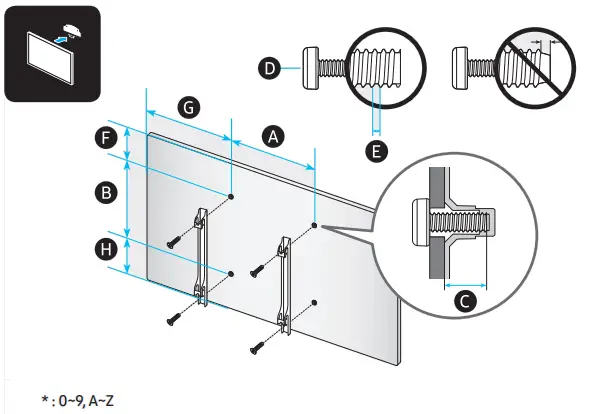

* When installing the TV as wallmount, You can place the One Connect Box as shown below.
* To install using a wall mount, be sure to use the supplied HOLDER-WALL RING.

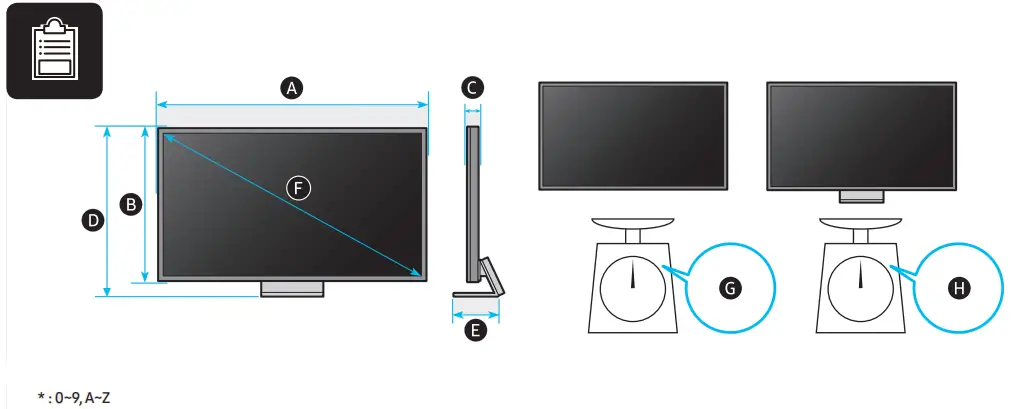

| A | B | C | D | E | F | G | H | |
| QN75QN8**A | 65.7 inches (1668.3 mm) | 37.6 inches (955.6 mm) | 0.7 inches (17.2 mm) | 40.3 inches (1022.9 mm) | 12.6 inches (320.5 mm) | 74.5 inches | 70.8 lbs (32.1 kg) | 93.0 lbs (42.2 kg) |
| QN85QN8**A | 74.5 inches (1893.4 mm) | 42.6 inches (1083.0 mm) | 0.7 inches (17.4 mm) | 45.1 inches (1145.8 mm) | 13.5 inches (343.7 mm) | 84.5 inches | 95.5 lbs (43.3 kg) | 119.7 lbs (54.3 kg) |
| QN75QN9**A | 65.1 inches (1654.8 mm) | 37.2 inches (945.6 mm) | 0.6 inches (15.4 mm) | 40.0 inches (1016.6 mm) | 12.6 inches (320.5 mm) | 74.5 inches | 68.3 lbs (31.0 kg) | 90.4 lbs (41.0 kg) |
| QN85QN9**A | 73.9 inches (1876.6 mm) | 42.2 inches (1071.5 mm) | 0.6 inches (15.4 mm) | 45.1 inches (1144.8 mm) | 13.5 inches (343.7 mm) | 84.5 inches | 95.0 lbs (43.1 kg) | 119.3 lbs (54.1 kg) |
| QN75QN8**A | QN85QN8**A | QN75QN9**A | QN85QN9**A | ||||
| VESA AxB (mm) | 400 x 400 | 600 x 400 | 400 x 400 | 600 x 400 | |||
| C(mm) | 5-6 | ||||||
| Dx 4 | M8 | ||||||
| E (mm) | 1.25 | ||||||
| F (Inches) | 8.5 | 8.5 | 8.3 | 8.3 | |||
| G (Inches) | 25.0 | 25.5 | 24.7 | 25.1 | |||
| H(Inches) | 13.1 | 18.2 | 13.0 | 18.0 | |||
