BU8000 Smart LED Display
User Guide
QUICK SETUP GUIDE
BU8000 Smart LED Display

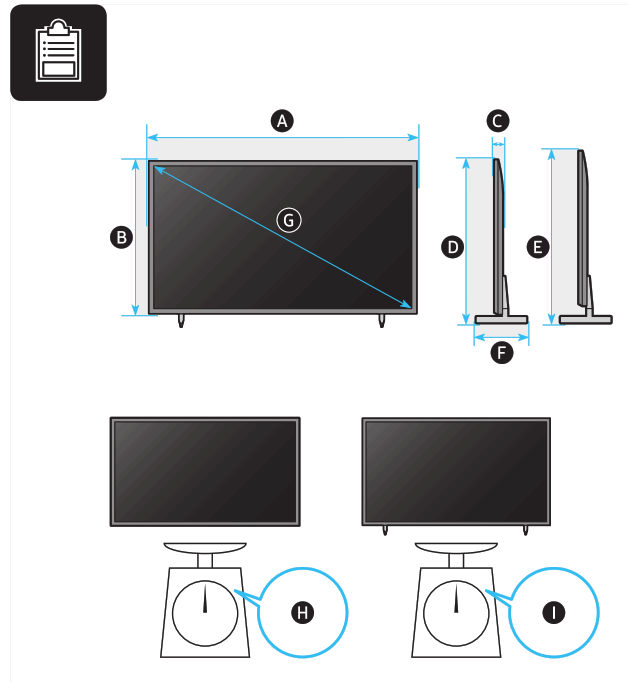

| A | B | C | D | E | F | G | H | I | |
| 75BU8*** | 66.0 inches (1676.7 mm) (167.67 cm) | 37.8 inches (960.3 mm) (96.03 cm) | 1.0 inches (26.6 mm) (2.66 cm) | 39.5 inches (1003.4 mm) (100.34 cm) | 40.5 inches (1028.4 mm) (102.84 cm) | 13.1 inches (331.9 mm) (33.19 cm) | 74.5 inches (189 cm) | 69.2 lbs (31.4 kg) | 70.5 lbs (32.0 kg) |
* : 0~9, A~Z

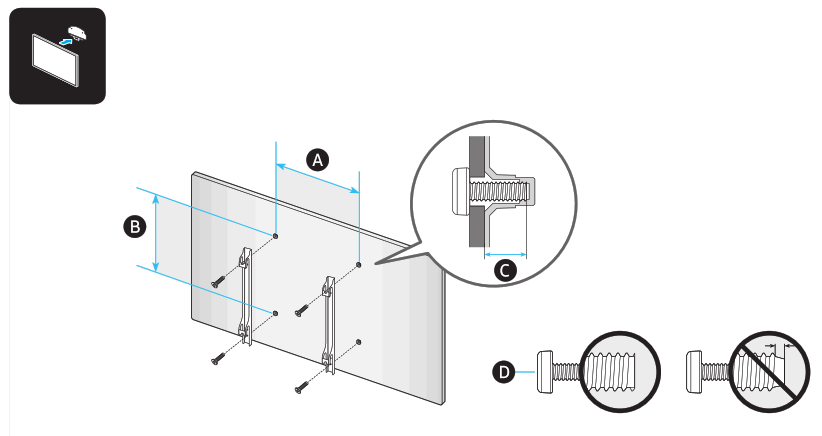

| VESA AxB (mm) | C(mm) | Dx 4 | |
| 75BU8*** | 400 x 400 | 11-13 | M8 |
* : 0~9, A~Z
BN68-15305A
