INSTRUCTION MANUAL

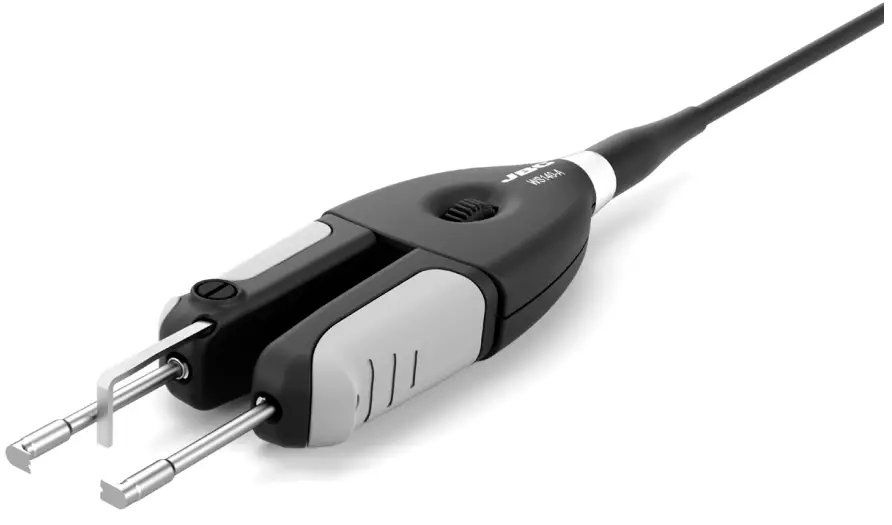

WS140
Precision High-Temperature
Wire Stipper Tweezer

This manual corresponds to the following reference:
WS140-A

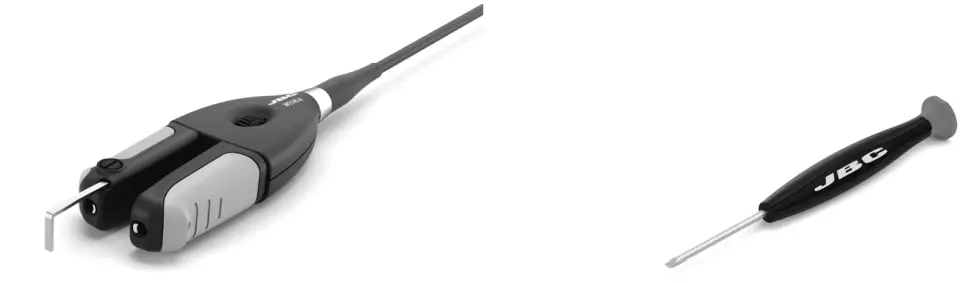

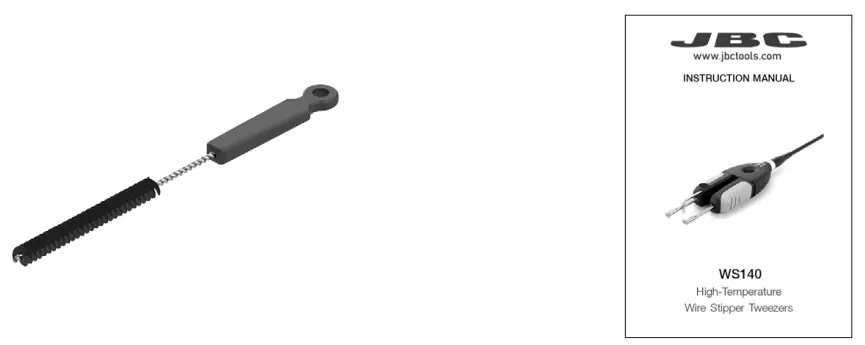

Packing List
The following items are included

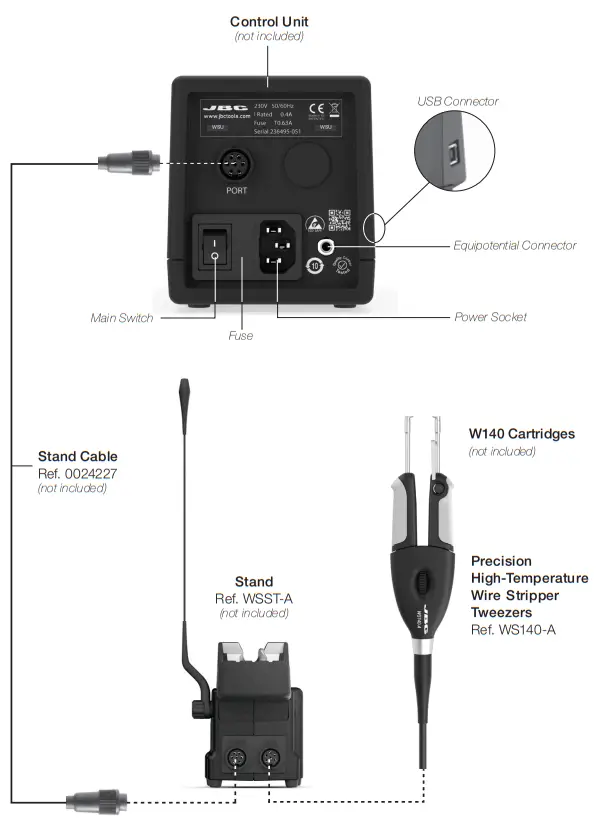

Features and Connections

Changing Cartridges

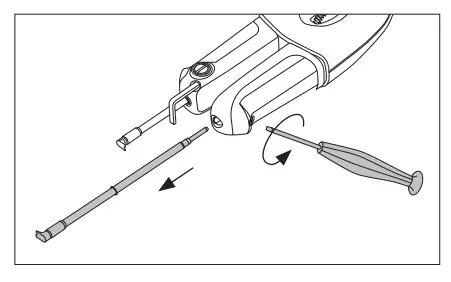

1. Removing

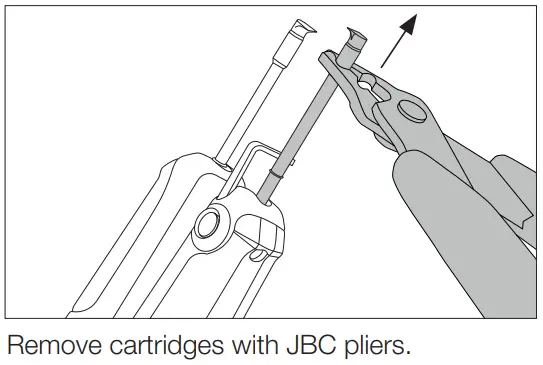

   Loosen the screws and remove the cartridges.
2. Inserting

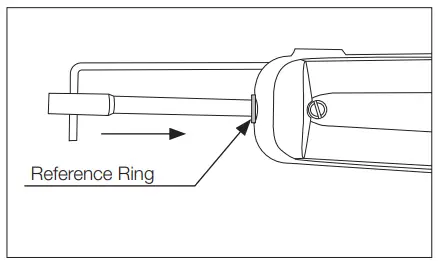

   Insert the cartridge until the reference ring touches the wire stripper. Take the ring as a reference and check that both tips match.
   Important: It is essential to insert the cartridge till the end for a good connection.
3. Positioning

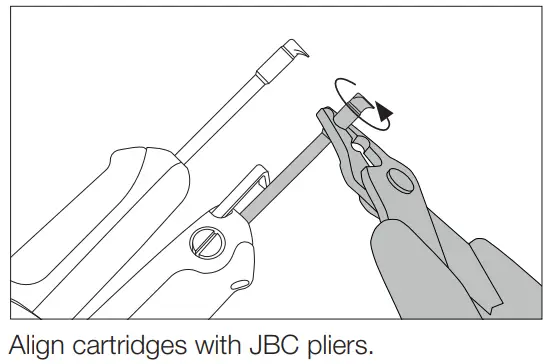

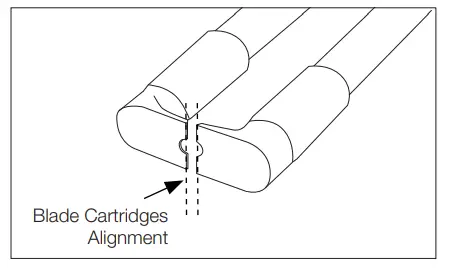

   Align the tip edges and fi x the cartridges in their working position.

3. Fixing

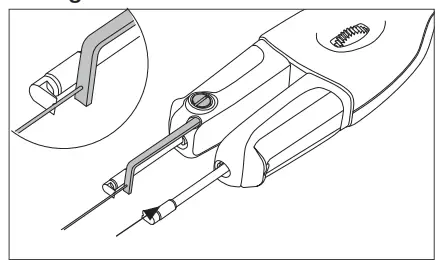

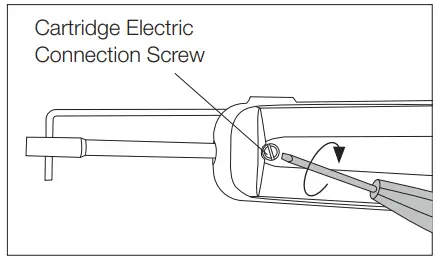

Tightening the screw.
Important: It is essential to tighten the screws for the tool to function.

Stripping a Wire

1. Adjust Arm Position

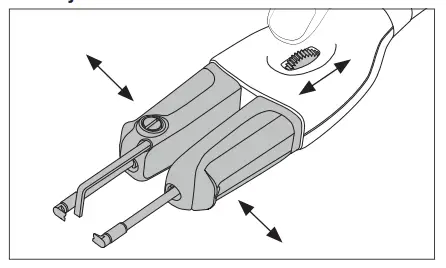

   The wheel allows adjusting the wire stripper arm position according to the wire diameter. Move the wheel backward for a wider and forward for a narrower position.
2. Align Wire
   Place the wire touching the strip gauge.
3. Close Cartridges

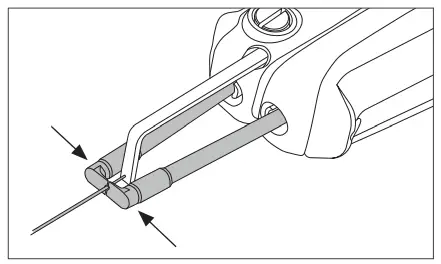

   Choose cartridges according to the wire diameter. Pinch the wire with the blades. The pinched area will be melted by heat.

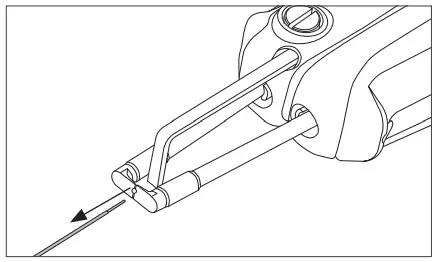

4. Remove Wir
   Pull the wire stripper toward to strip off the wire end.

Adjustable Strip Gauge

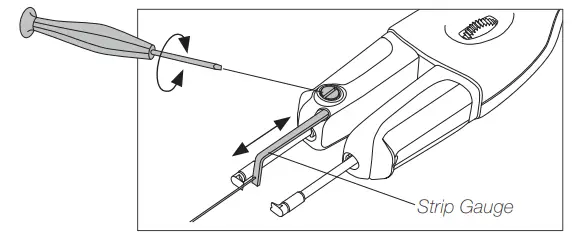

Adjust the strip gauge according to your stripping requirements and tighten the screw.

Cartridge Range

WS140-A is compatible with W140 Blade Cartridge Range. Find the model that best suits your soldering needs on www.jbctools.com

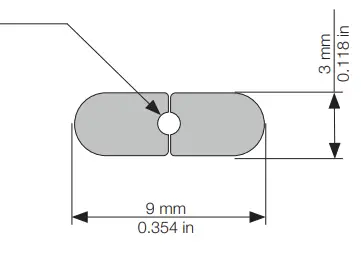

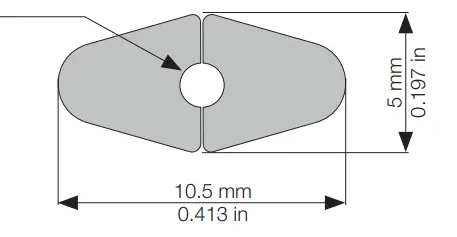

Cartridge Ref.	Tip Hole ø mm / in	AWG Solid	AWG Stranded
W14040G		40	x
W14038G		38	x
W14037G		37	x
W14036G		36	x
W14034G		34	36 (7×44)
W14032G		32	34 (7×42)
W14030G		30	32 (19×44)
W14028G	0,32 / 0,0126	28	30 (7×38)
			30 (19×42)
W14026G	0,40 / 0,0157	26	28 (19×40)
			27 (7×35)
W14024G	0,51 / 0,0201	24	26 (19×38)
			26 (10×36)

Cartridge Ref.	Tip Hole ø mm / in	AWG Solid	AWG Stranded
W14022G	0,64 / 0,0252	22	24 (19×36)
			24 (7×32)
W14020G	0,81 / 0,0319	20	22 (19×34)
W14018G	1,02 / 0,0402	18	20 (42×36)
			20 (19×32)
			20 (7×28)

CartridgeRef.	Tipmm / in

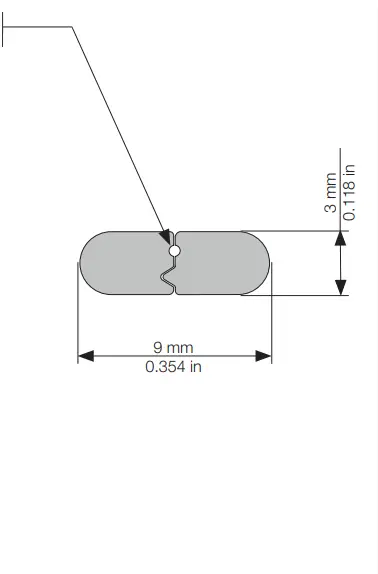

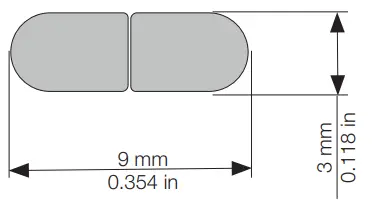

W14003F	Flat Tip 3 / 0.118

Cartridge Ref.	Tip Hole ø mm / in	AWG Solid	AWG Stranded
W14016G	1,29 / 0,0508	16	18 (19×30)
W14014G	1,63 / 0,0642	14	16 (7×24)

CartridgeRef.	Tipmm / in

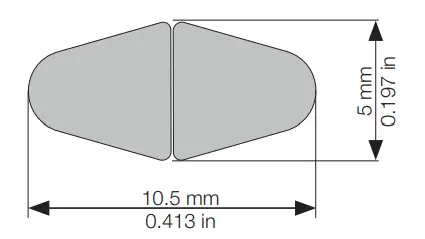

W14005F	Flat Tip 5 / 0.197

If an application requires a special tip design, contact JBC by mail [email protected] for special blade cartridges.

Accessories

Flat Screw Driver*
To open or fi x the wire stripper crews use JBC Flat Screw Driver Ref. 0023511.

Cartridge Extractor Pliers*

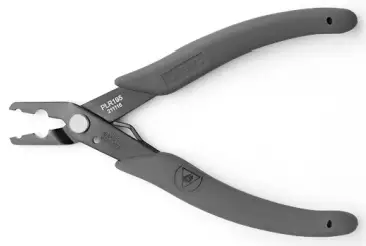

To manipulate the cartridges use JBC Cartridge Extractor Pliers Ref. PLR195. More Information at www.jbctools.com

RemovingInserting and Positioning

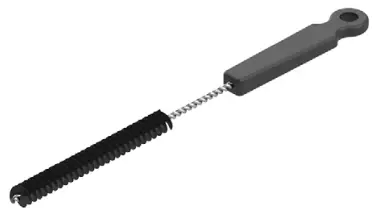

Metal Brush
For cleaning the tips if unwanted material is stuck there. Metal Brush Ref. 0022793.

Safety

Warning

• Do not touch the blade or the metal parts around.
• Do not allow the blade to be close to flammable materials.
• Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
• This appliance can be used by children over the age of eight and also persons with reduced physical, sensory or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning the use of the appliance and understand the hazards involved.
• Maintenance must not be carried out by children unless supervised.
• Place the tool on the stand when is not in use.
• Turn off the power when not in use, changing parts, or storing.

Caution

• Do not use the wire stripper for other applications than wire stripping.
• Do not modify or customize the wire stripper.
• Do not hit the blade against the workbench to eliminate stripped insulation debris, This behavior would damage the blade.
• Remove power from the tool by holding the plug, not the wires.
• Be careful with the fumes produced when stripping. We recomend to use a fume extractor.

Notes
—————-

Specifications

WS140
Precision High-Temperature Wire Stripper Tweezers
Ref.: WS140-A

Warranty
JBC’s 2-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
The warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.

www.jbctools.com
0025147-0222
