JBC WS140 Precision High-Temperature Wire Stipper Tweezers

This manual corresponds to the following reference: WS140-A

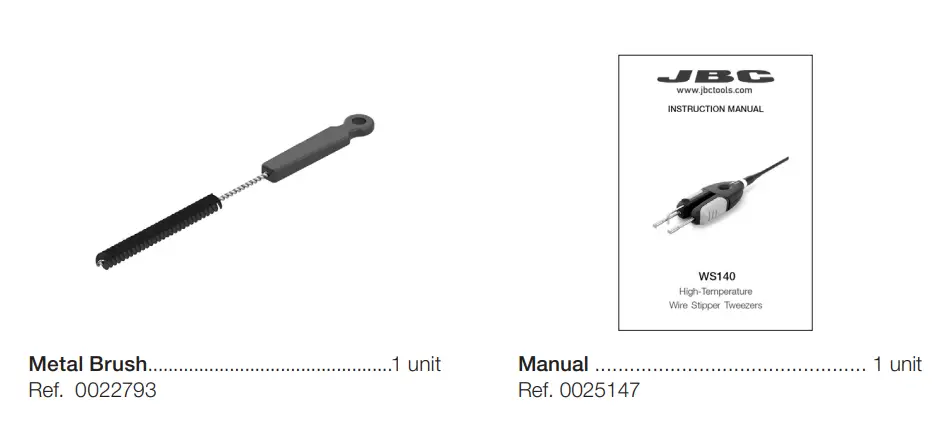

Packing List

The following items are included:

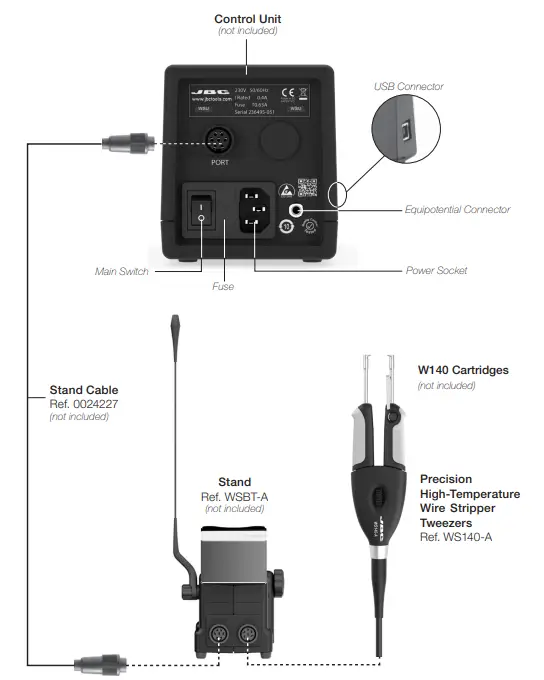

Features and Connections

Changing Cartridges

1. Removing
2. Inserting
   • Loosen the screws and remove the cartridges.
   • Insert the cartridge until the reference ring touch against the wire stripper. Take the ring as reference and check that both tips match.
     Important: It is esential to insert the cartridge till the end for a good connection.
3. Positioning

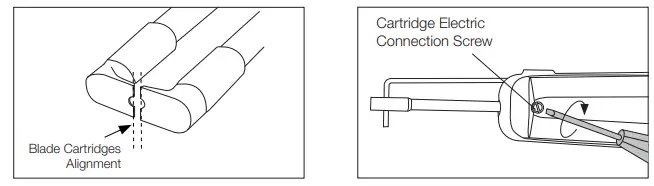

   • Align the tip edges and fi x the cartridges in its working position.
   • Tightening the screw.
     Important: It is essential to tighten the screws for the tool to function.

Stripping a Wire

1. Adjust Arm Position

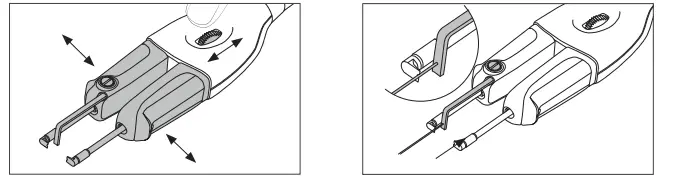

   The wheel allows to adjuste the wire stripper arm position accordig to the wire diameter. Move the wheel backward for a wider and forward for a narrower position.
2. Align Wire
   Place the wire touching the strip gauge
3.  Close Cartridges
   Choose cartridges according to the wire diameter. Pinch the wire with the blades. The pinched area will be melted by heat.
4. Remove Wire
   Pull the wire stripper toward to stripp off the wire end.

Adjustable Strip Gauge

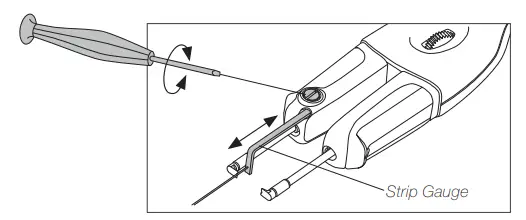

Adjust the strip gauge according to your stripping requirements and tighten the screw.

Cartridge Range

WS140-A is compatible with W140 Blade Cartridge Range. Find the model that best suits your soldering needs on www.jbctools.com.

If an application requires a special tip design, contact JBC by mail [email protected] for special blade cartridges.

Accessories

Flat Screw Driver*

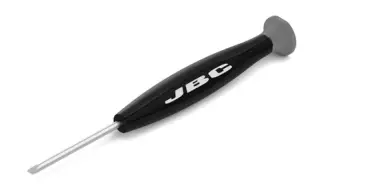

To open or fi x the wire stripper srews use JBC Flat Screw Driver Ref. 0023511.

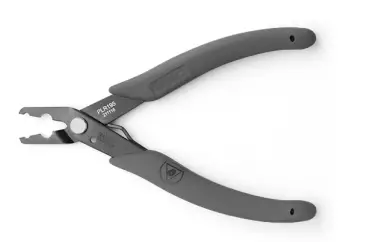

Cartridge Extractor Pliers*

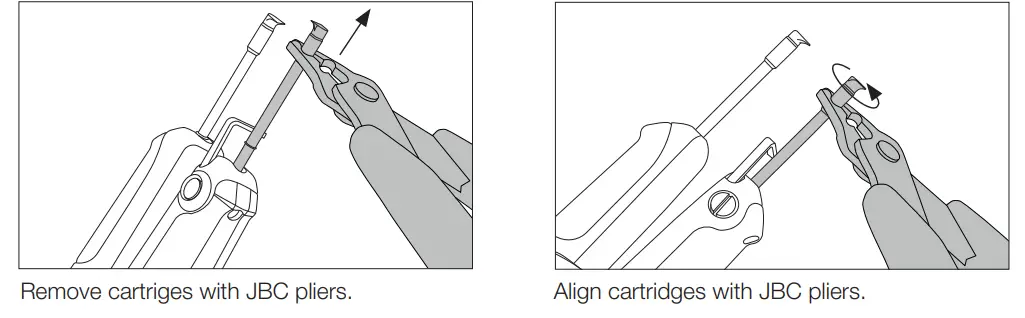

To manipulate the cartridges use JBC Cartridge Extractor Pliers Ref. PLR195. More Information at www.jbctools.com

Removing

Metal Brush

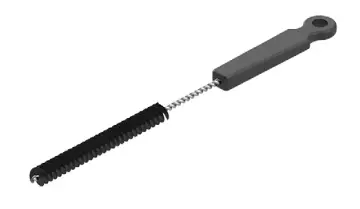

For cleaning the tips if unwanted material is stuck there. Metal Brush Ref. 0022793.

Safety

Warning

• Do not touch the blade or the metal parts around.
• Do not allow the blade be close to flammable materials.
• Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
• This appliance can be used by children over the age of eight and also persons with reduced physi-cal, sensory or mental capabilities or lack of experience provided that they have been given adequa-te supervision or instruction concerning use of the appliance and understand the hazards involved.
• Maintenance must not be carried out by children unless supervised.
• Place the tool on the stand when is not in use.
• Turn off the power when not in use, changing parts or storing.

Caution

• Do not use the wire stripper for other applications than wire stripping.
• Do not modify or customize the wire stripper.
• Do not hit the blade against workbench to eliminate stripped insulation debris, This behavior would damage the blade.
• Remove power from the tool by holding the plug, not the wires.
• Be careful with the fumes produced when stripping. We recomend to use a fume extractor.

Specifications

WS140
Precision High-Temperature Wire Stripper Tweezers Ref.: WS140-A

• Max. Power per Cartridge: 40W
• Cable Length: 1.2 m / 47.2 in
• Total Net Weight: 0.12 kg / 0.26 lb
• Package Dimensions/Weight:(L x W x H)  277 x 73 x 50 mm / 0.16 kg
  10.91 x 2.87 x 1.97 in / 0.35 lb

Warranty

JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour.
Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
