JBC WSB High-Temperature Wire Stripper Station Instruction Manual
This manual corresponds to the following references:
WSB-9B (100V)
WSB-1B (120V)
WSB-2B (230V)
Packing List

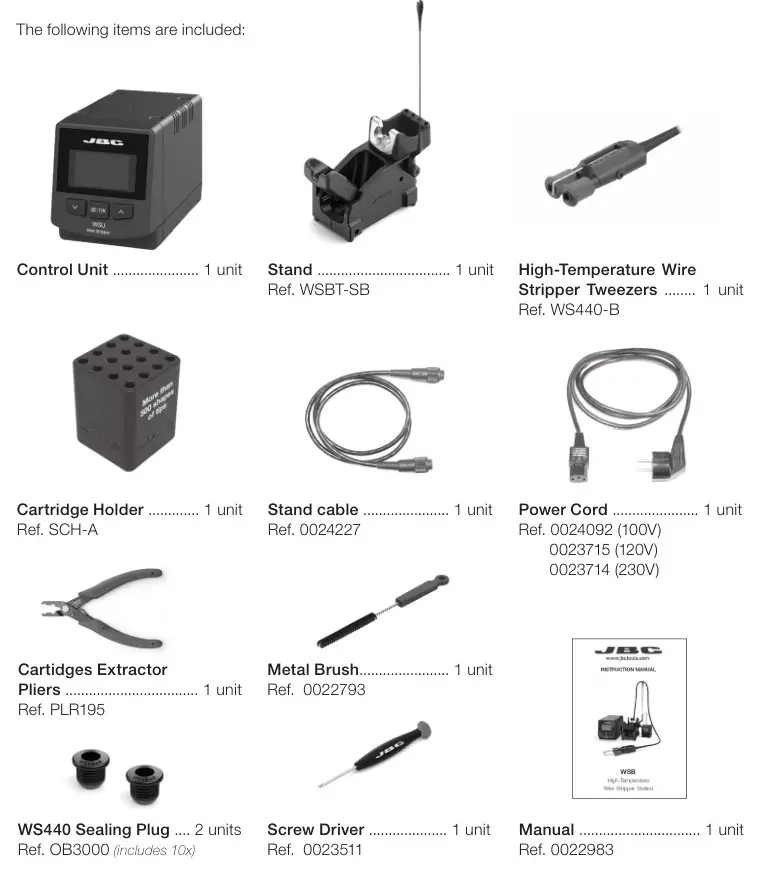

The following items are included:

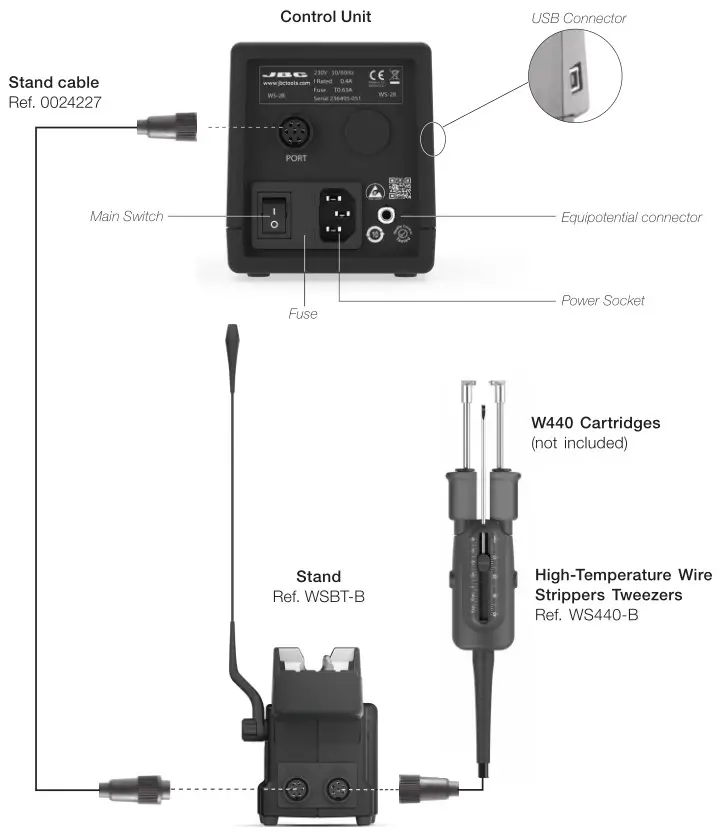

Features and Connections

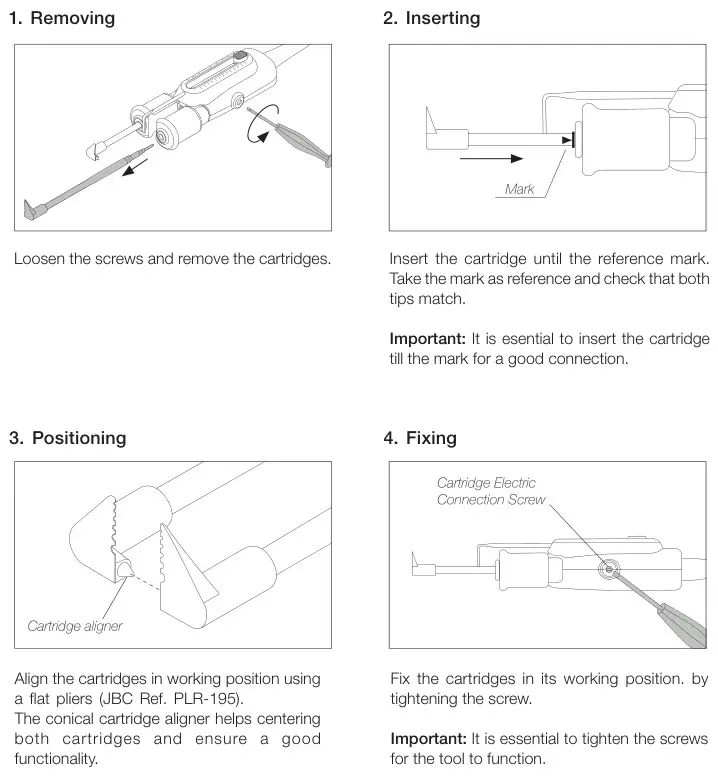

Changing Cartridges

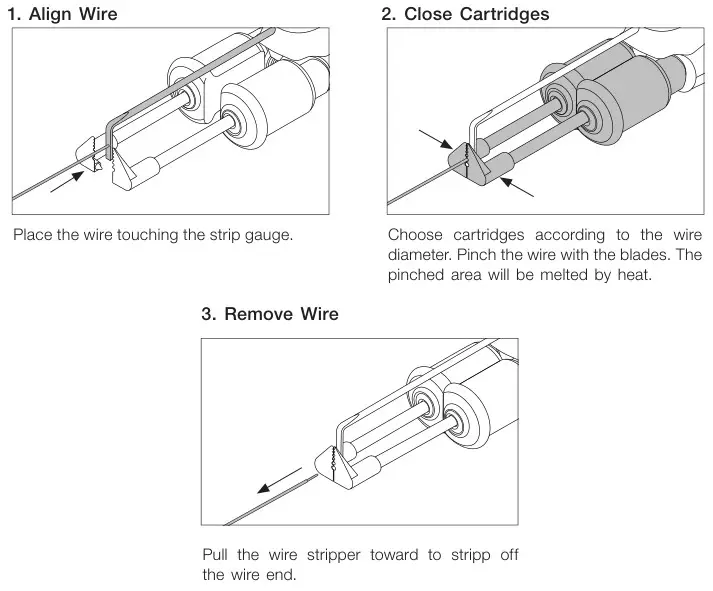

Stripping a Wire

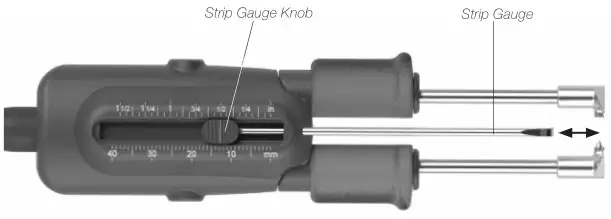

Adjustable Strip Gauge
Adjust the strip gauge according to your stripping requirements. Strip Gauge Knob

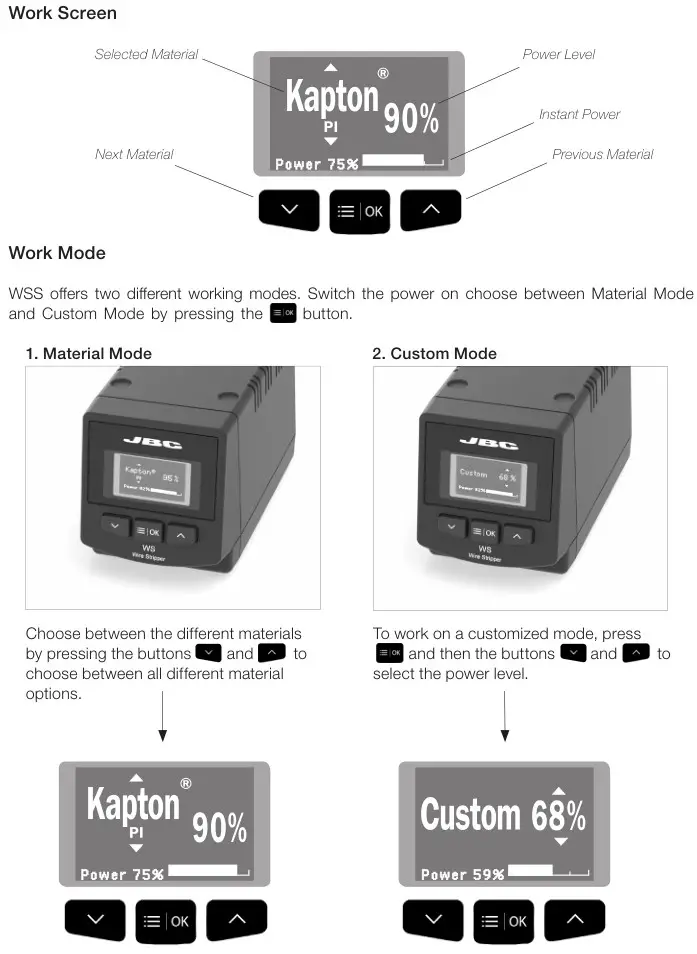

Control Process
Operation

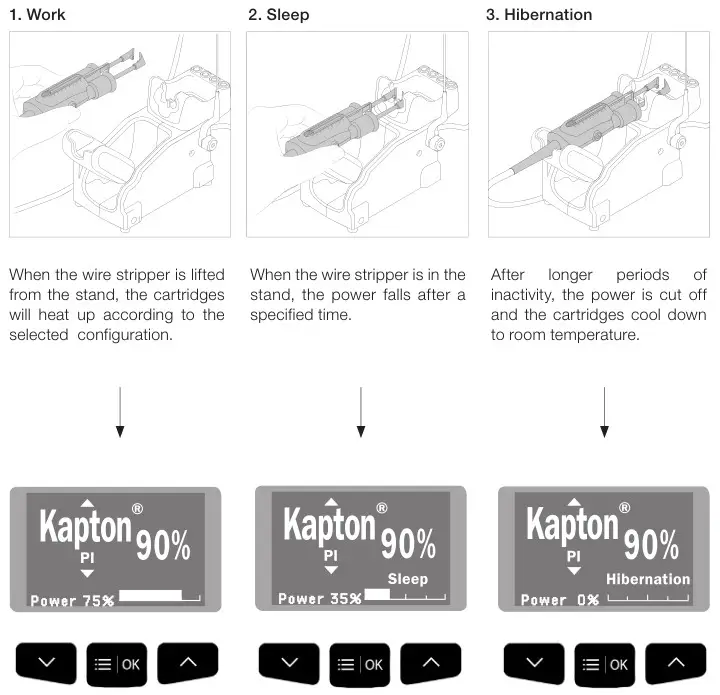

Depending on where the tool is located, the soldering station switches between three different states: Work, Sleep and Hibernation.
Troubleshooting
Station troubleshooting available on the product page at www.jbctools.com
Material Mode

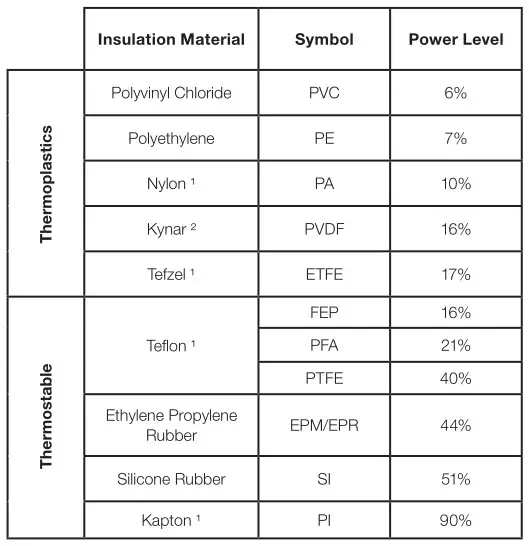

WSU incorporates predeterminated power levels and it also features a customized work mode. It allows you to work on wire insulations made of thermoplastics and thermostable materials such as Teflon1, Kapton2, silicone, rubber, etc.
Options included:
¹ Registred Trade Marks of DuPont
² Registred Trade Marks of Arkema
Cartridge Range
WS440 is compatible with W440 Blade Cartridge Range. Find the model that best suits your soldering needs on www.jbctools.com.
If an application requires a special tip design, contact JBC by mail [email protected].
Sealing Plug Replacement

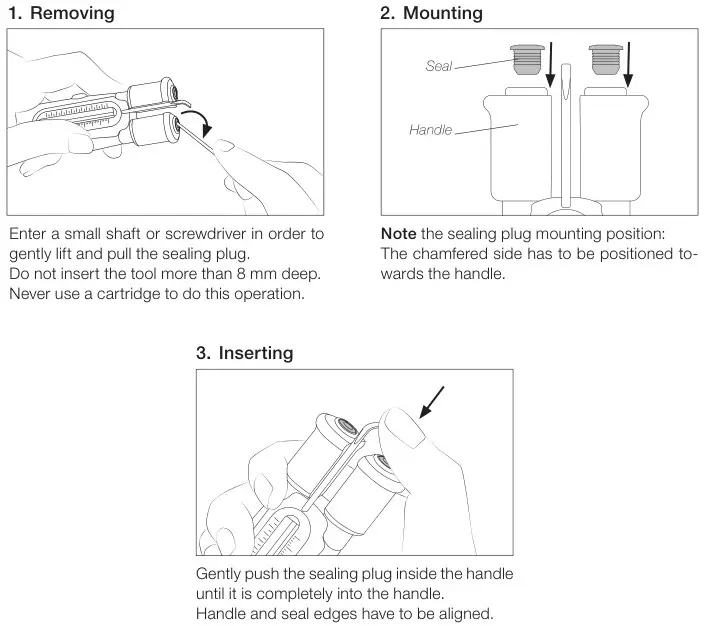

The Sealing Plug is meant to prevent undesirable flux vapors or particles from entering inside the tool.
Its usage is highly recommended for intensive applications when soldering is exposed to FOD environments or for applications where the soldering iron works close to vertical position.
Before replacing the seal, unplug the power supply and make sure the device is not hot.
Accessories

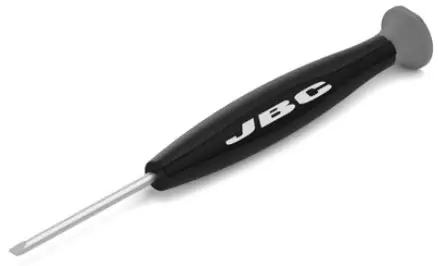

Flat Screw Driver*
To open or fix the wire stripper srews use JBC Flat Screw Driver Ref. 0023511.

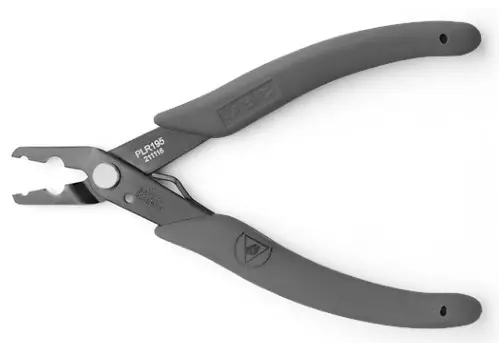

Cartridge Extractor Pliers*
To manipulate the cartridges use JBC Cartridge Extractor Pliers Ref. PLR195. More Information at www.jbctools.com
Removing

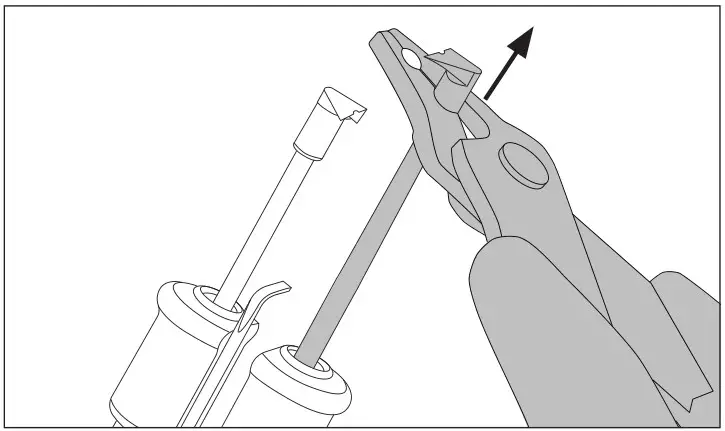

Remove cartriges with JBC pliers.

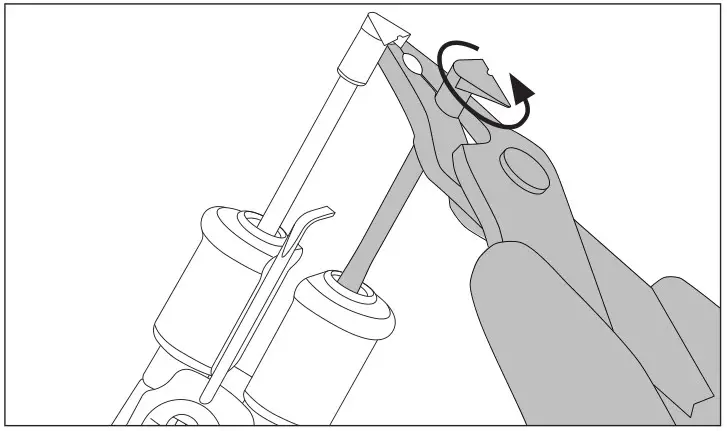

Inserting and Positioning
Align cartridges with JBC pliers.
Metal Brush

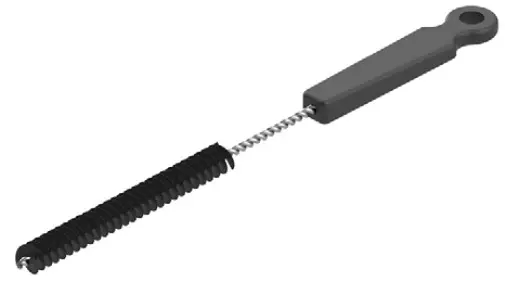

For cleaning the tips if unwanted material is stuck there. Metal Brush Ref. 0022793.

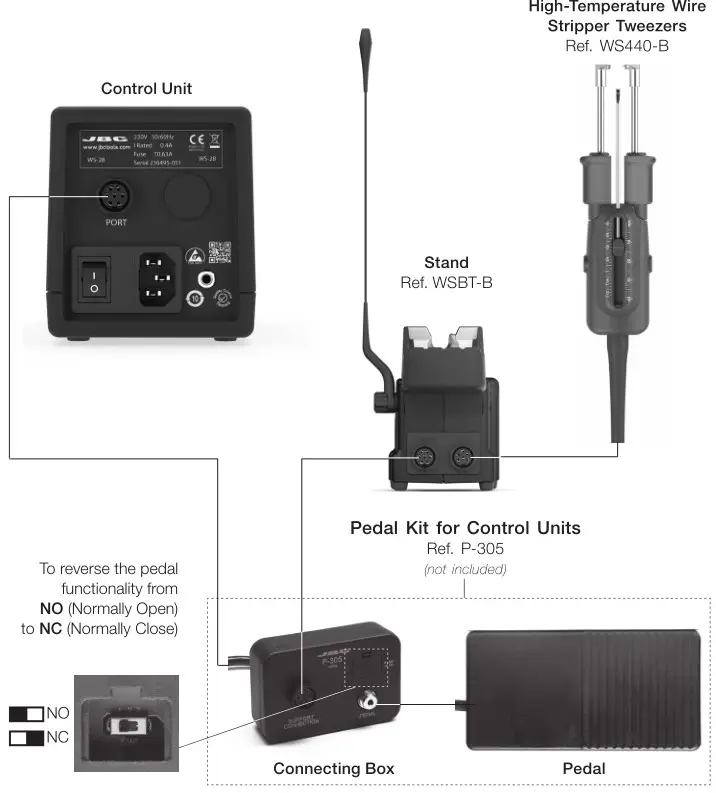

Pedal Kit for Control Units
Pedal P305 can be used to activate/deactivate the Wire Stipper. Previously the Hibernation delay has to be set to 0 min.
Lift the wire stripper from the stand, press and hold the pedal to activate them and strip the wire. Once the pedal is released the wire stripper enters in Hibernation. To reverse the pedal functionality flip the switch of the connection box.
Default PIN: 0105.
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool and unplug the stand from the station and the tool.
– Clean the station screen with a glass cleaner or a damp cloth.
– Use a damp cloth to clean the casing, the stand and the tool. Alcohol can only be used for cleaning the metal parts.
– Periodically check that the metal parts of the tool and stand are clean so that the station can detect the tool status.
– Maintain tip surface clean in order to ensure a correct stripped wire.
– Periodically check all cables.

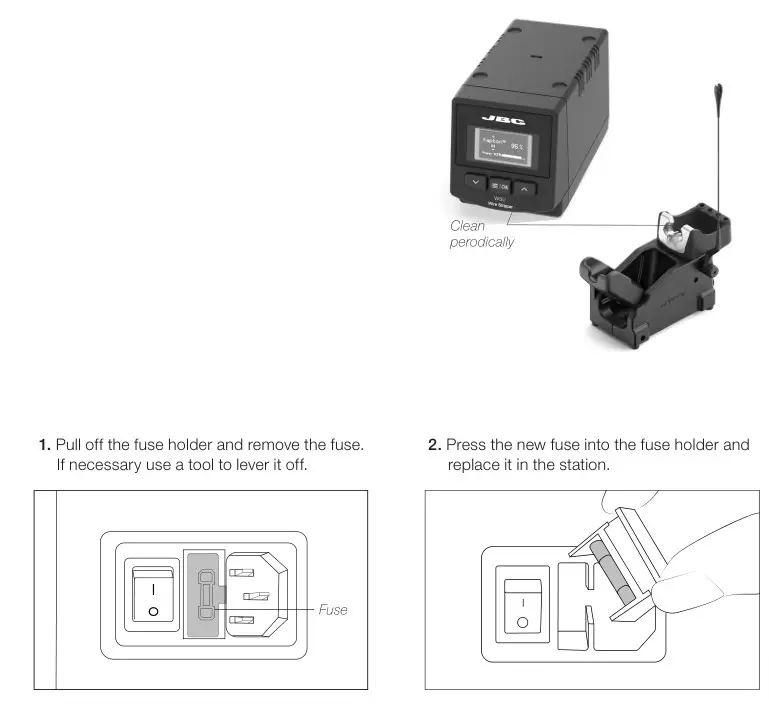

– Replace a blown fuse as follows (see specification chart) :
– Replace any defective or damaged pieces. Use original JBC spare parts only.
– Repairs should only be performed by a JBC authorized technical service.
Safety
It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.
Warning
– Do not touch the blade or the metal parts around.
– Do not allow the blade be close to flammable materials.
– Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
– This appliance can be used by children over the age of eight and also persons with reduced physical, sensory or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning use of the appliance and understand the hazards involved.
– Maintenance must not be carried out by children unless supervised.
– Place the tool on the stand when is not in use.
– Turn off the power when not in use, changing parts or storing.
Caution
– Do not use the Wire Stripper for other applications than wire stripping.
– Do not modify or customize the Wire Stripper.
– Do not hit the blade against workbench to eliminate stripped insulation debris. This behavior would damage the blade.
– Remove power from the tool by holding the plug, not the wires.
– Be careful with the fumes produced when stripping. We recommend to use our fume extractor.
Specifications
Warranty
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase.
