NATFIRE NE3 Wireless Visible Earpick
Using steps
- Scan QR code to download app (as shown)
- Before use, be sure the earpick head is installed in place and it is fully charged.

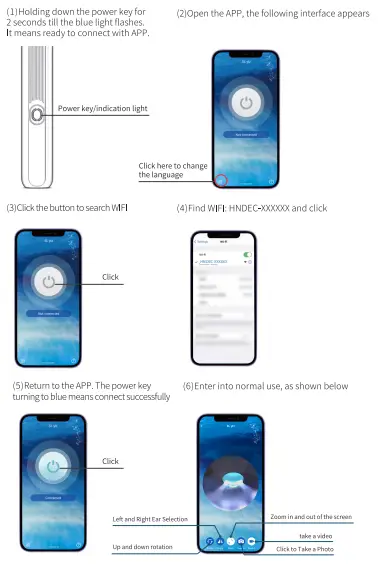

- Method to connect your mobile phone with the product
Product parameters
| Product name: | NE3 Wireless Visible Earpick |
| Net weight: | 13g |
| Product size: | 145mm’l3mm’llmm |
| Networkstandard: | IEEE802.llb/g/n |
| The signal line: | Built in antenna |
| working frequency: | 2.4Ghz |
| Transmission speed: | 30fps |
| Image transmitter: | CMOS |
| working temperature: | ·l0°C~S0°C |
| Battery capacity: | 130mAh |
| Charging time: | “=’60Min |
| Input current: | DC SV/lS0mA |
| Lens inner diameter: | 3.6mm |
| Focal length: | 15mm~20mm |
| Pixel: | 1296P |
| Gravity sensor: | 3-A.xis |

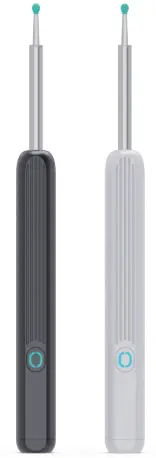

Product detail

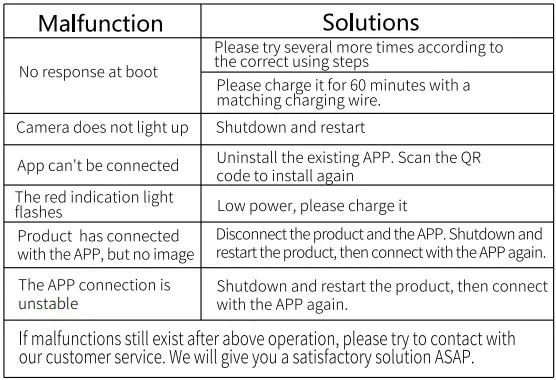

Troubleshooting
Cautions
- The earpick head must be installed in place to prevent falling.
- Prohibited to use in an environment where people are moving.
- This product is not suitable for children under 6 years old.
- Children are not allowed to use the product alone to avoid accidental injury.
- Avoid exposing the product to direct sunlight.
- There is a built-in rechargeable lithium battery. If it is seldom used, please charge it once a month.
- The temperature of the product will rise slightly when using (under35°C) . Please feel relieved to use.
- In order to ensure safety and better user experience, please keep sitting or standing in horizontal posture when operating.
- Please don’t wash this product underwater. Use alcohol swab to clear the lens carefully.
FCC Statment
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction
