COTOGNI EA08 True Wireless Earbuds User Manual
Package Contents
- A Pair of Earbuds with Charging Case
- USB-C Cable
- User Manual

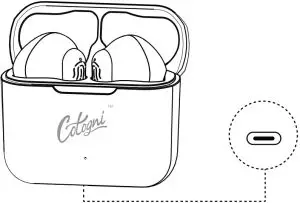

Product Diagram

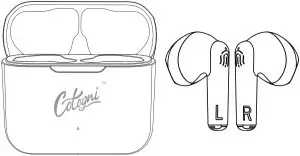

Pairing
- Taking the earbuds out of the charging case first, then the blue indicator flash

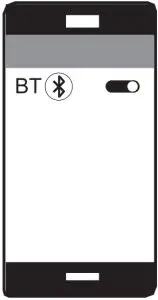

Note: After successful pairing, the earbuds will connect your device automatically after your take them out of Charging case. - Turn on the pairing function via BT on your device.

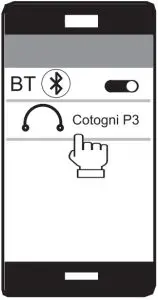

- From the list of available devices and select ” cotongni P3″

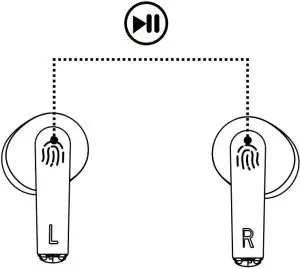

Play or Pause
Double click the left or right earbud.

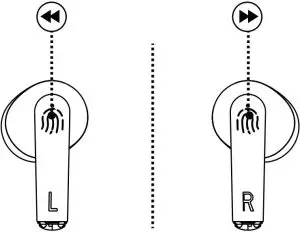

Next Track
Long press the right earbud for a second
Prev Track
Long press the left earbud for a second

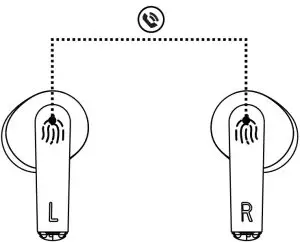

Answer calls
Click the left or right earbud.
Hang up or Reject
Double click the left or right earbud.

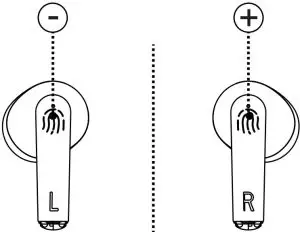

Volume –
Click the left earbud.
Volume +
Click the right earbud.
Specifications
Earbuds
| Model | EA08 |
| Technology | A2DP, SBC, HFP, HSP, AAC, |
| Speaker Sensitivity | 95dBz3dB@ 1KHz |
| Frequency Range | 20Hz — 20KHz |
| Impedance | 32CI |
| Charging Time | 1H |
| Battery Life | 5H (Max volume ) |
| Battery Type | Li-polymer (2 x 32mAh) |
| Operating Range | 10m/33ft |
| Weight | 6.2g |
Charging Case
| Charging Input | DC 5V |
| Charging Time | 1.SH |
| Battery Type | Li-polymer 280mAh |
| Number of Earbuds Recharges | 3 times (pair) |
| Weight | 24.7g |
Getting Started

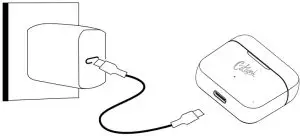

Charging
Fully charge the charging case before the first use. To charge, connect the charging case to a USB charger or charging port with the included USB-C cable. When the red LED Charging indicator on the outside of the case no flash, the case is fully charged Charging may take around 1.5 hours, then case can offer fully charge to the earbuds 3 times. The earbuds should be stored in the case when not in use.
Turning On / off
Turn On
| Take the earbuds out of the charging case or touch and hold on the touch-sensitive panels on one of the earbuds that you want to turn on for 5 seconds
|
Turn Off
| Return the earbuds to the charging case and close the lid or touch and hold on the touch-sensitive panels on one of the earbuds that you want to turn off for 5 seconds
|
Note: A single earbud can only control its own “on” or “off ” separately
Product Care & Use
- Keep away from liquids and extreme heat
- Don’t use the earbuds at high volume for extended periods, as this may cause permanent hearing damage or loss
Pairing
Starting with the earbuds in the case:
- Take the earbuds out of charging case, then earbuds will turn on
- The blue indicator will flash and earbuds enter pairing mode
- Turn on the pairing function via BT on the device you want to pair with the earbuds
- From the list of available devices and select”cotogni P3″
Note: While it is in pairing status, pressing the touch panel for 2-3 seconds, the earbuds will be restarted
Regular Use After Pairing
Once the earbuds are successfully paired with your device, they can be switched on and off as follows:
- Take the earbuds out of the charging case,then both earbuds will turn on and connect with each other automatically
- To turn off, put the earbuds back in the charging case and close the lid. They will begin charging
Controls & LED Indicators
Streaming Audio
Once paired, you can wirelessly stream audio on your device via earbuds. Music will automatically get paused when you receive an incoming phone call and will be resumed once the call ends
| Play or pause music | Double click the left or right earbuds |
| Skip to previous track | Long press the left earbuds for 1 second |
| Skip to next track | Long press the right earbuds for 1 second |
| Answer call | Click the left or right |
| Hang up or Reject earbuds | Double click the left or right earbuds |
| Volume + | Click the right earbuds |
| Volume – | Click the left earbuds |
Earbuds
| LED Status Indicator | Status |
| Blue flashing | Pairing |
| Blue always on | Charging |
| No indicator | Fully charged |
Charging Case
| LED Status Indicator | Status |
| Red flashing | Charging |
| Red always on | Fully charged |
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following.
Measures
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:
- This device may not cause harmful interference
- This device must accept any interference received,including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.
