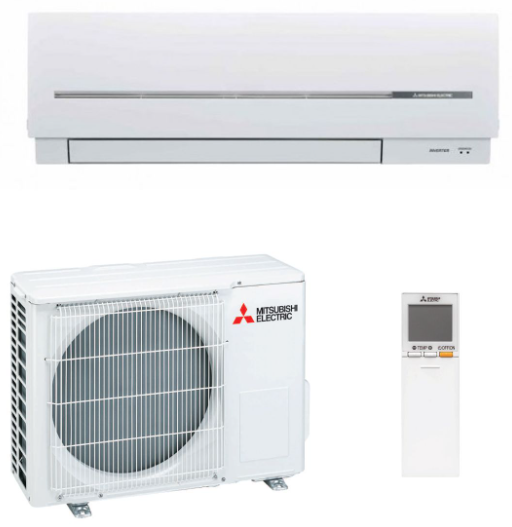

MITSUBISHI ELECTRIC 12000 BTU/H Wall Mounted Heat Pump System
Indoor Unit: MSZ-GL12NA

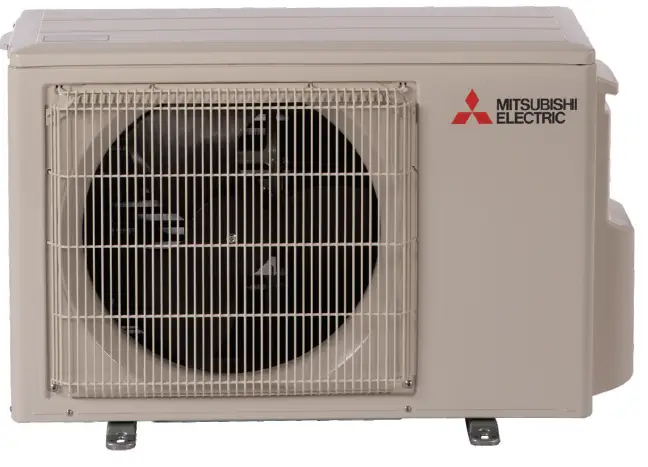

Outdoor Unit:
- MUZ-GL12NA-U1
- MUZ-GL12NA-U2

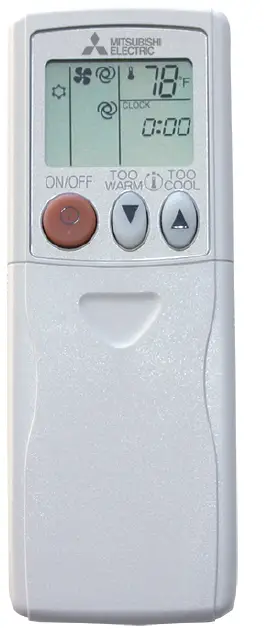

Wireless Remote Controller
GENERAL FEATURES
- Slim wall-mounted indoor units provide zone comfort control
- The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
- INVERTER-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance
- Multiple fan speed options: Quiet, Low, Medium, High, Super-high, Auto
- Multiple control options available:
- Hand-held Remote Controller (provided with unit)
- kumo cloud® smart device app for remote access
- Third-party interface options
- Wired or wireless controllers
- Quiet operation
- Smart Set: recalls a preferred preset temperature setting at the touch of a button
- Blue Fin anti-corrosion treatment applied to the outdoor unit heat exchanger for increased coil protection and longer life.
SPECIFICATIONS: MSZ-GL12NA & MUZ-GL12NA
|
Cooling1 | Maximum Capacity | BTU/H | 13,600 |
| Rated Capacity | BTU/H | 12,000 | |
| Minimum Capacity | BTU/H | 1,500 | |
| Maximum Power Input | W | 1,300 | |
| Rated Power Input | W | 920 | |
| Moisture Removal | Pints/h | 2.5 | |
| Sensible Heat Factor | 0.77 | ||
| Power Factor | % | 95 / 95 | |
|
Heating at 47°F2 | Maximum Capacity | BTU/H | 18,100 |
| Rated Capacity | BTU/H | 14,400 | |
| Minimum Capacity | BTU/H | 2,000 | |
| Maximum Power Input | W | 1,620 | |
| Rated Power Input | W | 1,100 | |
| Power Factor | % | 96 / 96 | |
|
Heating at 17°F3 | Maximum Capacity | BTU/H | 12,000 |
| Rated Capacity | BTU/H | 9,200 | |
| Maximum Power Input | W | 1,240 | |
| Rated Power Input | W | 870 | |
| Heating at 5°F4 | Maximum Capacity | BTU/H | 9,790 |
| Maximum Power Input | W | 1,020 | |
| Heating at -4°F5 | Maximum Capacity | BTU/H | 7,920 |
|
Efficiency | SEER | 23.1 | |
| EER1 | 13.0 | ||
| HSPF (IV) | 12.5 | ||
| COP at 47°F2 | 3.84 | ||
| COP at 17°F in Maximum Capacity3 | 2.84 | ||
| COP at 5°F in Maximum Capacity4 | 2.81 | ||
| ENERGY STAR® certified units (ENERGY STAR products are third-party certified by an EPA-recognized Certification Body.) | YES | ||
|
Electrical | Voltage, Phase, Frequency | 208/230V, 1 phase, 60Hz | |
| Guaranteed Voltage Range | V AC | 187 – 253 | |
| Voltage: Indoor – Outdoor, S1-S2 | V AC | 208 / 230 | |
| Voltage: Indoor – Outdoor, S2-S3 | V DC | 24 | |
| Short-circuit Current Rating (SCCR) | kA | 5 | |
| Recommended Fuse/Breaker Size (Outdoor) | A | 15 | |
| Recommended Wire Size (Indoor – Outdoor) | AWG | 14 | |
|
Indoor Unit | MCA | A | 1 |
| MOCP | A | 15 | |
| Blower Motor Full Load Amperage | A | 0.76 | |
| Blower Motor Output | W | 30 | |
| Airflow Rate at Cooling, Dry | CFM | 399-321-237-170-145 | |
SPECIFICATIONS: MSZ-GL12NA & MUZ-GL12NA
| Airflow Rate at Cooling, Wet | CFM | 364-286-201-134-109 | |
| Airflow Rate at Heating, Dry | CFM | 406-321-237-170-145 | |
| Sound Pressure Level (Cooling) | dB(A) | 45-37-30-22-19 | |
| Sound Pressure Level (Heating) | dB(A) | 43-37-30-22-19 | |
| Drain Pipe Size | In. (mm) | 5/8 (15.88) | |
| Heat Exchanger Type | Plate fin coil | ||
| External Finish Color | Munsell 1.0Y 9.2/0.2 | ||
|
Unit Dimensions | W: In. (mm) | 31-7/16 (798) | |
| D: In. (mm) | 9-1/8 (232) | ||
| H: In. (mm) | 11-5/8 (295) | ||
|
Package Dimensions | W: In. (mm) | 33-1/2 (850) | |
| D: In. (mm) | 12 (300) | ||
| H: In. (mm) | 14 (350) | ||
| Unit Weight | Lbs. (kg) | 22 (10) | |
| Package Weight | Lbs. (kg) | 26 (11.5) | |
| Indoor Unit Operating Temperature Range | Cooling Intake Air Temp (Maximum / Minimum)* | °F | 90 DB, 73 WB / 67 DB, 57 WB |
| Heating Intake Air Temp (Maximum / Minimum) | °F | 80 DB / 70 DB | |
|
Outdoor Unit | MCA | A | 9 |
| MOCP | A | 15 | |
| Fan Motor Full Load Amperage | A | 0.5 | |
| Fan Motor Output | W | 55 | |
| Airflow Rate | CFM | 1,229 / 1,172 | |
| Refrigerant Control | LEV | ||
| Defrost Method | Reverse cycle | ||
| Heat Exchanger Type | Plate fin coil | ||
| Sound Pressure Level, Cooling1 | dB(A) | 49 | |
| Sound Pressure Level, Heating2 | dB(A) | 51 | |
| Compressor Type | DC INVERTER-driven | ||
| Compressor Model | SNB092FQAMT | ||
| Compressor Rated Load Amps | A | 6.6 | |
| Compressor Locked Rotor Amps | A | 8.2 | |
| Compressor Oil Type // Charge | oz. | FV50S // 11.8 | |
| External Finish Color | Munsell 3Y 7.8/1/1 | ||
| Base Pan Heater | Optional | ||
|
Unit Dimensions | W: In. (mm) | 31-1/3 (800) | |
| D: In. (mm) | 11-1/5 (285) | ||
| H: In. (mm) | 21-5/9 (550) | ||
|
Package Dimensions | W: In. (mm) | 37 (940) | |
| D: In. (mm) | 14-15/16 (380) | ||
| H: In. (mm) | 24-13/16 (630) | ||
| Unit Weight | Lbs. (kg) | 81 (37) | |
SPECIFICATIONS: MSZ-GL12NA & MUZ-GL12NA
| Package Weight | Lbs. (kg) | 89 (40) | |
|
Outdoor Unit Operating Temperature Range | Cooling Air Temp (Maximum / Minimum)* | °F | 115 / 14 |
| Cooling Thermal Lock-out / Re-start Temperatures** | °F | -1 / 3 | |
| Heating Air Temp (Maximum / Minimum) | °F | 75 / -4 | |
| Heating Thermal Lock-out / Re-start Temperatures** | °F | -9 / -4 | |
| Refrigerant | Type | R410A | |
| Charge | Lbs, oz | 2, 9 | |
|
Piping | Gas Pipe Size O.D. (Flared) | In. (mm) | 3/8 (9.52) |
| Liquid Pipe Size O.D. (Flared) | In. (mm) | 1/4 (6.35) | |
| Maximum Piping Length | Ft. (m) | 65 (20) | |
| Maximum Height Difference | Ft. (m) | 40 (12) | |
| Maximum Number of Bends | 10 | ||
Notes
| AHRI Rated Conditions (Rated data is determined at a fixed compressor speed) | 1Cooling (Indoor // Outdoor) | °F | 80 DB, 67 WB // 95 DB, 75 WB |
| 2Heating at 47°F (Indoor // Outdoor) | °F | 70 DB, 60 WB // 47 DB, 43 WB | |
| 3Heating at 17°F (Indoor // Outdoor) | °F | 70 DB, 60 WB // 17 DB, 15 WB | |
| Conditions | 4Heating at 5°F (Indoor // Outdoor) | °F | 70 DB, 60 WB // 5 DB, 4 WB |
| 5Heating at -4°F (Indoor // Outdoor) | °F | 70 DB, 60 WB // -4 DB, -5 WB | |
| *Applications should be restricted to comfort cooling only; equipment cooling applications are not recommended for low ambient temperature conditions. **System cuts out in heating mode to avoid thermistor error and automatically restarts at these temperatures. | |||
ACCESSORIES: MSZ-GL12NA
| Anti-allergy Enzyme Filter | □ MAC-408FT-E |
| kumo touch™ RedLINK™ Wireless Controller | □ MHK2 |
| Deluxe MA Remote Controller1 | □ PAR-40MAAU |
| Simple MA Controller1 | □ PAC-YT53CRAU-J |
| Touch MA Controller1 | □ PAR-CT01MAU-SB |
| Wired Remote Sensor | □ M21-EAA-307 |
| Wireless Temperature and Humidity Sensor | □ PAC-USWHS003-TH-1 |
| System Control Interface2 | □ MAC-334IF-E |
| Wireless Interface 2 | □ PAC-USWHS002-WF-2 |
| Thermostat Interface | □ PAC-US444CN-1 |
| kumo station® | □ PAC-WHS01HC-E |
| USNAP Interface | □ PAC-WHS01UP-E |
| IT Extender | □ PAC-WHS01IE-E |
| BACnet® and MODBUS® Interface | □ PAC-UKPRC001-CN-1 |
| Lockdown Bracket for Hand-held Remote Controllers | □ RCMKP1CB |
| Blue Diamond Sensor Extension Cable — 15 Ft. | □ C13-103 |
| Blue Diamond Alarm Extension Cable — 6.5 Ft. | □ C13-192 |
| Blue Diamond MultiTank — collection tank for use with multiple pumps | □ C21-014 |
| Blue Diamond Rubber Foot Pads | □ F10-010 |
| Mini Condensate Pump — 230 volt application | □ SI30-230 |
| MegaBlue Advanced Blue Diamond Condensate Pump w/ Reservoir & Sensor | □ X87-835 – 110 to 250V |
| MaxiBlue Advanced Blue Diamond Mini Condensate Pump w/ Reservoir & Sensor (110V) up to 48,000 BTU/ H[recommended] | □ X87-711 – 110V |
| Advanced Blue Diamond Mini Condensate Pump w/ Reservoir & Sensor (208/230V) [recommended] | □ X87-721 – 208/230V |
| MicroBlue Blue Diamond Mini Condensate Pump (110/208/230V) up to 18,000 BTU/H | □ X85-003 |
| Fascia Kit for MicroBlue Pump – mounts the MicroBlue and sensor directly beneath the indoor unit | □ T18-016 |
| Drain Pan Level Sensor | □ SS610E |
| (30A/600V/UL) [fits 2″ X 4″ utility box] – Black | □ TAZ-MS303 |
| (30A/600V/UL) [fits 2″ X 4″ utility box] – White | □ TAZ-MS303W |
ACCESSORIES: MUZ-GL12NA
| Air Outlet Guide | □ MAC-881SG |
| Drain Socket | □ MAC-860DS |
| Optional Defrost Heater | □ MAC-640BH-U |
| Hail Guard | □ HG-B4 |
| Outdoor Unit 3-1/4 inch Mounting Base (Pair) – Plastic | □ DSD-400P |
| Condensing Unit Mounting Pad 16″ x 36″ x 3″ | □ ULTRILITE1 |
| Outdoor Unit Stand — 12″ High | □ QSMS1201M |
| Outdoor Unit Stand — 18″ High | □ QSMS1801M |
| Outdoor Unit Stand — 24″ High | □ QSMS2401M |
| Heavy Duty Wall Mounting Bracket— Coated Steel | □ QSWB2000M-1 |
| Heavy Duty Wall Mounting Bracket — 316 Series Stainless Steel | □ QSWBSS |
| 15′ x 1/4″ x 15′ / 3/8″ Lineset (Twin-Tube Insulation) | □ MLS143812T-15 |
| 30′ x 1/4″ x 30′ / 3/8″ Lineset (Twin-Tube Insulation) | □ MLS143812T-30 |
| 50′ x 1/4″ x 50′ / 3/8″ Lineset (Twin-Tube Insulation) | □ MLS143812T-50 |
| 65′ x 1/4″ x 65′ / 3/8″ Lineset (Twin-Tube Insulation) | □ MLS143812T-65 |

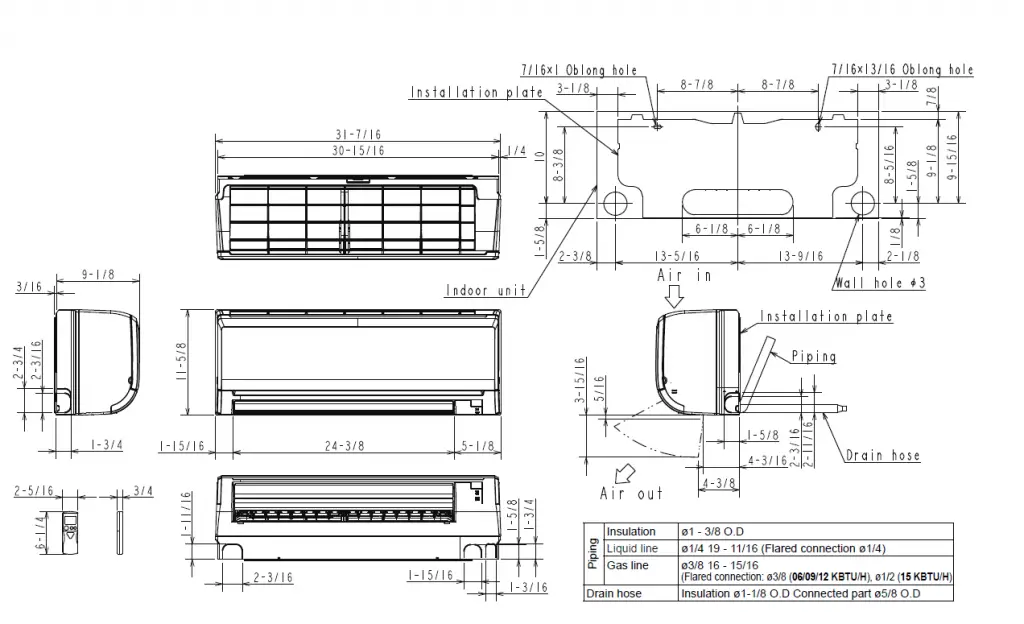

DIMENSIONS: MSZ-GL12NA

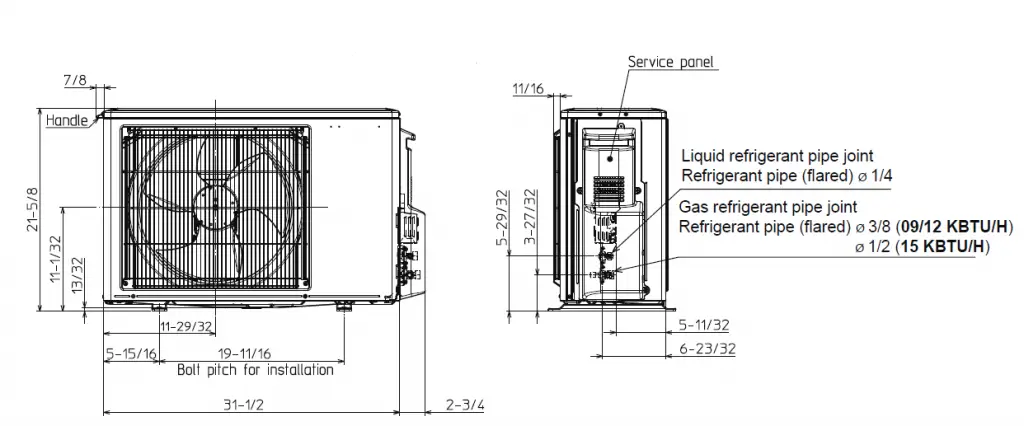

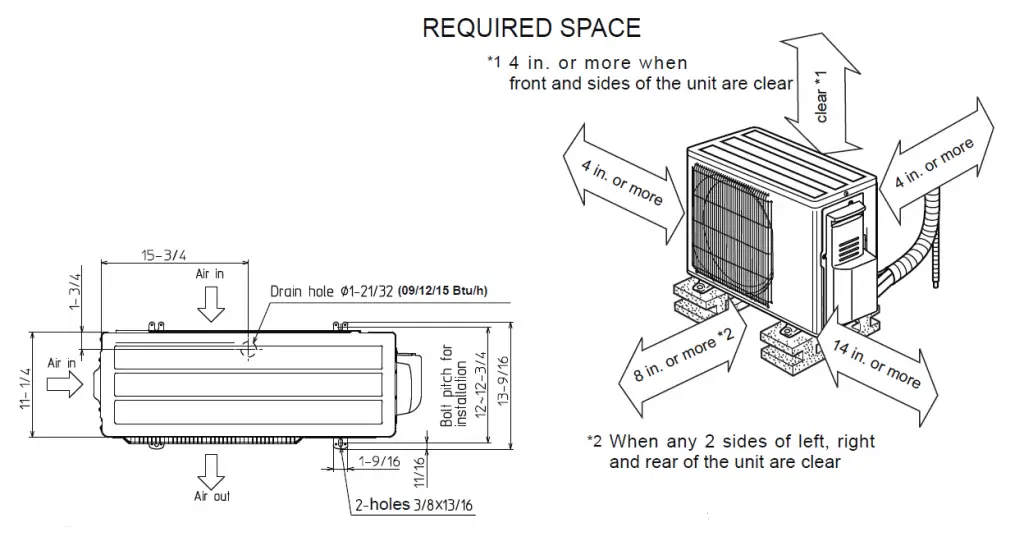

DIMENSIONS: MUZ-GL12NA
FORM# MSZ-GL12NA / MUZ-GL12NA – 202003
