Mitsubishi Electric R32 SPLIT-TYPE HEAT PUMP AIR CONDITIONERS
Wall Mounted
- PKA-M35LA2: PKA-M35LA2.TH
- PKA-M35LA2-ER: PKA-M35LA2-ER.TH
- PKA-M35LA2-ET: PKA-M35LA2-ET.TH
- PKA-M50LA2: PKA-M50LA2.TH
- PKA-M50LA2-ER: PKA-M50LA2-ER.TH
- PKA-M50LA2-ET: PKA-M50LA2-ET.TH
- PKA-M35LAL2: PKA-M35LAL2.TH
- PKA-M35LAL2-ER: PKA-M35LAL2-ER.TH
- PKA-M35LAL2-ET: PKA-M35LAL2-ET.TH
- PKA-M50LAL2: PKA-M50LAL2.TH
- PKA-M50LAL2-ER: PKA-M50LAL2-ER.TH
- PKA-M50LAL2-ET: PKA-M50LAL2-ET.TH
SERVICE PARTS LIST

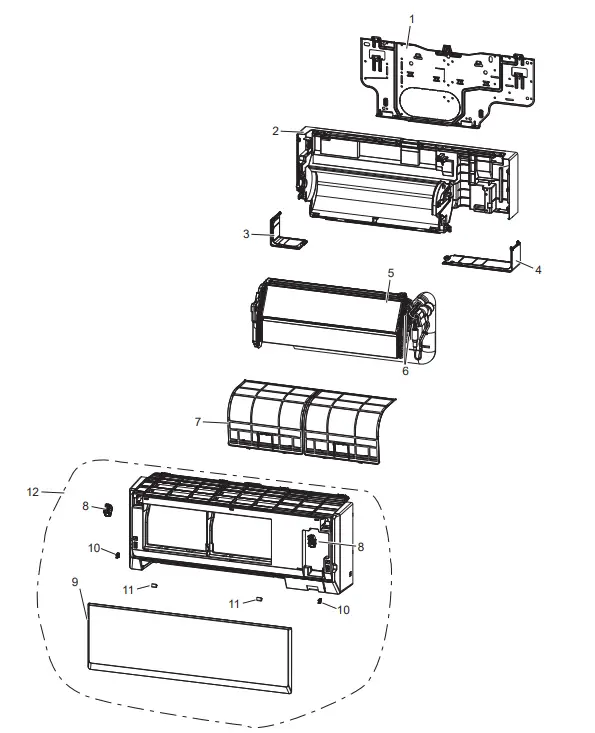

PANEL AND HEAT EXCHANGER PARTS
- PKA-M35LA2.TH
- PKA-M35LA2-ER.TH
- PKA-M35LA2-ET.TH
- PKA-M50LA2.TH
- PKA-M50LA2-ER.TH
- PKA-M50LA2-ET.TH
- PKA-M35LAL2.TH
- PKA-M35LAL2-ER.TH
- PKA-M35LAL2-ET.TH
- PKA-M50LAL2.TH
- PKA-M50LAL2-ER.TH
- PKA-M50LAL2-ET.TH
|
No. |
Parts No. |
Parts Name | PKA-M35LA2 | PKA-M35LA2-ER | PKA-M35LA2-ET | PKA-M50LA2 | PKA-M50LA2-ER | PKA-M50LA2-ET | PKA-M35LAL2 | PKA-M35LAL2-ER | PKA-M35LAL2-ET | PKA-M50LAL2 | PKA-M50LAL2-ER | PKA-M50LAL2-ET |
Wiring Diagram Symbol |
Remarks [Drawing No.] | ||
| 1 | E27 | P68 | 970 | INSTALLATION PLATE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 2 | E27 | P68 | 234 | BOX ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 3 | E27 | P63 | 976 | CORNER BOX L | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4 | E27 | P63 | 975 | CORNER BOX R | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5 | E27 | 13D | 620 | INDOOR HEAT EXCHANGER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | E27 | 13D | 307 | INDOOR COIL THERMISTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | TH2, TH5 | |
| 7 | E27 | 58G | 100 | AIR FILTER | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 8 | E27 | P63 | 021 | ARM HOLDER SET | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Set (left, right) | |
| 9 | E27 | P68 | 010 | FRONT PANEL | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 10 | E22 | F95 | 142 | CATCH | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 pcs/set | |
| 11 | E22 | 98B | 067 | SCREW CAP | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 pcs/set | |
| 12 | E27 | P68 | 000 | PANEL ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Includes 8, 9, 10 and 11 | |
FAN AND ELECTRICAL PARTS
- PKA-M35LA2.TH
- PKA-M35LA2-ER.TH
- PKA-M35LA2-ET.TH
- PKA-M50LA2.TH
- PKA-M50LA2-ER.TH
- PKA-M50LA2-ET.TH
- PKA-M35LAL2.TH
- PKA-M35LAL2-ER.TH
- PKA-M35LAL2-ET.TH
- PKA-M50LAL2.TH
- PKA-M50LAL2-ER.TH
- PKA-M50LAL2-ET.TH
|
No. |
Parts No. |
Parts Name | PKA-M35LA2 | PKA-M35LA2-ER | PKA-M35LA2-ET | PKA-M50LA2 | PKA-M50LA2-ER | PKA-M50LA2-ET | PKA-M35LAL2 | PKA-M35LAL2-ER | PKA-M35LAL2-ET | PKA-M50LAL2 | PKA-M50LAL2-ER | PKA-M50LAL2-ET |
Wiring Diagram Symbol |
Remarks [Drawing No.] | ||
| 1 | E2 2 | T20 | 70 2 | DRAIN HOSE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 2 | – | DRAIN CAP | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | [SU26R611H01] | |||
| 3 | E27 | 77G | 235 | NOZZLE ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Full assembly except drain hose | |
| 4 | E27 | 103 | 303 | VANE MOTOR (UPPER) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | MV1 | |
| 5 | E22 | Y54 | 303 | VANE MOTOR (LOWER) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | MV2 | |
| 6 | E27 | 77G | 040 | VANE UPPER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 7 | E27 | 77G | 041 | VANE LOWER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 8 | E27 | 489 | 375 | TERMINAL BLOCK | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | TB4 | |
| 9 | E27 | 249 | 375 | TERMINAL BLOCK | 1 | 1 | 1 | 1 | 1 | 1 | TB5 | |||||||
| 10 | E27 | P63 | 308 | ROOM TEMP. THERMISTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | TH1 | |
| 11 | E27 | Y99 | 468 | DISPLAY AND RECEIVER P.C. BOARD | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | L.B., W.B., S.B. | |
| 12 | E27 | P63 | 095 | DISPLAY RECEIVER HOLDER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 13 | E22 | 784 | 382 | FUSE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | FUSE | T3.15AL250V |
| 14 | E27 | 58G | 447 | INDOOR CONTROLLER BOARD | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | I.B. | |
| 15 | E27 | P63 | 333 | MOTOR BAND | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 16 | E27 | P63 | 541 | WATER COVER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 17 | E27 | 13D | 300 | INDOOR FAN MOTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | MF | Includes rubber mounts |
| 18 | E27 | P68 | 302 | LINE FLOW FAN | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 19 | E22 | A89 | 509 | BEARING MOUNT ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 20 | E22 | C32 | 667 | UNION 1/4″ | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | for liquid | |
| 21 | E22 | 179 | 667 | UNION 1/2″ | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | for gas | |
| 22 | E27 | 13D | 337 | REACTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ACL | |
| 23 | E27 | 58G | 426 | REMOTE CONTROLLER | 1 | 1 | 1 | 1 | 1 | 1 | PAR-SL101A-E | |||||||
| 24 | E27 | D44 | 083 | REMOTE CONTROLLER HOLDER | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
OPTIONAL PARTS
| PARTS NAME | PARTS NO. | PKA-LA | PKA-LAL |
| Drain pump | PAC-SK01DM-E | ||
| System control interface | MAC-334IF-E | ||
| MA and contact terminal interface | MAC-397IF-E | ||
| Wi-Fi interface | MAC-587lF-E | ||
| Power supply terminal kit | PAC-SK38HR-E | ||
| Wired remote controller | PAR-41MAA PAR-CT01MAA PAC-YT52CRA | ||
| Terminal block kit for PKA | PAC-SH29TC-E | ||
| Wireless R/C | PAR-SL101A-E | ||
| Remote sensor | PAC-SE41TS-E | ||
| Remote on/off adapter | PAC-SE55RA-E | ||
| Connector cable for remote display | PAC-SA88HA-E | ||
| V-Blocking filter | MAC-2470FT-E |
