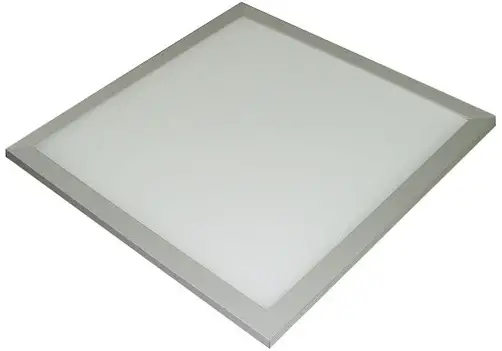

LED SION XL-PLUF24M72XX-AZZ-A Backlit LED Panel Light
Backlit LED Panel Light
- Date: Product: Quantity:
- Location: Project: Catalog#
FEATURES
- Both Power and CCT adjustable
- Easy install by Recessed or surface mounts
- Built-in junction box
- Fits standard T-grid ceilings
- Optical lenses over LED chip, pc cover never yellow over time
- 50,000 hours Life time
SUITABLE APPLICATIONS
- Office Lighting
- Meeting room lighting
- Store lighting
- Restaurant lighting
CONSTRUCTION:
Quality white Aluminum heatsink and high transmission PC cover.
ELECTRICAL:
No information provided in the text extract.
OPTICAL SYSTEM:
High brightness lumileds LED chips as backlit lighting solution.
INSTALLATION & MOUNTING:
- Suspended Ceiling Mounting/ Frame Flash Mounting
WARRANTY:
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
PERFORMANCE
| Model NO | SIZE | Wattage | Voltage | Light Efficiency | Kelvin Options |
|---|---|---|---|---|---|
| XL-PLUF22M38XX-AZZ-A | 2X2 | 38W/28W/18W | 100-277V | 125LM/W | 3500K/4000K/5000K |
| XL-PLUF24M72XX-AZZ-A | 2X4 | 72W/50W/40W | 100-277V | 125LM/W | 4000K/5000K/6500K |
OPTIONAL ACCESSORIES
No information provided in the text extract.
DISTRIBUTION DIAGRAM
No information provided in the text extract.
Install instruction
- Remove boards as drawing
- Put the lamp on the ceiling
- Open the cover of junction box with tool knock off the piece of top Install serpentire coil in junction box
For more information, please visit www.ledsion.com.
FEATURES
- Both Power and CCT adjustable.
- Easy install by Recessed or surface mounts.
- Built-in junction box Fits standard T-grid ceilings
- Optical lenses over LED chip, pc cover never yellow over time.
- 50,000hours Life time.
SUITABLE APPLICATIONS
- Office Lighting
- Meeting room lighting
- Store lighting
- Restaurant lighting
CONSTRUCTION:
Quality white Aluminum heatsink and high transmission PC cover.
OPTICAL SYSTEM:
High brightness lumileds LED chips as backlit lighting solution.
WARRANTY
5-year limited warranty. Actual performance maydiffer as a result of end-user environment and. application.
ELECTRICAL:
Available as 120-277V input. -25°C to45°C.
INSTALLATION&MOUNTING:
Suspended Ceiling Mounting/ Frame Flash Mounting
PERFORMANCE
| Model NO | SIZE | Wattage | Voltage | Light Efficiency | Kelvin Options |
| XL-PLUF22M38XX-AZZ-A | 2X2 | 38W/28W/18W | 100-277V | 125LM/W | 3500K/4000K/5000K |
| XL-PLUF24M72XX-AZZ-A | 2X4 | 72W/50W/40W | 100-277V | 125LM/W | 4000K/5000K/6500K |
Electric Characteristic
| Specification/Model | XL-PLUF22M38XX-AZZ-A | XL-PLUF24M72XX-AZZ-A |
| LED Driver | UL listed XIEZHEN Brand 0-10 dimmable | |
| Input power tunable | 38W/28W/18W | 72W/50W/40W |
| Lumens output | 4750LM/3500LM/2250LM | 9000LM/6250LM/5000LM |
| Efficiency | 125LM/W | 125LM/W |
| CRI | ＞80 | ＞80 |
| Color Temperature | 3500K/4000K/5000K | 4000K/5000K/6500K |
| Input voltage | 120-277V/AC | 120-277V/AC |
| Light distribution type | 110D | 110D |
| Working temperature | -25+45℃ | -25+45℃ |
| Junction temperature | ＜75℃ | ＜75℃ |
| lamps efficiency | ≥90% | ≥90% |
| Certificate | UL CUL DLC | UL CUL DLC |
| Equivalent | 36-110W MH/HPS | 56-150W MH/HPS |
Electric Characteristic
OPTIONAL ACCESSORIES
Emergency Battery Backup.Style LSED20W

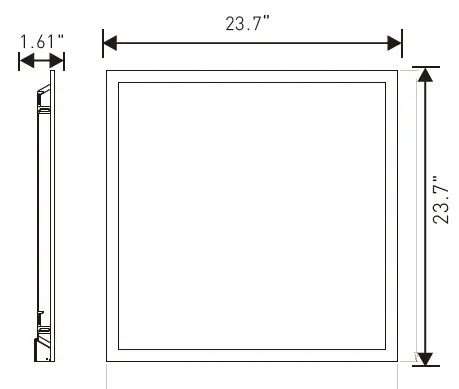

2×2 size

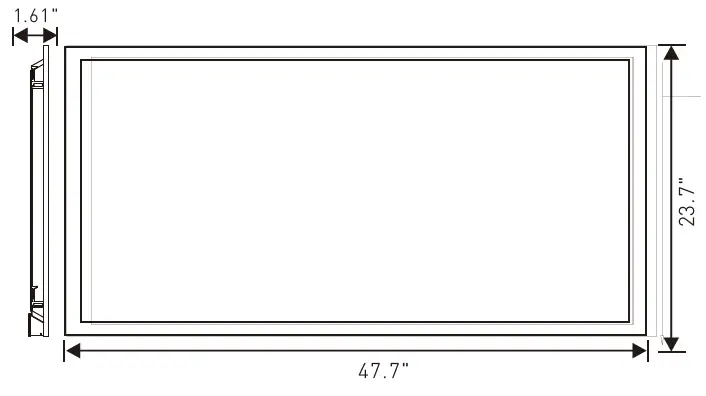

2×4 size

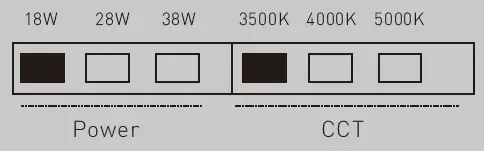

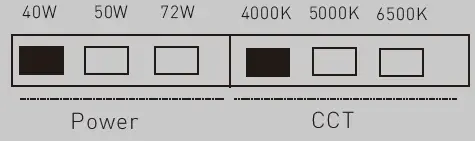

The lamps have the function of adjusting power and color temperature

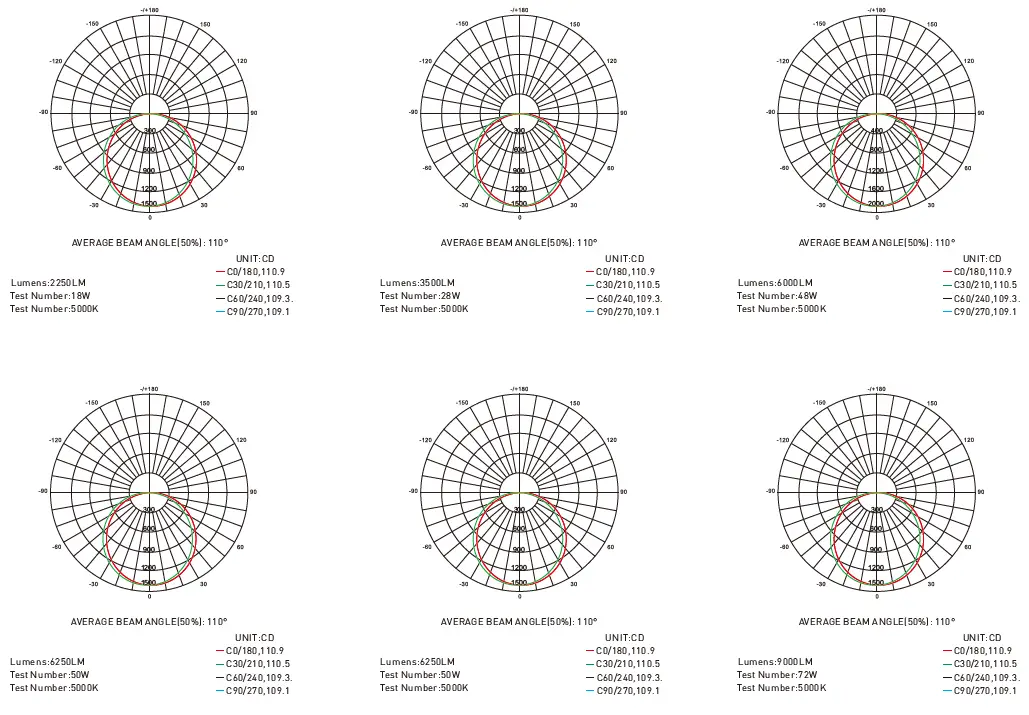

DISTRIBUTION DIAGRAM
Install instruction

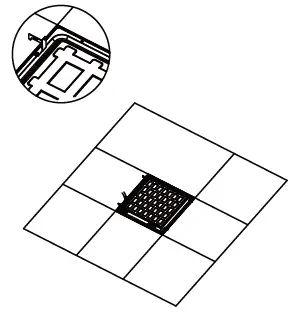

- STEP 1: Remove boards as drawing

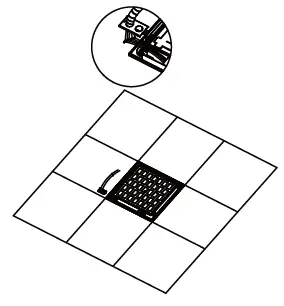

- STEP 2: Put the lamp on the ceiling
- STEP 3: Open the cover of the junction box with the tool and knock off the piece of top Install the serpentine coil in the junction box
- STEP 4: Connect wires with P2 P3 nuts Refer the wiring diagram
- STEP 5: Lock the lamp on the frameworks
T-bar clips should be bent out to provide additional safety and support. - STEP 6: Put the board back, and check again
9244MARKVILLEDR.,SUITEA DALLAS,TX75243001-9729517795 www.ledsion.com.
