HILTI HST3 Stud Anchor Galvanized

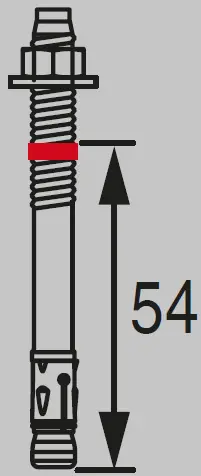

DIMENSION
| HST3/HST3-R | tfix, min | tfix, max | hnom, min | hnom, max | hmin | hnom |
| M8x75 10/- | 10 | 10 | 54 | 54 | 80 | |
| M8x95 30/- | 30 | 30 | 54 | 54 | 80 | ![]() |
| M8x115 50/7 | 7 | 50 | 54 | 97 | 26+hnom |

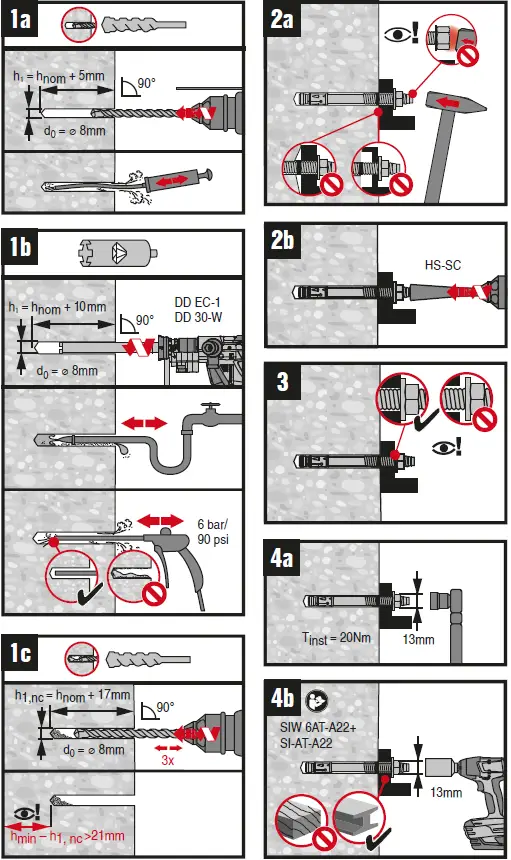

INSTALLATION

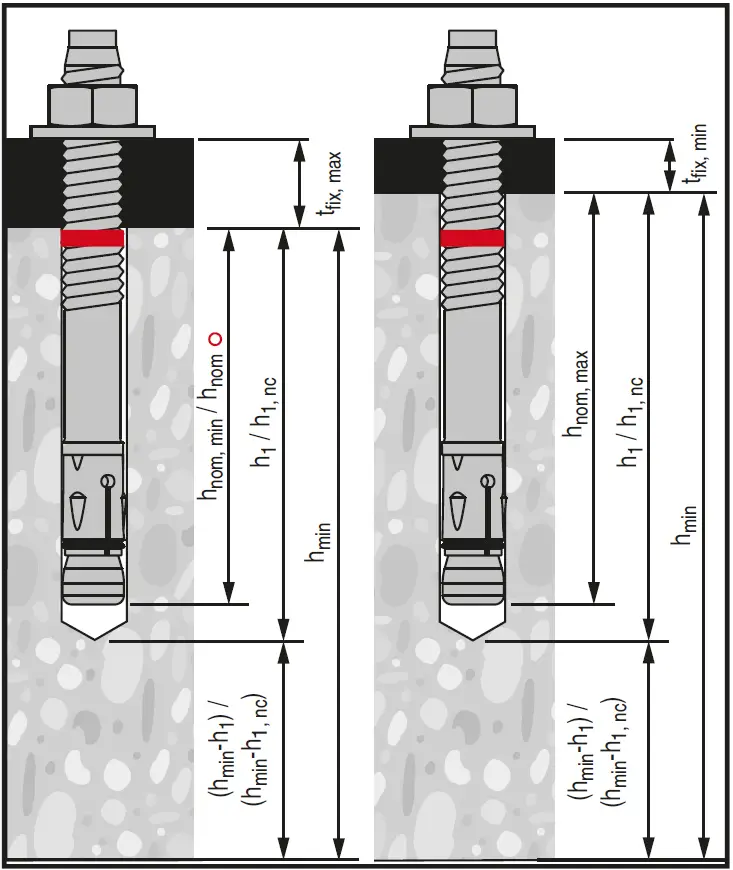

| HST3/HST3-R | tfix, min | tfix, max | hnom, min | hnom, max | hmin | hnom |
| M8x75 10/- | 10 | 10 | 54 | 54 | 80 | |
| M8x95 30/- | 30 | 30 | 54 | 54 | 80 | ![]() |
| M8x115 50/7 | 7 | 50 | 54 | 97 | 26+hnom |
