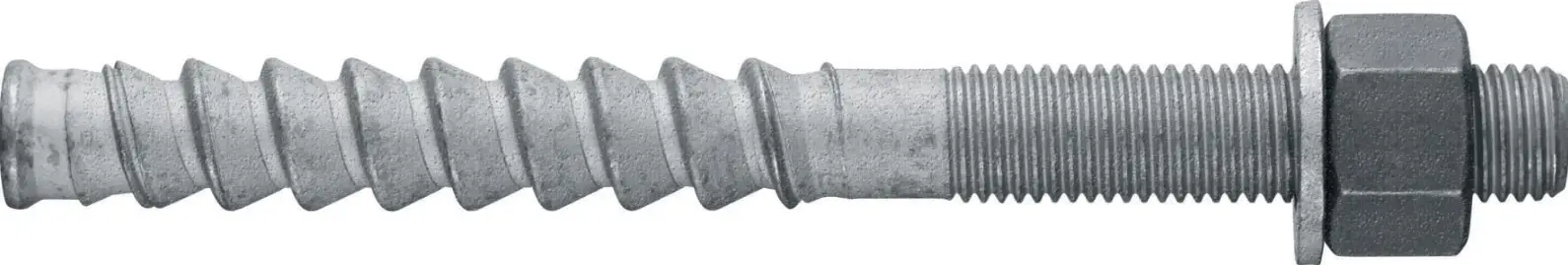

HILTI HIT-Z-F Anchor Rod

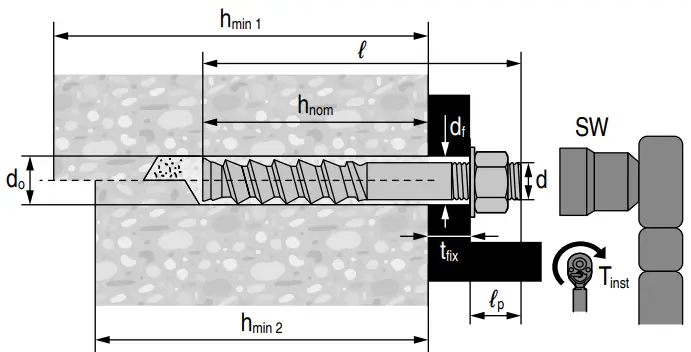

DIMENSION
| ⌀ d (mm) | M8 | M10 | M12 | M16 | M20 | |
| do | 10 | 12 | 14 | 18 | 22 | |
| df1 | 11 | 14 | 16 | 20 | 24 | |
| df2 | 9 | 12 | 14 | 18 | 22 | |
| hnom ℓp hmin 1 | 60 … 96 ≥ 12 | 60 … 120 ≥ 13 | 60 … 144 ≥ 16 | 96 … 192 ≥ 21 | 100 … 220 ≥ 24 | |
| hmin 1 = hnom + 60 mm | hmin 1 = hnom + 100 mm | |||||
hmin 2 | hmin 2 = hnom + 30 mm ≥ 100 mm | hmin 2 = hnom + 45 mm | ||||
hmin 2 tfix Tinst (Nm) HIT-Z / HIT-Z-F | ||||||
| tfix = ℓ – hnom – ℓp | ||||||
| 10 | 25 | 40 | 80 | 150 | ||
| Tinst (Nm) HIT-Z-R SW | 30 13 | 55 17 | 75 19 | 155 24 | 215 30 | |

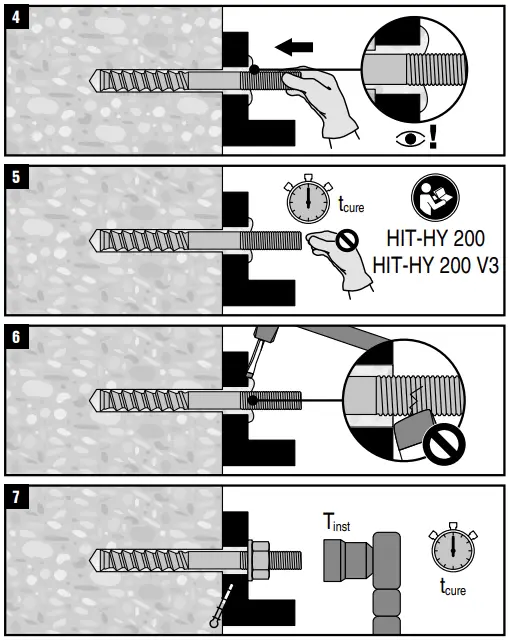

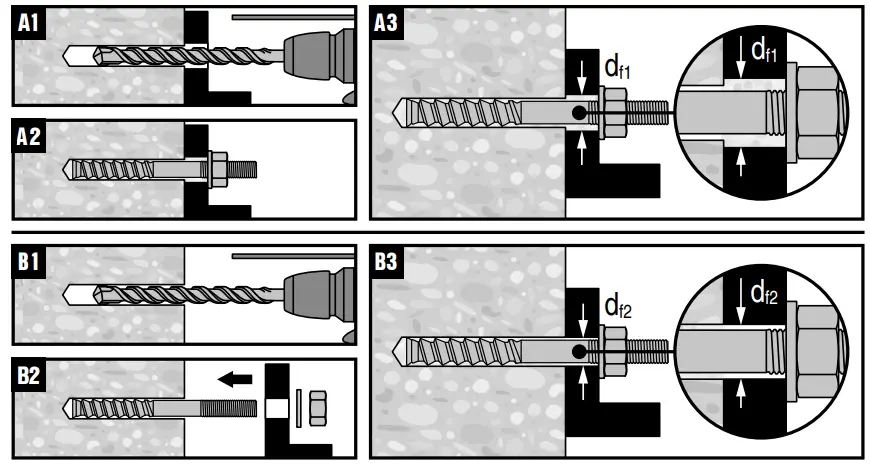

USING

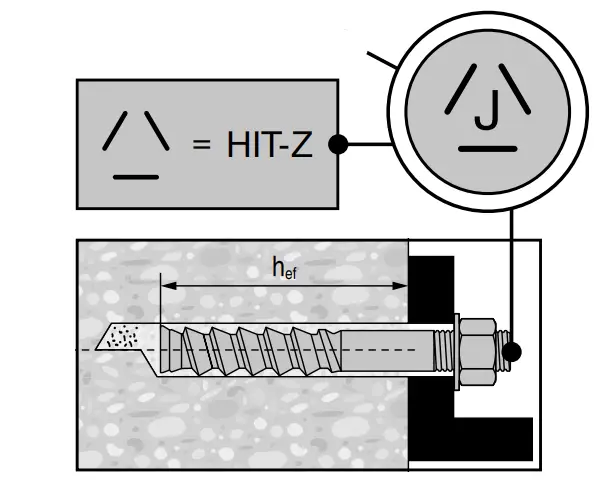

Length Identification Code
| HIT-Z HIT-Z-R | length identification code |
| M8 × 80 | D |
| M8 × 100 | E |
| M8 × 120 | G |
| M10 × 95 | E |
| M10 × 115 | G |
| M10 × 135 | H |
| M10 × 160 | J |
| M12 × 105 | F |
| M12 × 140 | I |
| M12 × 155 | J |
| M12 × 196 | M |
| M16 × 155 | J |
| M16 × 175 | K |
| M16 × 205 | N |
| M16 × 240 | P |
| M20 × 215 M20 × 250 | N Q |
