Uline Steel Disk Single Pedestal User Guide

H-7829

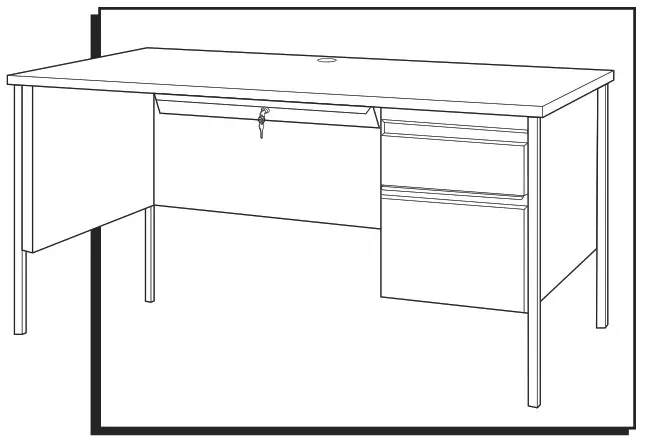

STEEL DESK ­ SINGLE PEDESTAL
1-800-295-5510
uline.com

TOOL NEEDED

Phillips Screwdriver

Two Person Assembly Recommended

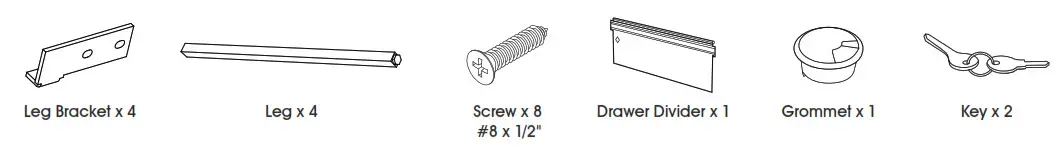

PARTS

ASSEMBLY

NOTE: Use Phillips screwdriver to tighten screws.
NOTE: Assemble on smooth, non-marring surface to avoid scratching.
NOTE: Check that all parts are included.
WARNING! Take care when handling metal parts. Sharp edges may cause injury.

1. Lock drawers. With two people, turn desk upside down.

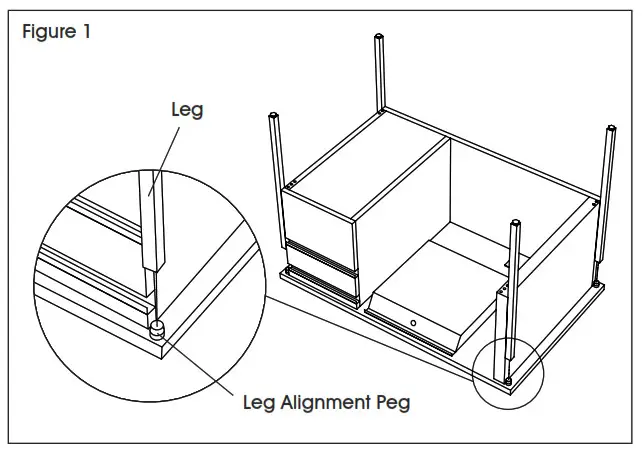

2. Place open end of leg over alignment peg on bottom of desktop at corner. (See Figure 1)

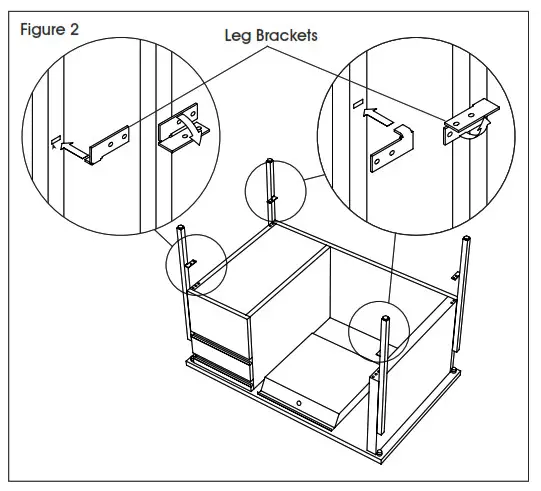

3. Insert one leg bracket into the corresponding slot in leg. (See Figure 2)
   NOTE: Bracket may flip up or down, depending on which leg user is installing.

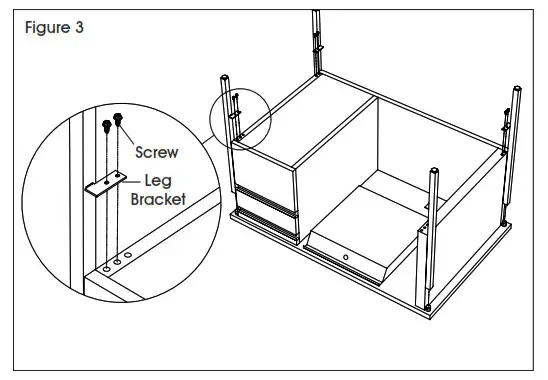

4. Align leg bracket with holes in pedestal file. Use two #8 x 1/2″ screws to secure. Repeat for remaining legs. (See Figure 3)

5. With two people, set desk upright and position in desired location. Adjust leveling glides as needed.
6. Place drawer divider at desired location in top drawer and insert grommet into desktop.

1-800-295-5510
uline.com

0721 IH-7829
