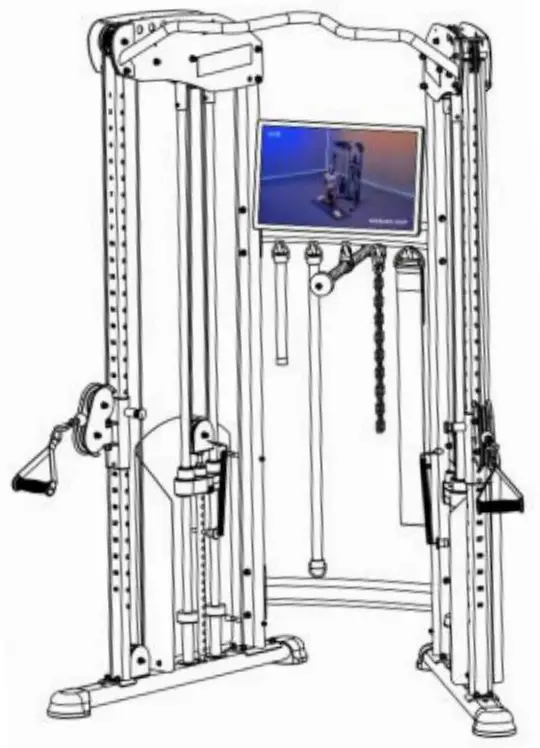

HFT-Bracket HFT Pro Functional Trainer
Owner’s Manual
HFT-Bracket for the HFT & HFT PRO Functional Trainer
HFT-Bracket HFT Pro Functional Trainer
http://www.bodycraft.com/HFT-Bracket-qr.html

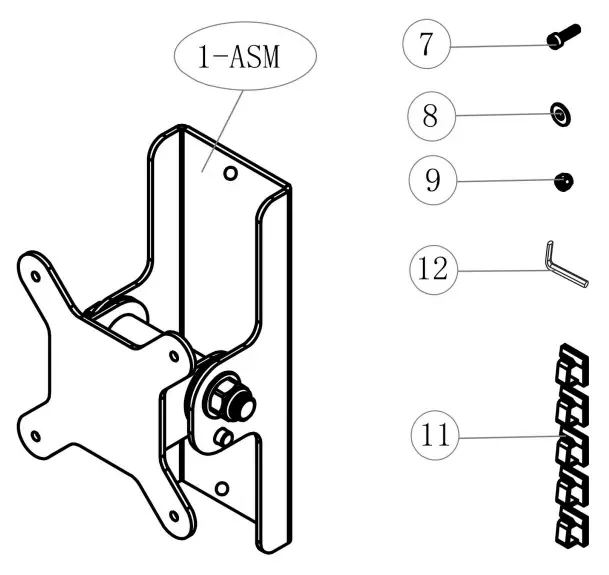

Assembled Parts List, HFT-Bracket
| Part # | Assembly Parts List | QTY |
| HFT-Bracket-001-ASM | Bracket Frame Assembly | 1 |
| HFT-Bracket-007 | Bolt, Recessed Hex Round HeadM4 x 14mm – BLACK | 2 |
| HFT-Bracket-008 | Washer, Large, 4mm – BLACK | 4 |
| HFT-Bracket-009 | Nut, Hex Nylon Lock, 4mm – BLACK | 2 |
| HFT-Bracket-010 | Cable Clip Mount | 5 |
| HFT-Bracket-012 | Allen Wrench, 3mm | 1 |

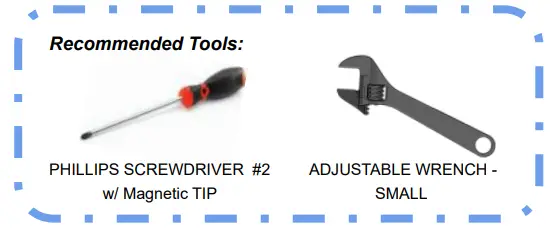

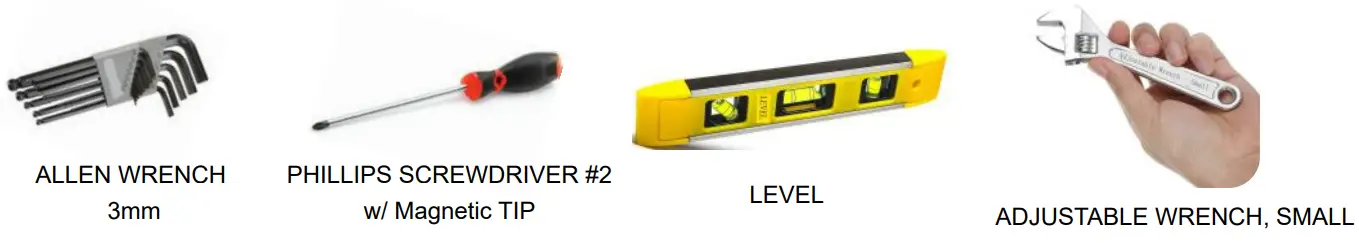

THE FOLLOWING TOOLS ARE RECOMMENDED FOR ASSEMBLY:
HFT-Bracket, Assembly of the Bracket & Connect-22 to the HFT Functional Trainer

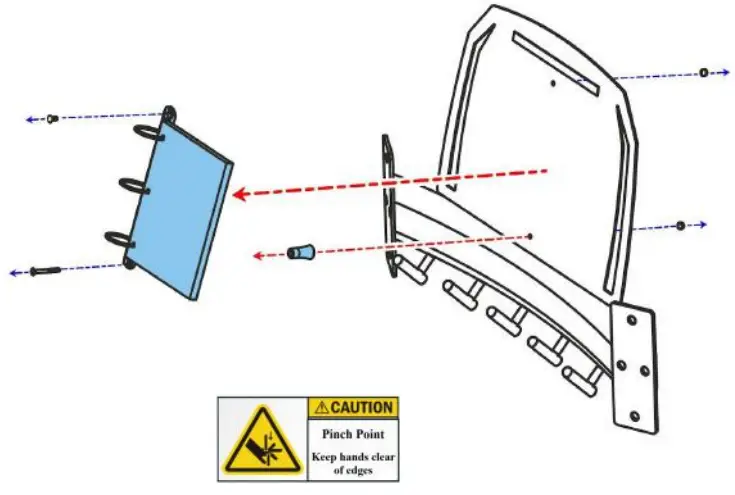

STEP 1: Remove Exercise Book and Holder
| Part # | Disassembly Hardware for STEP 1 | QTY |
| HFT-026 / 028 | Exercise Book and Holder | 2 |
| HFT-058 / 059 | M4 x 10L / 40L Sunken Head Screws -BLK | 2 |
| HFT-072 | M4 Nylon Nut – BLK | 2 |
| HFT-043 | Plastic Stud Spacer | 1 |

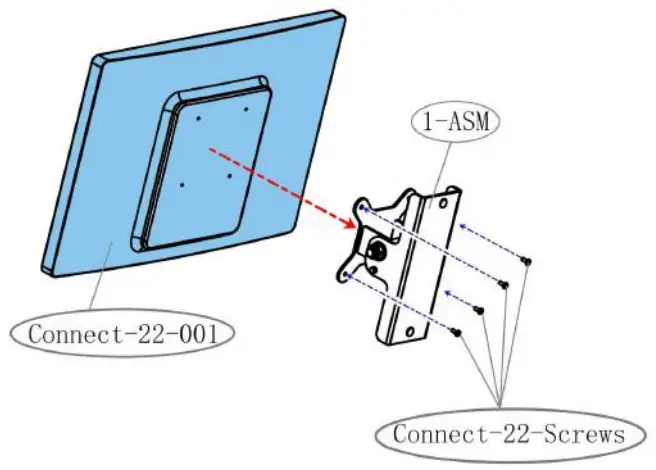

STEP 2: Assemble Connect-22 to the HFT-Bracket
| Part # | Assembly Parts for STEP 2 | QTY |
| Connect-22-001 | Connect-22 | 1 |
| Connect-22-Screws | Philips Head Screws (M4 x 8mm L) | 4 |
| HFT-Bracket-001-ASM | Bracket Frame Assembly | 1 |

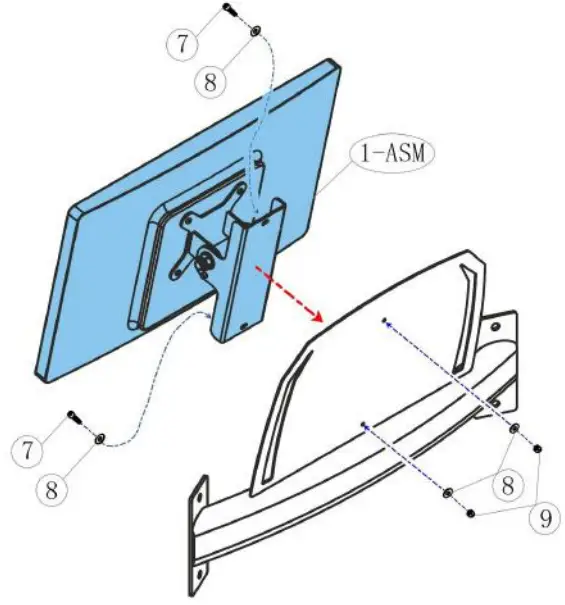

STEP 3: Assemble HFT-Bracket to the Top Cross Support
| Part # | Assembly Parts for STEP 3 | QTY |
| HFT-Brace ket-007 | Bolt, Recessed Hex Round Head, M4 x 14mm – BLACK | 2 |
| HFT-Brace ket-008 | Washer, Large, 4mm – BLACK | 4 |
| HFT-Brace ket-009 | Nut, Hex Nylon Lock, 4mm – BLACK | 2 |
NOTE: Confirm the HFT-Bracket is level. Then double check the bolts, nuts & screws are tightened down to withstand vigorous usage.
Product Assembly – Connect-22 Cable Routing on Rt or Lt Sides of Machine
CAUTION: It is highly suggested to follow the steps below to secure the cable away from moving parts. Do not let the cable dangle straight down to the floor.

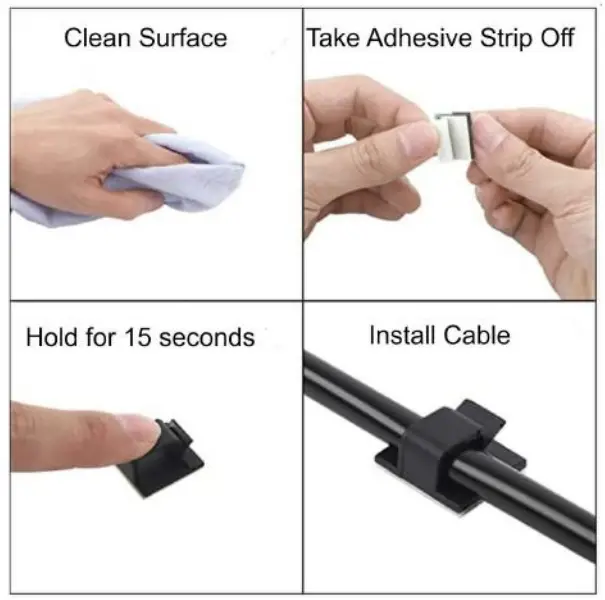

STEP 5: How to Install Cable Clip Mounts
a. Clean surface with mild spray soap or a window cleaner and dry with a 100% cotton rag.
b. Take adhesive strip off back of Cable Clip Mount.
c. Place Cable Clip Mount and hold for 15 seconds.
d. Install Cable under Clip while gently holding the back.
NOTE: DO NOT over stretch clip mount opening. Only open enough to gently slide the cable under the mount.

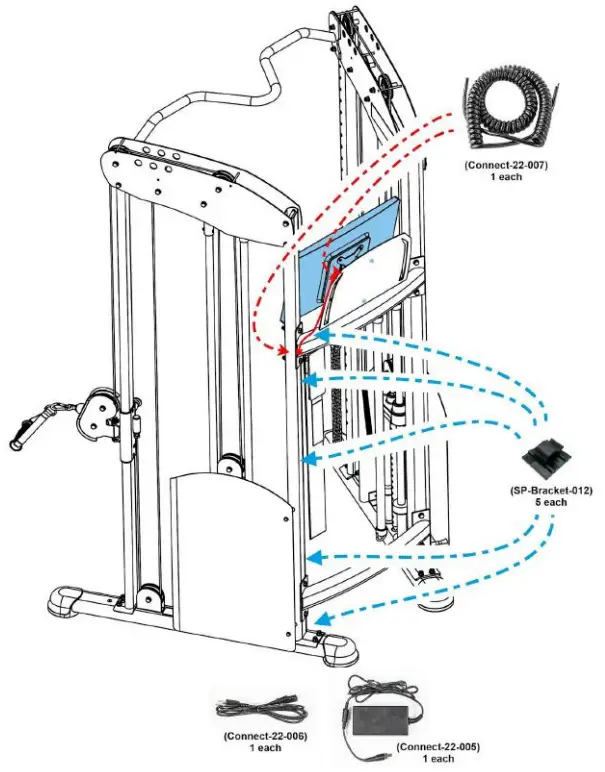

STEP 6: Install Cable Clip Mounts
a. Install a Cable Clip Mount at each arrow location on the top left side of shroud in case of any service issues.
b. Then fully install the Cable with the 2.5mm power cord end at the Connect-22 back plug. Follow the Cable Clip Mounts with the cable to the base of the Rower.
NOTE: If you have downloaded this document, zoom in to see the light blue arrows and their locations.

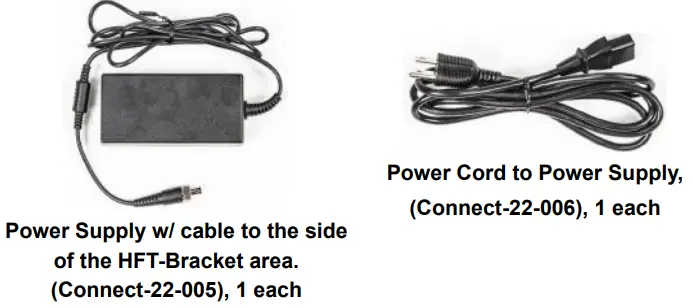

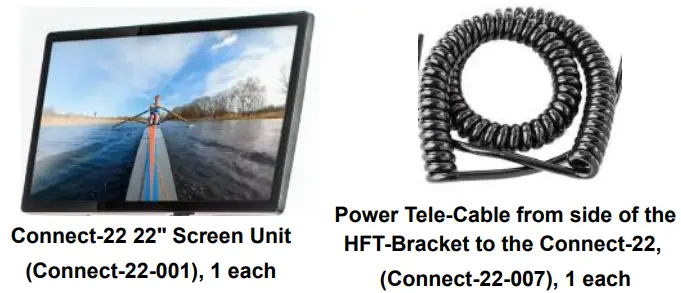

Parts from the Connect-22 (items below are not to scale)
 |  |

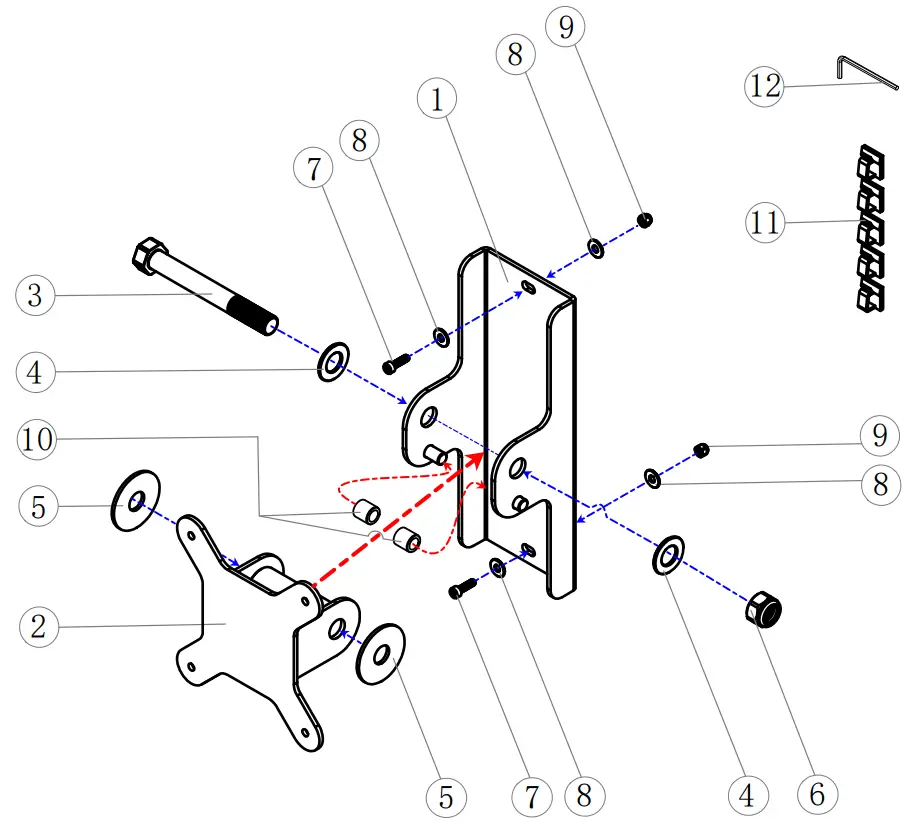

Detailed Parts List & Parts Exploded View
| Part # | Detailed Parts List | QTY |
| HFT-Bracket-001 | Bracket Frame | 1 |
| HFT-Bracket-002 | Visa 100 Bracket | 1 |
| HFT-Bracket-003 | Bolt, Hex 1/2″ x 4″ – BLACK | 1 |
| HFT-Bracket-004 | Washer, Flat, 1/2″ – BLACK | 2 |
| HFT-Bracket-005 | Washer, Plastic, Large, 1/2″ – BLACK | 2 |
| HFT-Bracket-006 | Nut, Hex Nylon Lock, 1/2″ – BLACK | 1 |
| HFT-Bracket-007 | Bolt, Recessed Hex Round Head, M4 x 14mm – BLK | 2 |
| HFT-Bracket-008 | Washer, Large, 4mm – BLACK | 4 |
| HFT-Bracket-009 | Nut, Hex Nylon Lock, 4mm – BLACK | 2 |
| HFT-Bracket-010 | Rubber Cover for Bracket Stoppers | 2 |
| HFT-Bracket-011 | Cable Clip Mount | 5 |
| HFT-Bracket-012 | Allen Wrench, 3mm | 1 |
