BODYCRAFT Speed Trainer for HFT User Manual

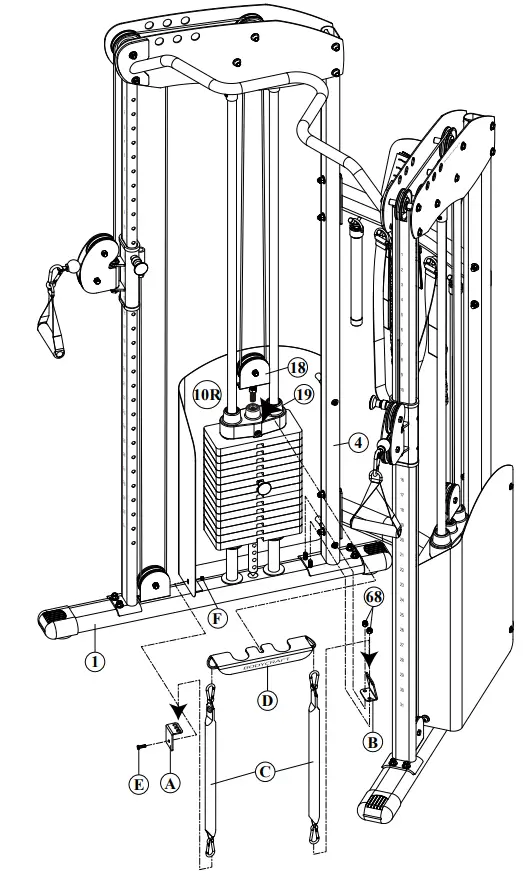

- Please attach Steel Plate (A) to the Base Frame (1) and Right Weight Panel (10R) using a 5/16” X 3/4” Hex Threaded Bolt (E) and 5/16“ Nylon Nuts (F).
- Attach Steel Plate (B) to the Base Frame (1) and Rear Upright Frame (4) using two 5/16” Nylon Nuts (68).
- Please attach Connector Frame (D) to the Pulley Block (18) and Top Plate (19) between.
- Attach Spring Rope (C) to clip the Steel Plate (A & B). Repeat steps for the other side.
| NO. | DESCRIPTION | QTY. |
| 1 | BASE FRAME | 1 |
| 4 | REAR UPRIGHT FRAME | 1 |
| 10R | RIGHT WEIGHT PANEL | 1 |
| 18 | PULLEY BLOCK | 1 |
| 19 | TOP PLATE | 1 |
| 68 | 5/16” NYLON NUT | 2 |

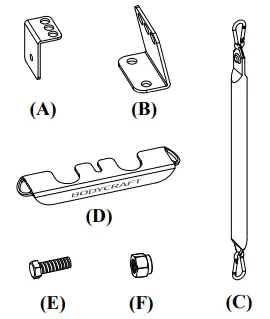

| NO. | DESCRIPTION | QTY. |
| A | STEEL PLATE | 2 |
| B | STEEL PLATE | 2 |
| C | SPRING ROPE | 8 |
| D | CONNECTOR FRAME | 2 |
| E | 5/16” X 3/4” HEX THREADED BOLT | 2 |
| F | 5/16” NYLON NUT | 2 |
