Bodycraft Xft Functional Trainer Owner's Manual

Bodycraft XFT Functional Trainer Owner’s Manual

Product Safety – Benches & Racks

There is a risk assumed by individuals who use this type of equipment. A moment’s lack of attention can result in an accident, as can failure to observe certain simple safety precautions.

Read, study and understand the Assembly Instructions and all the warning labels on this product. Furthermore, it is recommended to familiarize yourself and others with the proper operation and workout recommendations for this BODYCRAFT product prior to use.

• Before beginning this or any other exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with preexisting health problems. Recreation Supply, Inc. assumes no responsibility for personal injury or property damage sustained by or through use of this product.
• Exercise with care to avoid injury. Do not attempt to lift more weight than you can control safely.
• This product must be assembled on a flat, level surface to assure its proper function.
• Clean pads and frame on a regular basis. We recommend warm, soapy water. Do not use harsh or abrasive chemicals.
• Inspect and tighten all parts before every use. Replace any worn parts immediately. Failure to do so may result in serious injury.
• Keep children away from any BODYCRAFT strength machines at all times.
• Keep your hands away from cables and pulleys during operation, other than the designated handles.
• Keep hands, limbs, loose clothing and long hair well out of the way of moving parts.
• Inspect the unit for any sign of wear on parts, hardware becoming loose or cracks on welds. If a problem is found, do not use or allow the machine to be used until the defective part is repaired or replaced.
• It is imperative that you retain these Assembly Instructions and be sure all warning labels are legible and intact. Replacement Assembly Instructions and labels are available from BODYCRAFT. If you are unsure about the proper use of the BODYCRAFT strengthmachine call your local BODYCRAFT dealer or our Customer Service Department. Contact BODYCRAFT at 800-990-5556 or [email protected]

Important Notes, Recommended Tools & Cleaners – PRow

Important Notes and Tips:

1. Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier.
2. Make sure all parts are accounted for and in proper condition before beginning assembly. See the parts list.
3. Be cautious not to damage the flooring when assembling. Place a protectant down such as a rubber mat or shipping blanket.
4. Let plastics and weight stacks acclimate to room temperature before you begin assembly.
5. Two people are recommended for the safe assembly of this equipment.
6. Insert all bolts in the same direction when possible. Do not tighten until instructed.
7. Carefully install plastic caps using a rubber mallet.

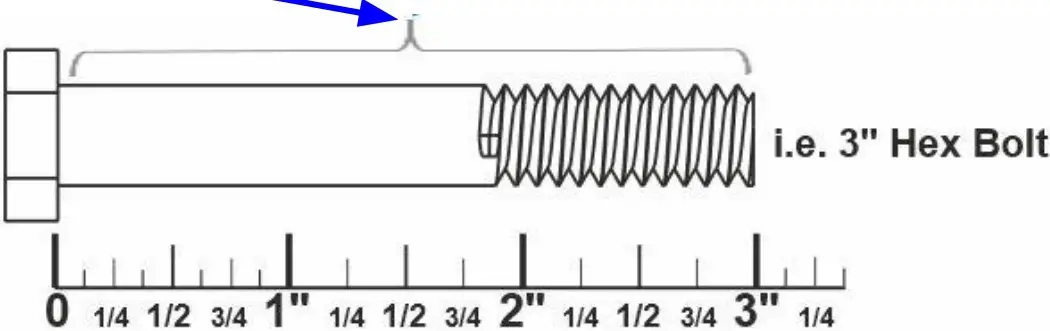

8. When measuring bolt lengths, only measure the shank.
9. When the installation is complete, be sure to regularly check for rust or damage, and perform preventative maintenance.


THE FOLLOWING TOOLS ARE RECOMMENDED FOR EASIER ASSEMBLY:

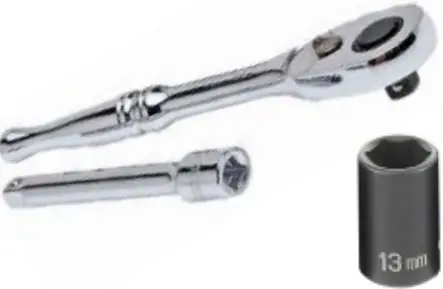

• SOCKET WRENCH, 3/8 DRIVE & EXTENSION (w/ 13mm Socket)

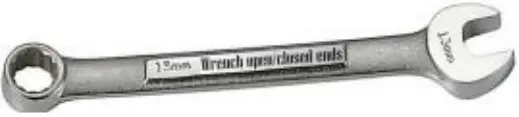

• OPEN / CLOSED WRENCH, 13mm

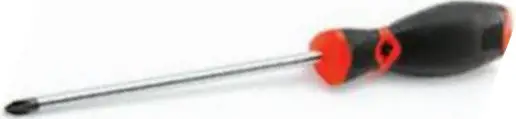

• PHILLIPS SCREWDRIVER #2 w/ Magnetic Tip

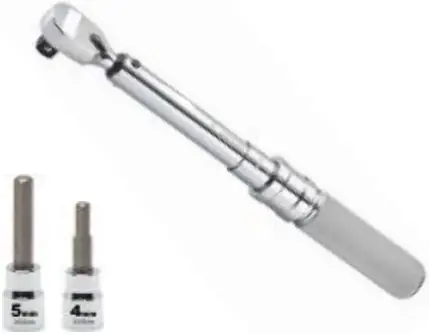

• TORQUE WRENCH, 3/8 DRIVE (w/ 4mm & 5mm Allen Hex Bit Socket)

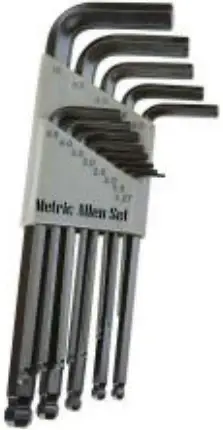

• ALLEN WRENCH SET (Only 4mm & 5mm are needed)


THE FOLLOWING IS RECOMMENDED FOR CLEANING:

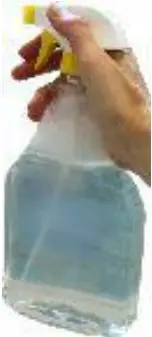

• MILD CLEANING SOLUTION

• 100% COTTON CLEANING CLOTHS


TIP ON FRAME ONLY: For extra protection from fingerprints, sweat stains or just plain dirt, apply an automotive grade cleaner wax if desired. Also makes future cleaning easier.

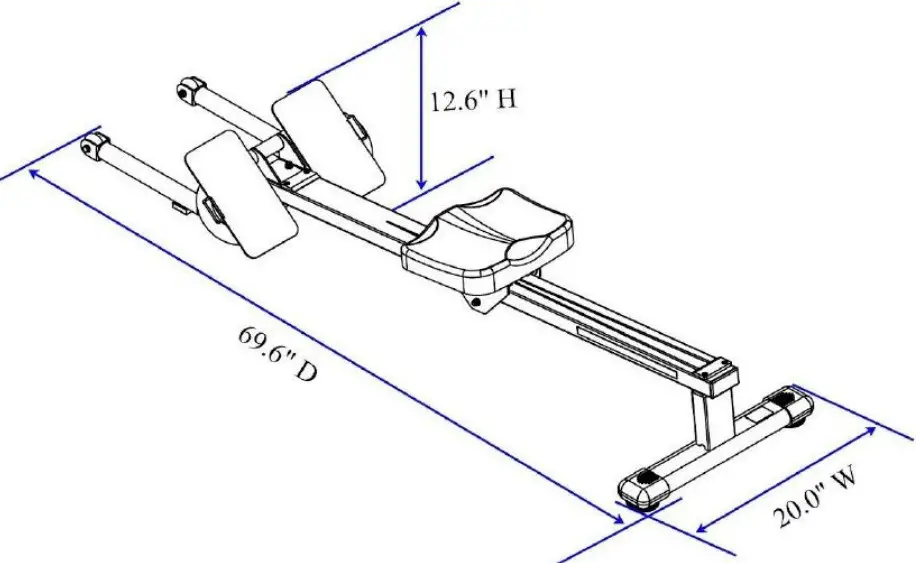

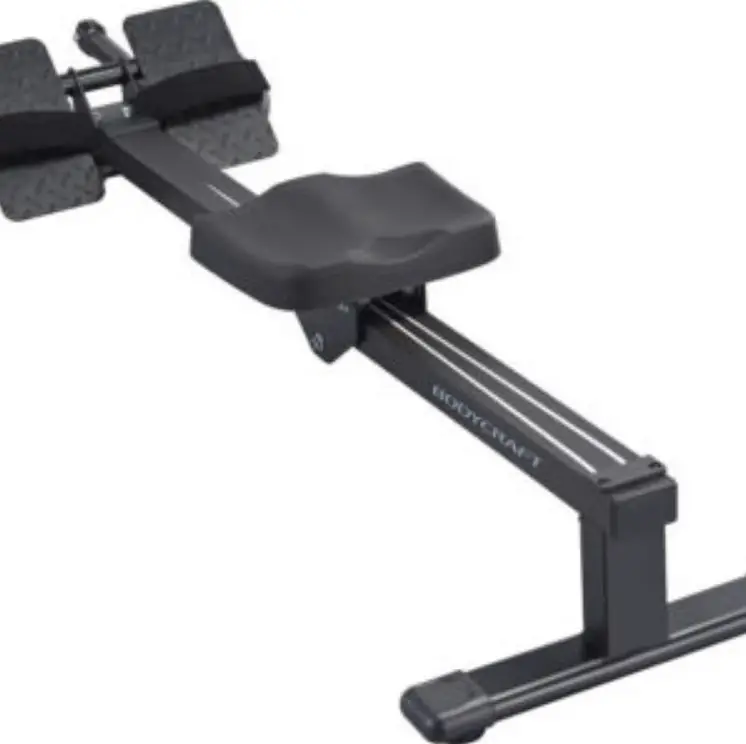

Machine Dimensions & Specs

Overall Dimensions
20.0″ W x 69.6″ D x 12.6″ H

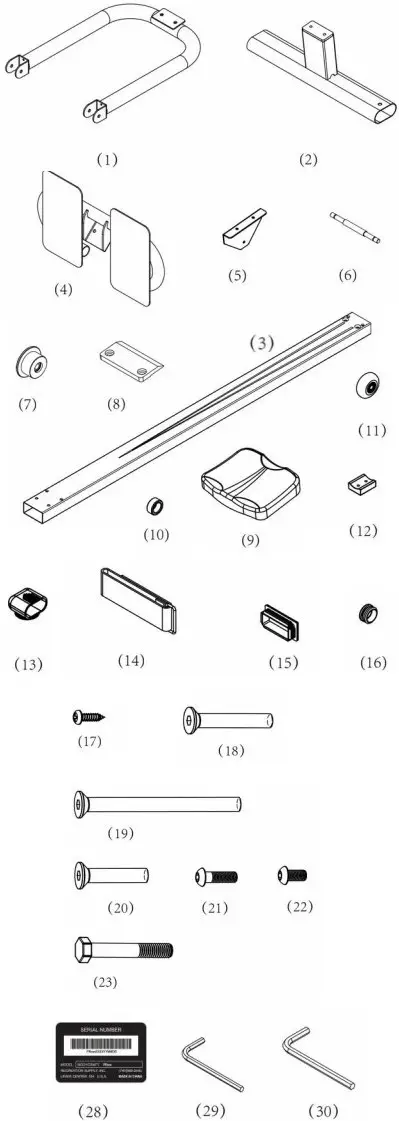

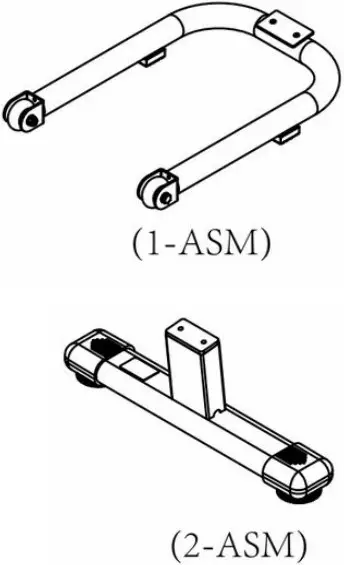

Assembly Parts & Hardware List

Product Assembly – STEP 1

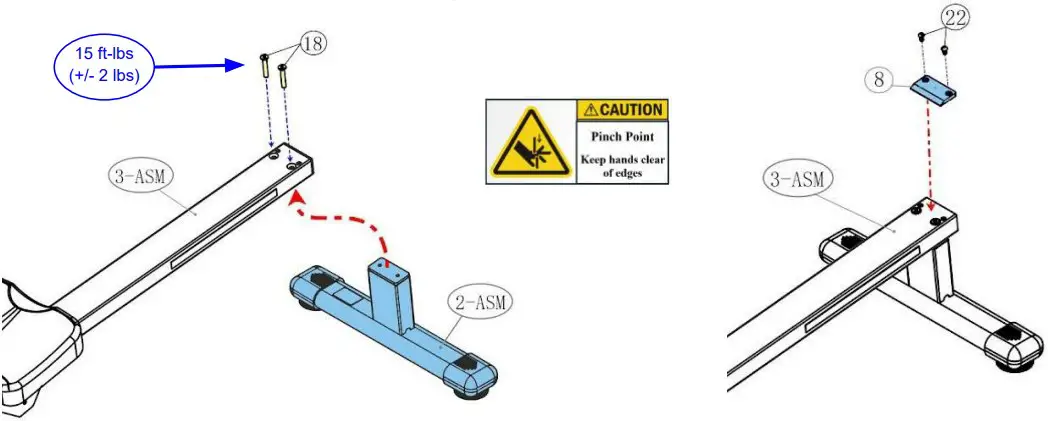

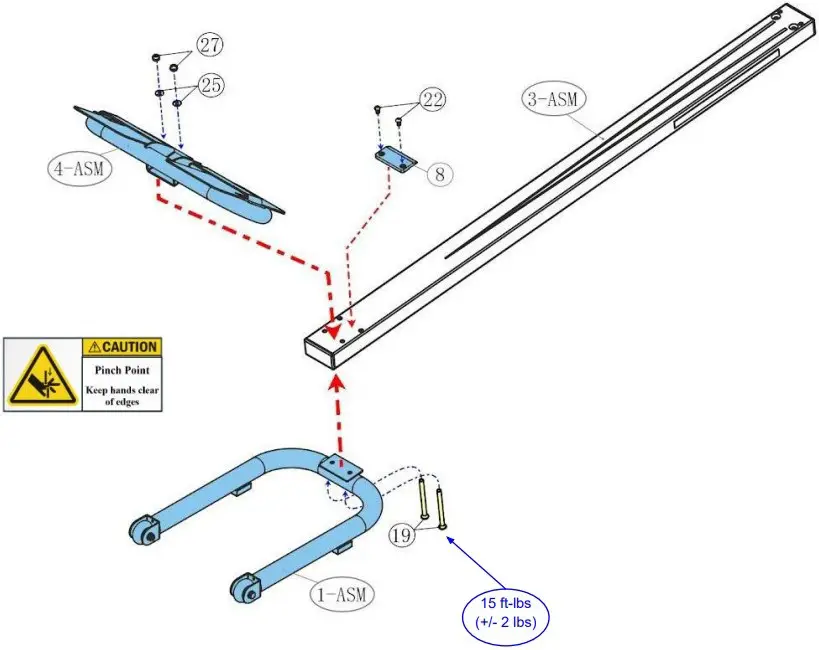

STEP 1: Front Stabilizer, Foot Platform & Front Bumper

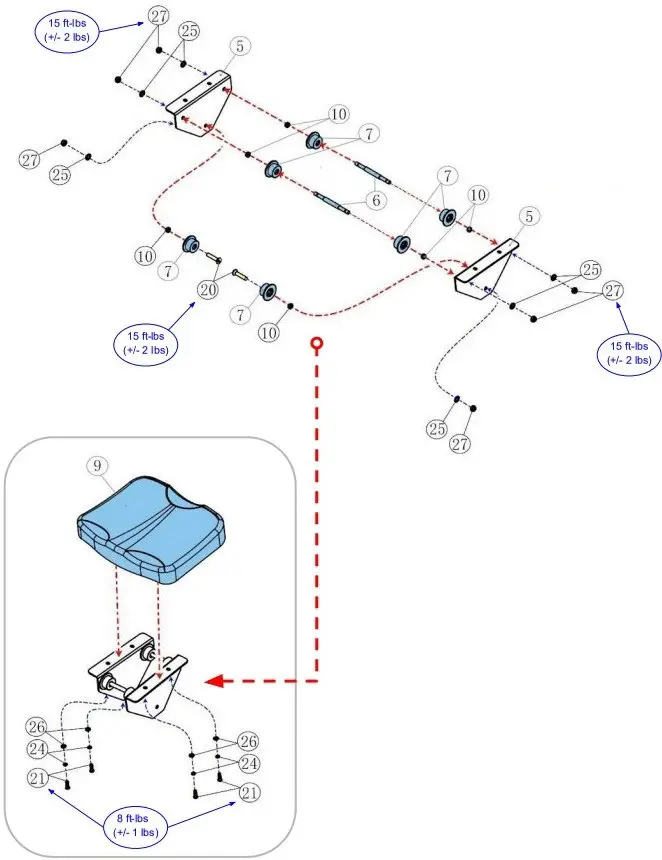

STEP 2: Seat Support Assembly

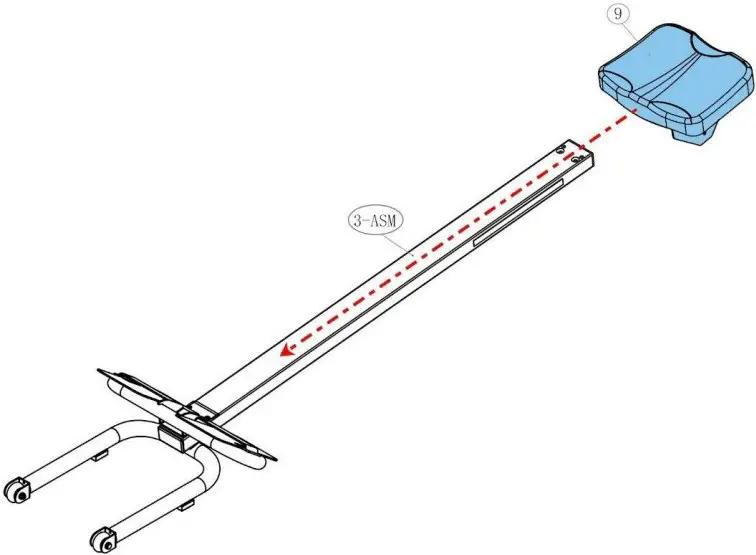

STEP 3 : Seat Pad

STEP 4 : Rear Stabilizer & Rear Bumper

Detailed Parts List – PRow

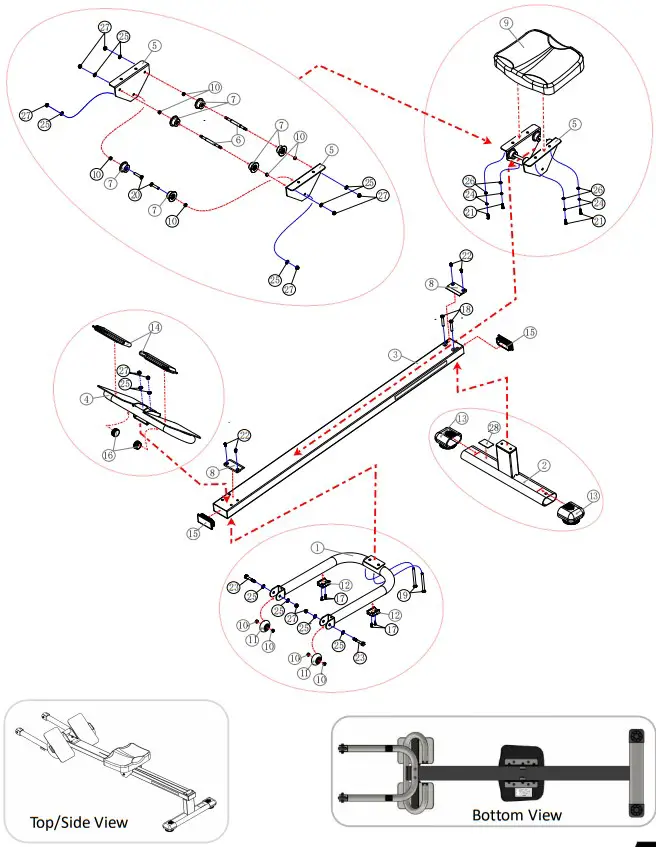

Parts Exploded View

Service Request

Required Information BEFORE Initiating a Service Case
The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair:

1. What product / model # do you have?
2. Unit serial number?
3. Installed by a dealer or direct sale?
4. Date of installation?
5. Date of service issue?
6. Complaint or problem, including any Error Codes?
7. Has the software been updated?
8. What part(s) are being requested?
9. Any picture or video will help with troubleshooting or exact part(s) needed.

Product Warranty – Strength

VALID FOR USA AND CANADA ONLY
(Please consult with your local distributor for warranty info specific to your region).
BODYCRAFT warrants its products to be free of defects in materials and workmanship for the time stated below to the original purchaser. Register your product within 30 days of purchase at www.bodycraft.com or call 800-990-5556

This warranty is valid only in accordance with the following conditions:
The warranty begins on the original purchase date at retail and ends when the original owner disposes of it, either through sale, gift, or otherwise. This warranty is not transferable and is only valid to the original purchaser.This warranty is available only for purchases made within and the original purchaser currently residing in the USA and Canada. Please consult with your local distributor for warranty information specific to your region. The product must have been registered within 30 days of the original purchase date or supply proof of purchase to validate warranty (original sales invoice). This warranty does not extend to any losses or damages due to accident, misuse, abuse, neglect, negligence, unauthorized modification or alteration, use beyond rated capacity, unsuitable power sources or environmental conditions, water, tampering, cosmetic damages, or improper installation, handling, repair, maintenance, or application, or lack of proper maintenance. If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts. Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic evidence of the damaged part(s) prior to replacement.) Serial number is required. Parts repaired or replaced will be warranted for the remainder of the original warranty period only.

This warranty excludes the following:

1. The warranty does not cover normal maintenance or labor charges unless labor terms are listed above.
2. Normal cosmetic wear on parts such as paint, seat coverings, foot rails, labels and logos.
3. Any accessories not included in the original packaging.
4. Warranty does not cover normal wear and tear.

* This warranty is in lieu of all warranties, expressed or implied, and/or all other obligations or liabilities on our part, and we neither assume nor authorize any person to assume for us any other obligation or liability in connection with the sale of your BODYCRAFT product. Under no circumstances shall we be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, incidental, secondary or consequential damage of any nature whatsoever arising out of the use or inability to use the BODYCRAFT product.

Warranty Registration – Strength

Thank you for purchasing a BODYCRAFT product. To validate the product warranty the fast and easy way, please go on-line now to https://www.bodycraft.com/product-registration.html and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to BODYCRAFT within 30 days from the date of equipment installation.

Please Note: Failure to register this product will result in no servicing or authorization of parts to be shipped.
To mail your warranty information, please fill in the information below and mail to: Service Dept., BODYCRAFT , 7699 Green Meadows Dr. Lewis Center, Ohio 43035 (or save postage and register online at https://www.bodycraft.com/product-registration.html
