Miboxer Wl-box1 Mi-light Mostek Wi-fi Dc5v 500ma Instruction Manual

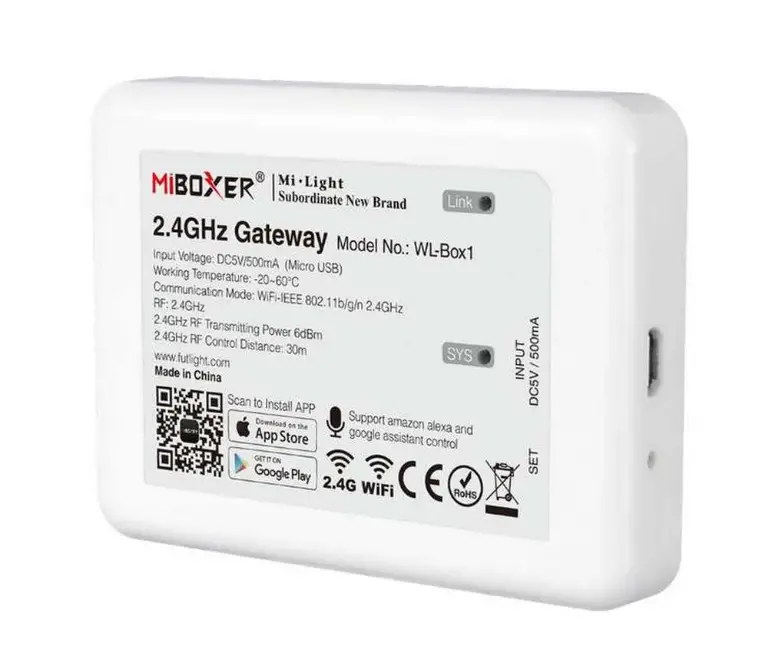

MIBOXER WL-Box1 Mi-Light Mostek Wi-Fi DC5V 500mA

Please read the instructions carefully before using the controller.

Features

Compatible with 2.4GHz RF products; and controlled by Mi Boxer APP through WiFi or 4G network.

Can control 2.4GHz RF series product

16 Millions of colors  to choose

WiFi  Wireless Control

Color temperature 2700K~6500K

2.4GHzRF transmission tech

Dim brightness/Saturation

Smartphone App control

Timing ON/OFF the lights

Support amazon alexa and google assistant control

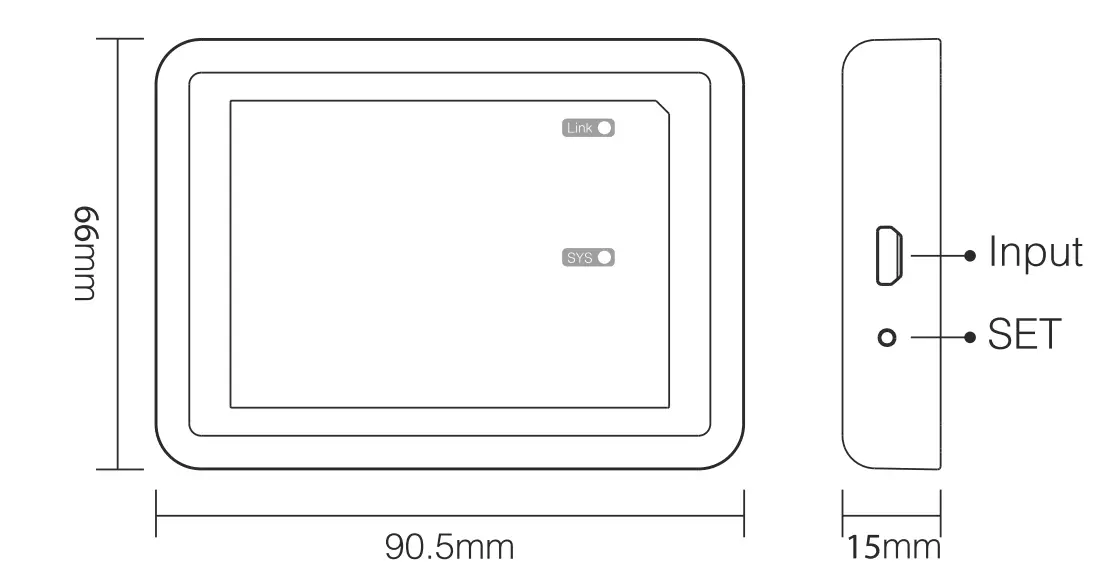

Parameters

Model No.: WL-Box1
Input: DC5V/500mA (Micro USB)
Working Temperature: -20~60°C
Communication Mode: WiFi-lEEE 802.11 b/g/n 2.4GHz
RF: 2.4GHz Transmitting Power: 6dBm
Product Weight: 23g

SET button

Long press “SET” 3 seconds to smart link mode, SYS pilot lamp blinking.
Note: Factory setting is Smart Link mode by default

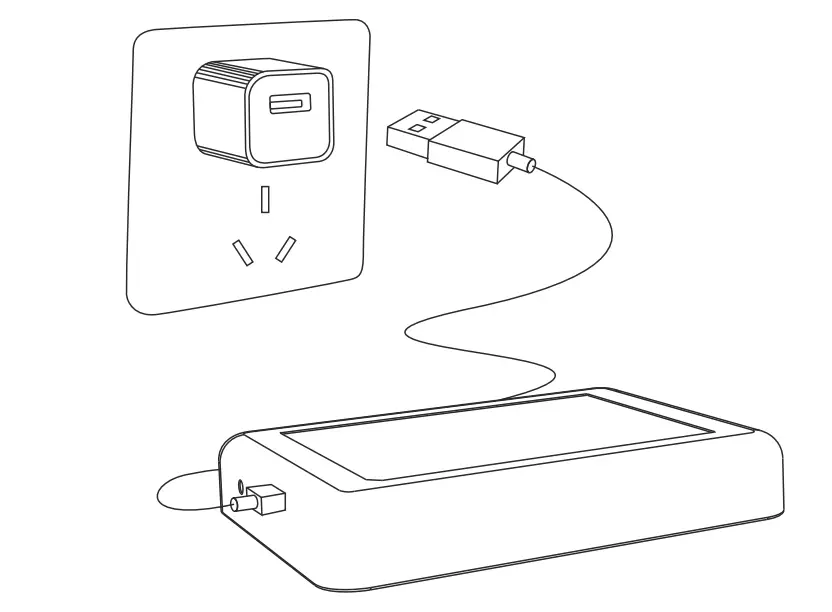

Installation

Please install the device within 30m as lights, and approaching the WiFi Router.

Pilot lamp illustrate:

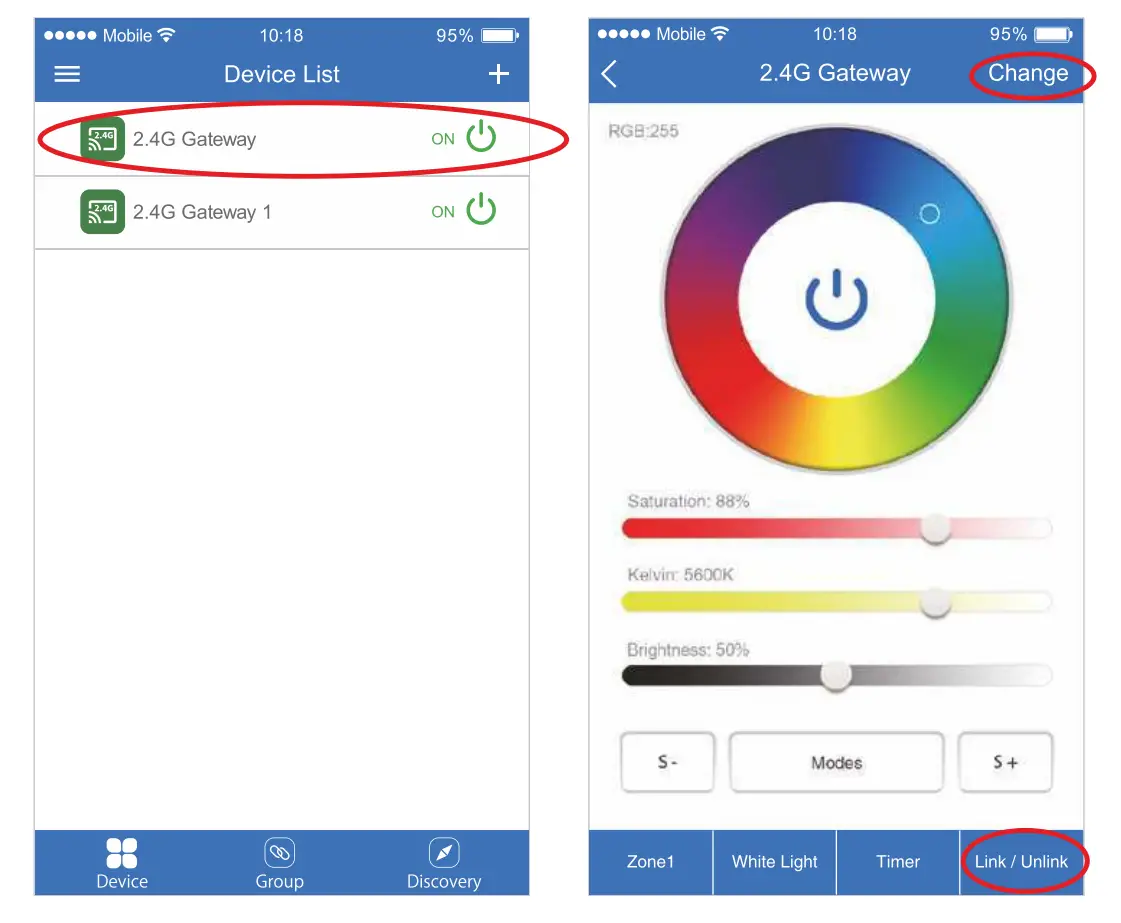

User Instruction

1. Install MI Boxer APP. Click” + “add devices( See details on MiBoxer APP instructions).
2. Click “2.4G Gateway” on the device list to enter control interface.

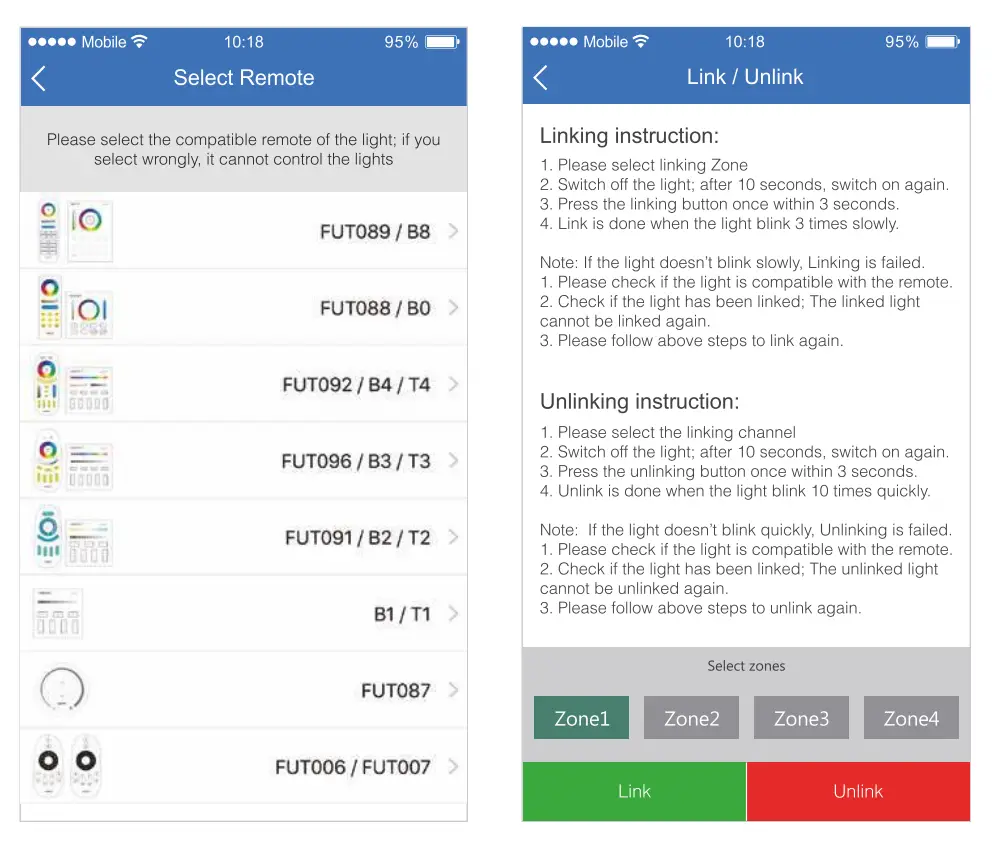

3. Click “Change” to select compatible remote for the lights(Note: If you select wrong remote, you cannot control the lights).
4. Click “Link/Unlink”.
5. Link/Unlink method, See details on APP link/unlink instruction.
6. After linking successfully, back to the control interface to control the lights randomly.

Zone selection

Click the “Zone” on the left bottom into the Zone selection. Note: Please select the linked Zone, otherwise it cannot control the lamps.

Timer:

When the device get into Smart Link mode and re-configure, all the timers on this device will be deleted.

Attention

1. Before installation, please check the output voltage is in accordance with the device Rated Voltage.
2. The input voltage is DC5V/500mA, Please do not connect the power supply over DC5V, otherwise, the device will be broken easily.
3. Non-professional user cannot dismantle the divice directly, otherwise, it may damage the divice.
4. The working temperature is -20-60°C; Do not install the device to direct sunlight, moist and other high temperature area.
5. Please do not install the device around the mental area and high magnetic field, otherwise, it will badly affect the control distance.

Mi Boxer APP User Instruction

APP Downloading

For IOS System: Pis search “MI Boxer” on APP store. (Above IOS9.0)
For Android System: search “MI Boxer” on Google Play (Above Android 5.0) or Scan below QR-code to download APP.

Scan QR Code to Install APP

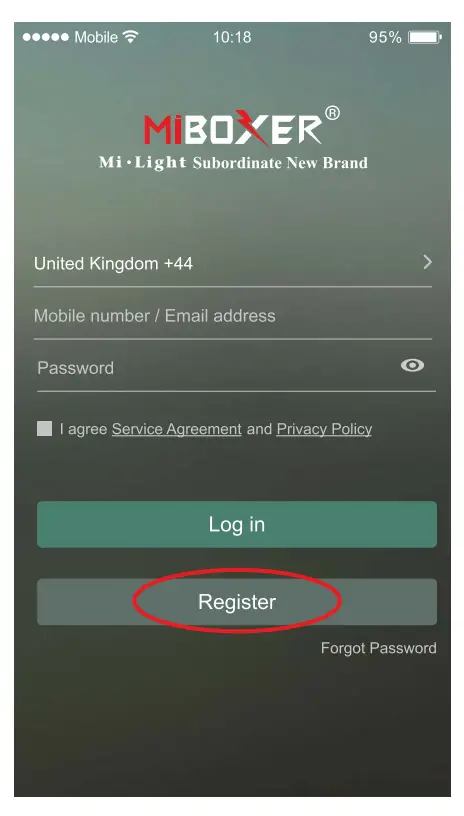

Register Mi Boxer Account

Open APP and click Register button; Complete the register and log in.

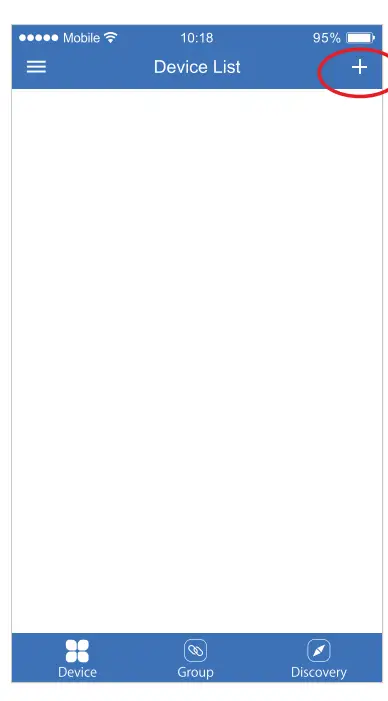

Add Device

1. Click the right top”+” on the device list.
2. Please select the device type you will add, then complete the adding according to the hint of APP.
3. Back to device list after adding successfully, then pull down refresh in list to get the device status.

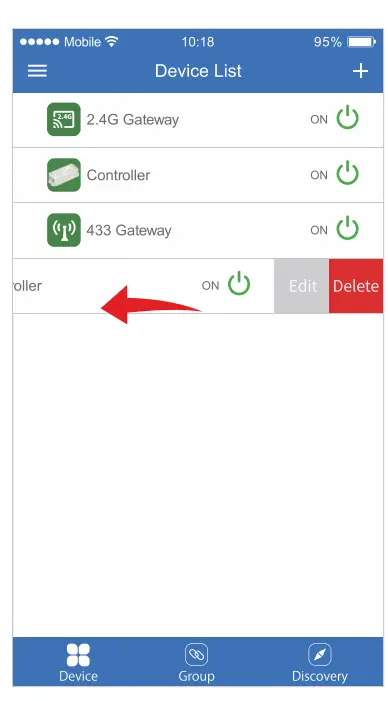

Modify device name or delete device

Slide device list to left, click ” Edit” to modify device name; click II Delete II to delete device.
Note: If the device was shared to others, then the device will also be deleted on your friends’ device list.

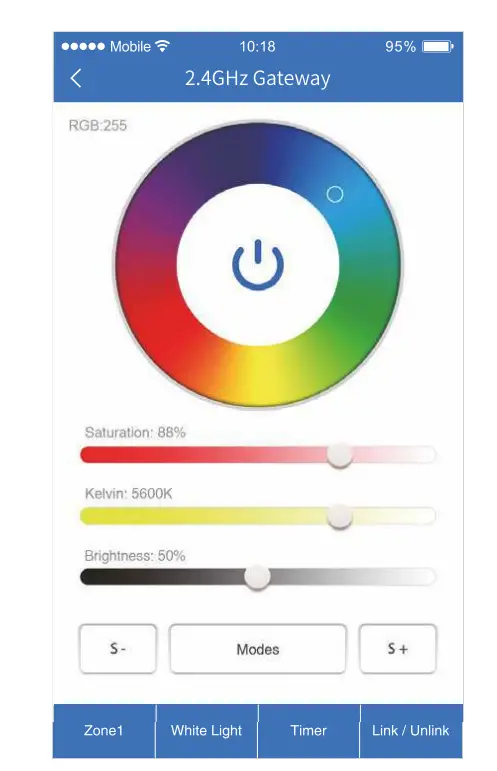

APP Control

Click the device that you want to dim on device list into dimming Interface

Click speed+ under dynamic mode.
Click speed- under dynamic mode.

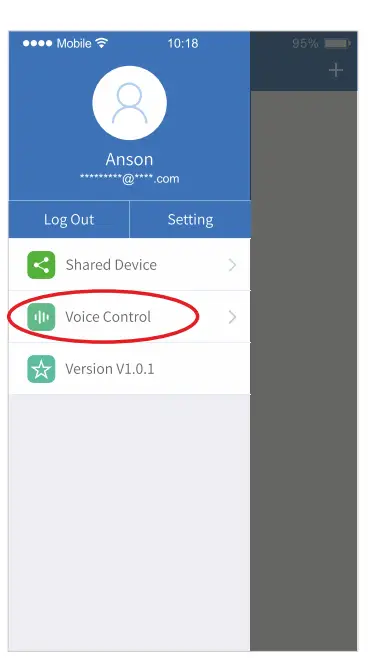

Third Party Voice Control instructions

Search “Mi-Light Smart” on third-party platform APP and set up.
Click left top ” “ icon on the home page;
Then click” ” to check detailed instructions.
Note: The third party voice just control the lamps linked on selected remote. (Not support Zone control)

Sharing Device

Share the device to friends, Let your friends can control this device.

1. Click the left top” ” icon on the home page.
2. Click ”  “to My sharing, then click “Add sharing”
   (Note: the receiving sharing device cannot be shared again).

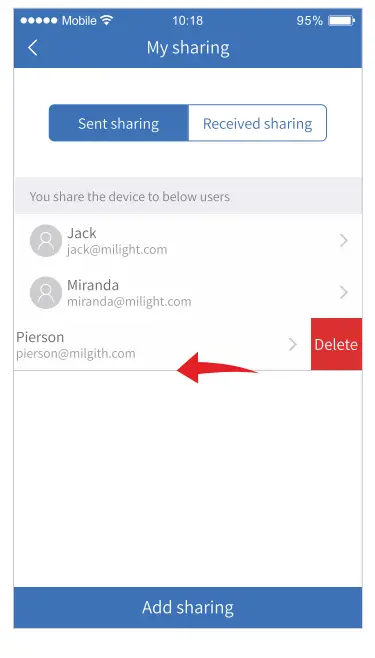

3. Click ” ” to edit sharing, slide to left to delete sharing .

Scan QR code to watch video instruction
