Hilti Hit-ct 1 Injectable Adhesive Anchor Instruction Manual

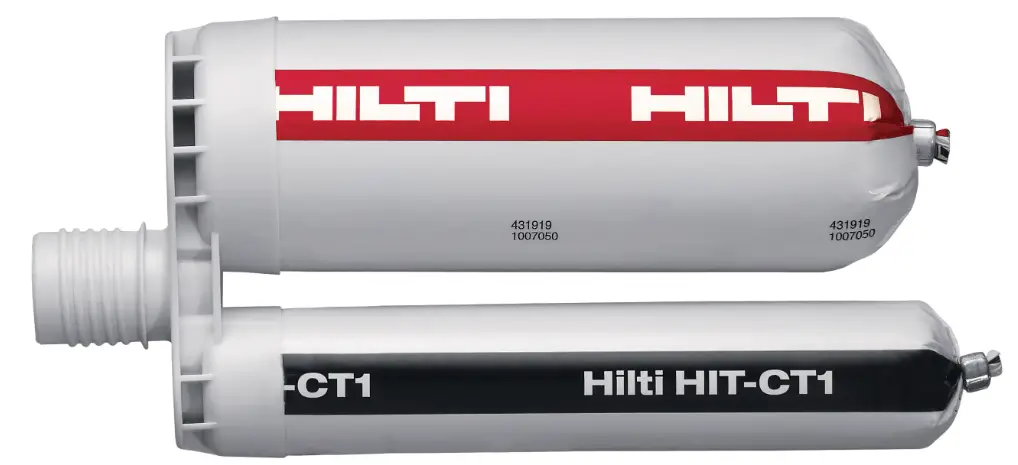

HILTI HIT-CT 1 Injectable Adhesive Anchor

Read the safety instructions and product information before using the product.

Instruction for use

Contains: dibenzoyl peroxide (B) Toxic to aquatic life with long lasting effects.(B) Do not get in eyes, on skin, or on clothing. IF ON SKIN: Wash with plenty of water. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.

Contains dibenzoyl peroxide. May produce an allergic reaction.

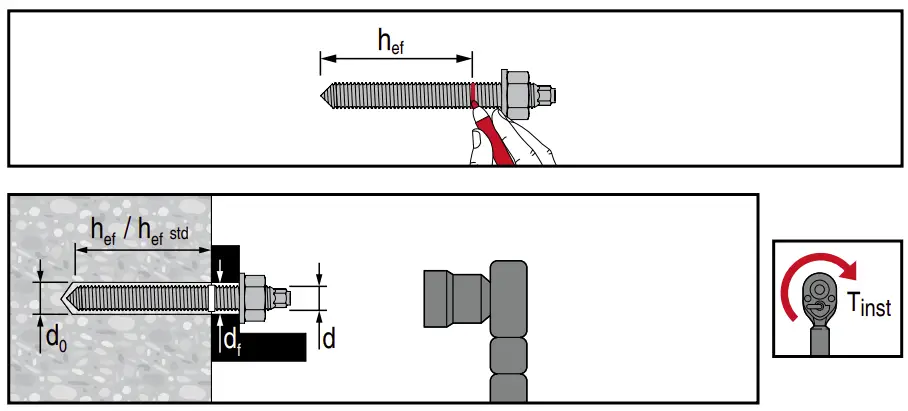

⌀ d [mm]	⌀ d0 [mm]	hef std [mm]	hef [mm]	⌀ df [mm]	Tinst [Nm]
M8	10	80	64…96	9	≤ 10
M10	12	90	80…120	12	≤ 20
M12	14	110	96…144	14	≤ 40
M16	18	125	128…192	18	≤ 80
M20	22	170	160…240	22	≤ 150
M24	28	210	192…288	26	≤ 200

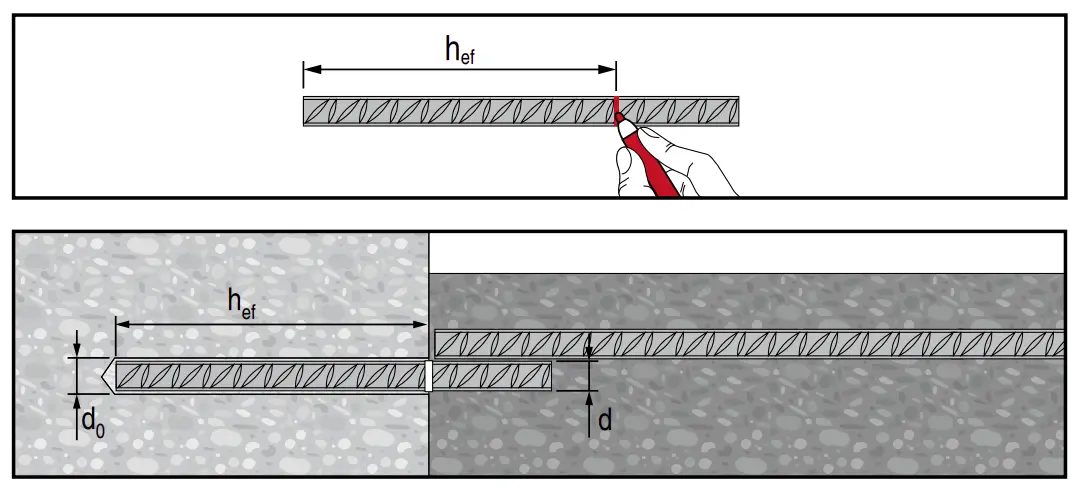

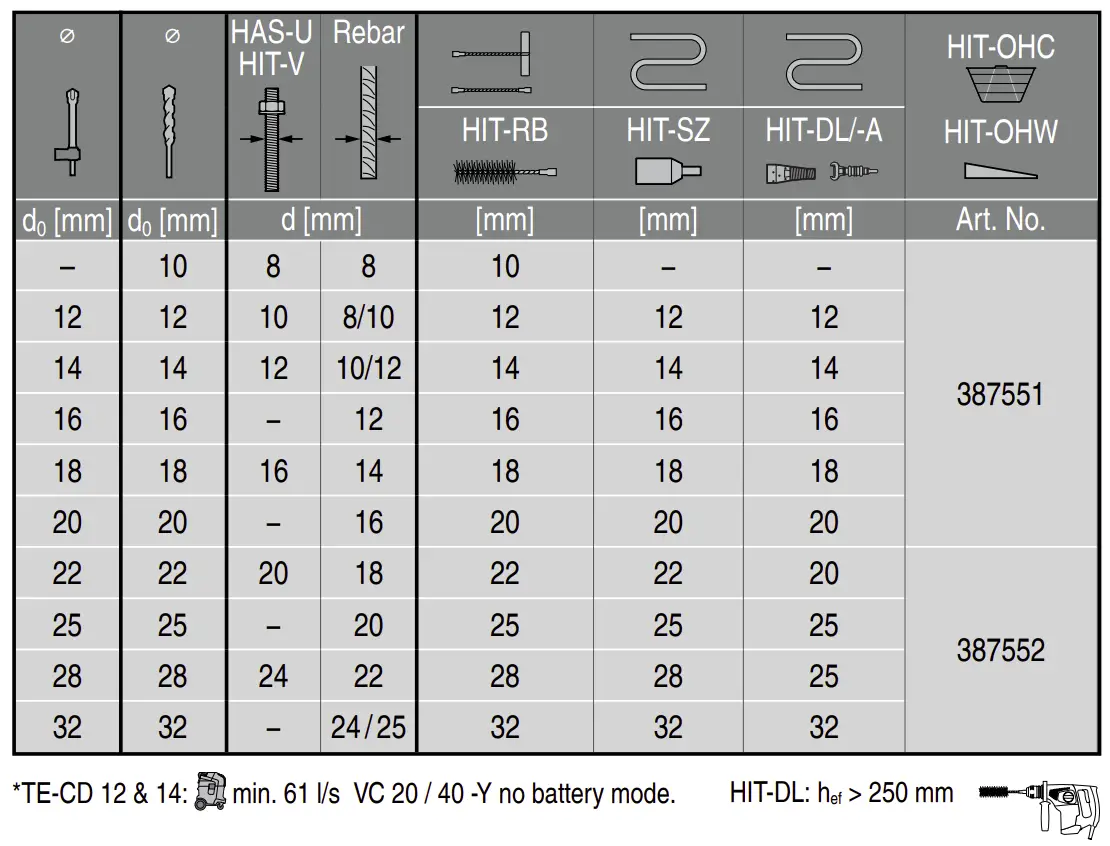

⌀ d [mm]	⌀ d0 [mm]	hef [mm]
8	10	64…250
	12	64…700
10	12	80…250
	14	80…700
12	14	96…250
	16	96…700
14	18	112…700
16	20	128…700
18	22	144…500
20	25	160…500
22	28	176…500
24	32	192…500
25	32	200…500

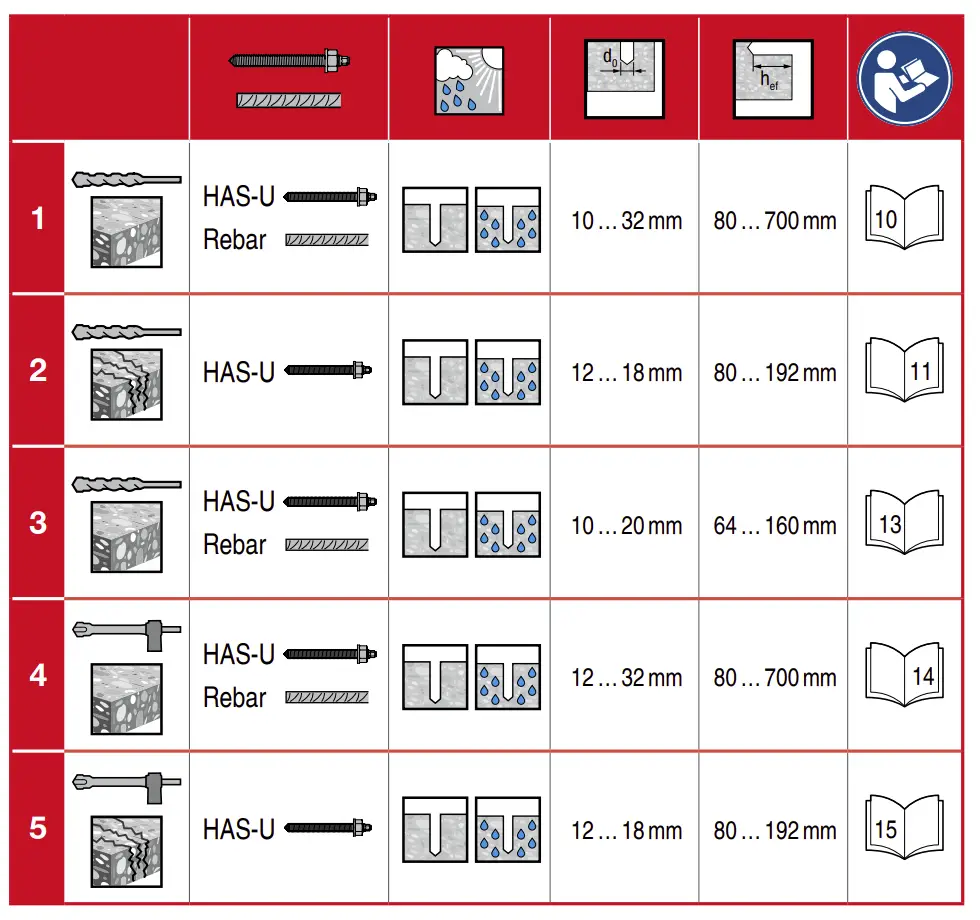

Adhesive anchoring system for rebar and anchor fastenings in concrete
▶ Prior to use of product, follow the instructions for use and the safety precautions.

Hilti HIT-CT 1
Contains: Dibenzoylperoxid (B)

H411 Toxic to aquatic life with long lasting effects. P262 Do not get in eyes, on skin or on clothing P302+P352 IF ON SKIN: Wash with plenty of water. P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. EUH208 Contains dibenzoyl peroxide. May produce an allergic reaction.

Disposal considerations

Empty packs:

• Leave the mixer attached and dispose of via the local Green Dot recovery system
• or EAK waste material code: 150102 plastic packaging

Full or partially emptied packs:

• Must be disposed of as special waste in accordance with official regulations.
  • EAK waste material code: 08 04 09* waste adhesives and sealants containing organic solvents or other dangerous substances.
  • or EAK waste material code: 20 01 27* paint, inks, adhesives and resins containing dangerous substances.

Content: 330 ml / 11.1 fl. oz 500 ml / 16.9 fl. oz
Weight: 600 g/21.1 oz 910 g/32.1 oz

Hilti accepts no liability for damage or failure caused by:

• Storage and transport not in accordance with the specified conditions
• Failure to observe the instructions for use and setting data
• Inadequate design of the anchor points
• Inadequate load bearing capacity of the base material
• Incorrect use
• Other influences of which Hilti is not aware or on which Hilti has no influence, e.g. use with products from a third party

Product Information

• Always keep these instructions together with the product even when given to other persons.
• Check expiration date: See imprint on foil pack manifold (month/year). Do not use expired product.

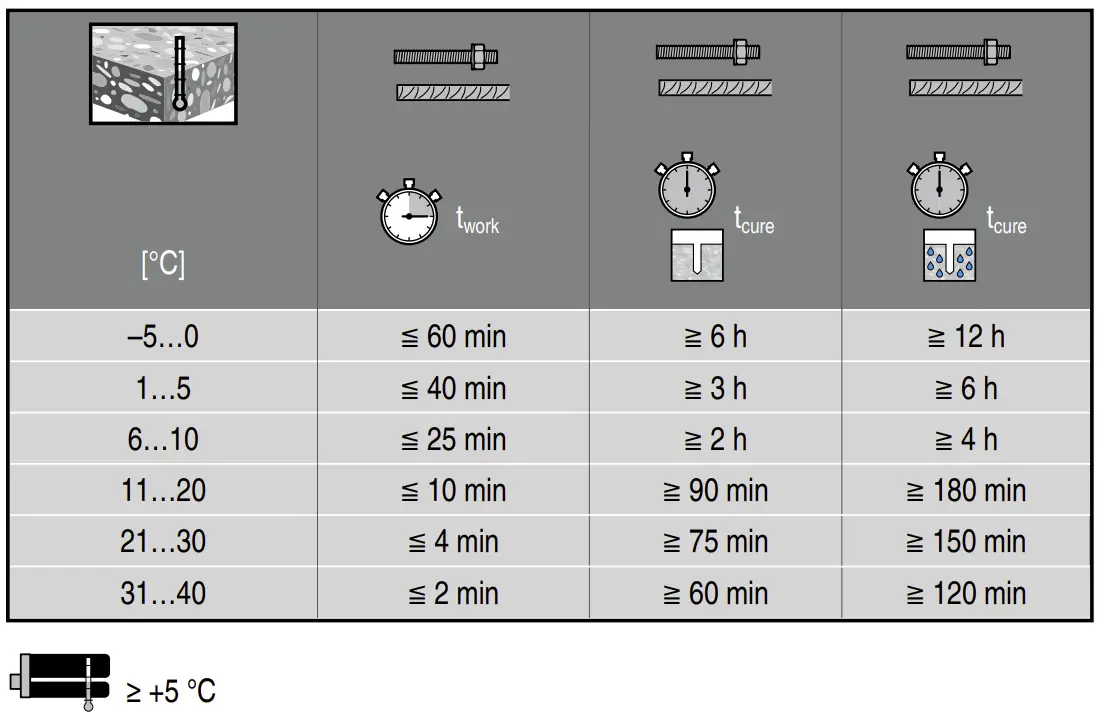

• Foil pack temperature during usage: 5 °C to 40 °C / 41 °F to 104 °F.
• Base material temperature at time of installation: -5 °C to 40 °C / 23 °F to 104 °F.
• Conditions for transport and storage: Keep in a cool, dry and dark place between 5 °C and 25 °C / 41 °F and 77 °F.
• For any application not covered by this document / beyond values specified, please contact Hilti.
• Partly used foil packs must be used up within 4 weeks. Leave the mixer attached on the foil pack manifold and store under the recommended storage conditions. If reused, attach a new mixer and discard the initial quantity of anchor adhesive. A new mixer must be used for each new foil pack.

Improper handling may cause mortar splashes.

• We recommend to wear safety glasses, gloves and protective clothes during installation.
• Never start dispensing without a mixer properly screwed on.
• Attach a new mixer prior to dispensing a new foil pack (ensure snug fit).
• Use only the type of mixer supplied with the adhesive. Do not modify the mixer in any way.
• Never use damaged foil packs and/or damaged or unclean foil pack holders (cassettes).

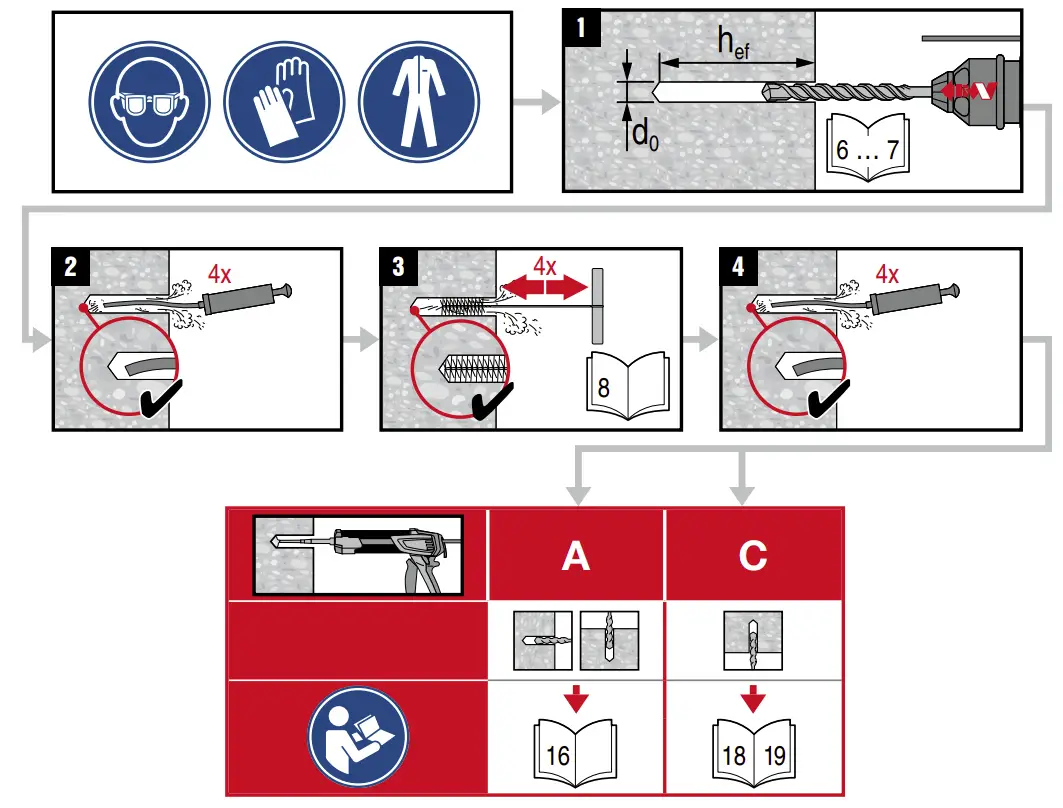

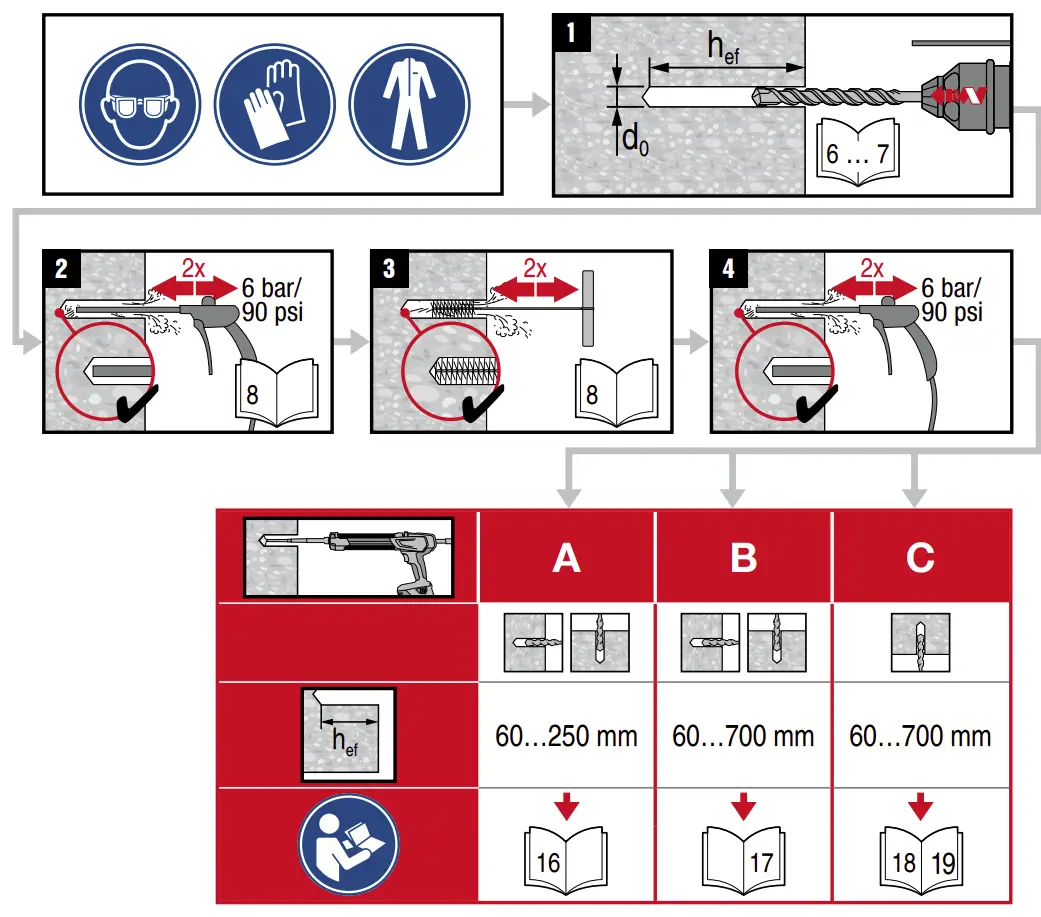

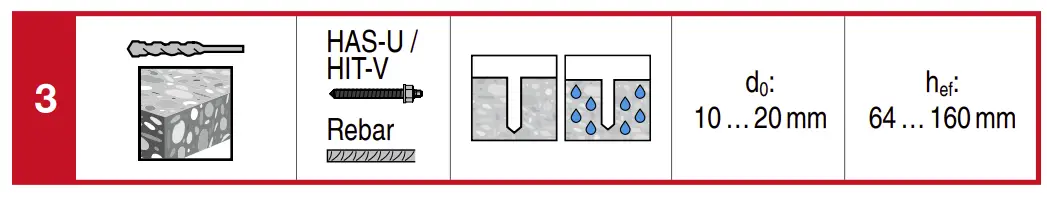

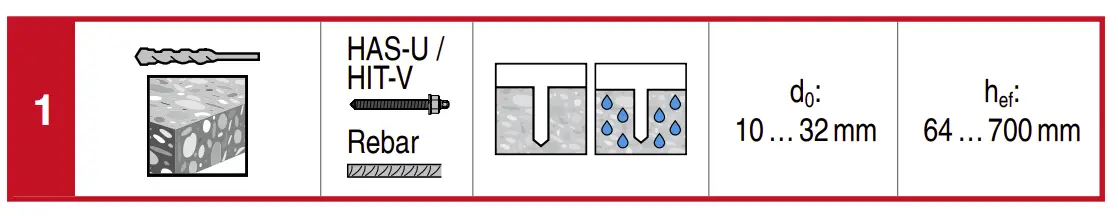

Poor load values / potential failure of fastening points due to inadequate borehole cleaning.

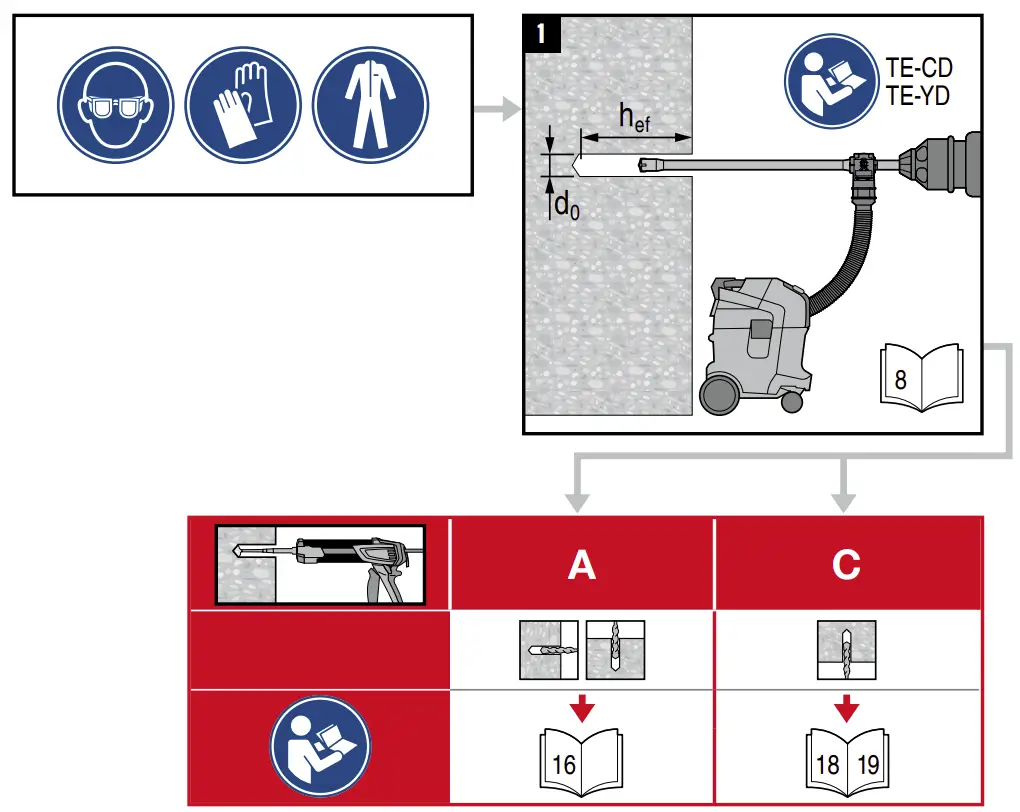

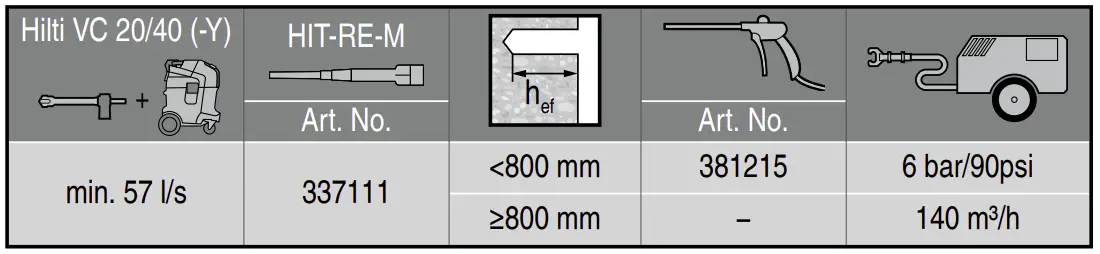

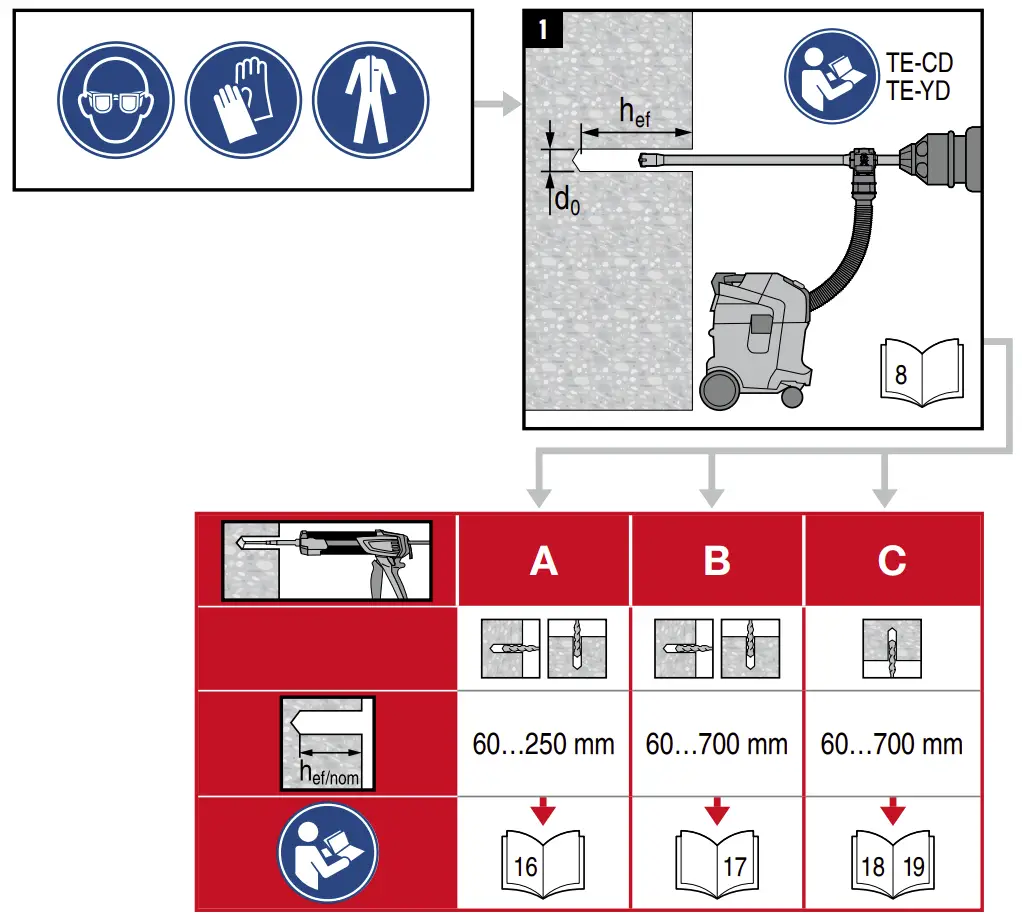

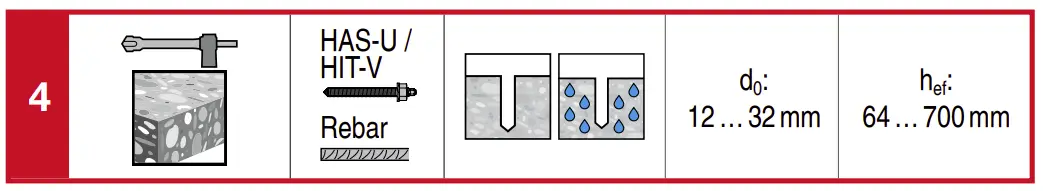

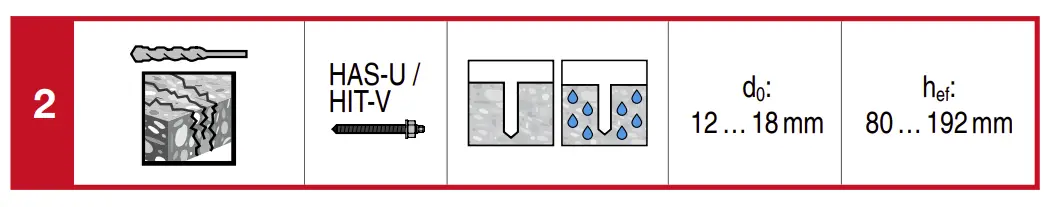

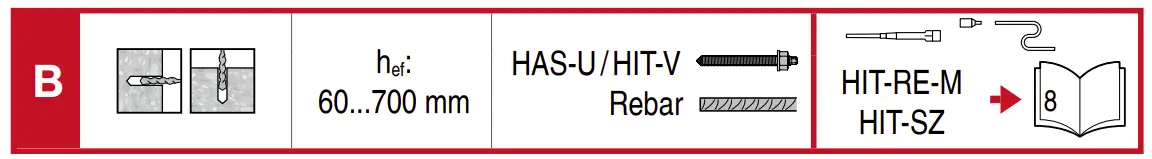

• Hilti hollow drill bits TE-CD, TE-YD must be used in conjunction with a properly maintained Hilti vacuum cleaner with model and suction capacity (volumetric flow rate) as specified in the accessory table.
• The boreholes must be free of debris, dust, water, ice, oil, grease and other contaminants prior to adhesive injection.

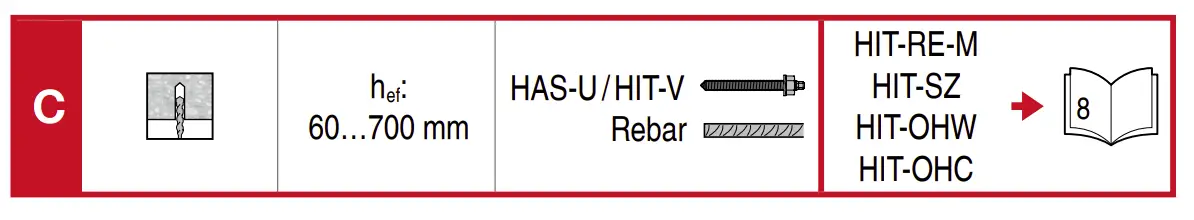

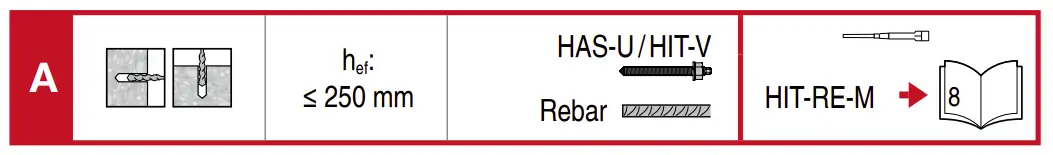

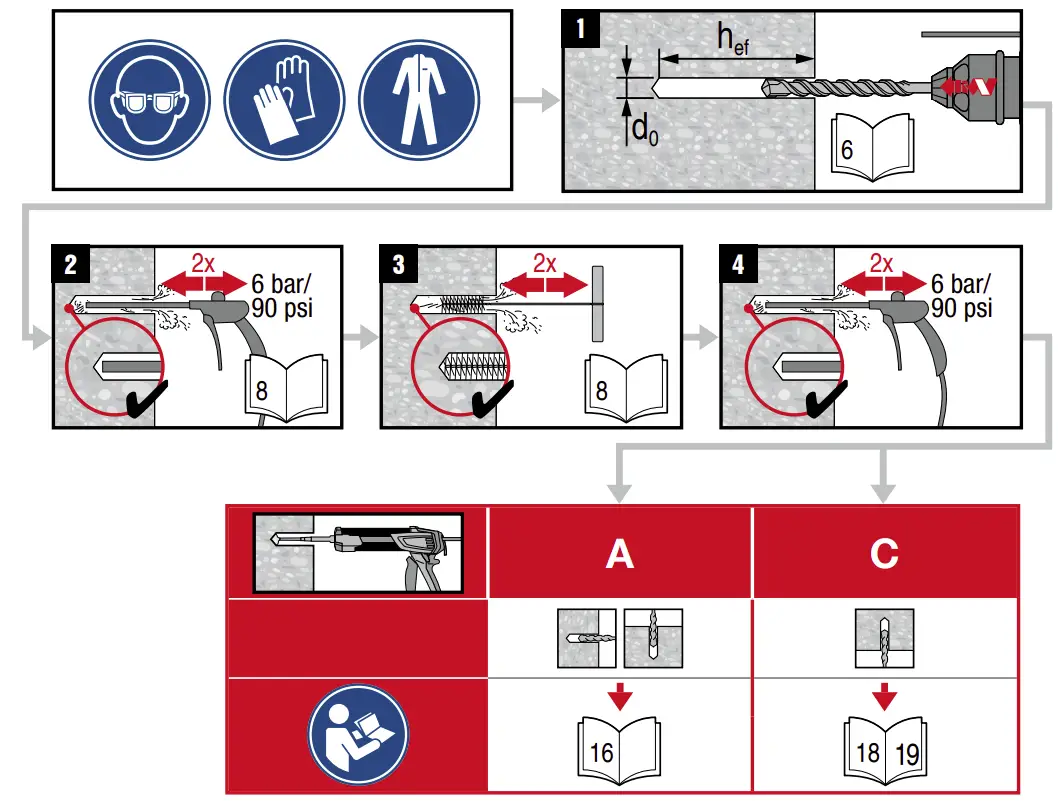

• For blowing out the borehole – blow out with oil free air untilreturn air stream is free of noticeable dust.
• Important! Remove all water from the borehole and blow out with oil free compressed air until borehole is completely dried before mortar injection.
• For brushing the borehole – only use specified wire brush. The brush must resist insertion into the borehole – if not the brush is too small and must be replaced.

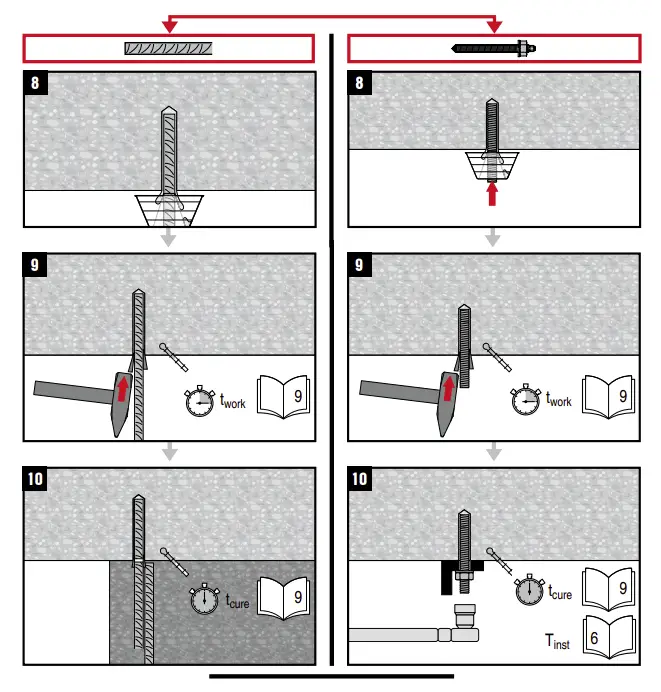

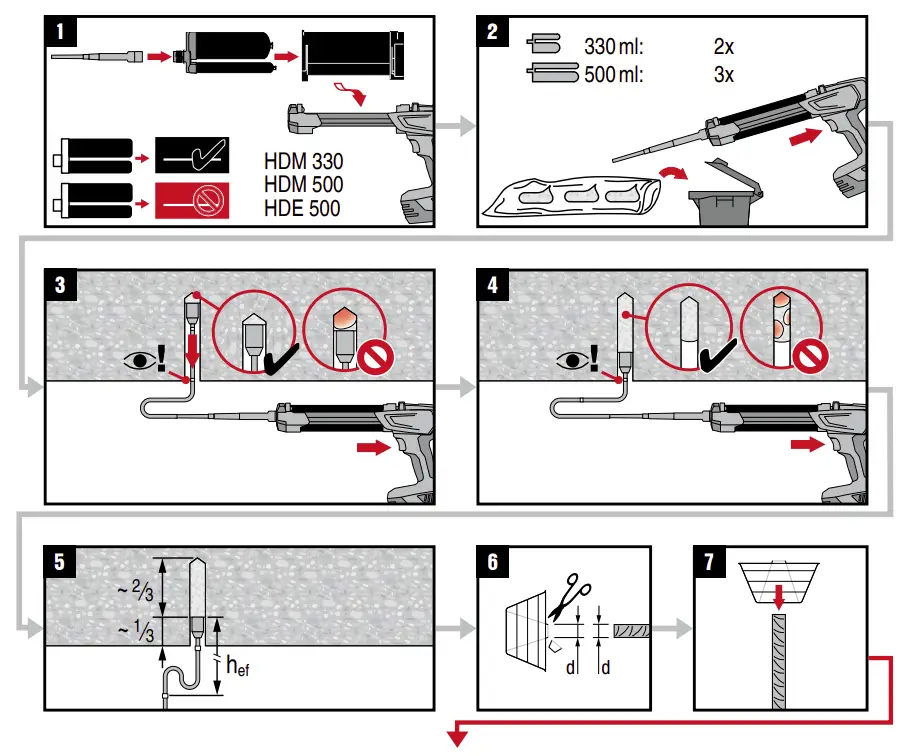

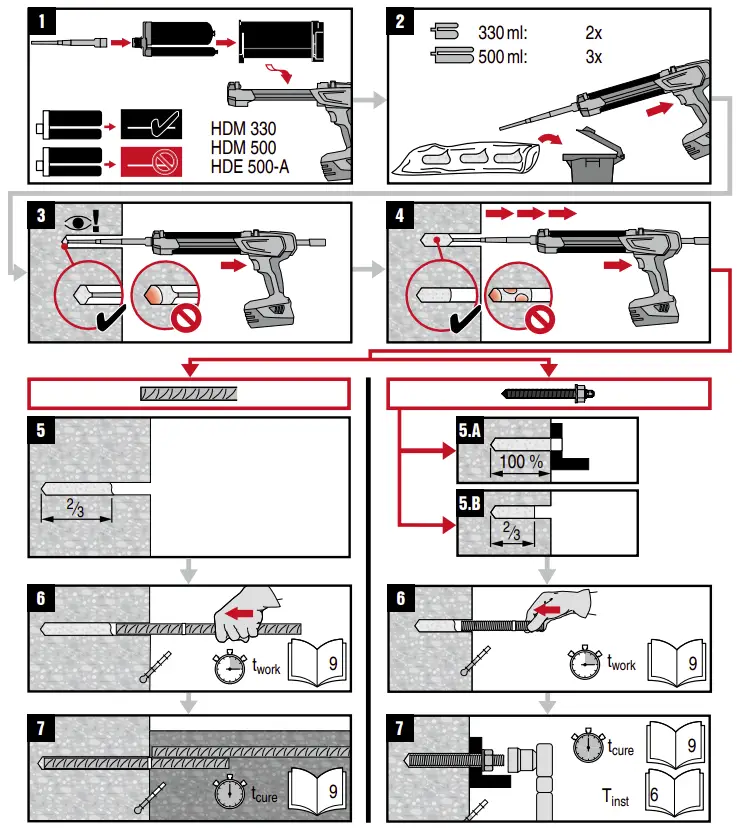

Not adhering to these setting instructions can result in failure of fastening points!

21 Hilti AG FL-9494 Schaan Hilti Werke 2873-CPR-201-28 ETA-11/0354 Notified body 2873 EAD 330499-01-0601 www.hilti.group

Made in Germany
Hilti = registered trademark of Hilti Corporation, Schaan, Liechtenstein
www.hilti.group
© 2022
Right of technical changes reserved S.E. & O.
