Cldbar12d High Power Dual Row Light Bar Instruction Manual

CLDBAR12D High Power Dual Row Light Bar Instruction Manual

HIGH POWER DUAL ROW LIGHT BAR
CLDBAR12D / CLDBAR20D / CLDBAR30D /
CLDBAR40D / CLDBAR50D / CLDBAR20DC /
CLDBAR30DC / CLDBAR40DC / CLDBAR50DC

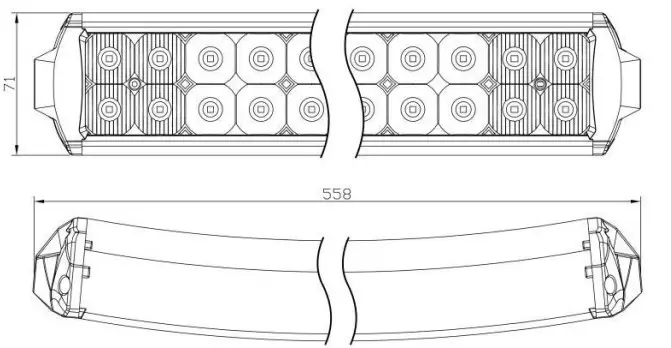

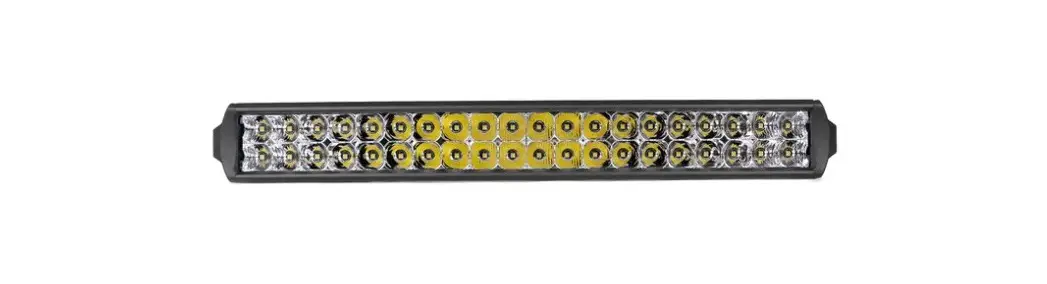

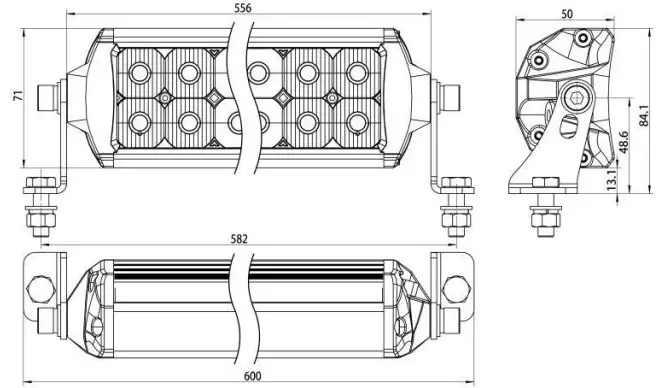

20″ Straight Light Bar (For Example)

20″ Curved Light Bar (For Example)

WHAT’S INCLUDED (STRAIGHT BAR):

• 1 x LED Light Bar
• Side and Bottom Mounting Brackets &Hardware

WHAT’S INCLUDED (CURVED BAR):

• 1 x LED Light Bar
• Side Mounting Brackets & Hardware

FEATURES & SPECIFICATIONS:

• Light Output: 4,720 – 18,940 Lumens
• LEDs: OSRAM P8
• Power: 120W – [email protected] DC
• Voltage: 10 – 36V DC
• Optional Length: 12″, 20″, 30″, 40″ and 50″ for Straight Bars 20″, 30″, 40″ and 50″ for Curved Bars
• Beam Pattern: Spot/Flood Combo

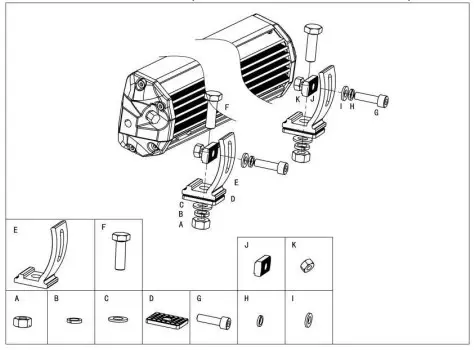

MOUNTING INSTALL INSTRUCTION

Side Mounts

Bottom Mounts (ONLY FOR STRAIGHTBAR)

INSTALL INSTRUCTION

For Two 12″ Light Bars

For One 12″, 20″, 30″, 40″ or 50″ Light Bar

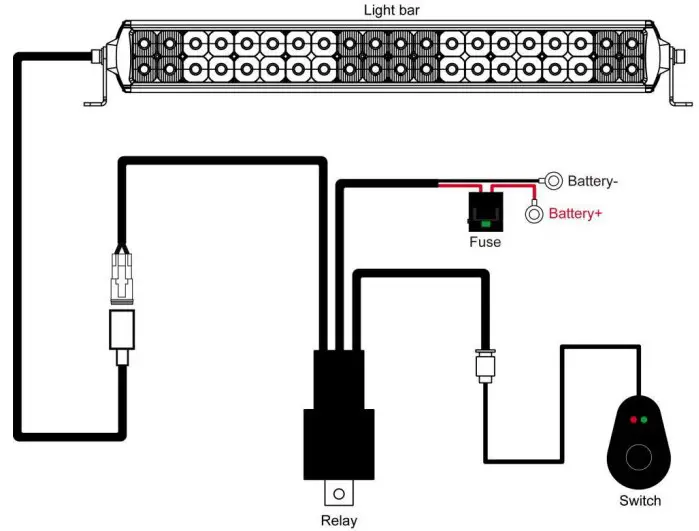

1. Determine the appropriate mounting locations to install the LED light bars, wiring harness andswitch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required.
2. Connect positive wire and negative wire properly. Press the switch to test if the lights areworkingproperly.
3. Adjust the light to the desired angle and then secure by tightening all  mounting screws.
