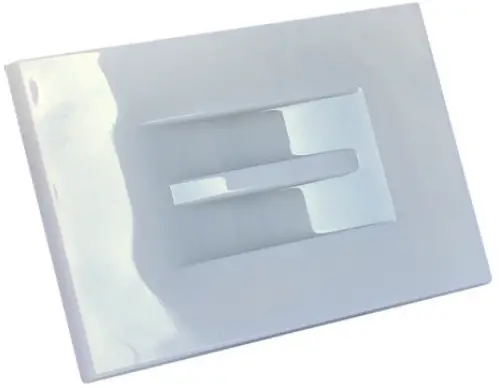

techno switch VOLTA White LED Steplight Lamp Recessed User Guide
STANDARDS COMPLIANCE
EN 60598-2-2

High brightness nocturnal light lamp and indicator light by an external switch Low energetic consumption Reduced heat emission It is possible to replace it with the emergency led lamp


6000 50-60 220/240 50 1,5 200 4000 50-60 220/240 50 1,5 200 C 3000 50-60 220/240 50 1,5 200
| CODE | COLOR | FREQUENCY | PRIMARY VOLTAGE | LED | LUMEN | EMERGENCY MODE POWER | WEIGHT |
| `K | Hz | Vac | n | W | gr | ||
| LA 208 BI | 6000 | 50-60 | 220/240 | 8 | 50 | 1,5 | 200 |
| LA 208 BN | 4000 | 50-60 | 220/240 | 8 | 50 | 1,5 | 200 |
| LA 208 B | 3000 | 50-60 | 220/240 | 8 | 50 | 1,5 | 200 |
STANDARDS COMPLIANCE

EN 60598-2-2

High brightness nocturnal light lamp and indicator light by an external switch Low energetic consumption Reduced heat emission It is possible to replace it with the emergency led lamp

| CODE | COLOR | FREQUENCY | PRIMARY VOLTAGE | LED | LUMEN | EMERGENCY MODE POWER | WEIGHT |
| K | Hz | Vac | n | W | gr | ||
| LA 108 BI | 6000 | 50-60 | 220/240 | 8 | 50 | 1,5 | 200 |
| LA 108 BN | 4000 | 50-60 | 220/240 | 8 | 50 | 1,5 | 200 |
| LA 108 BC | 3000 | 50-60 | 220/240 | 8 | 50 | 1,5 | 200 |
tecnoswitch.com
arealed.it
Via P. Leone Dehon, 99/105 • 76123 Andria (BT) ITALY
tel (+39) 0883 555323 • fax (+39) 0883 555323
REV 05-18
