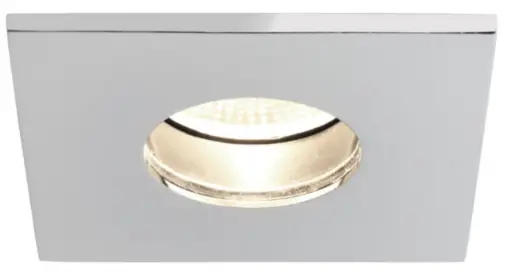

astro Obscura Square LED Recessed Lamp

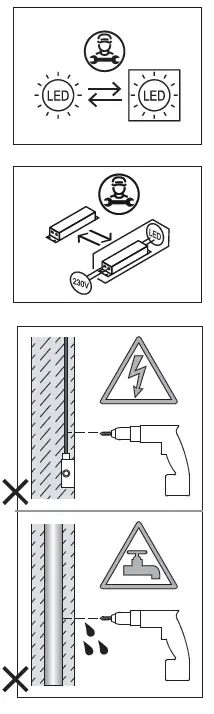

Products with electronic ballasts/ drivers must not be installed on the same electrical circuits as products With inductive loads, for example magnetic fluorescent luminaires, motors or ventilators. Inductive loads can generate excesSIve voltage surges which can damage eleectronic ballasts. This product containsa light source of energy efficiency class D to Regulation (EU) No 2019/2015 (01/09/2021). Ihe light source in this luminaire shall only be replaced by the manutacturer or his service agent or a similar qualitied person. Please read the instructions carefully before commencing assemblyy

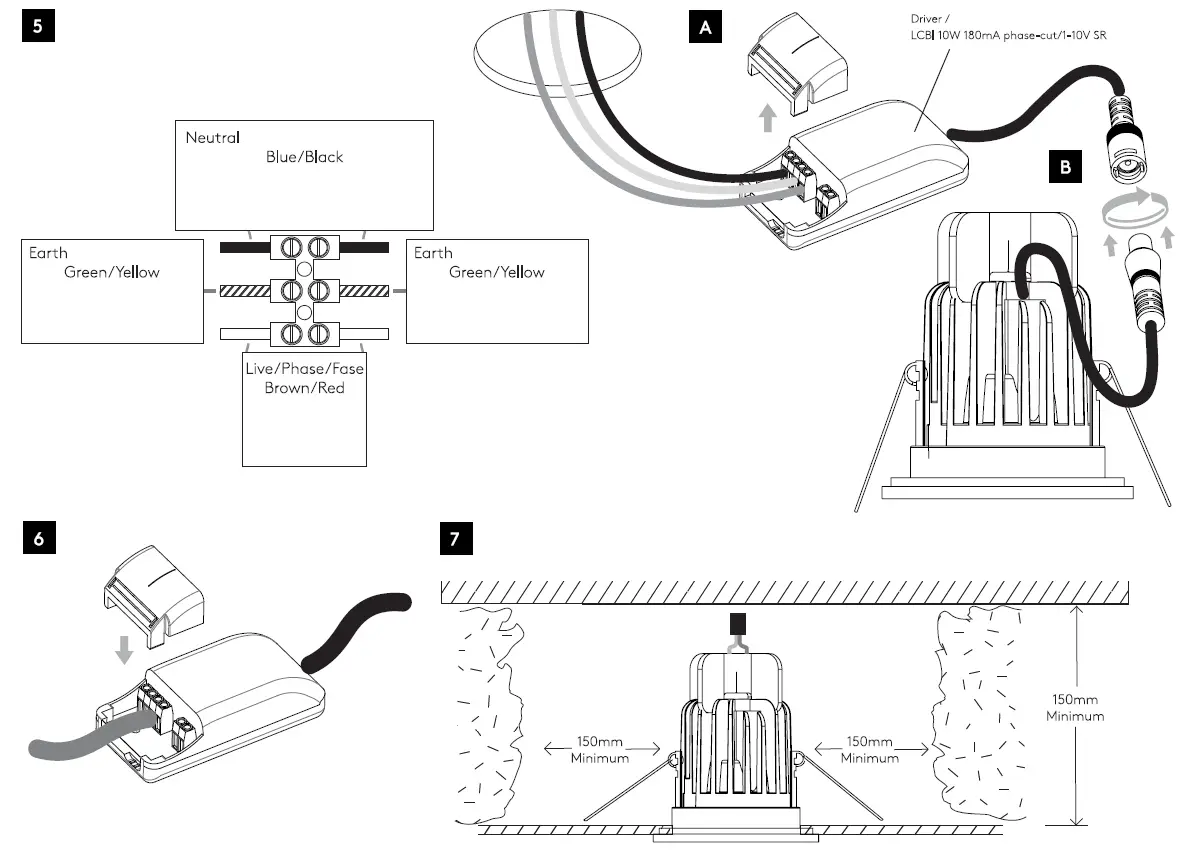

- Live: Normally Brown/ Red
- Neutral: Normally Blue/ Black
- Earth: Normally Green/ Yellow
NOT SUITABLE FOR COVERING WITH THERMAL INSULATION.

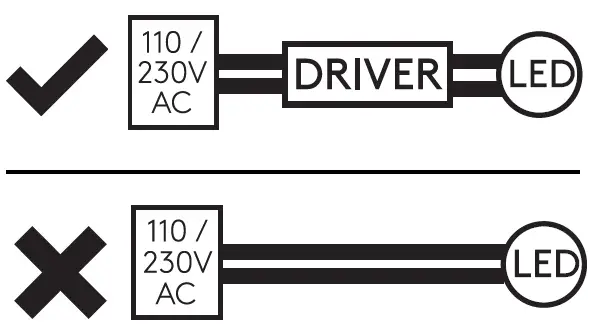

DO NOT CONNECT LED DIRECTLY TO MAINS SUPPLY. DRIVER MUST BE USED.
- For Ceiling Use Only
- Please Refer To The “LED Drivers” Guide.

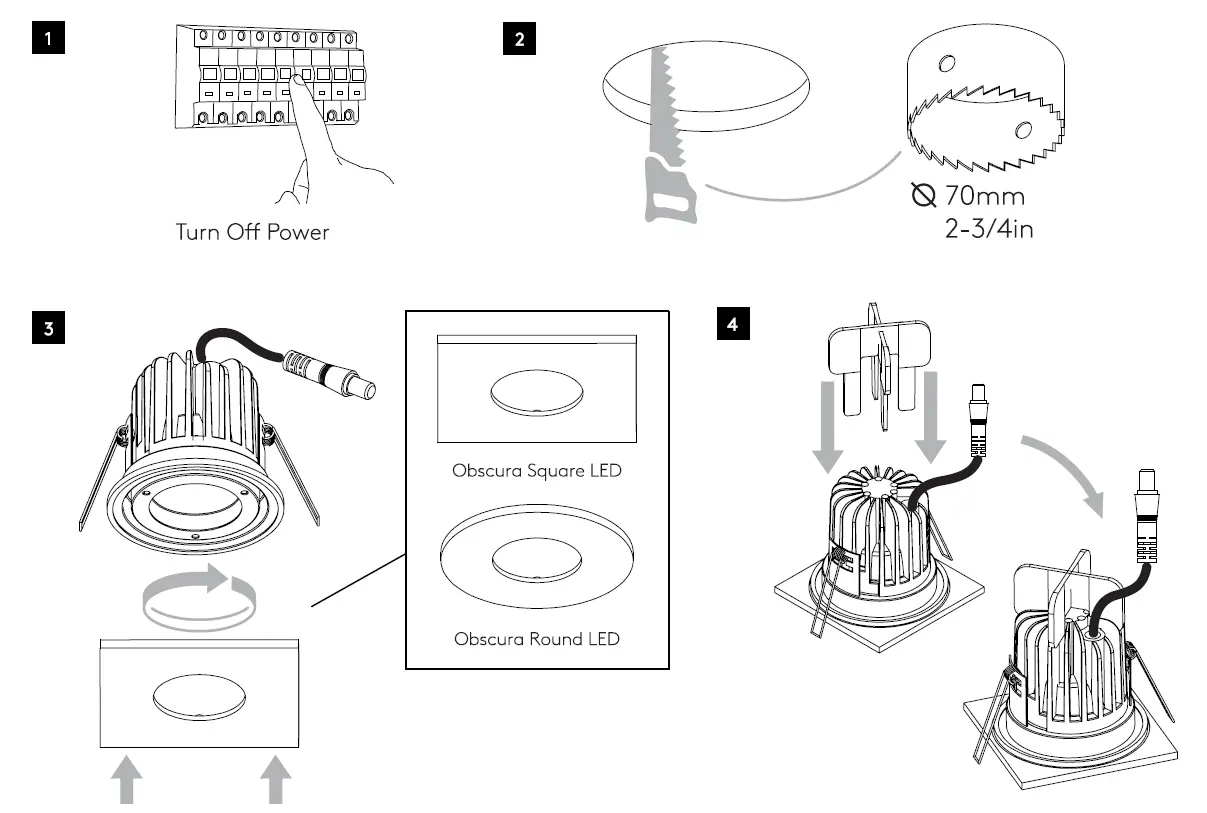

INSTALLATION INSTRUCTIONS
