Baby label B610+ instruction manual
Overview
background
Baby tag b610 + is an active electronic tag specially used in infant anti-theft systems. It not only has the characteristics of waterproof, anti-falling off, and anti-cutting, but also can realize the accurate positioning of the baby and the matching function with the nurse and the mother, so as to provide all-around protection for the baby and provide more efficient management for the hospital.
application fields and objects
This product is suitable for major hospitals, combined with the Yihui baby anti-theft system, to provide a full range of anti-theft monitoring for newborn infants.
use environment
| Serial number | index | parameter | |
| 1 | temperature | operation | -10°C ∼ +50°C |
| Storage | -40°C ∼ +85°C | ||
| 2 | Shock/drop | 10 ∼ 55Hz X, Y, and Z-axis | |
| 3 | humidity | operation | 5% ∼ 95% |
| Storage | 10% ∼ 90% | ||
technical features
- Exquisite ergonomic design
- Precise positioning, movement monitoring, and mother-infant matching
- Rechargeable, real-time voltage monitoring, low power automatic alarm
- Wristband cutting alarm, label falling off alarm
- Ipx7 waterproof can be repeated cleaning, water can work normally
- Passed the high standard FDA certification, without any allergic reaction
- In line with gb9175-88, GB8702-88 national radiation safety standards
Main technical parameters and functions
technical indicators
| Serial number | index | parameter |
| 1 | Communication frequency | 433MHZ |
| 2 | Communication distance | >20M (sight distance) |
| 3 | Working current | <50uA |
| 4 | Battery life | Charging times ≥ 300 times Each the charge can work for more than 7 days |
| 5 | Battery Specification | 80mAh |
| 6 | Dimensions (L * w * h) | 34. 5mm*27. 5mm*14. 5mm |
overall dimensions

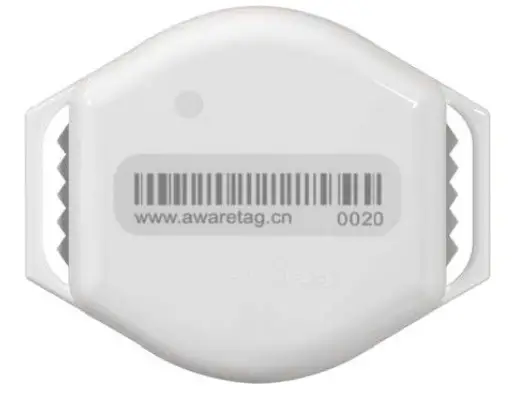

Mechanical dimension (L * w * h): 34.5mm * 27.5mm * 14.5mm
main function description
- Heartbeat signal: the label sends a heartbeat signal every certain time;
- Low voltage alarm: when the battery voltage is lower than the preset value, the background software will get the current battery voltage information of the tag and remind
- Cut alarm: when the wristband is connected, if the wristband is disconnected due to falling off or cutting, the label will send an alarm signal;
- Low-frequency precise positioning: when the label is within the positioning range of the locator, the positioning signal will be sent continuously. When the label goes out of the designated access control range, the exit alarm will be triggered;
- Skin sensing: when wearing a label, the label itself can sense whether the label is in contact with the skin;
- Motion detection: it can detect whether the tag is still or moving;
- Mother-infant pairing: with the use of the mother label, mother-infant pairing can be realized.
Use and operation
wearing steps and methods

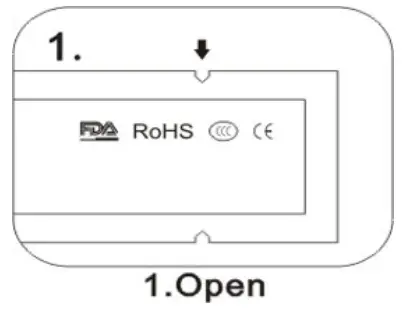

Step 1: Open the package and take out the wristband. The color of the wristband is optional (usually blue for boys and pink for girls)
Step 2: Insert one end of the wristband into the interface on one side of the label according to the direction shown by the arrow at one end of the wristband

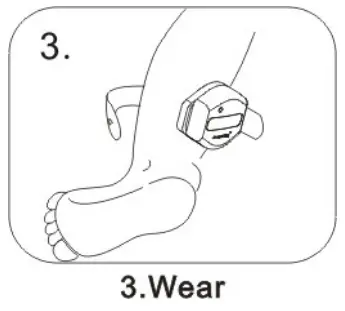

Step 3: put the baby label on the baby’s ankle:

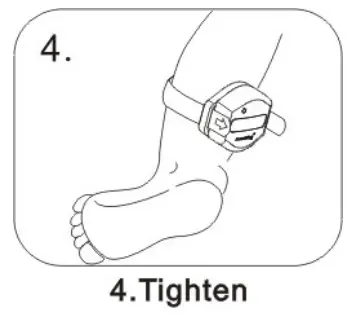

Step 4: Insert the other end of the wristband into the interface on the other side of the label, and adjust the length so that the bottom of the label just contacts the skin

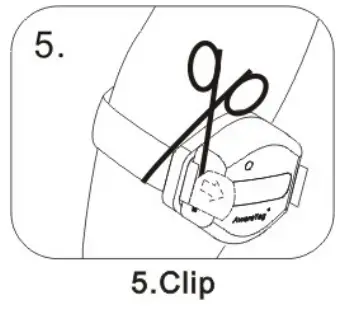

Step 5: cut off the wristband beyond the interface with scissors
working state indication
- Heartbeat signal: the label sends a heartbeat signal every 15 seconds, and the blue indicator light flashes once;
- Low voltage alarm: when the battery voltage of the label is lower than 2.4V, the red indicator light flashes continuously;
- Wearing instructions: when the label is worn, the red the indicator light flashes once, and the buzzer sends out a sound;
- Cutting alarm: if the wrist strap falls off or is cut off, the blue the indicator light of the label flashes continuously for 10 times (lasting for 5 s), and the buzzer sends out three beeps at the same time;
- Low-frequency precise positioning: when the locator is within the positioning range, the blue indicator light of the label flashes continuously;
- Skin induction: after wearing the baby label, the label does not sense skin contact, the red indicator light flashes once every 3 seconds and the red indicator light goes off when touching the skin;
- At the same time, press the mother’s red label to indicate the mother’s beep when matching a long label within 10 cm.
Common troubleshooting
| Fault phenomenon | Cause analysis | resolvent |
| The indicator light doesn’t work | Low Battery | Return to the factory and replace the battery |
| Damage indicator | Return to original factory for maintenance | |
| Red light flashing | Label not in contact with | Rewear to ensure skin contact |
| after wearing | skin | |
| Internal hardware exception | Return to original factory for maintenance | |
| There was no response to the infant label in the paired relationship test | The distance between the two labels is too far | Keep labels within 10 cm apart |
| Abnormal operation of baby label | Replace the baby label with a new one | |
| Abnormal mother label work | Replace the mother label with a new one | |
| The red indicator is flashing continuously | Low power | Return to the factory and replace the battery |
| The red and blue indicator lights are always on at the same time | Internal hardware exception | Return to original factory for maintenance |
| …………………. | ………………… |
Maintenance and precautions
- Keep the label surface dry, especially after the baby bath, remember to
wipe the water clean; - Do not repair, disassemble or transform by yourself;
- When not in use, do not place the label within the positioning range of
the locator; - When not in use, do not put the label near corrosive articles;
- Please use under normal temperature and humidity.
