Kraus Kpf-1680 Sellette Single Handle Pul-down Kitchen Faucet Installation Guide

INSTALLATION MANUAL
SelletteTM Single Handle Pull-Down Kitchen Faucet
KPF-1680
www.kraususa.com
Toll-Free: 1.800.775.0703
© 2018 Kraus USA Inc.
REV. April 1, 2021

Congratulations on the purchase of your new Kraus plumbing fixture!
Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product:
DO NOT RETURN TO THE STORE
Please contact our Customer Service Team at 1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your receipt with the purchase date for reference.

If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.

Prior to Installation:

•  Make sure you have all the necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.
• Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built-up pressure. Remove existing faucet. Clean sink or countertop to remove any debris, plumber’s putty, or silicone.
•  Flush angle stops to release any debris prior to installation.
• Pre-drilled hole size requirement: 1 3/8″ (min) – 1 1/2″ (max)
• Max countertop thickness without deck plate: 2 1/4″
• Max countertop thickness with deck plate: 1 3/4″
• 1, 2, or 3 hole installation

For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]

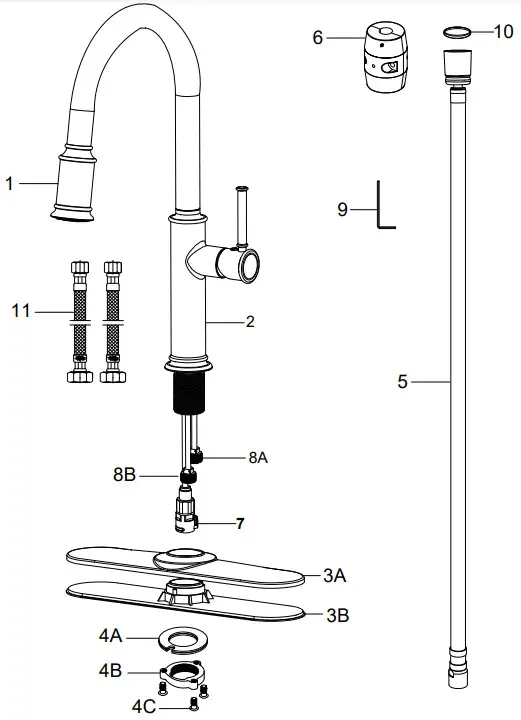

Diagram and Parts List

1. Spray Head
2. Faucet Body
3. Deck Plate Assembly A. Deck Plate B. Base Plate
4.  Mounting Hardware A. Rubber & Metal Washer B. Mounting Nut C. Mounting Screws
5.  Spray Hose
6.  Weight
7. Quick Connector
8.  Hot and Cold Copper Lines A. Cold B. Hot
9. Hex Wrench
10.  Washer
11.  Hot & Cold Waterlines

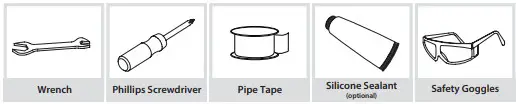

Tools you will need

Faucet Installation Procedure

Installer Tip:

Shut off the main water supply before installing a new faucet.

Step 1A. Faucet installation – with deck plate
	For three-hole installation: a Deck plate (3A), base plate (3B), and silicone sealant (optional) are required.

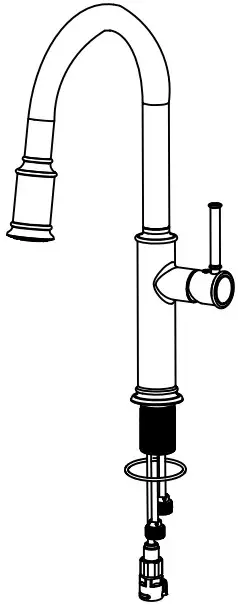

Step 1B. Faucet installation – without deck plate
	For single-hole installation: a Deck plate (3A), base plate (3B), and silicone sealant are NOT required.

Step 2. Install faucet and mounting hardware

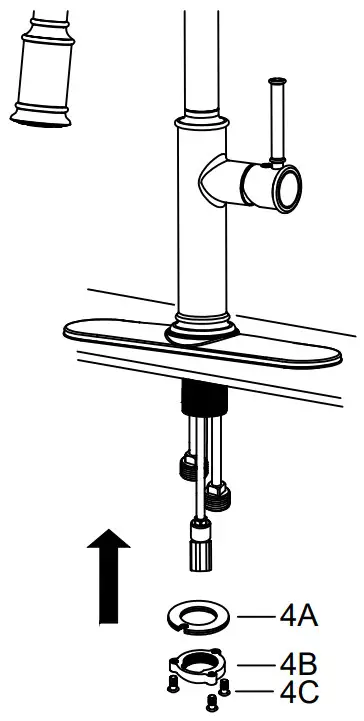

	Insert faucet body (2) into the hole in the countertop or deck plate assembly (3). Install mounting hardware (4A, B &C) from underneath the countertop.

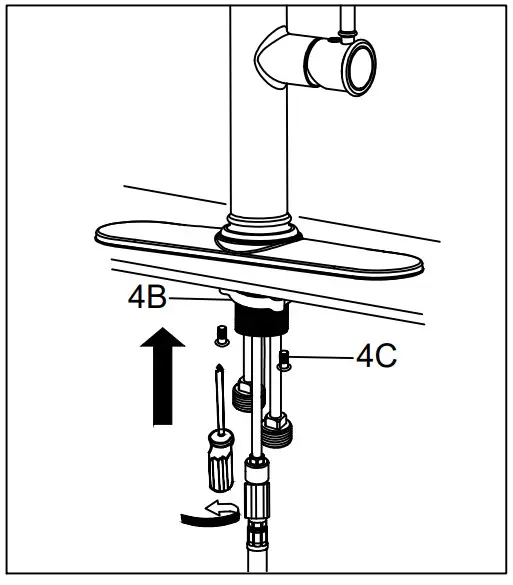

Step 3. Secure mounting hardware
	Adjust the direction of the faucet body (2) so that handle is on the right side of the faucet. Tighten mounting nut (4B) until snug. Tighten mounting screws (4C) to nut with a Phillips screwdriver until snug.

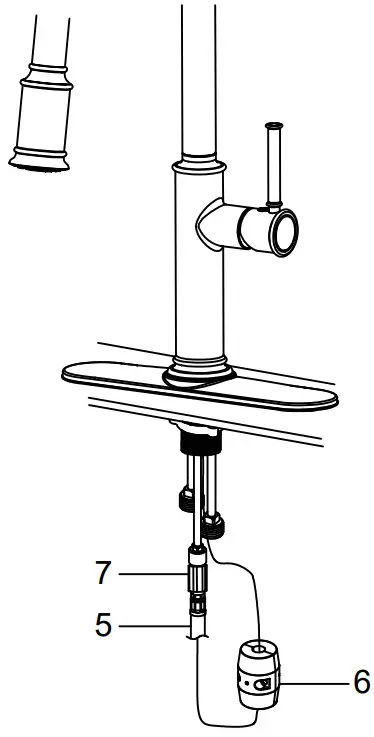

Step 4. Attach spray hose and counterweight
	Connect spray hose (5) to quick connector (7) attached to the supply line. Install weight (6) on lowest vertical point on spray hose (5).

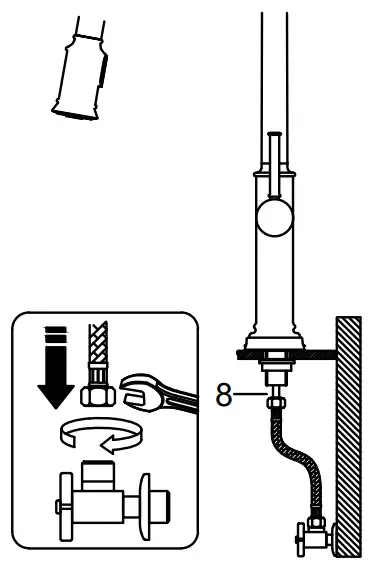

Step 5. Connect waterlines
	Connect waterlines to hot and cold copper lines (8). Connect waterlines (11) to angle stops. Tighten both ends of the waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks. NOTE: Please make sure filter washers are installed before connecting to the main valve.

Step 6. Flush spray hose
	Remove spray head (1) from spray hose (5). Hold the tip of the spray hose (5). Turn the faucet on and let the water run for 60 seconds to flush any debris. NOTE: Please make sure washer (10) is installed attaching spray head to the hose.

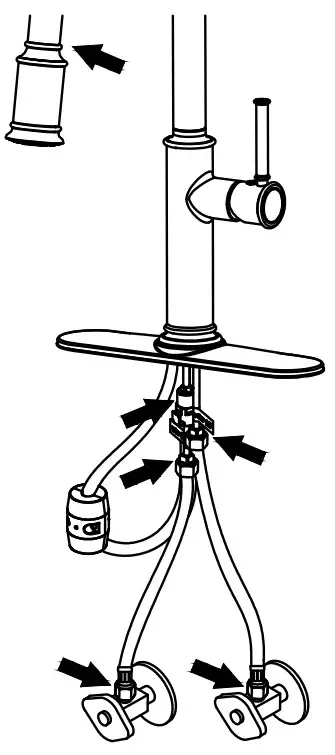

Step 7. Check for leaks
	Check for leaks at the connections. Retighten if necessary.

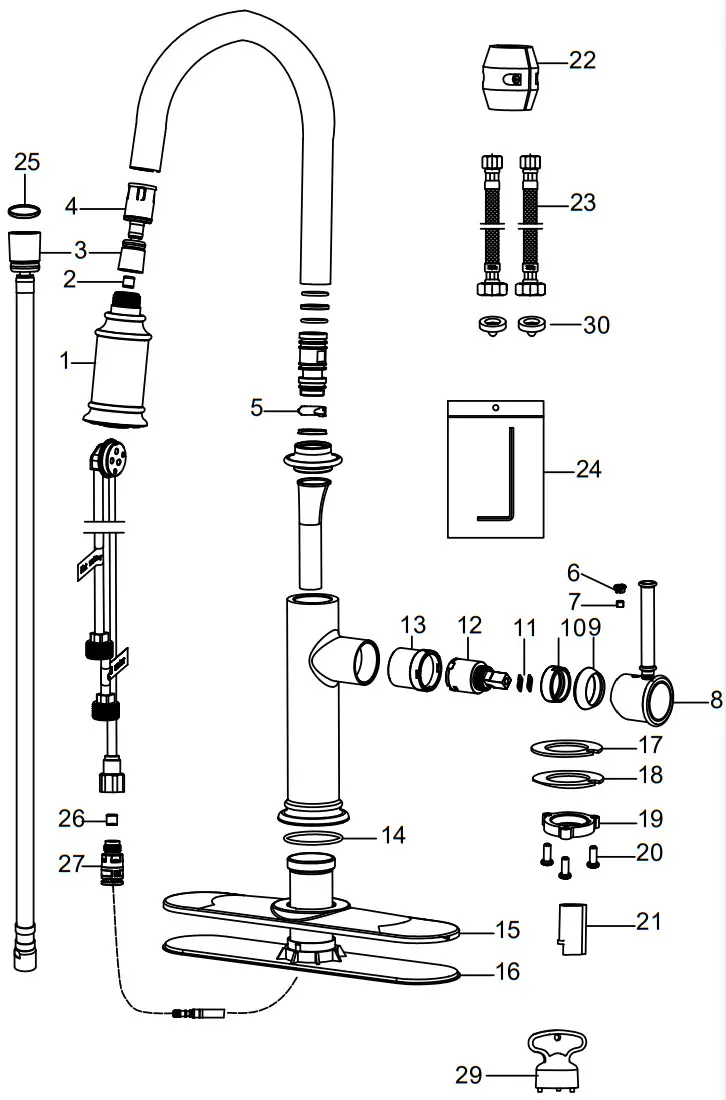

Replacement Parts

*  Denotes faucet component color options:
SFS – Spot Free Stainless Steel
ORB – Oil Rubbed Bronze
CH – Chrome
BL – Black
GR – Grey

Troubleshooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Care & Maintenance

To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners ACID
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary

This installation manual is subject to change without further notice. 12

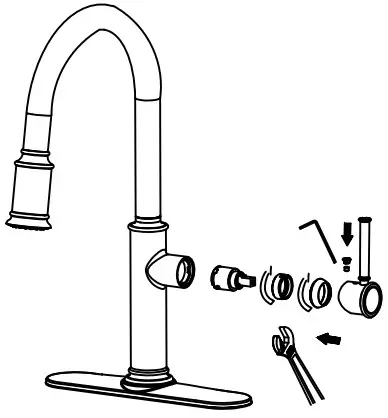

Maintenance – Cartridge Replacement

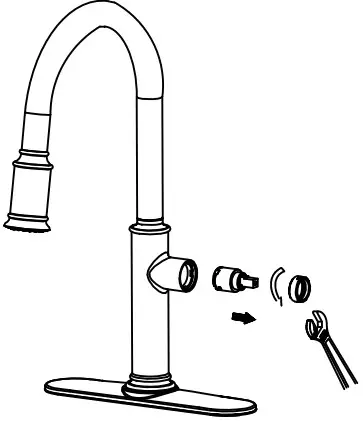

	Step 1: Remove the button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew the cartridge cover by hand.
	Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.
	Step 3: Place the new cartridge in the handle seat. Secure the cartridge with the locking nut and assemble the handle.

Codes/Standards Applicable:

FAUCET WARRANTY

Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).

Kraus extends this warranty to the original purchaser for personal household use of the “Faucet” in its original location. The warranty is non-transferable.

Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.

Kraus warrants the mechanical components such as but not limited to sprayed assembly (includes engine, aerators, structure, restrictors, backflow preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon,e, and stainless steel, etc) of the product to be free from defects in material and workmanship under normal usage for a period of one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the one (1) year term of the original owner or end-user.

Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and workmanship under normal usage for a period of five (5) years. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the five (5) year term of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user and is not transferable to a subsequent owner.

RESTRICTIONS

This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at discount outlets, unauthorized dealers, and/or sold on clearance.

This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these will damage and wear down the finish.

This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.

This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.

This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not allow recoveries of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential damages, and Kraus accepts no liability for such damages.

This warranty does not cover Marine or Outdoor Installation.

Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, or compliance with any code.

Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK and Puerto Rico shipping charges may apply). International shipping fees are not included.

COMMERCIAL WARRANTY

Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use.

All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty

If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050 516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide:

1.  Proof of purchase.
2. A description of the problem.

Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
