Kraus Kpf-1675 Ansel Single Handle Kitchen Faucet Installation Guide

INSTALLATION MANUAL
Ansel™ Single Handle
Kitchen Faucet
KPF-1675

Congratulations on the purchase of your new Kraus plumbing fixture!
Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
DO NOT RETURN TO THE STORE
Please contact our Customer Service Team at 1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your receipt with the purchase date for reference.
If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.
Prior to Installation:

• Make sure you have all the necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.
• Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built-up pressure. Remove existing faucet.
  Clean sink or countertop to remove any debris, plumber’s putty, or silicone.
• Flush angle stops to release any debris prior to installation.
• Pre-drilled hole size requirement: 1 3/8″ (min) – 1 1/2″ (max)
• Max countertop thickness: 1 3/8”
• 1, 2, or 3 hole installation

For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or C[email protected]

Tools Required

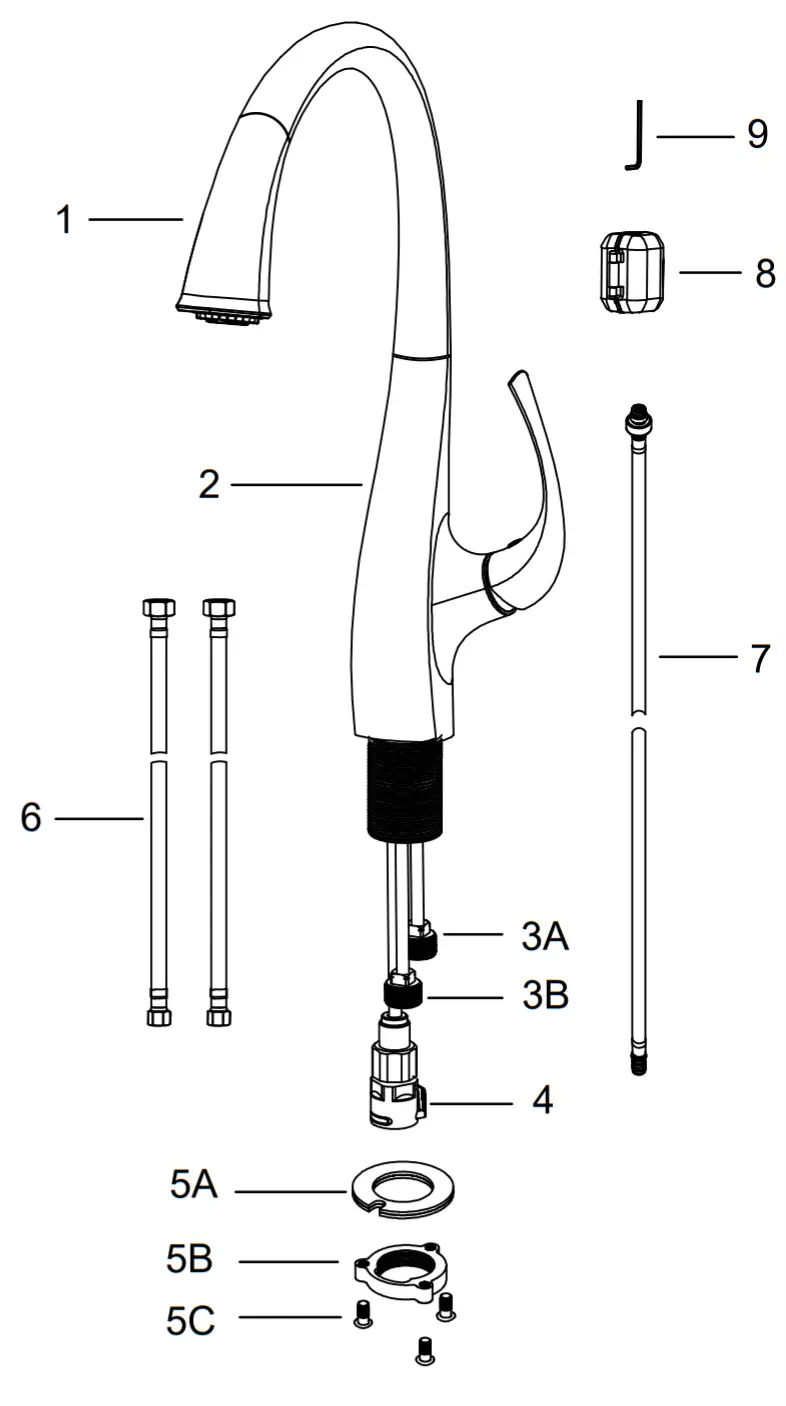

Diagram and Parts List

1. Spray Head
2. Faucet Body
3. Hot and Cold Copper Lines
   A. Hot
   B. Cold
4. Quick Connector
5. Mounting Hardware
   A. Rubber & Metal Washer
   B. Mounting Nut
   C. Mounting Screws
6. Hot & Cold Waterlines
7. Spray hose
8. Weight
9. Hex Wrench

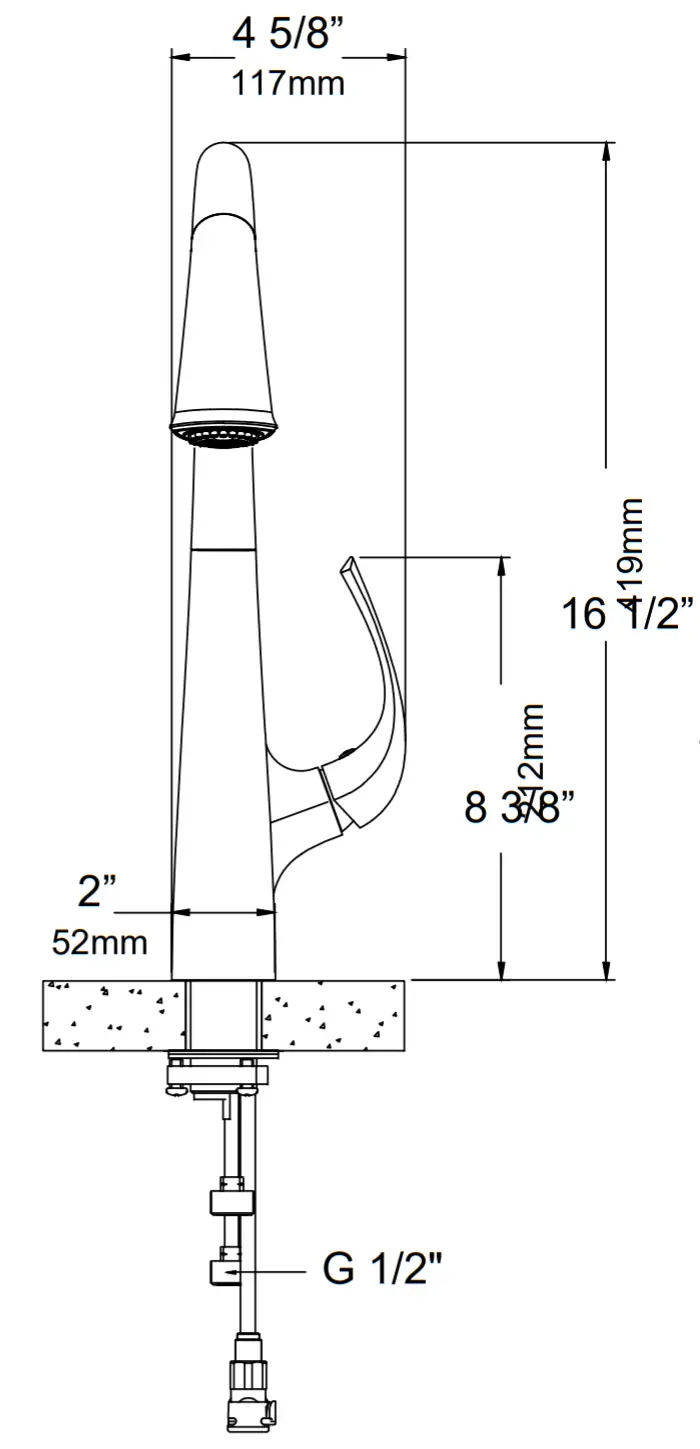

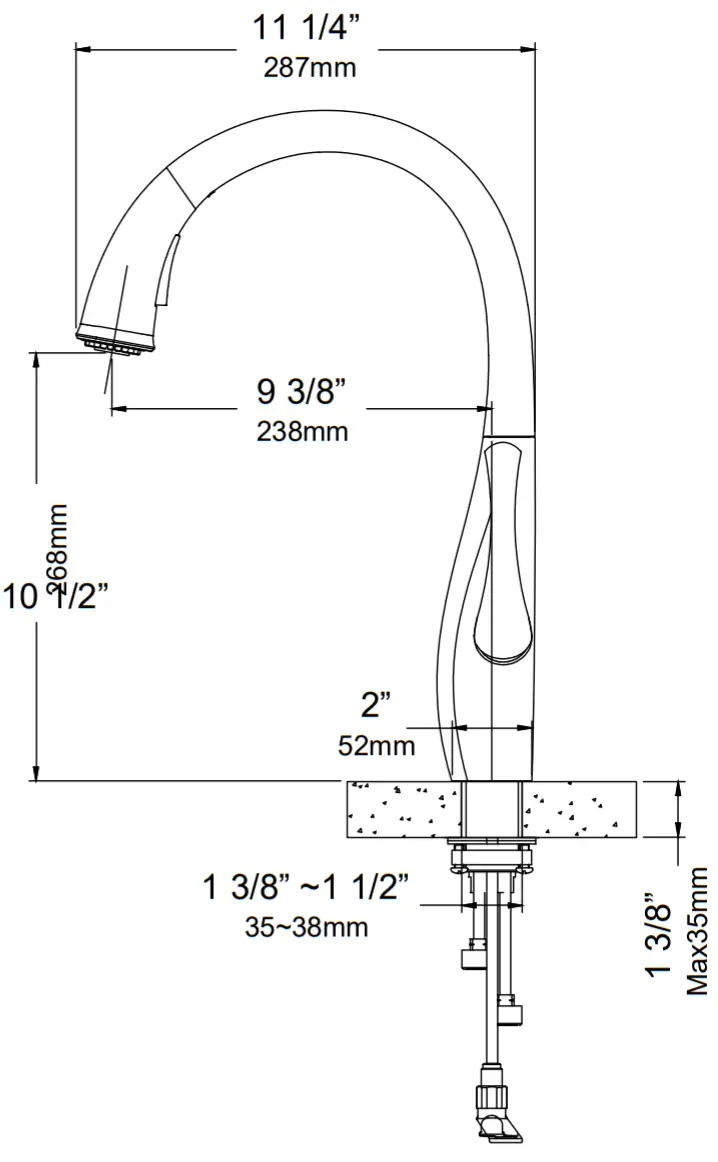

Faucet Dimensions

Installer Tip:

Shut off the main water supply before installing a new faucet.
Step 1A. Faucet installation – with deck plate

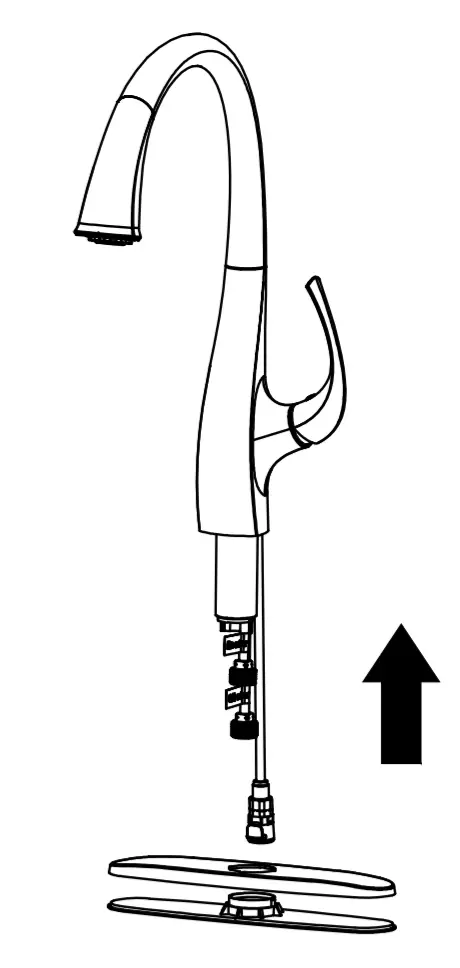

For three-hole installation: a Deck plate, base plate (see below), and silicone sealant (optional) are required.
Note: optional deck plate not included

Step 1B. Faucet installation – without deck plate
For single-hole installation:
Deck plate, base plate, and silicone sealant are NOT required.

Step 2. Install faucet and mounting hardware

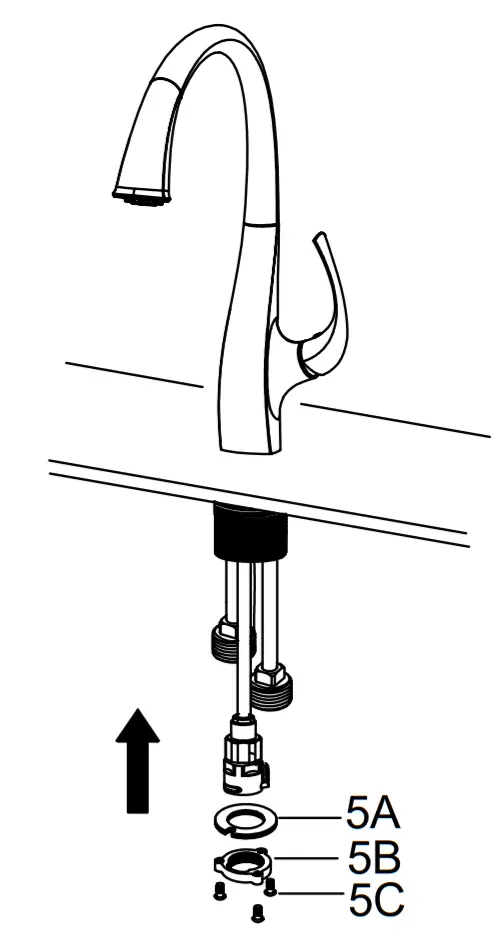

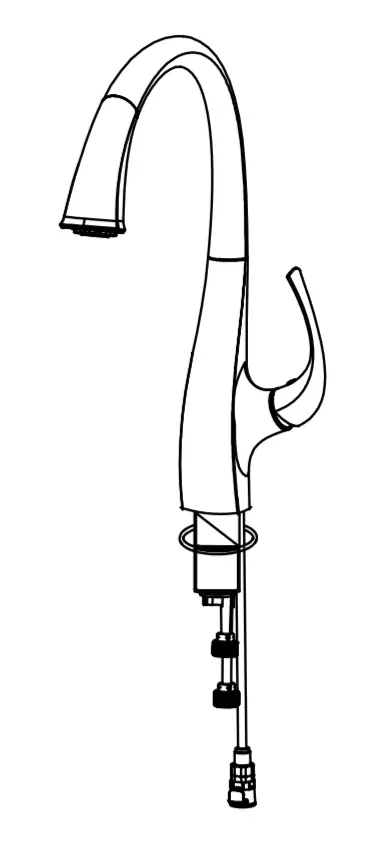

Insert faucet body (2) into the hole in the countertop or deck plate assembly. Install mounting hardware (5A, B & C) from underneath the countertop.

Step 3. Secure mounting hardware
Adjust the direction of the faucet body (2) so that handle is on the right side of the faucet. Tighten mounting nut (5B) until snug.

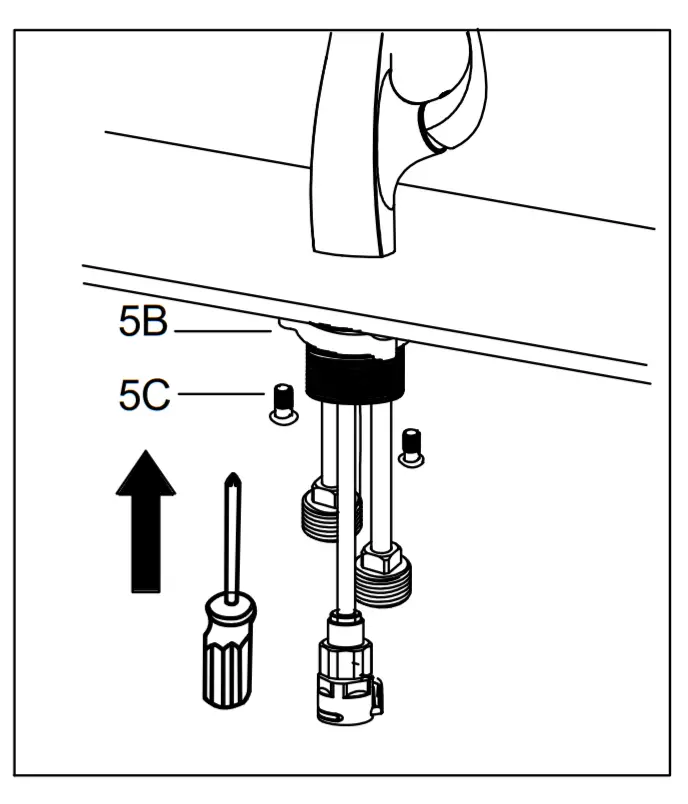

Tighten mounting screws (5C) to nut with a Phillips screwdriver until snug.

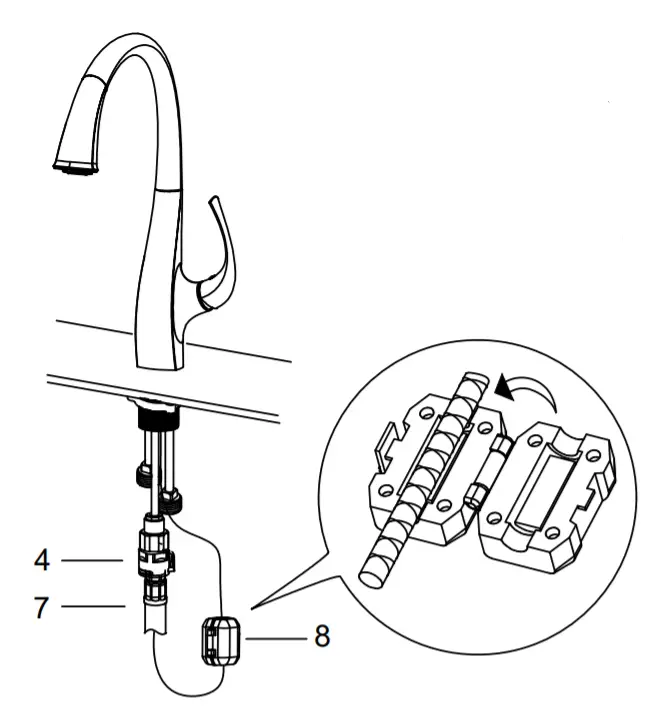

Step 4. Attach spray hose and counterweight
Connect spray hose (7) to quick connector (4) attached to supply line.
Install weight (8) on lowest vertical point on spray hose (7).

Step 5. Connect waterlines
Connect waterlines (6) too hot and cold copper lines (3).

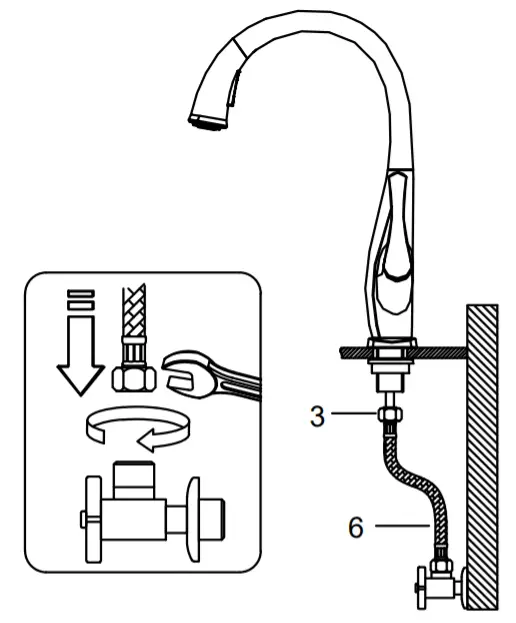

Connect waterlines (6) to angle stops. Tighten both ends of the waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks.
NOTE: Please make sure filter washers are installed before connecting to the main valve.

Step 6. Flush spray hose

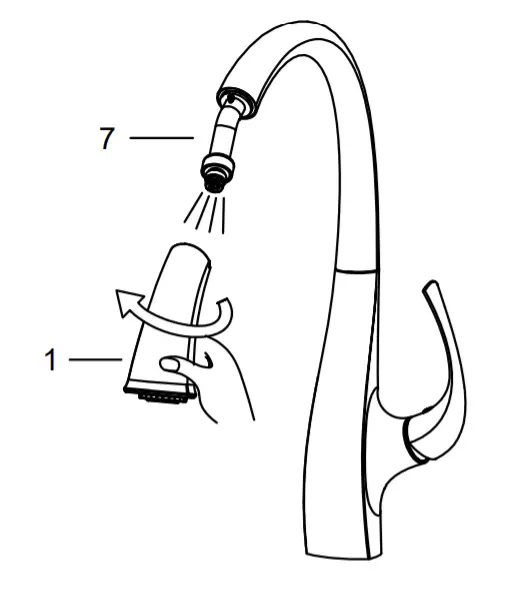

Remove spray head (1) from spray hose (7). Hold the tip of the spray hose (7). Turn the faucet on and let the water run for 60 seconds to flush any debris.

Step 7. Check for leaks
Check for leaks at the connections. Retighten if necessary.

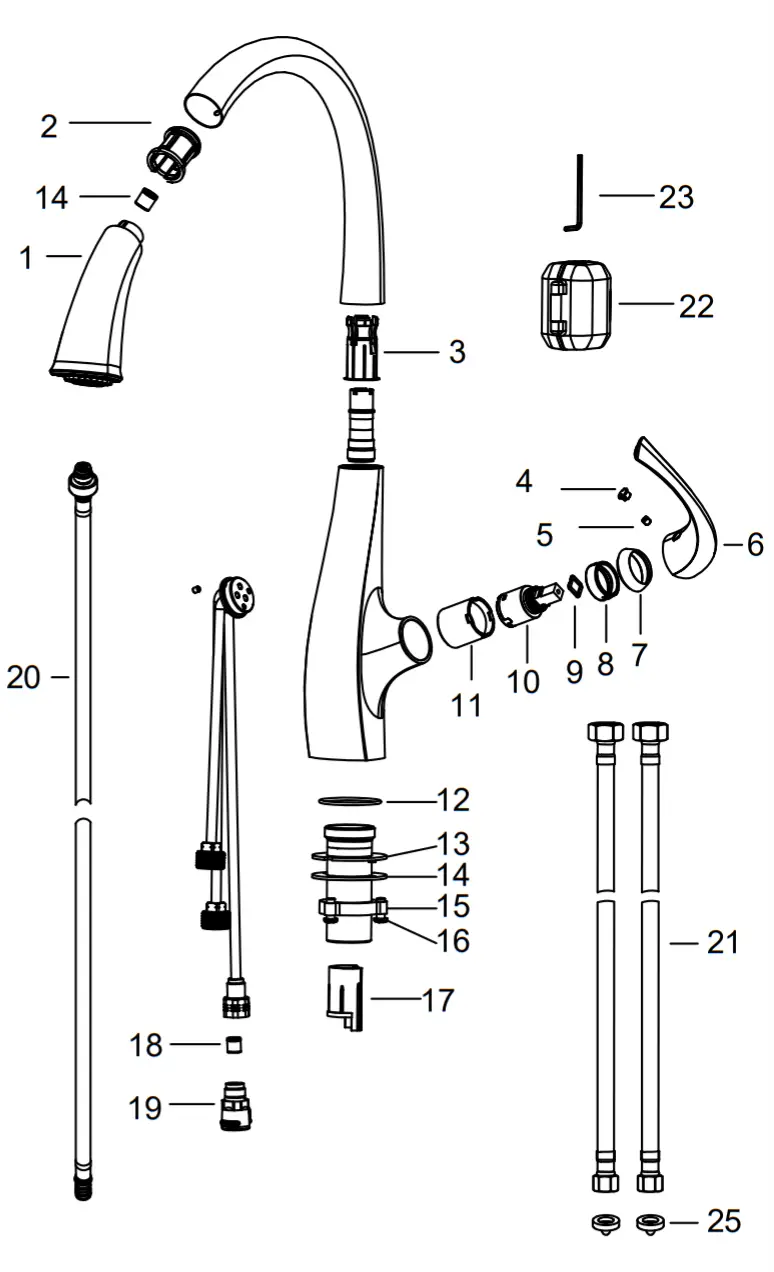

Replacement Parts

*Denotes faucet component color options:
SFS – Spot Free Stainless Steel
MB – Matte Black
CH – Chrome
BL – Black
GR – Grey

Troubleshooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Care & Maintenance

To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use a cloth with a coarse surface
4. Unscrew the aerator and clean when necessary

This installation manual is subject to change without further notice.

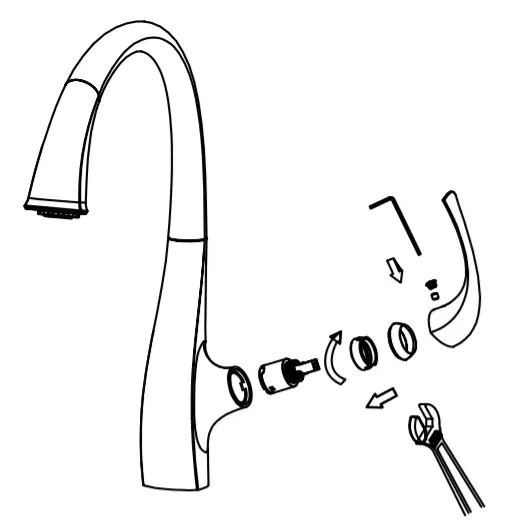

Maintenance – Cartridge Replacement

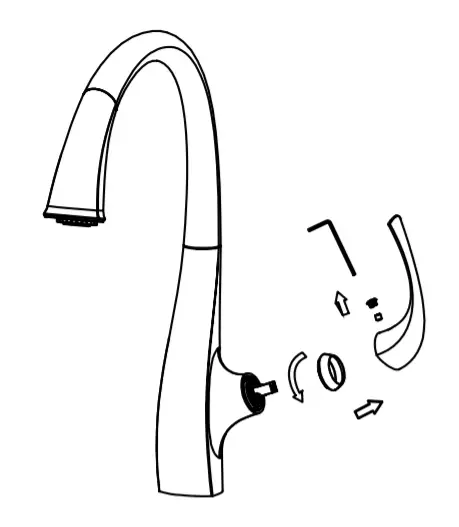

Step 1: Remove the button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew the cartridge cover by hand.

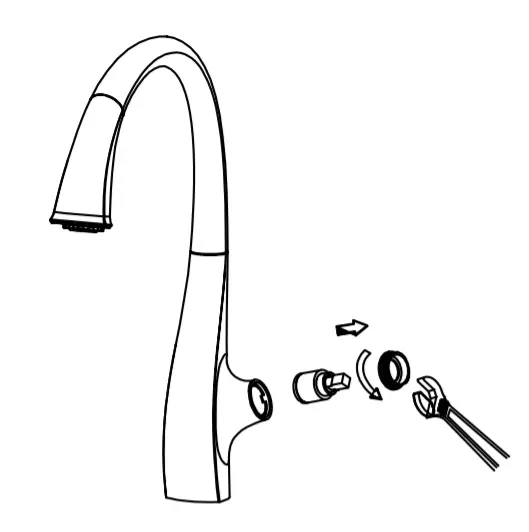

Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.

Step 3: Place the new cartridge in the handle seat. Secure the cartridge with the locking nut and assemble the handle.

Codes/Standards Applicable:

ASME A112.18.1
1.8GPM 6.8L/min maximum
