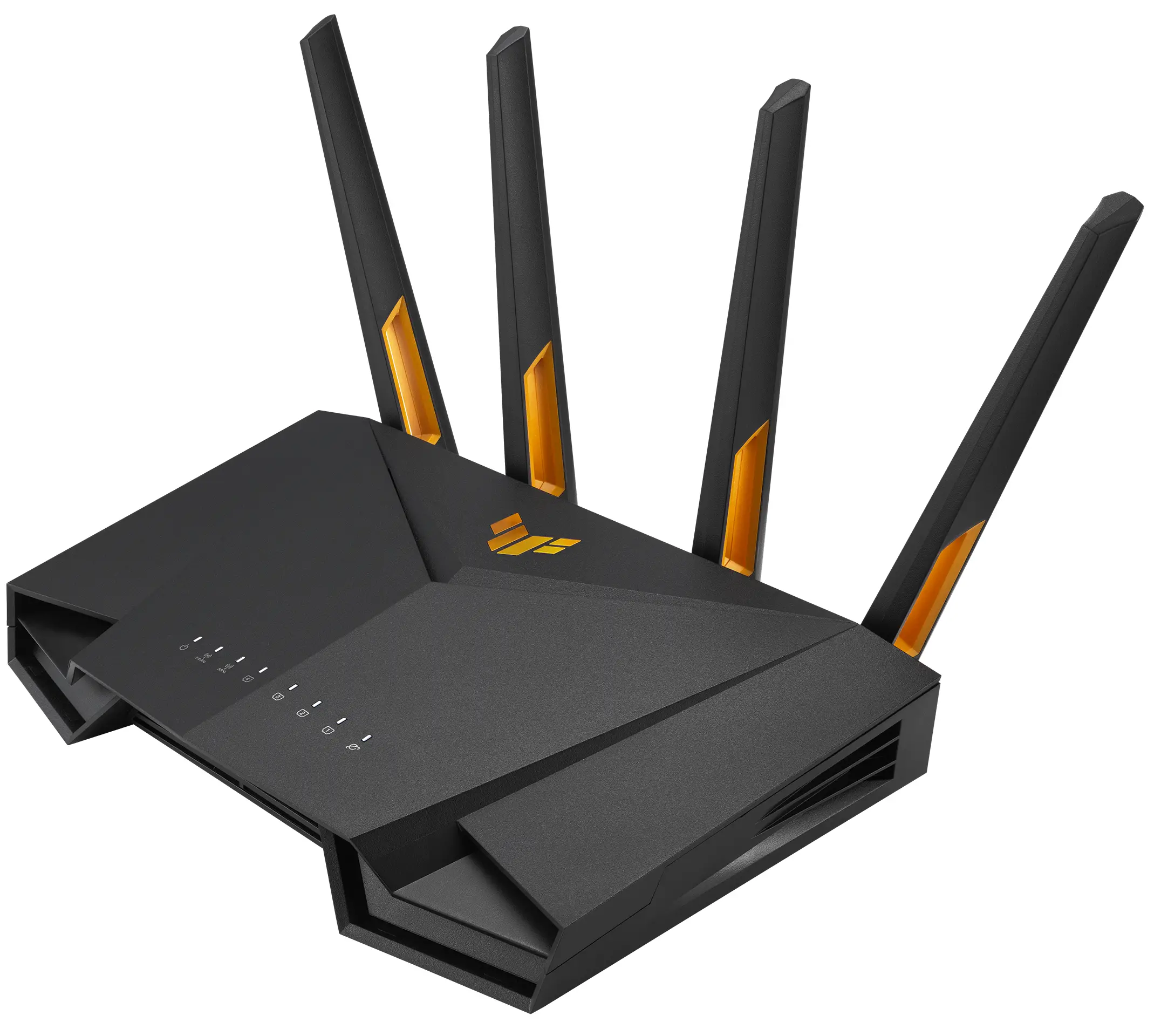

ASUS TUF-AX3000 V2 TUF Gaming WiFi Routers User Guide

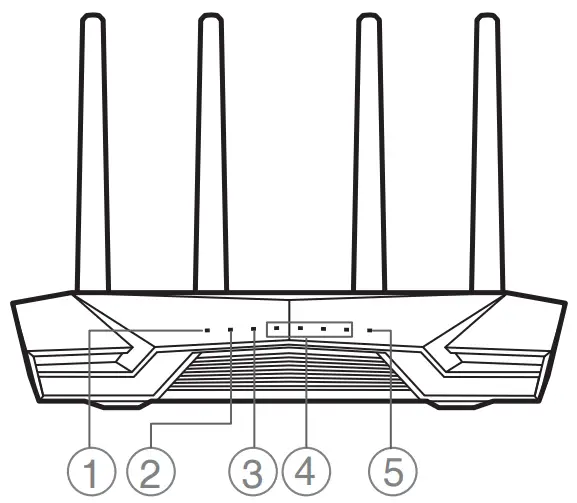

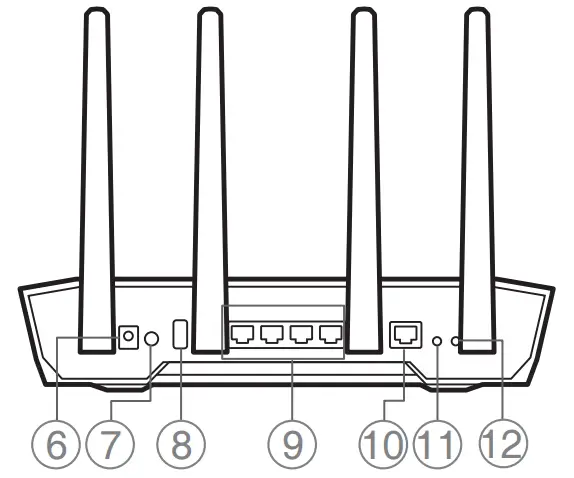

Router Overview
- Power LED
- 2.4GHz LED
- 5GHz LED
- LAN (1~4) LEDs
- 2.5G/1G WAN (Internet) LED
- Power (DCIN) port
- Power button
- USB 3.2 Gen 1×1 port
- LAN 1~4 ports
- 2.5G /1G WAN (Internet) port
- WPS button
- Reset button
Specifications
| DC Power adapter | DC Output: +12V with max 1.5A current | ||
| Operating Temperature | 0~40o C | Storage | 0~70 C |
| Operating Humidity | 50~90% | Storage | 20~90% |

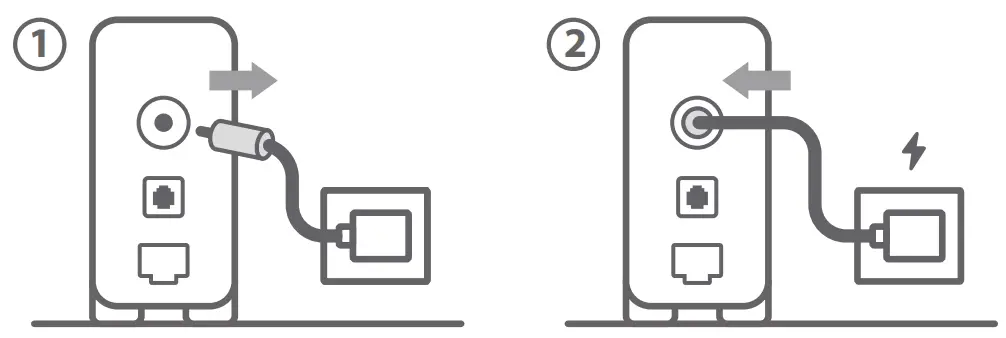

Reboot modem and ensure its connection is ready
Notice: Unplug modem for 10 sec then plug back in.

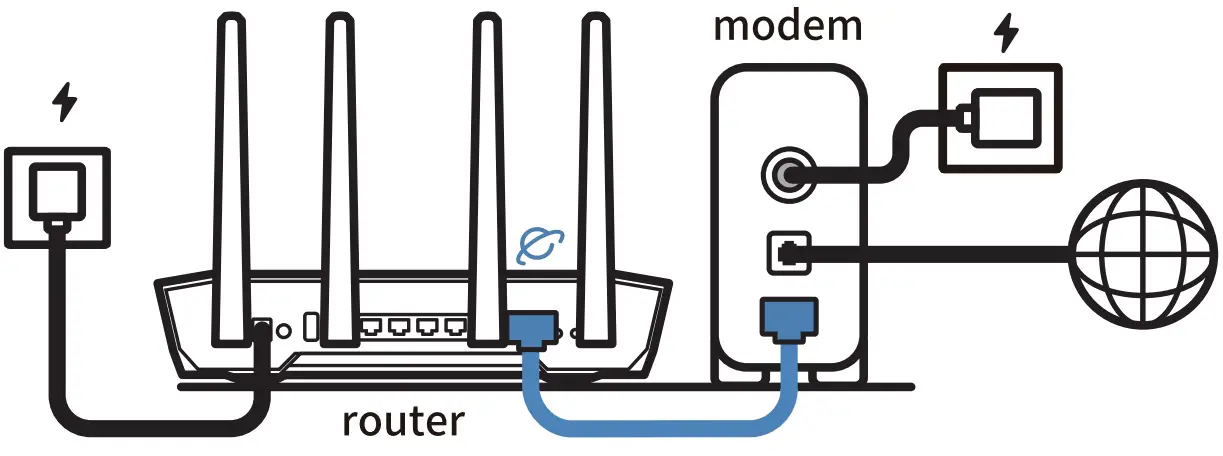

- Prepare your ASUS router and power it on
Once the WAN LED turns ON, it is ready for setup.
- Scan the QR code and download ASUS Router app for setup
http://asus.me/asusrouteri
http://asus.me/asusrouterg
Service and Support
Video Tutorials
https://qr.asus.com/wl_videotutorials
