ASUS TUF-AX5400 TUF Gaming Dual Band Wi-Fi 6 Router

Package  content

• TUF-AX5400 Wireless Router
• Network cable (RJ-45)
• AC adapter
• Quick Start Guide

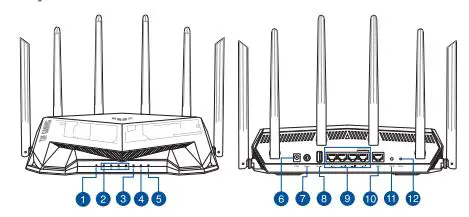

A quick loA quick look aok at t TUF-TUF-AAX5400X5400

position  your  wireless router

For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

•  Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
•  Keep the wireless router away from metal obstructions and away from direct sunlight.
•  Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.
•  Always update to the latest firmware. Visit the ASUS website at
  http://www.asus.com to get the latest firmware updates.

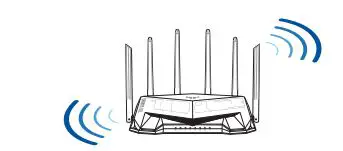

•  To ensure the best wireless signal, orient the six non-detachable antennas as shown in the drawing below.

NOTES:

•  Use only the adapter that came with your package. Using other adapters may damage the device.
•  Specifications:

preparing  your  modem

1. Unplug the power cable/DSL modem. If it has a battery backup, remove the battery.
   1.

   NOTE: If you are using DSL for Internet, you will need your username/password from your Internet Service Provider (ISP) to properly configure the router.

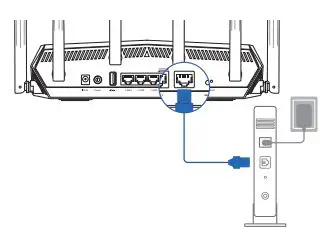

2.  Connect your modem to the router with the bundled network cable.
3.  Power on your cable/DSL modem.
4.  Check your cable/DSL modem LED lights to ensure the connection is active.

setting up your  TUF-TUF-AX5400X5400

You can set up your router via wired or wireless connection.

Wired connection

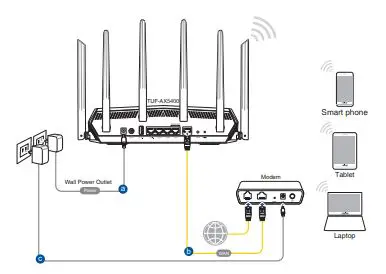

1.  Plug your router into a power outlet and power it on. Connect the network cable from your computer to a LAN port on your router.
2.  The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

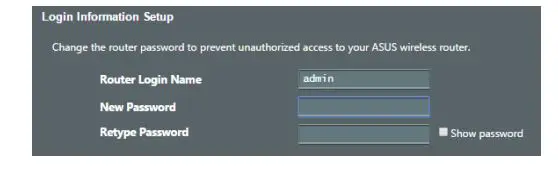

3.  Set up a password for your router to prevent unauthorized access.

 Wireless connection

1.  Plug your router into a power  outlet and power it on.

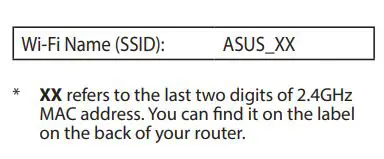

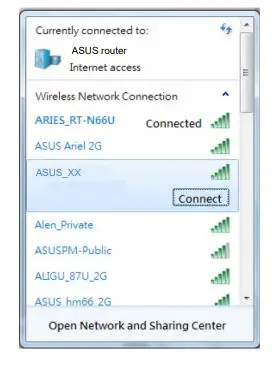

2.  Connect to the network with SSID shown on the product label on the back sideof the router. For better network security, change to a unique SSID and assign a password.
3.  You can choose either the web GUI or ASUS Router app to set up your router.
   •  Web GUI Setup
   •  O nce connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.
   •  Set up a password for your router to prevent unauthorized access.

 App Setup

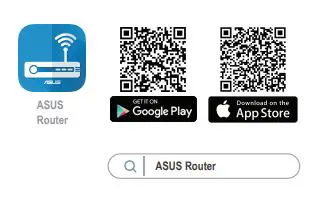

Download ASUS Router App to set up your router via your mobile devices.

• T urn on Wi-Fi on your mobile devices and connect to your router’s network.
• F ollow ASUS Router App setup instructions to complete the setup.

Remembering your wireless router settings

• Remember your wireless settings as you complete the router setup.


  Router Name:	Password:
  2.4 GHz network SSID:	Password:
  5GHz network SSID:	Password:

FAQ

1.  Where can I find more information about the wireless router?
   1.  Technical support site: https://www.asus.com/support
   2.  Customer hotline: refer to the Support Hotline section in this Quick Start Guide.
