Motherboard
TUF Gaming X570-PRO WiFi Motherboard
User Guide
TUF GAMING X570-PRO (WI-FI)
Quick start guide

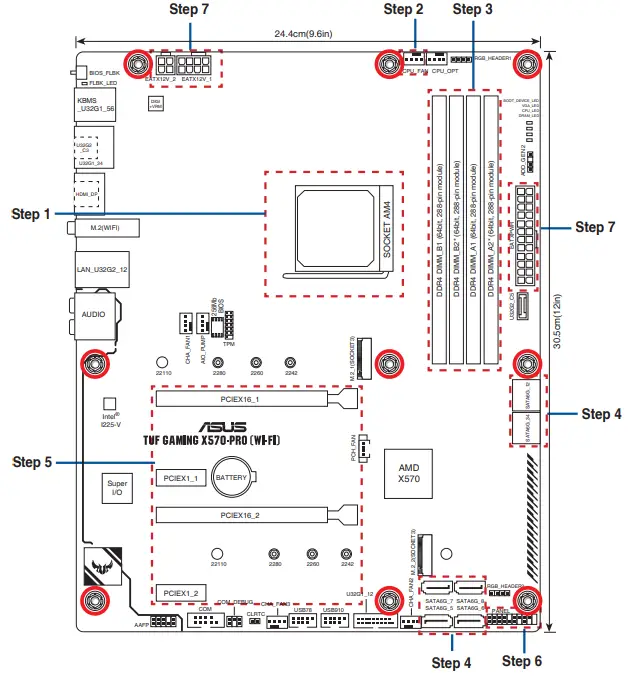

Motherboard Layout

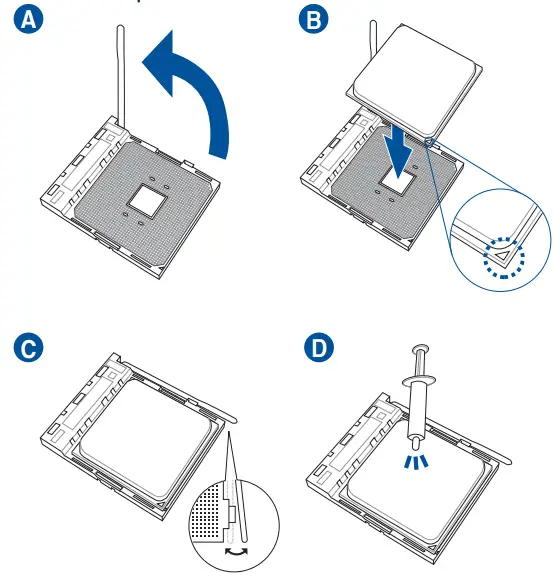

Step 1
Install the CPU

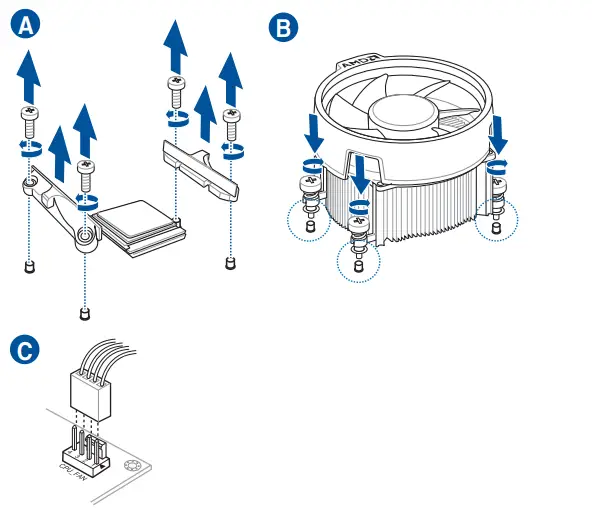

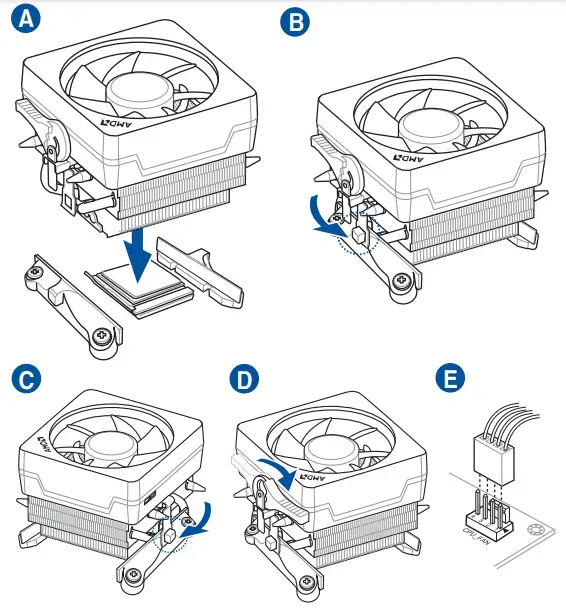

Step 2
Install the CPU fan
Type 1
Type 2
NOTE: Remove the screws and the retention module only. Do not remove the plate on the bottom.

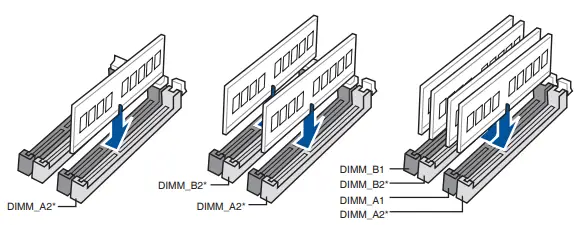

Step 3
Install memory modules

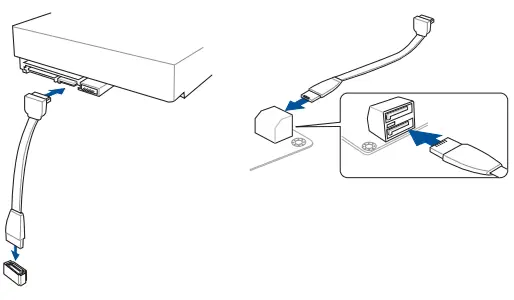

Step 4
Install storage devices

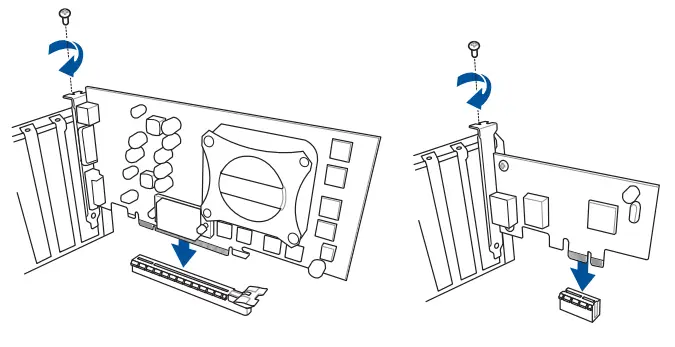

Step 5
Install expansion card(s)

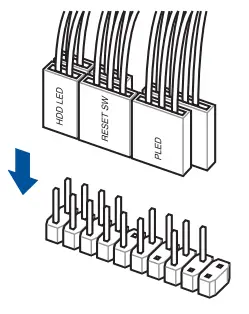

Step 6
Install the system panel connector

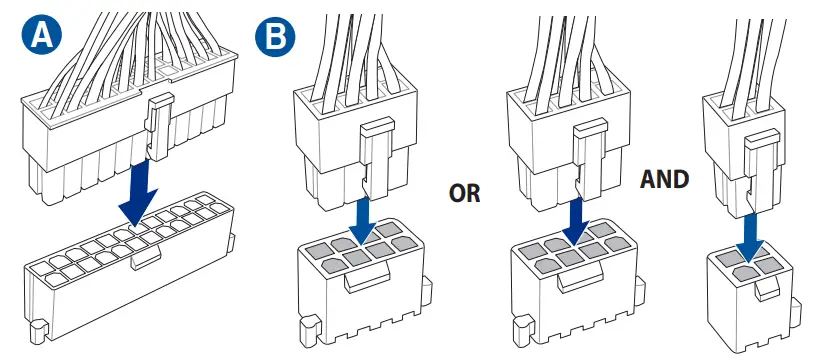

Step 7
Install ATX power connectors

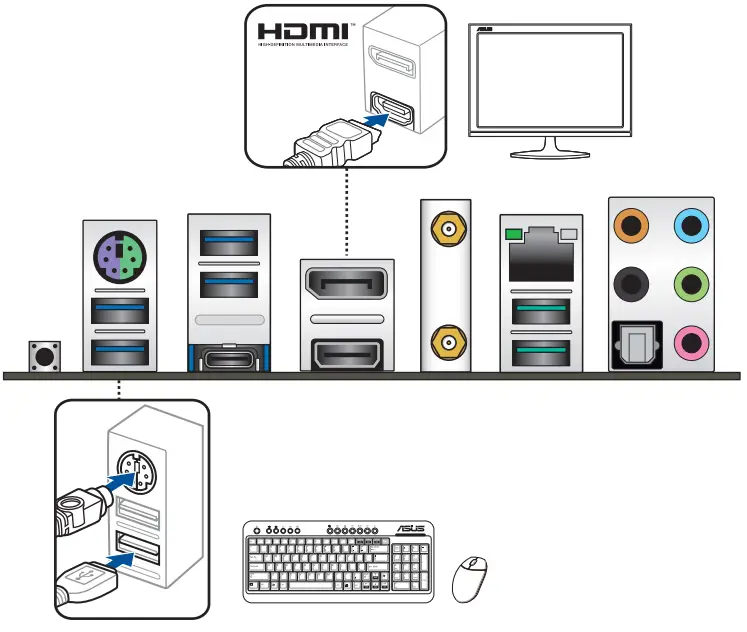

Step 8
Connect input/output devices

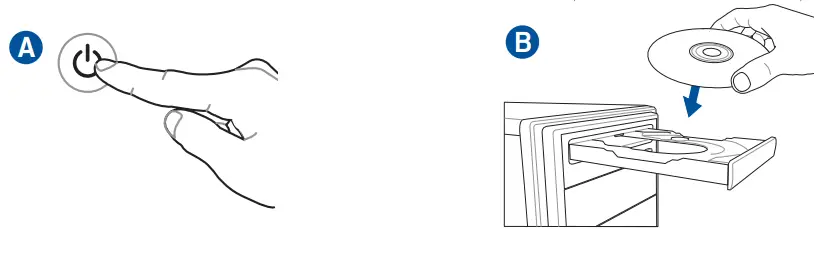

Step 9
Power on the system and install the operating system and drivers
Australia statement notice
From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit http://www.asus.com/support/. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://www.asus.com/support/
India E-waste (Management) Rule 2016
This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits the use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
Regional notice for Turkey
Q16844
First Edition
July 2020
Copyright © ASUSTeK Computer Inc.
All Rights Reserved
