ROG Strix B650E-E Gaming WIFI Motherboard
User Guide
ROG Strix B650E-E Gaming WIFI Motherboard

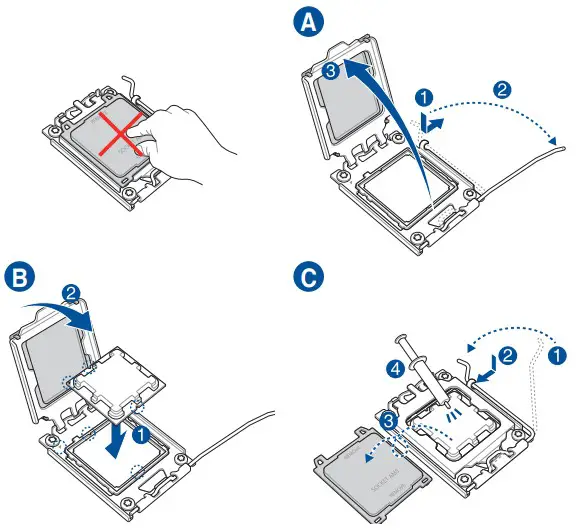

Step 1 Install the CPU

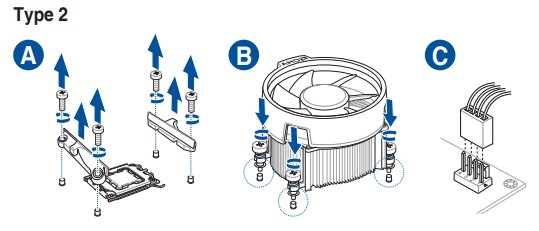

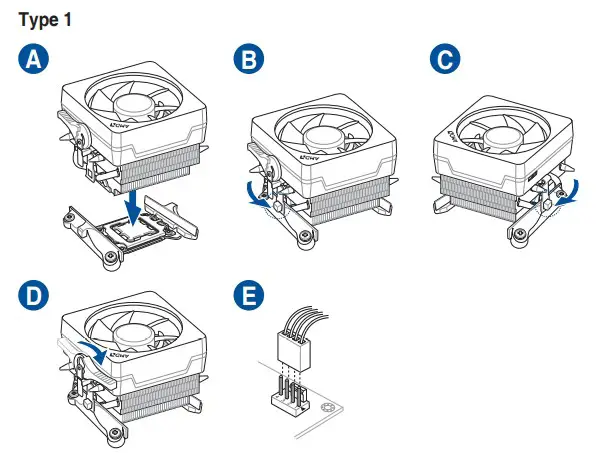

Step 2 Install the CPU fan
NOTE: Remove the screws and the retention module only. Do not remove the plate on the bottom.

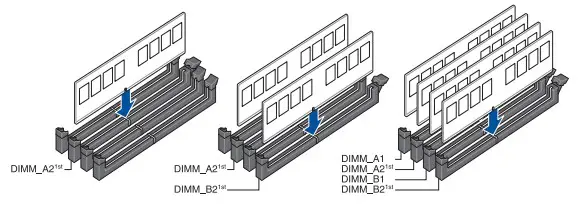

Step 3 Install memory modules
Step 4 Install storage devices. To install M.2, refer to user guide.

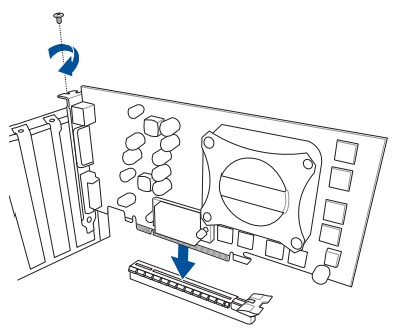

Step 5 Install expansion card(s)

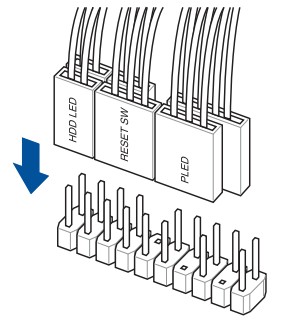

Step 6 Install the system panel connector

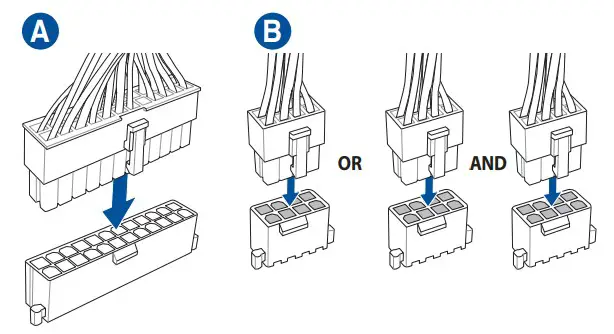

Step 7 Install ATX power connectors

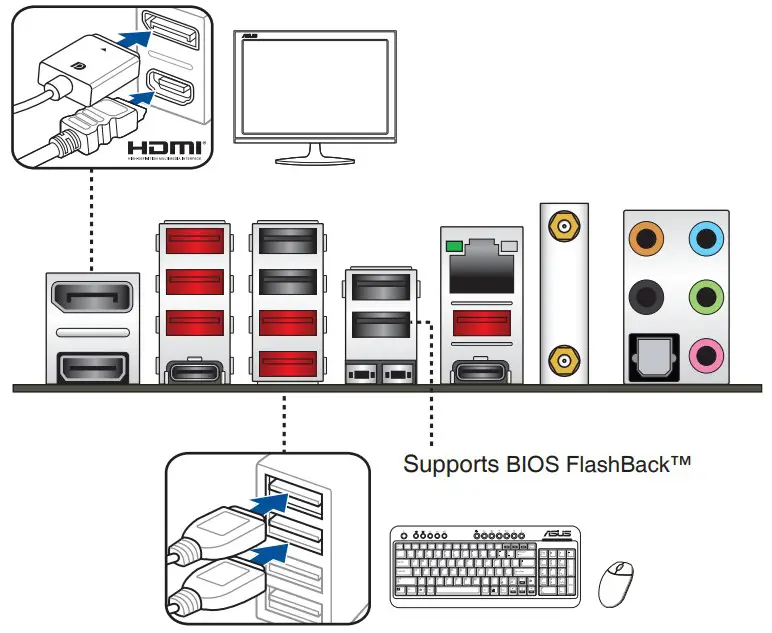

Step 8 Connect input/output devices
Step 9 Power on the system and install operating system and drivers

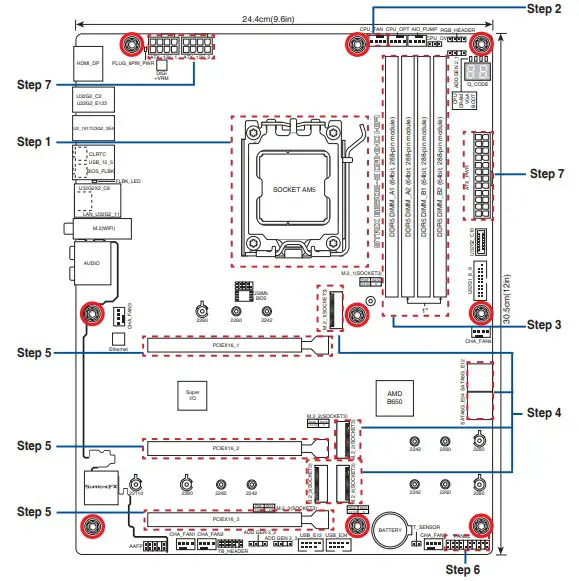

Motherboard Layout
Australia Statement Notice
From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit httos://www.asus.com/su wort/. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at httos://www.asus.com/suonort/.
India RoHS
This product complies with the “India E-Waste (Management) Rules, 2016″and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.0196 by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
Turkiye RoHS
AEEE Yonetmeligine Uygundur
HDMI Trademark Notice
The teams HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc
020246
First Edition
July 2022
Copyright ASUST©K Computer Inc.
All Rights Reserved
