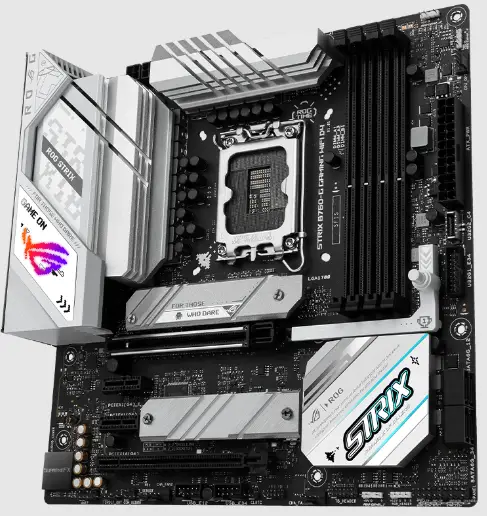

ASUS ROG STRIX B760-G GAMING WIFI D4 Motherboard

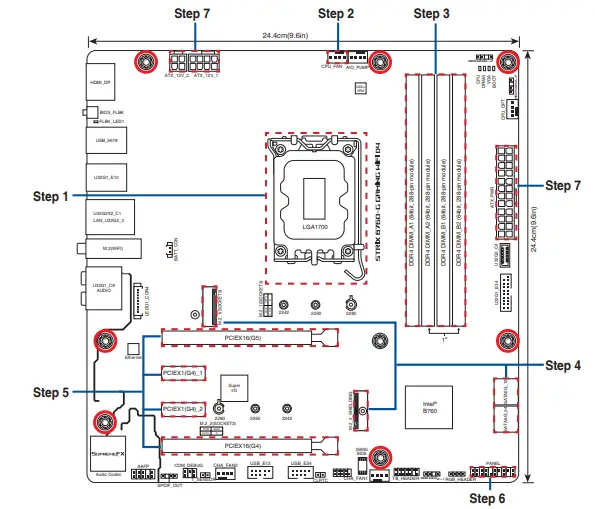

Motherboard Layout
INSTALLATION INSTRUCTIONS
Step 1

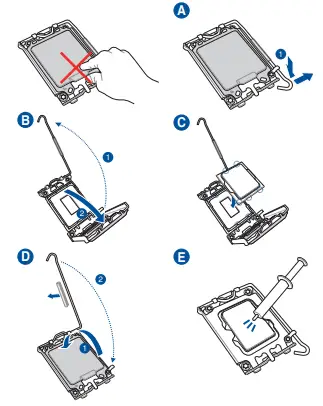

Install the CPU
Step 2

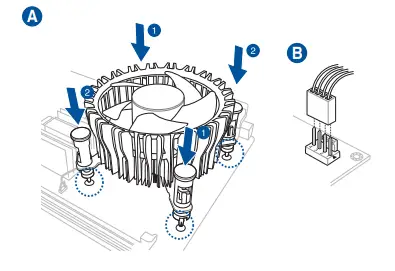

Install the CPU fan
Step 3

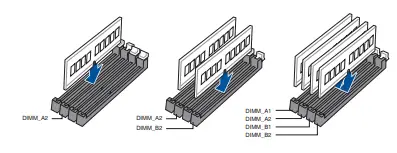

Install memory modules
Step 4
Install storage devices. To install M.2, refer to user guide.
Step 5

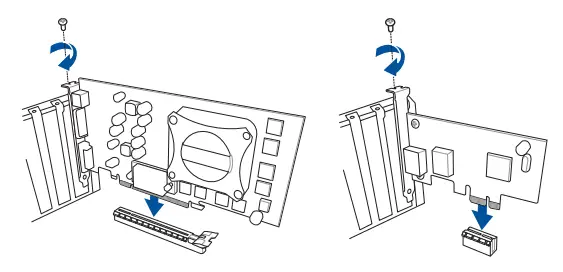

Install expansion card(s)
Step 6
Install the system panel connector
Step 7

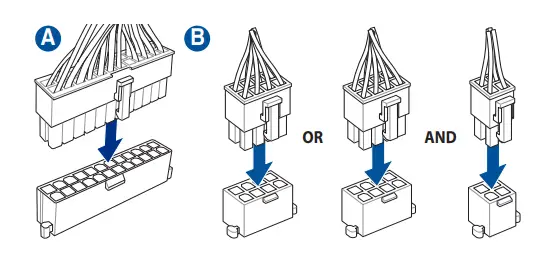

Install ATX power connectors
Step 8

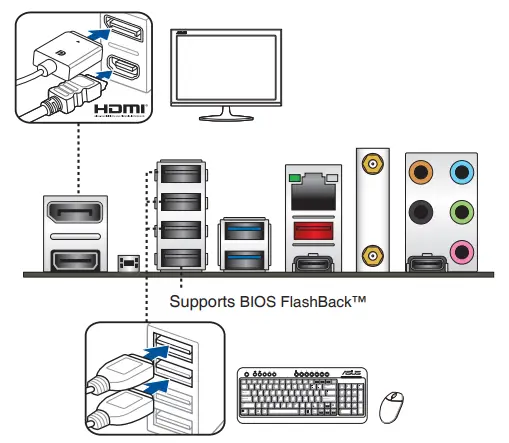

Connect input/output devices
Step 9
Power on the system and install operating system and drivers
Australia Statement Notice
From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit https://www.asus.com/support/. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable lessor damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at https://www.asus.com/support/.
India RoHS
This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
Türkiye RoHS
AEEE Yönetmeliğine Uygundur HDMI Trademark Notice
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc
Q21286
First Edition
November 2022
Copyright © ASUSTeK Computer Inc.
All Rights Reserved
