Motherboard
ROG STRIX 6660-G GAMING 1419
Quick start guide
Step 1

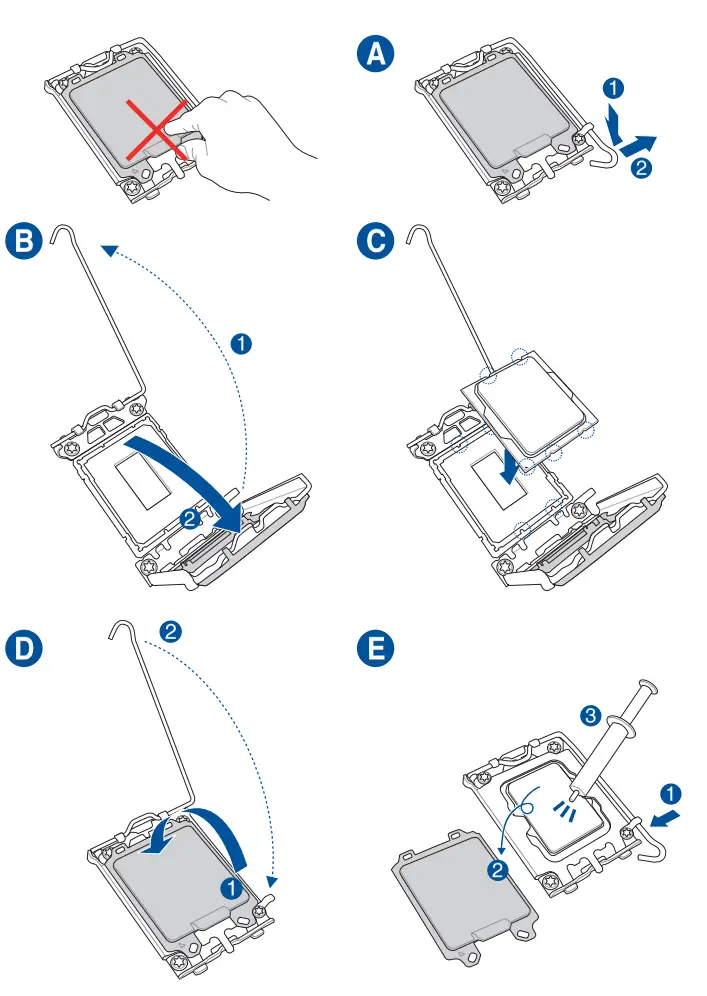

Install the CPU
Step 2

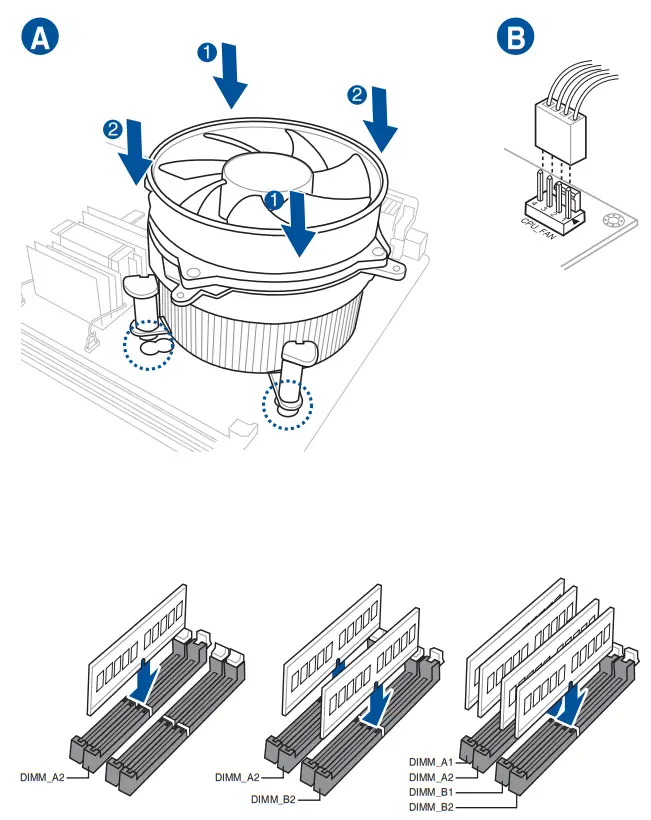

Install the CPU fan
Step 3
Install memory modules

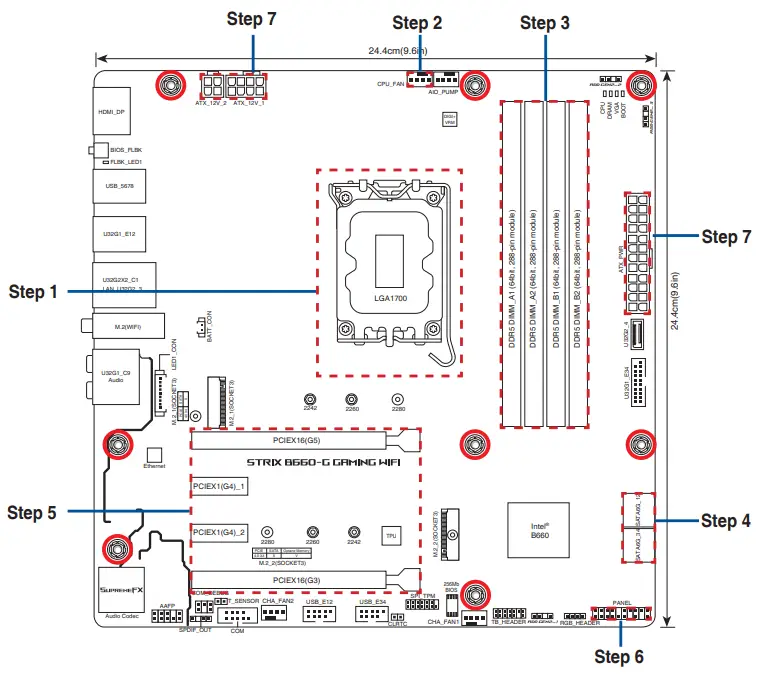

Motherboard Layout
Step 4
Install storage devices. To install M.2 refer to user manual.
Step 5

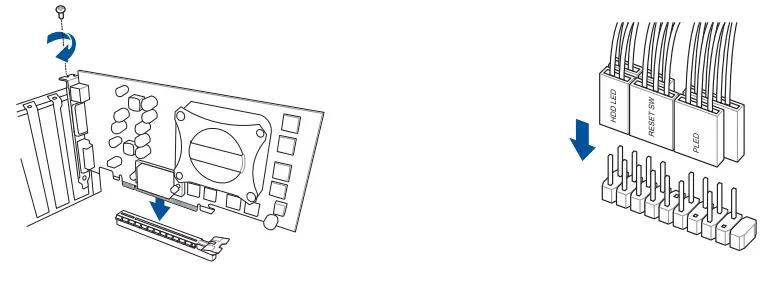

Install expansion card(s)
Step 6
Install the system panel connector
Step 7

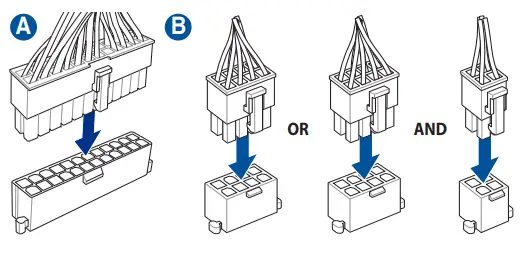

Install ATX power connectors
Step 8

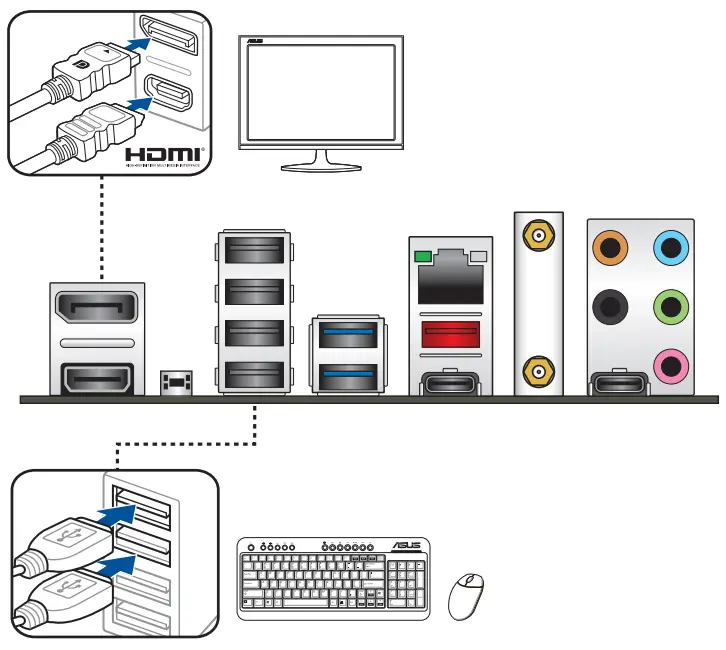

Connect input/output devices
Step 9

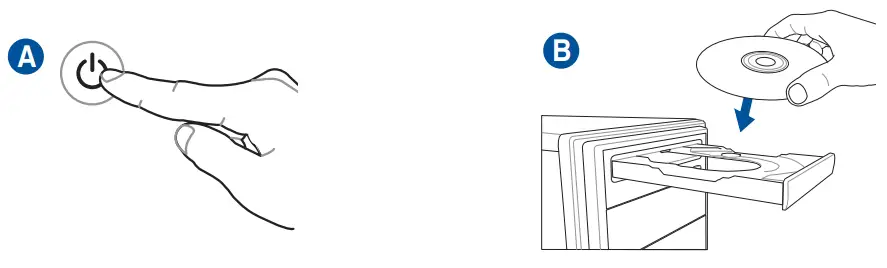

Power on the system and install operating system and drivers
Australia statement notice
From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit http://www.asus.com/support/. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://www.asus.com/surwort/
India E-waste (Management) Rules 2016 This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits the use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
PRODUZIDO NO
Regional notice for Turkey
019264
First Edition
October 2021
Copyright © ASUSTeK Computer Inc.
All Rights Reserved
