Axor Starck 10211000 Bidet Mixers With Pop Up Waste Set Instruction Manual

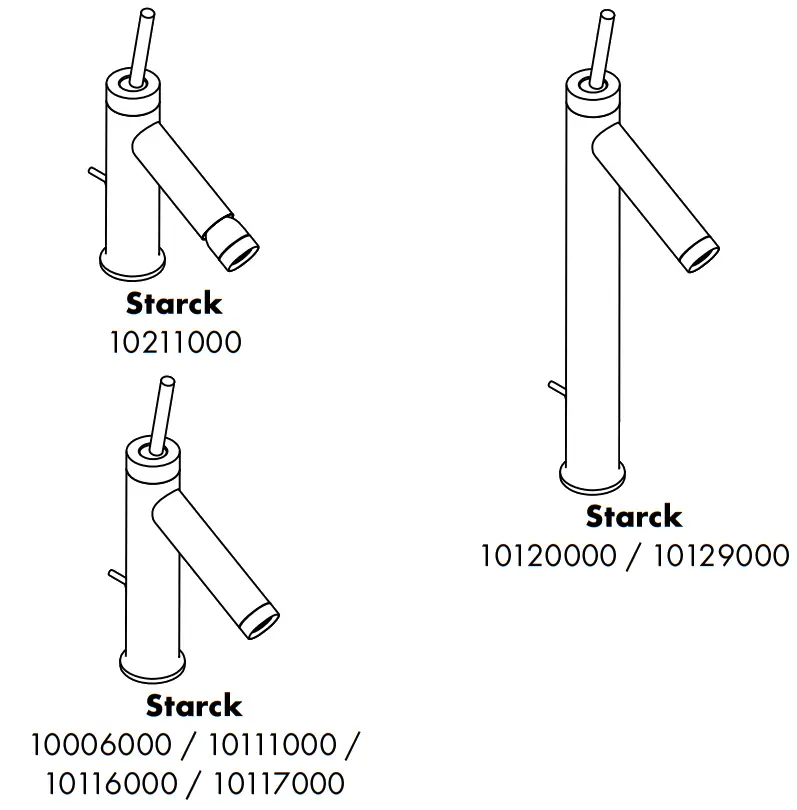

Starck 10211000 Bidet Mixers with Pop Up Waste Set
Instruction Manual

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.
Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

	Do not use silicone containing acetic acid!

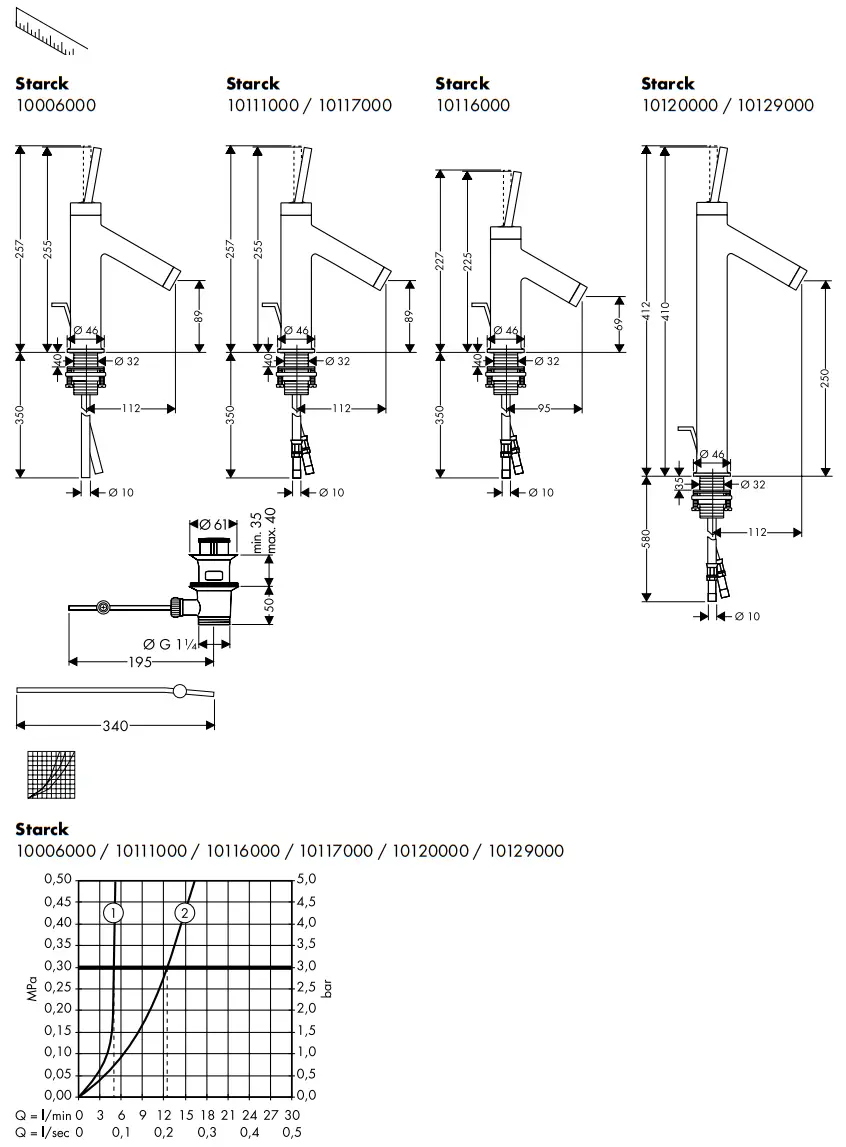

	Dimensions (see page 34 + 35)
	Flow diagram (see page 34 + 35) ① with EcoSmart® ② without EcoSmart®

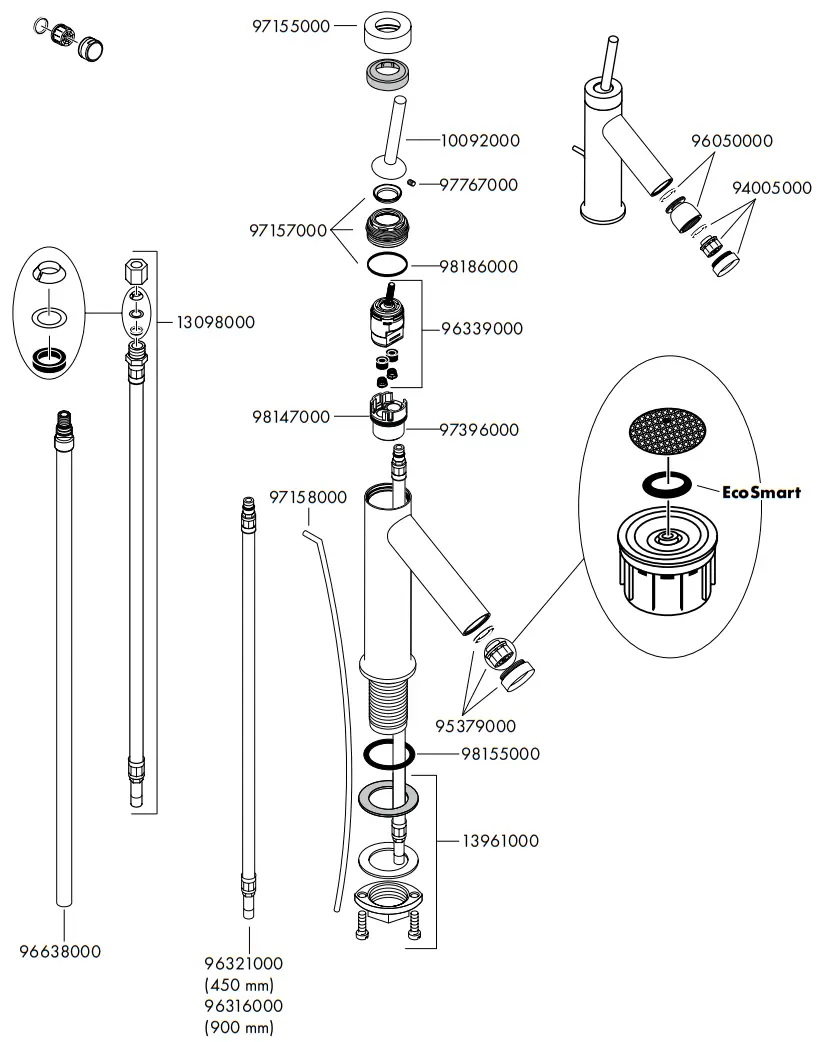

	Spare parts (see page 38)
	Special accessories special tool (58085000) order as an extra
	Installation kit order as an extra

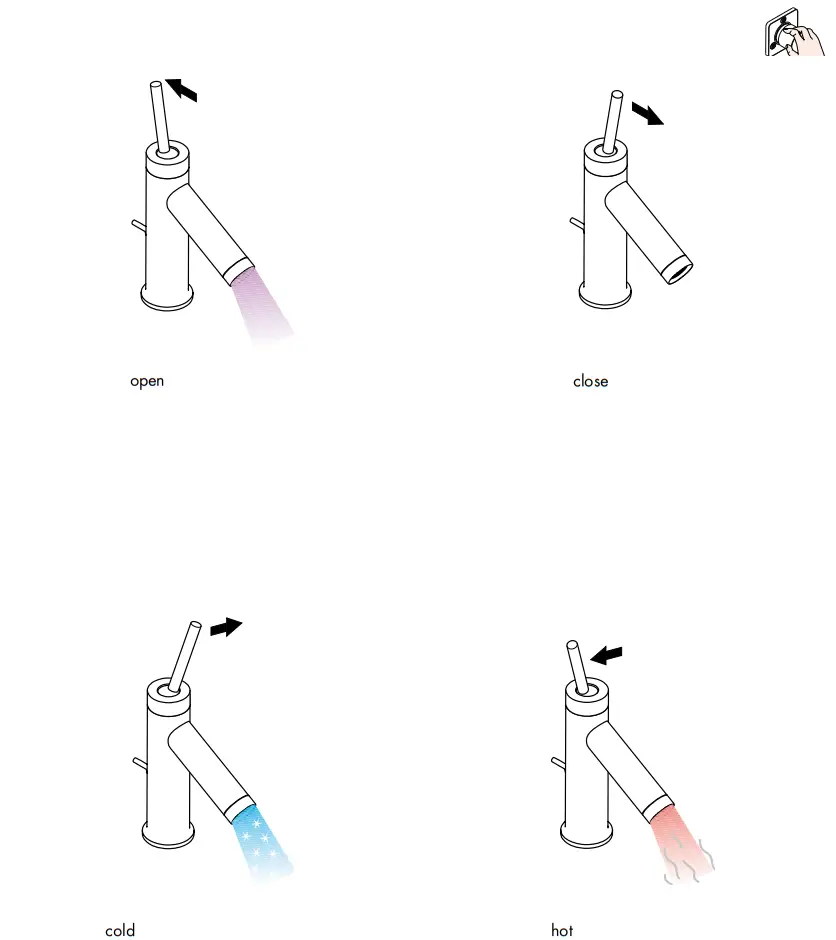

	Operation (see page 33)
	Cleaning (see page 37) enclosed brochure
	Test certificate (see page 36)

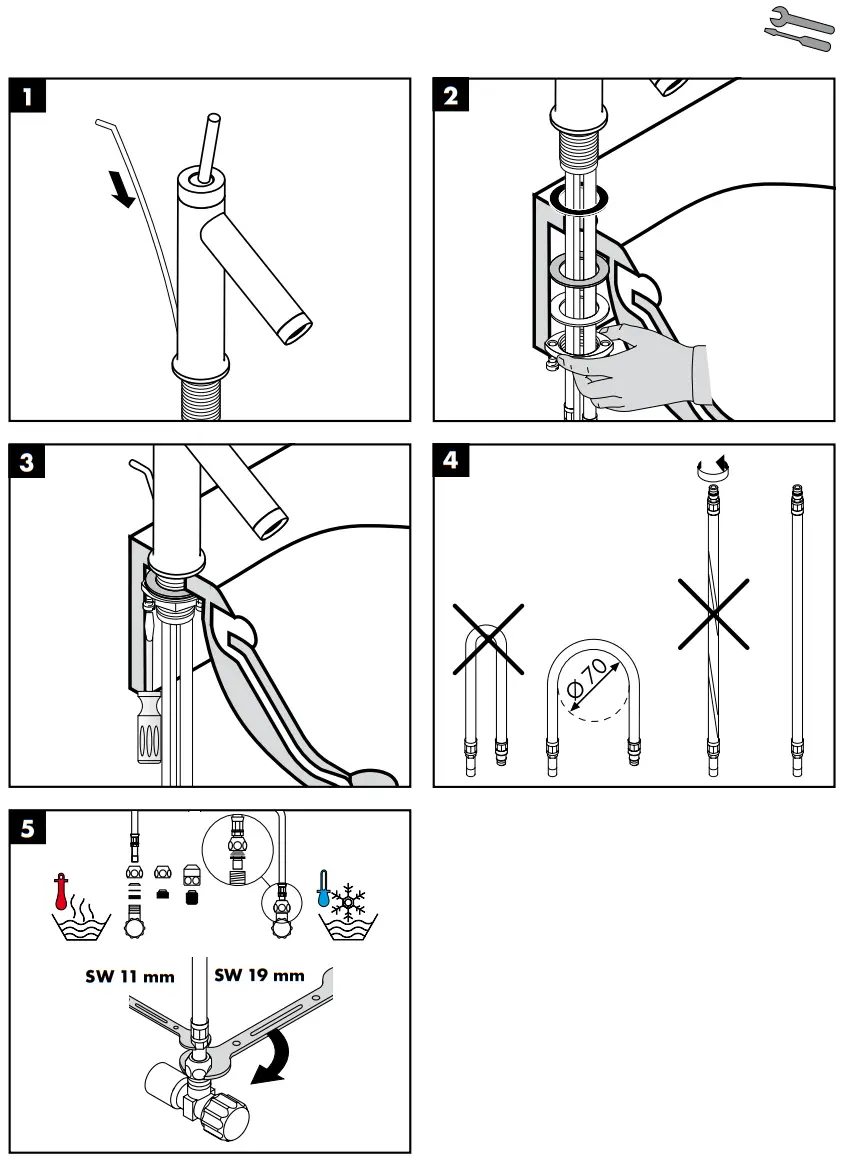

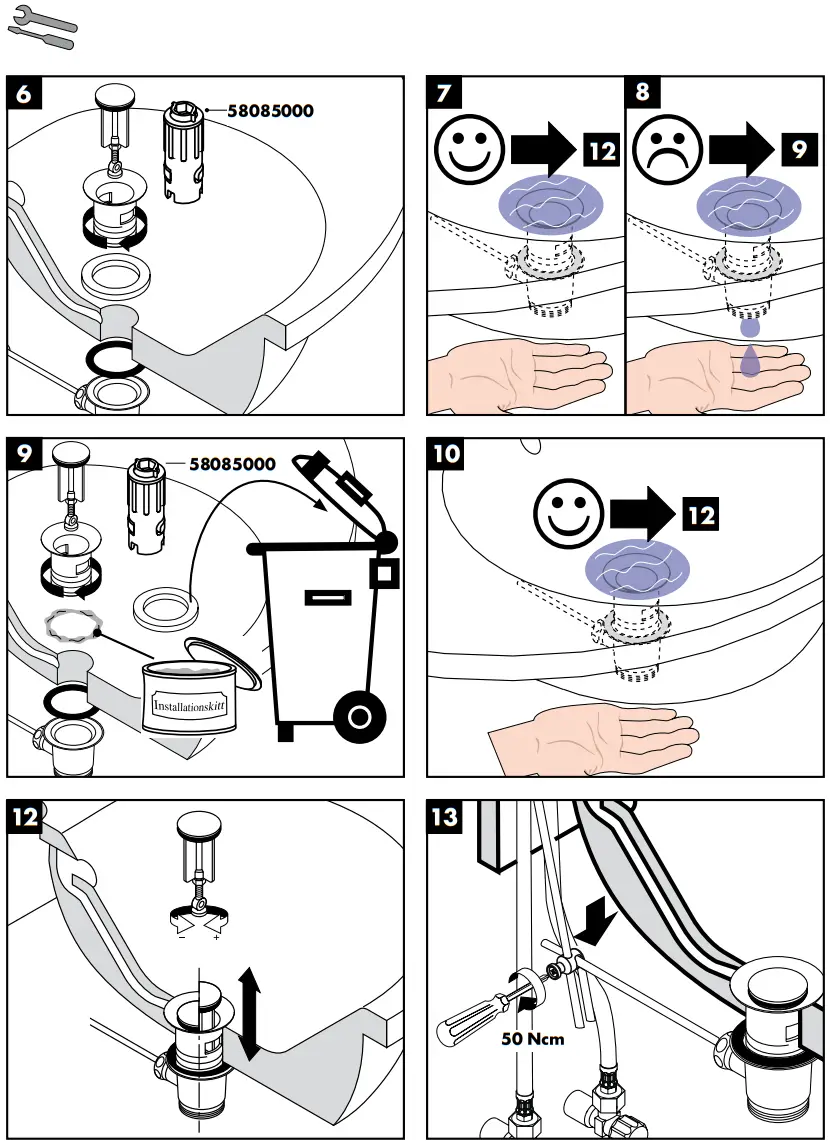

Assembly

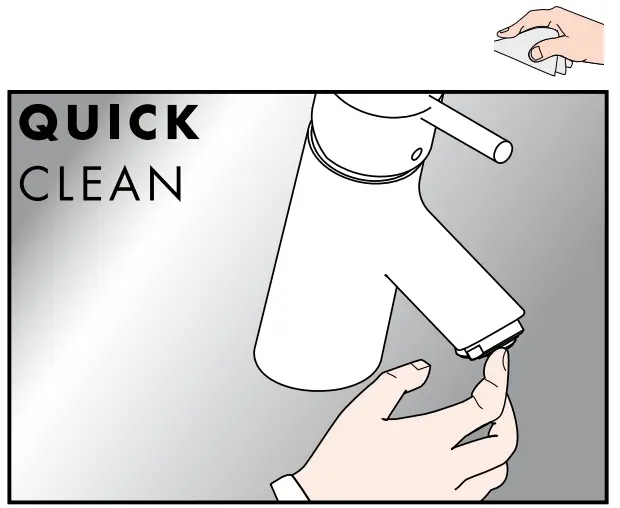

The Quick Clean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.
