STOPPY B 115/500
STOPPY B 200/700
INSTRUCTIONS FOR INSTALLATION,
USE AND MAINTENANCE
AUTOMATIC BOLLARD
GENERAL

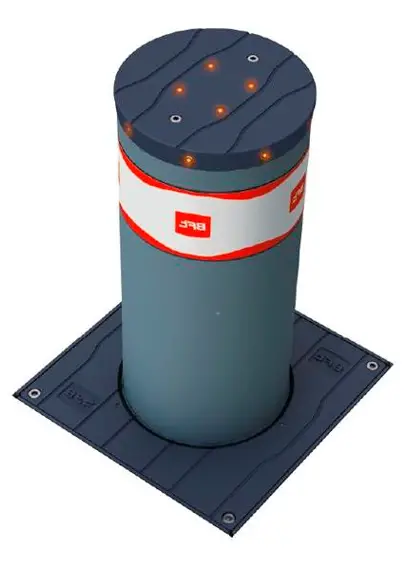

The deterrent bollard is the ideal solution for managing vehicle traffi c in compliance with modern urban furnishing requirements. It can be used to contol entrances or tosafeguard private areas in total safety.
TECHNICAL SPECIFICATIONS
Motor……………………….230V±10% 50÷60Hz 300W 10uF 1,4 A
Working frequency……………………………………………………500/24h
Protection level…………………………………………………………………IP67
Control unit……………………………….PERSEO CBD / PERSEO CBE
Working temperature……………………………………-40 ** +60 °C
Working time…………………………..6 s. *** (STOPPY B 115/500) 9 s. *** (STOPPY B 200/700)
Net weight…………………………………..57 kg (STOPPY B 115/500) 103 kg (STOPPY B 200/700)
Gross weight………………………………60 kg (STOPPY B 115/500) 115 kg (STOPPY B 200/700)
** With integrated heater active (PERSEO CBE)
*** At 25 °C ambient temperature

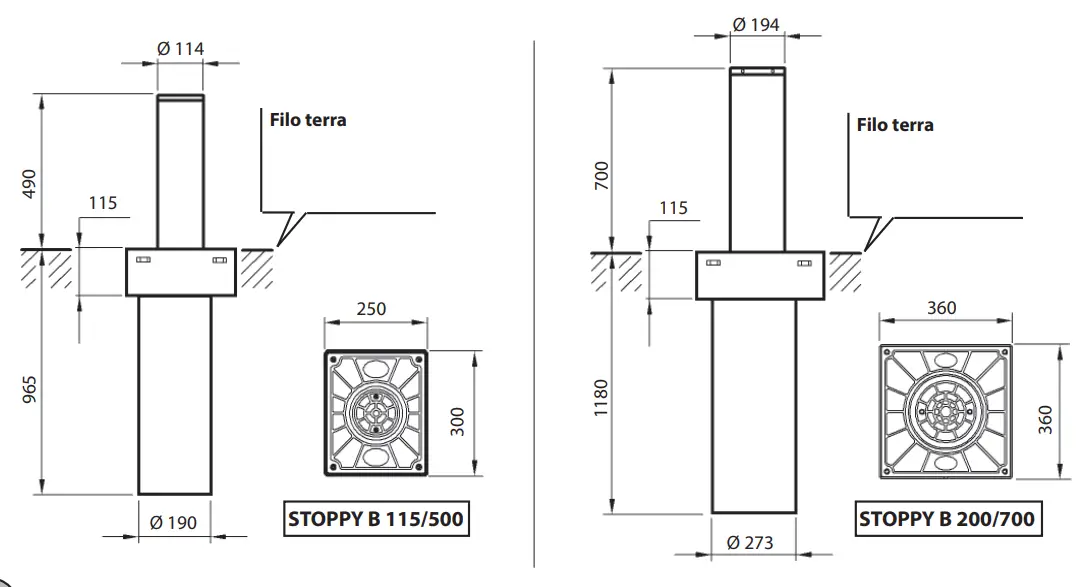

OVERALL SIZE DIMENSIONS

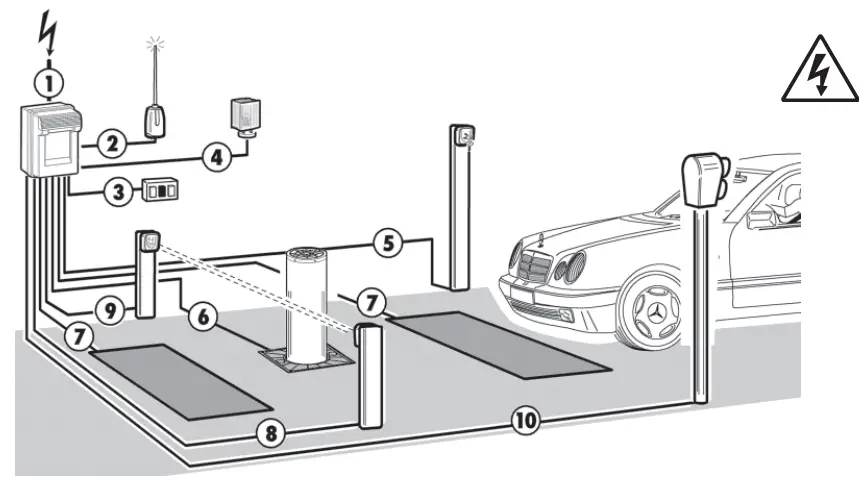

WIRING NOTE
| 1 | Single-phase line – | HO5VV2 x 1,5 +T |
| 2 | Receiver | 4x 0,5 |
| 3 | Push button panel | 4x 0,5 |
| 4 | Flasher | 2x 0,5 |
| 5 | Key selector | 2x 0,5 |
| 6 | STOPPY B 115/500 STOPPY B 200/700 | Cables supplied by us 10m |
| 7 | Magnetic detector – | RG58 |
| 8 | Trasmitter photocell | 2x 0,5 |
| 9 | Receiver photocell | 4x 0,5 |
| 10 | Traffic light | 3×0,5+T |
LAYOUT

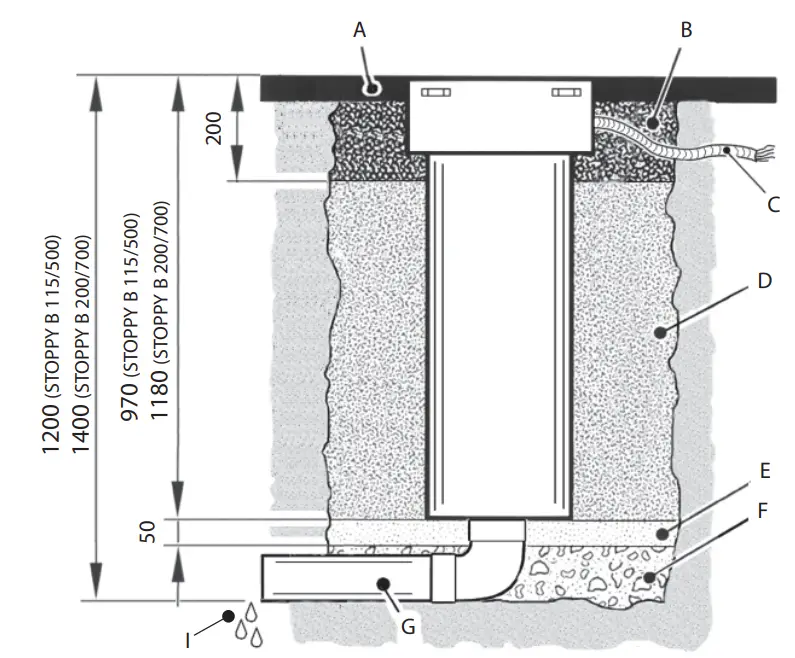

| A | Road surface |
| B | Cement |
| C | Sheathing 050 – |
| D | Compact sand |
| E | Fine sand |
| F | Pebble gravel |
| G | Drainage 0125 |
| I | Connection to the sewer network |

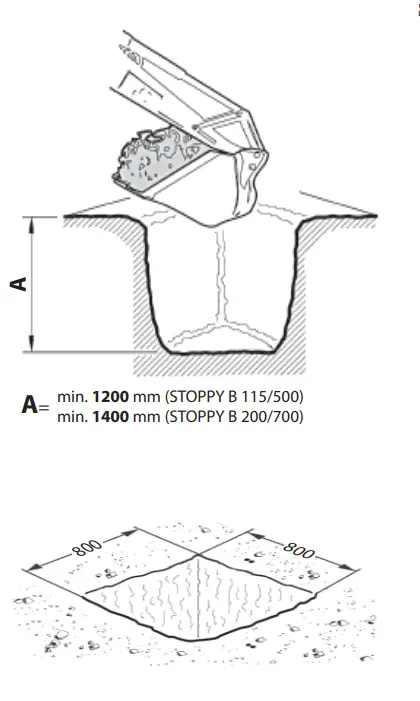

FOUNDATION

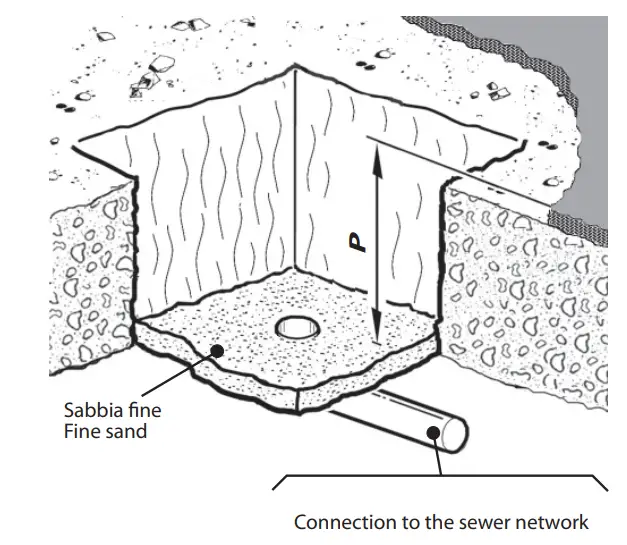

DRAINAGE
| P | STOPPY B 115/500 | 970 mm |
| STOPPY B 200/700 | 1180 mm |
4 – STOPPY B 115/500 – STOPPY B 200/700
Ensure that the soil has a adequate water absorption by entering about 40 liters of water and checking that the emptying takes place in less than 30 minutes; otherwise realize the drainage of water through pipes connected to every single manhole and connected to a drainage pipe, or a collecting sump with a drainage system of water.

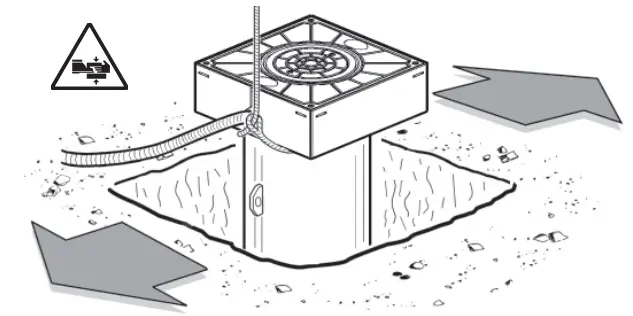

FIT THE BOLLARD
Running direction

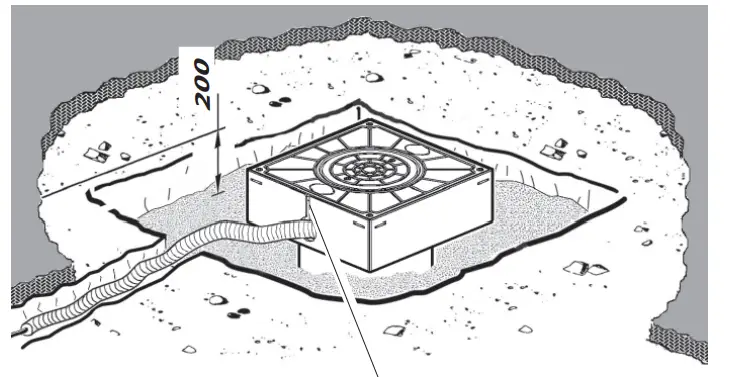

FILL WITH SAND TO ~200 MM FROM THE ROAD SURFACE
Protect with tape the opening where the cables are fed
LAY THE ELECTROWELDED MESH AND FILL WITH CONCRETE
FLOORING COMPLETION

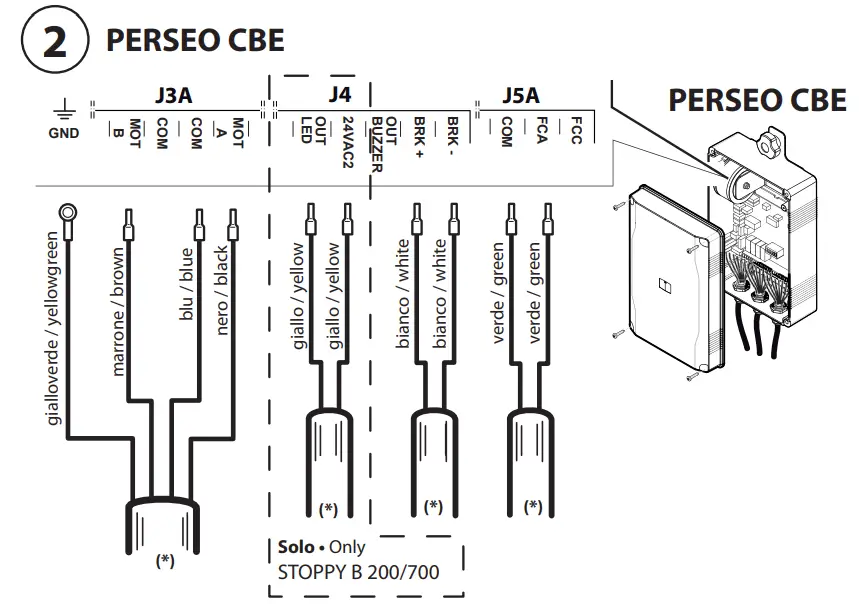

ELECTRICAL CONNECTIONS

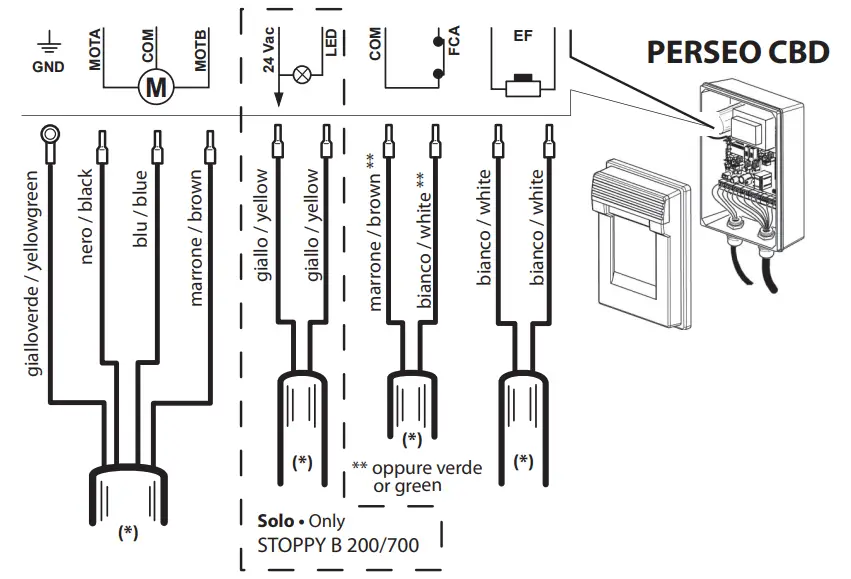

- PERSEO CBD
Isolate unused cable
Consult the PERSEO CBD control unit’s installation and operating manual. - PERSEO CBE
Isolate unused cable
Consult the PERSEO CBE control unit’s installation and operating manual.

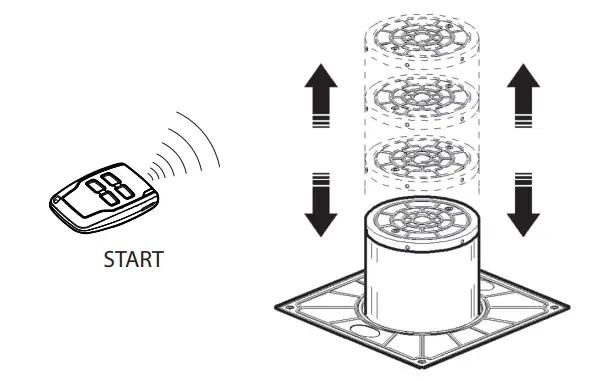

STARTING THE DEVICE

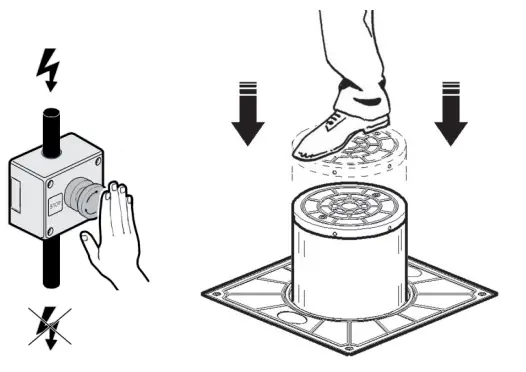

EMERGENCY RELEASE,
INSTALLER——-
DATE———————
