AIRZONE DFCIPx Circular Diffuser with Plenum

Product Information: DFCIPx Circular Airzone Diffuser with Plenum

The DFCIPx Circular Airzone Diffuser with Plenum is a circular diffuser that facilitates airflow supply in 4 directions. It comes with a plenum made from galvanized steel with mechanical airflow regulation and a lateral connection for a circular duct. The product is available in different sizes with varying dimensions of L (mm), H (mm), X (mm), Y (mm), and E (mm).

Product Usage Instructions:

1. Unfold the fixing tabs.
2. Insert the threaded rod, fix it, and tighten it with a nut.
3. Fix the diffuser to the plenum using the screw provided.
4. Adjust the opening to adapt the air output to your needs.

Note: The product should be installed by a professional technician.

AIRZONE CIRCULAR DIFFUSER WITH PLENUM
DFCI circular diffuser which facilitates airflow supply in 4 directions. Plenum made from galvanized steel with mechanical airflow regulation. Lateral connection for circular duct.

ACCESORIOS COMPATIBLES

DFCI [XXX] [X] [PX]

• PA: insulated plenum
• PS: Uninsulated plenum
• 150 / 200 / 250 / 300 / 350 mm

EJ. DFCI [200][B][PA]
DFCI measuring 200 mm in diameter in white with insulated plenum.

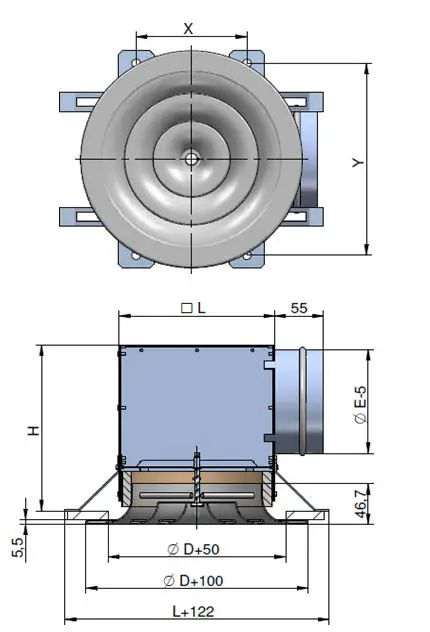

DIMENSIONS

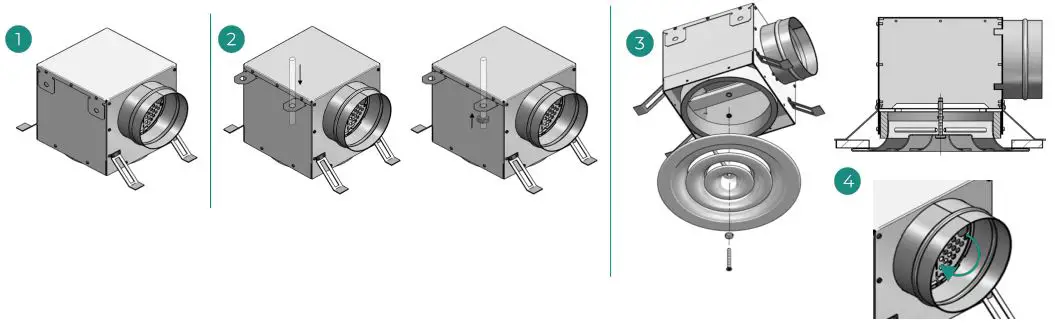

INSTALLATION

• Unfold the fixing tabs.
• Insert the threaded rod, fix it and tighten it with a nut.
• Fix the diffuser to the plenum using the screw provided.
• Adjust the opening to adapt the air output to your needs.
