systemair TSFI-T-315-S Ceiling Air Diffuser
Description
Function

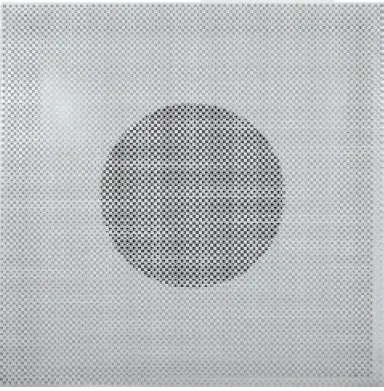

The TSFI-T is a perforated face ceiling diffuser. The diffuser is suitable to be used with TSOI-T supply series diffuser, but for extract applications. The Side entry plenum box is non-insulated ideal for the returnair application.Diffuser is as standard powder painted to RAL9010.
Product Description

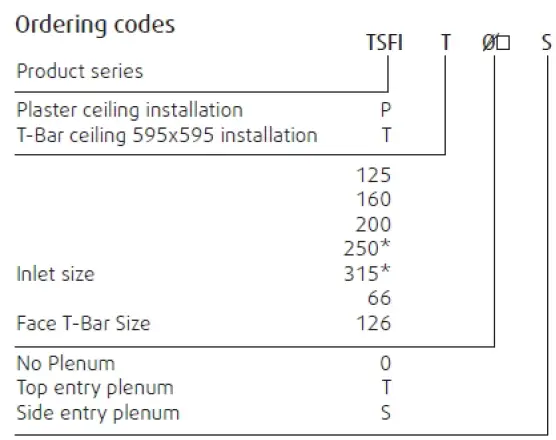

TSFI-T-ØD-S : Side-entry perforated plate return diffuser
Features
- Extract functionality
- Ideal for modular ceiling tile replacement
- Side Entry plenum non-insulated for return air
Selection Criteria
- Ceiling Height 2.7m
- Maintain air volume equivalant to 2.5m/s neck velocity for low torbulance and quiet diffuser performance

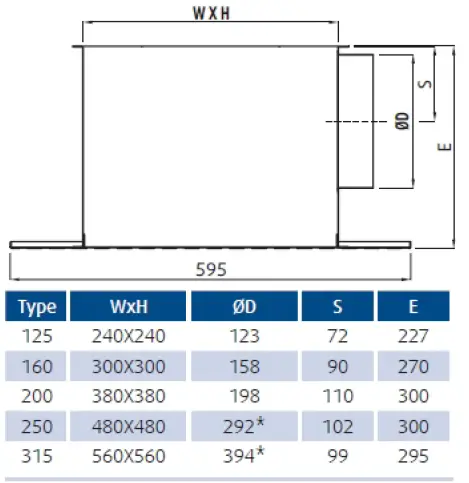

Dimensions
Type 250 en 315 mm hebben ovale aansluitingen
Documentation
TSFI-T GB.pdf (753,80kB)

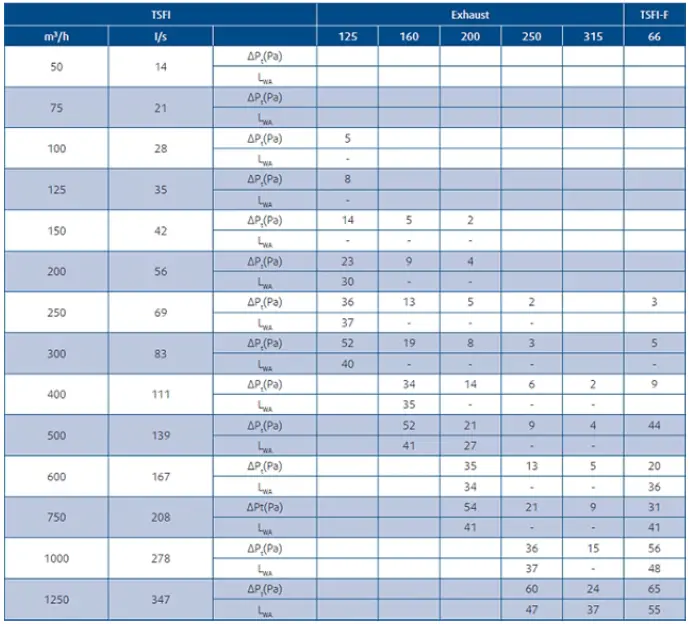

Diagram
