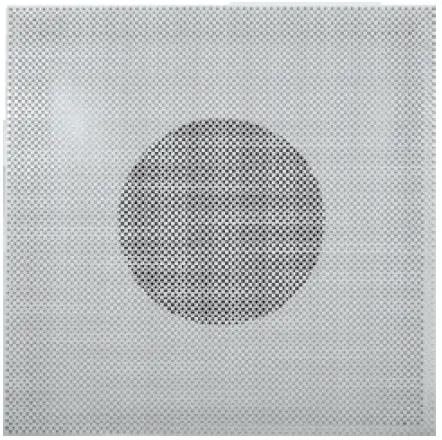

Puravent 423565 TSFI-T-250-T Perforated Face Ceiling Diffuser
Description
Function
The TSFI-T is a perforated face ceiling diffuser. The diffuser is suitable to be used with the TSOI-T supply series diffuser, but for extract applications. The Top entry plenum box is non-insulated and ideal for the return air application. The diffuser is as standard powder painted to RAL9010.
Product Description
TSFI-T-ØD-T: Top-entry perforated plate return diffuser
Features
- Extract functionality
- Ideal for modular ceiling tile replacement
- Side Entry plenum non-insulated for return air
Selection Criteria
- Ceiling Height 2.7m
- Maintain air volume equivalent to 2.5m/s neck velocity for low turbulence and quiet diffuser performance
- Document type: Product card
- Document date: 2019-05-29
- Generated by: Systemair Online Catalogue

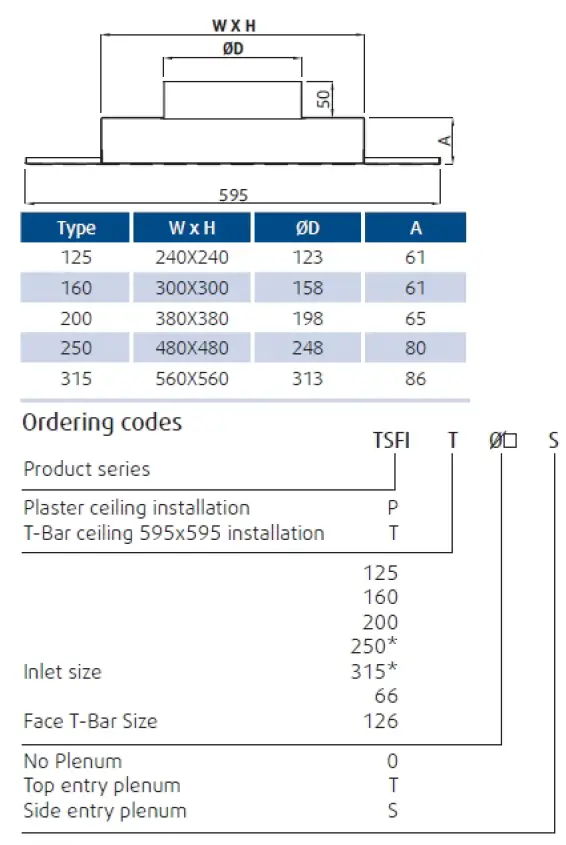

Dimensions
Documentation
- TSFI-T GB.pdf (753,80kB)

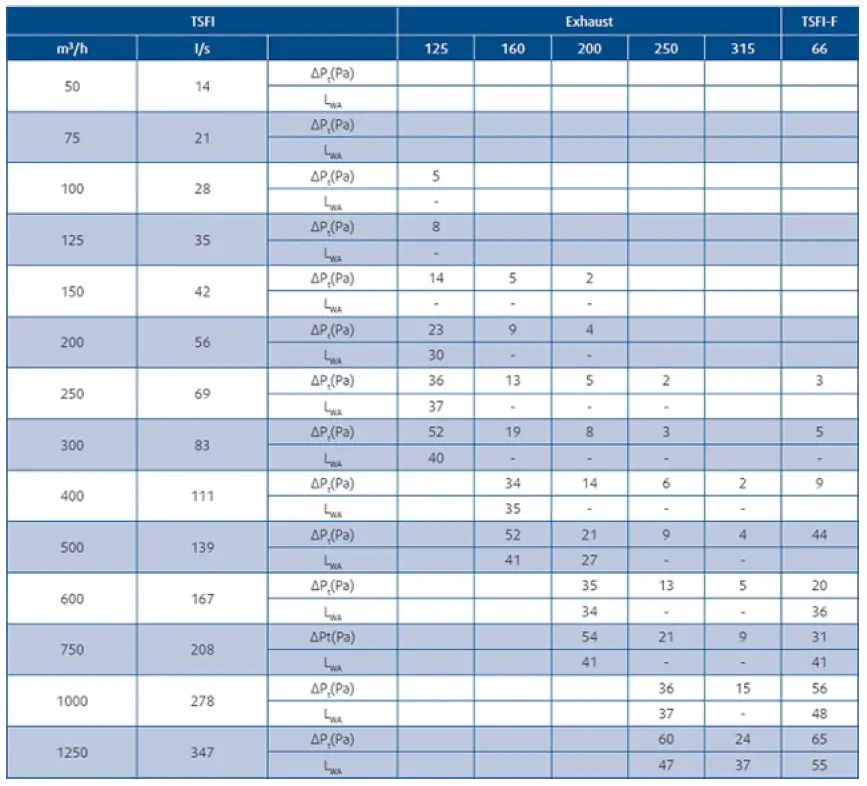

Diagram
Specification text
- Name: TSFI-T-250-T
- Item no.: 423565
- Document type: Product card
- Document date: 2019-05-29
- Generated by: Online Catalog
