DFCI250BMTE Circular Diffuser
User Manual
DFCI250BMTE Circular Diffuser
FLOW TOOL
Visit Flowtool to calculate/select your installation.

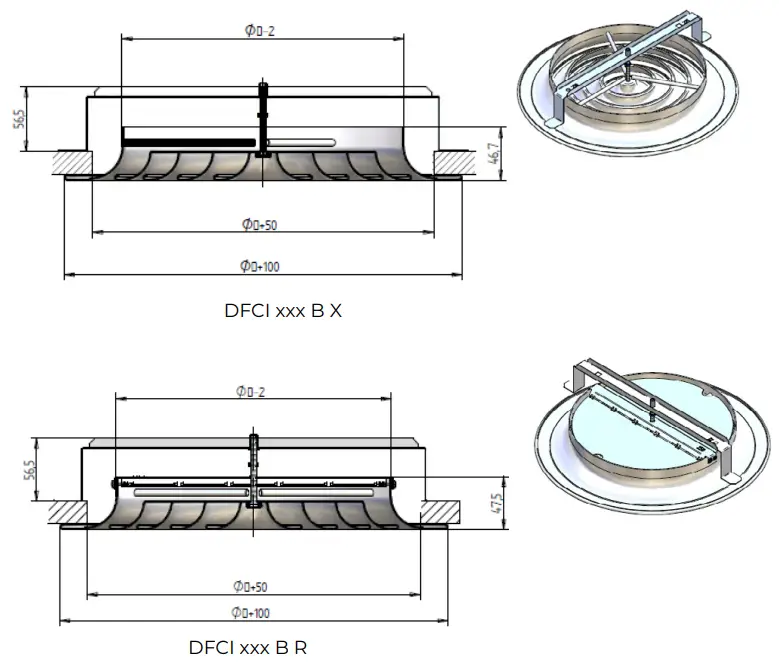

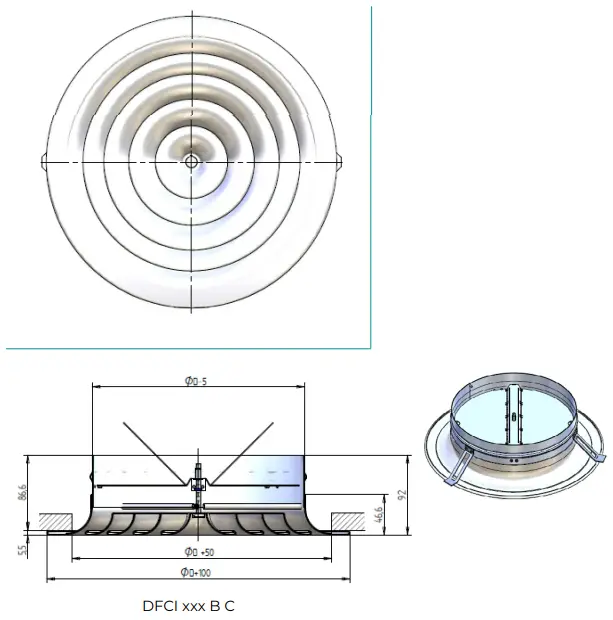

AIRZONE CIRCULAR DIFFUSER
DFCI circular diffuser which facilitates airflow supply in 4 directions. Central part can be removed to facilitate assembly and maintenance. Designed for installation in a ceiling.

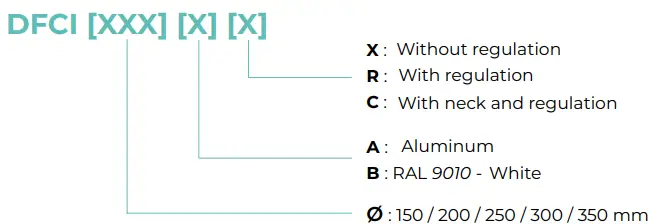

EJ. DFCI [200][B][C]: DFCI measuring 200 mm in diameter in white with neck and regulation.
COMPATIBLE ACCESSORIES
- TFxx (DFCIxxxBC)
REGULATION
The airflow is regulated by means of a butterfly damper, which allows manual regulation of the airflow of the diffuser. In position 1 (open), 100% of the airflow can pass through. In position 2 (closed), 0% of the airflow can pass through.

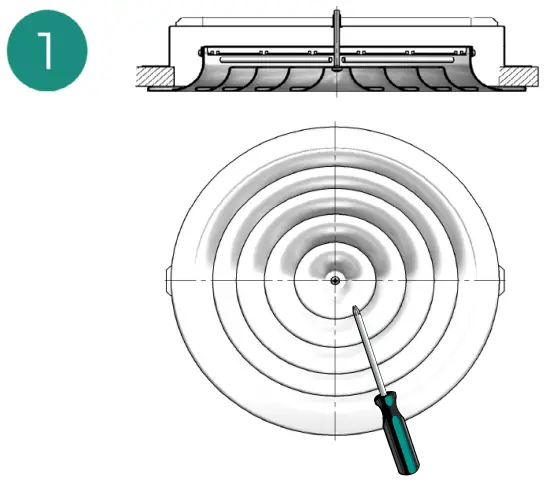

INSTALLATION

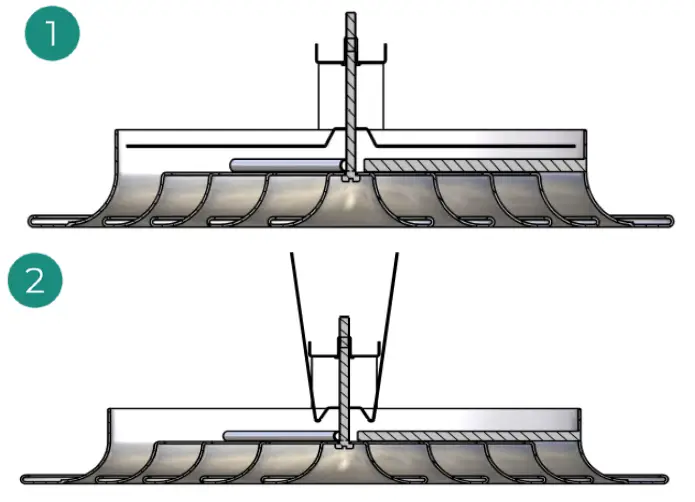

- Insert the diffuser next to the assembly bridge until the diffuser is supported; use the assembly bridge adjusting screw to secure it.
V 1.0
