AROMA DIFFUSER
LF200M/LF200W
USER MANUAL
Please read the manual carefully before use and keep it for future reference.

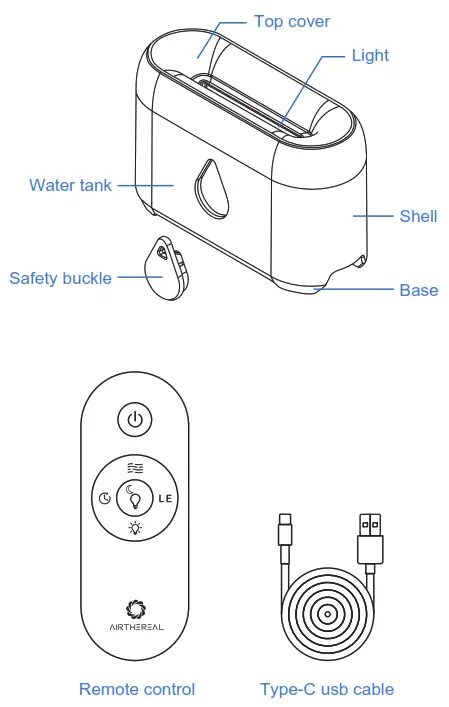

PARTS
Note: The accessories in the package are exclusively used for the product. The appearance and quantity may be different for different batches. Please refer to the actual delivery.

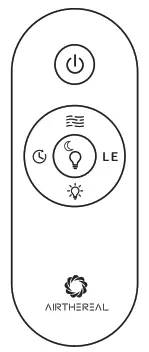

REMOTE CONTROL
Use the remote control to turn on the atomizer, and then select the desired function and effect.
| Function selection | |
 Switch | Power on/Power off |
 Atomization degree | High (violent flame effect) / Low (soft flame effect) |
 Timing | lh (red light) 3h (white light) 6h (blue light) |
 Light brightness | Large/medium/small/off |
 Lighting effect | Full light/breathing light/flashing |
 Night light | Light in the dark |
SPECIFICATIONS
| Model | LF200M / LF200W |
| Rated Voltage | DC 5V |
| Rated power | 10W |
| Water Tank Capacity | 200 ml / 6.76 oz |
| Atomization Amount | 15 – 25 ml/hr |
| Est. Run Time w/ Full Tank | 9 hours |
| Timer Setting | 60 / 180 / 360 minutes |
| Weight | 1.19 lbs |
| Dimensions | 7.87 x 3.15 x 4.92 in |
OPERATION
- Remove the top cover

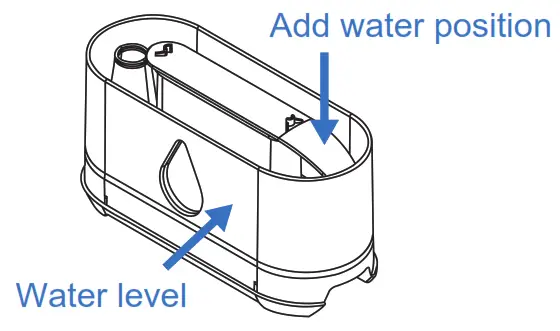

- Add water to the max fill line. Add 2-5 drops of essential oil directly to the tank if you wish.

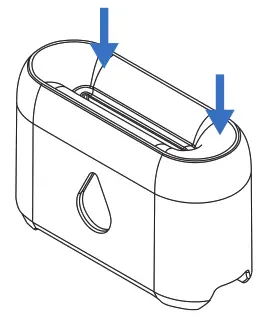

- Place the top cover back onto the diffuser.

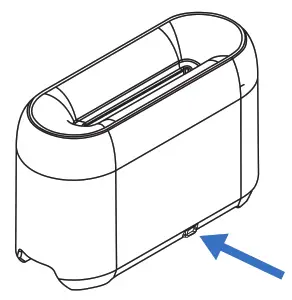

- Insert the Type-C power cord.
- Press the power button and you will hear a beep sound.
The default settings are as follows:
Atomization level: high
Timer: 3 hours
Brightness: high
Lighting effect: full bright
Notes:
* There will be a beep each time you press a button.
* When there is no water in the tank you will hear 3 beeps over 2 seconds and the diffuser will automatically power down.
* When the timer is up you will hear a long beep sound before the diffuser automatically shuts down.
* If the neutralizer fails for any reason, the LED will flash quickly for 2 seconds accompanied by a long beep sound before the diffuser automatically shuts down.
SAFETY PRECAUTIONS
- Please remove the insulating sheet on the remote control before first use.
- If you need to add water, safety buckle needs to be unplugged from the unit before the top cover can be opened.
- The maximum water volume is 200 ml. Exceeding the max capacity line will affect the atomization effect or cause water leakage and damage to the machine.
- Plug in using the supplied power cord of Type-C, 2A. If you use an alternative power cord, you must pay attention to the current specification of 2A, otherwise, it will affect the atomization.
- Pay attention to the selected distributor so its output current is not lower than DC 5V 2A, otherwise, it will affect the atomization effect.
- The diffuser has a memory function. If the power is not completely removed, the diffuser will revert to the last used settings.
- After use, you must pour out the remaining water in the water tank to prevent damage to the atomizer. Do not leave water sitting in the tank for several days without use.
- Note that pouring water needs to follow the instructions, otherwise it will damage the atomizer.
- Please use purified or distilled water so that your atomizer will not be damaged due to impurities in the water. If you use normal tap water you may notice a white buildup of calcium or lime in the diffuser.
TROUBLESHOOTING
| Symptom | Possible Causes | Approach |
| The power-on indicator does not light up and the diffuser cannot be started | Improper connection of the adapter | Connect the cable and press the switch |
| The indicator light on the switch is on, and the small fan rotates, but there is no fog | The water tank is short of water or has too little water | Add purified water |
| The humidifier emits a peculiar smell | There is a scale in the water tank, the added water has impurities, or the water has been left for too long | Remove the lid of the water tank and place it in a cool place in a cool place for more than 12 hours to ventilate, clean the water tank and refill pure water. |
| The power indicator light is on but the a humidifier can not be started | The water in the water tank is too full | Pour out a little water and close the lid tightly |
| Too little fog | There is dirt on the atomizing film, or the water in the water tank is left for too long | Clean the water tank and add pure water |
| The diffuser is too noisy | Too little water or the diffuser is tilted | Add water to the tank, place the diffuser in a clean place on a flat the surface so it is level |
| If the above methods cannot be improved, please consult the customer service hotline and contact a professional for repair. | ||
LIMITED WARRANTY
We provide a 1-year warranty. For more information please visit www.airthereal.com/warranty.
- What’s covered?
Defects due to faulty materials and/or workmanship of the product. - What’s not covered?
1. Damage caused by the owner when attempting to fix or alter the product by himself or herself.
2. Damage caused by misuse, abuse, neglect, alterations, or unauthorized repair.
3. Natural depreciation. - Warranty Period
Warranty becomes effective from the date of original purchase and will last for 1 year. - Who’s covered?
This limited warranty is only effective for the original purchaser, it is non-transferable. - How to request warranty services?
To obtain the benefit of this warranty, please email [email protected]. Our customer service will address your issue as soon as possible!
Always here to help you
www.airthereal.com
FOR THE AIR WE CARE
[email protected]
Produced for: West Ryder Technology LLC
2330 Paseo Del Prado STE C304 Las Vegas,
NV 89102 USA
Madin china
V 20211012
