MISS K F6255000
RF11791
INTERNAL DIFFUSER
REV. 1
RF11791 Internal Diffuser

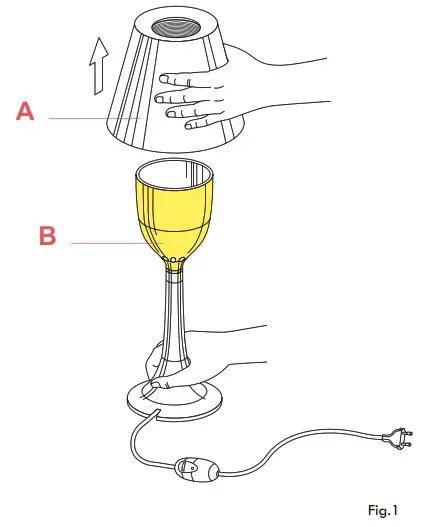

Remove the external diffuser (A) from the internal diffuser (B).

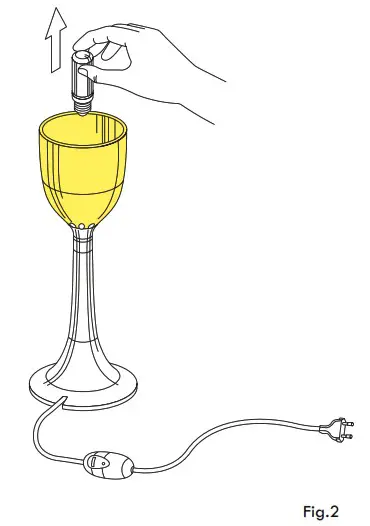

Remove the lamp bulb.
Unfasten the 2 screws (C) inside the lamp holder (D).
Push through the lamp base (F) some spare electrical cable (E).
Extract the lamp holder (D) from the internal diffuser (B).

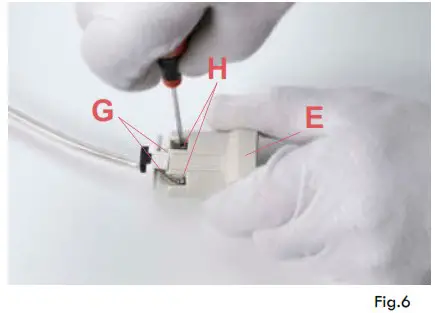

Disconnect the electrical wires (G) from the terminals (H) of the lamp holder (D).
Unfasten the screw of the cable clamp (I).

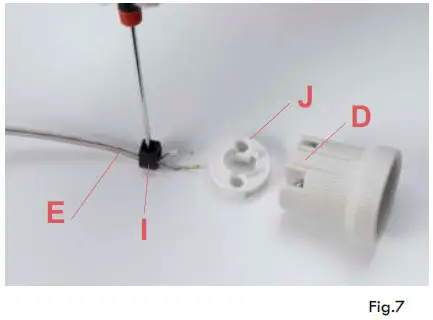

Slide-off from the electrical cable (E) the lamp holder (D), lamp holder support (J) and cable clamp (I). (Fig.7)

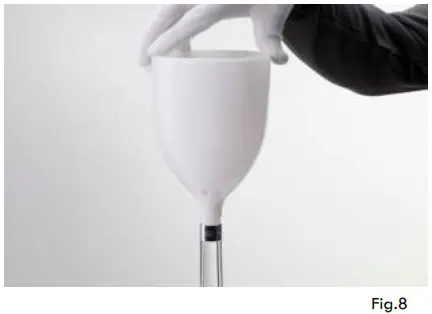

Unfasten the internal diffuser (B) from the lamp base (F). (Fig.8)
Assemble now the new spare-part:
Fasten the internal diffuser (B) on the lamp base (F). (Fig.8)
Insert through the electrical cable (E), the cable clamp (I) and the lamp holder support (J).
Connect the wires to the terminals (H) of the lamp holder (D) respecting the polarities and fasten the screw of the cable clamp (I). (Fig.7)

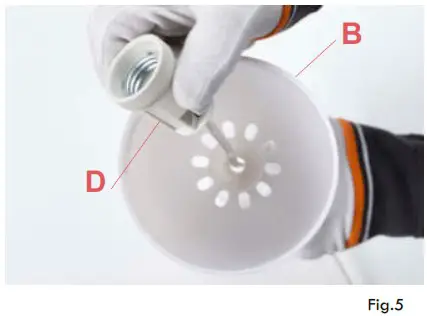

Insert the lamp holder (D) in his apposite position inside the internal diffuser (B). (Fig.5 page 9)

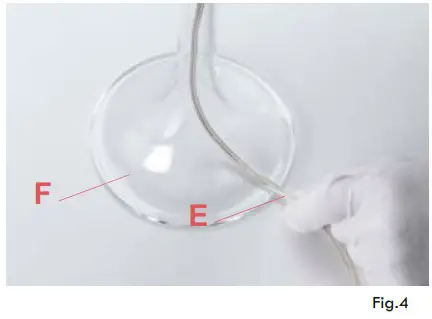

Pull-out the excess cable (E) present inside the lamp base (F). (Fig.4 page 9)

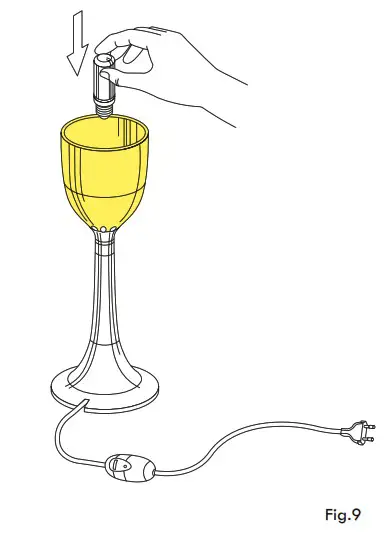

Install the lamp bulb.

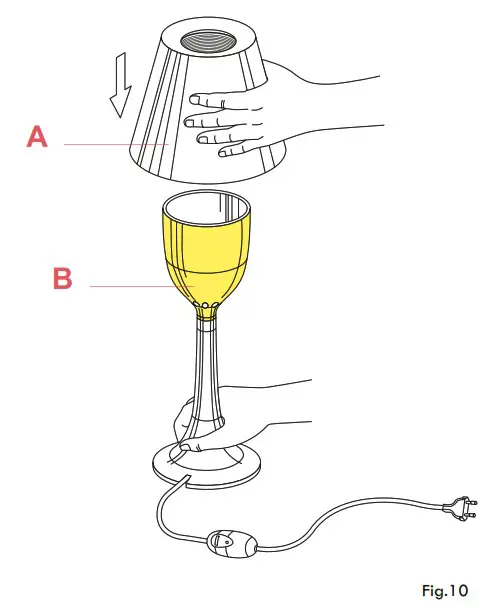

Install the external diffuser (A) on the internal diffuser (B).
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
