DCS Circular Air Nozzle Diffuser
Instruction Manual
© 2021.02 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB.
Lindab’s products, systems, products,s and product group designations are protected by intellectual property rights (IPR).

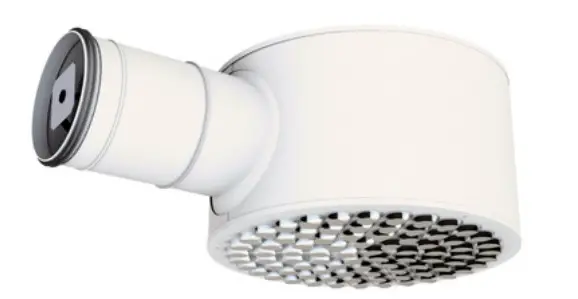

Product

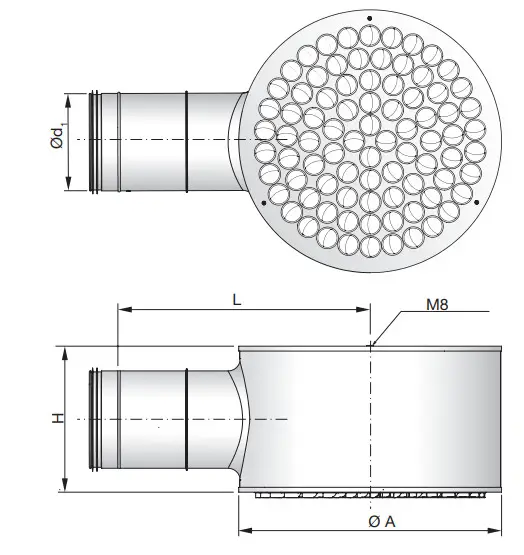

Dimensions
| Ød1Size [mm] | ØA [mm] | Ød1 [mm] | L [mm] | H [mm] | Weight [kg] |
| 100 | 300 | 100 | 365 | 200 | 3,1 |
| 125 | 360 | 125 | 395 | 215 | 4,0 |
| 160 | 460 | 160 | 470 | 260 | 5,2 |
| 200 | 540 | 200 | 545 | 300 | 7,7 |
| 250 | 680 | 250 | 645 | 350 | 10,5 |
| 315 | 680 | 315 | 685 | 420 | 10,8 |
Lindab reserves the right to make changes without prior notice

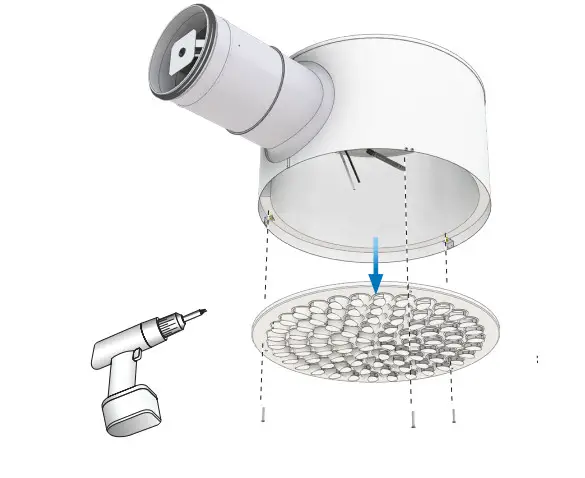

Uninstall faceplate

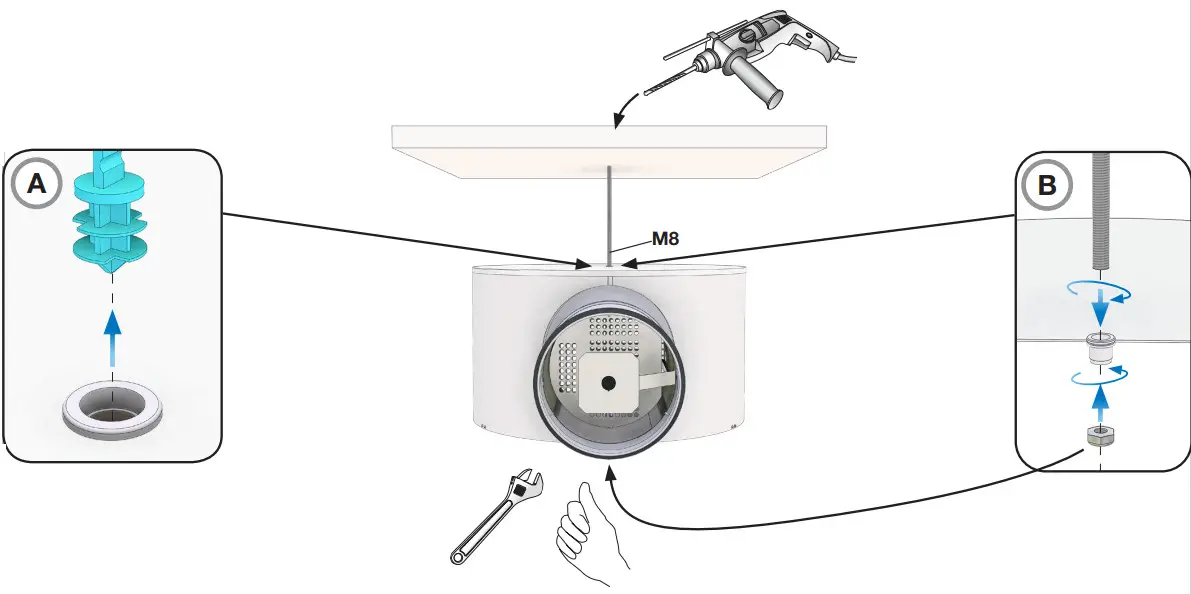

Mounting of DCS – with M8
Directly against ceiling

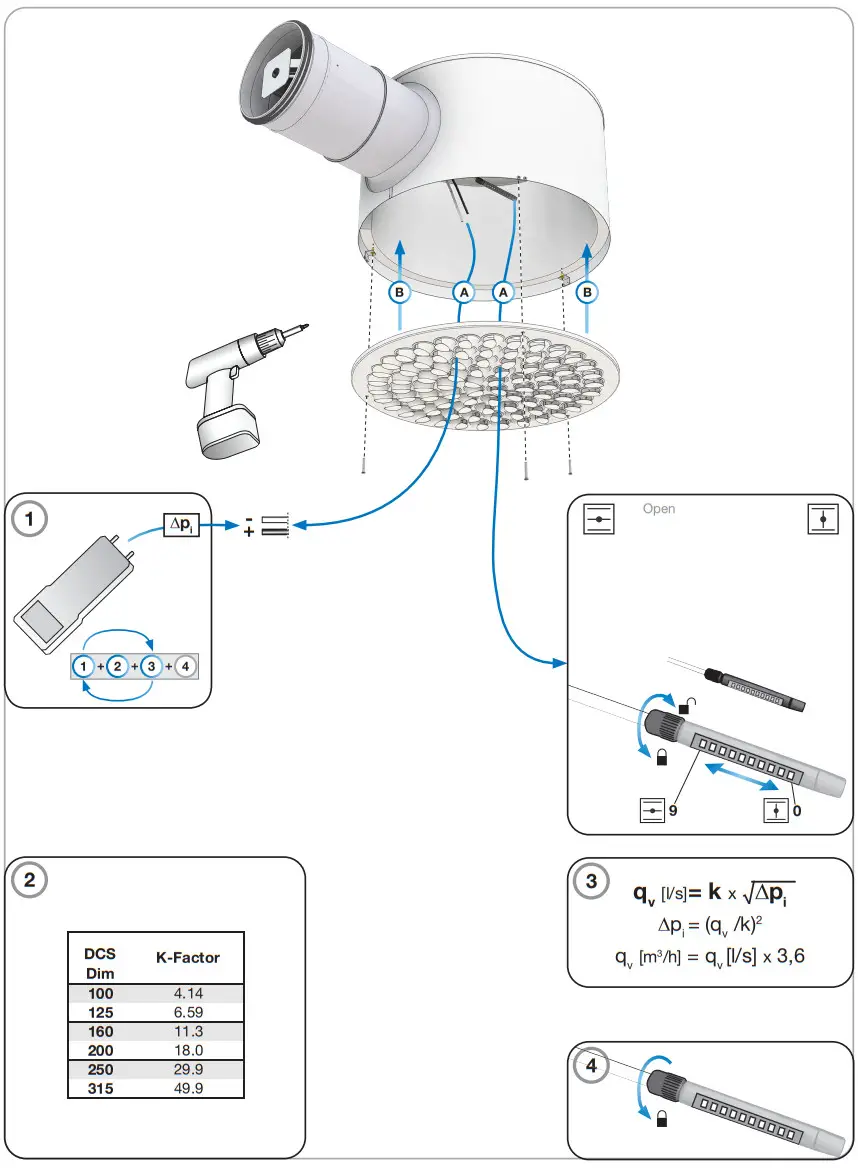

Balancing

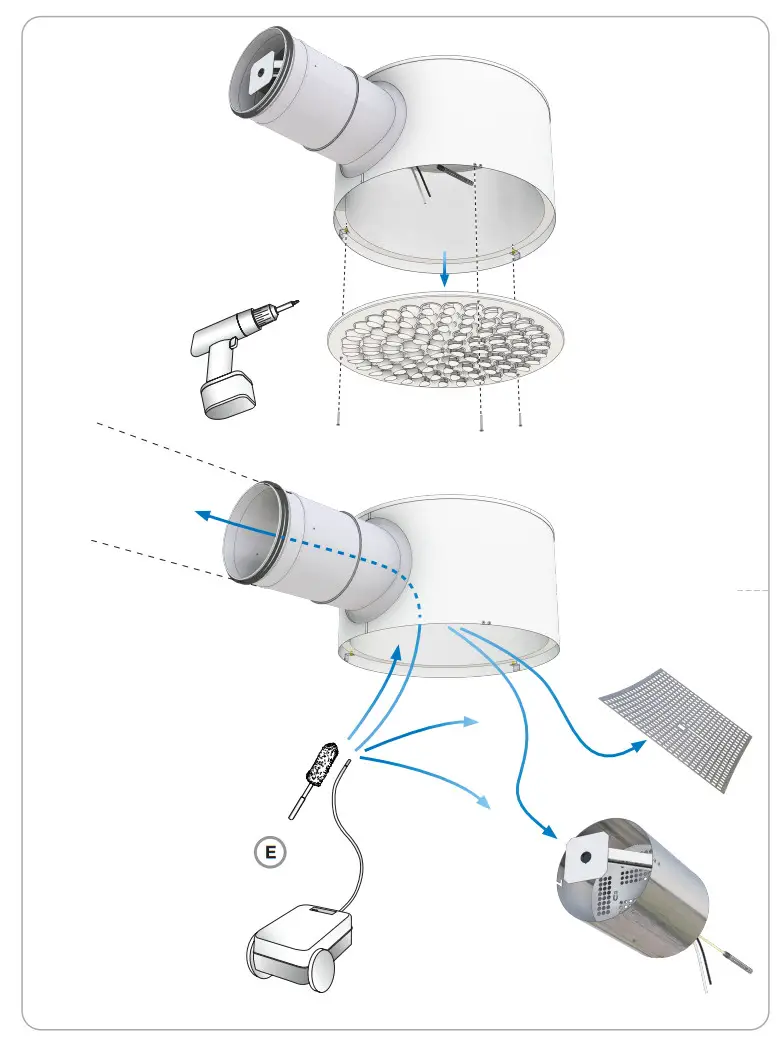

Maintenance

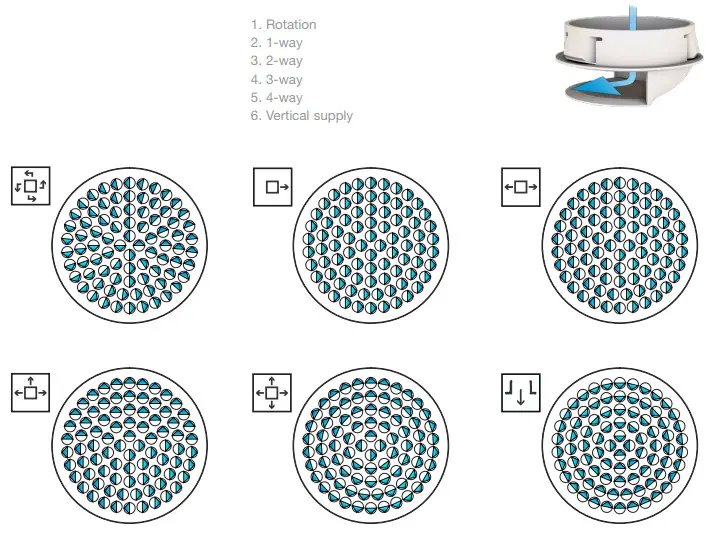

Air patterns

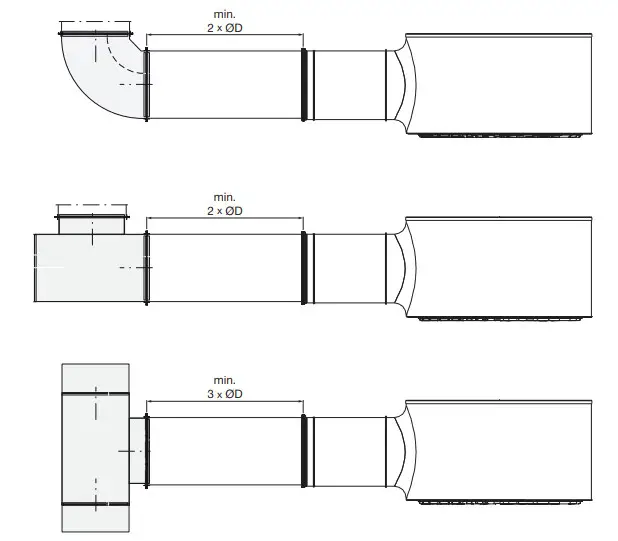

Min. distances
