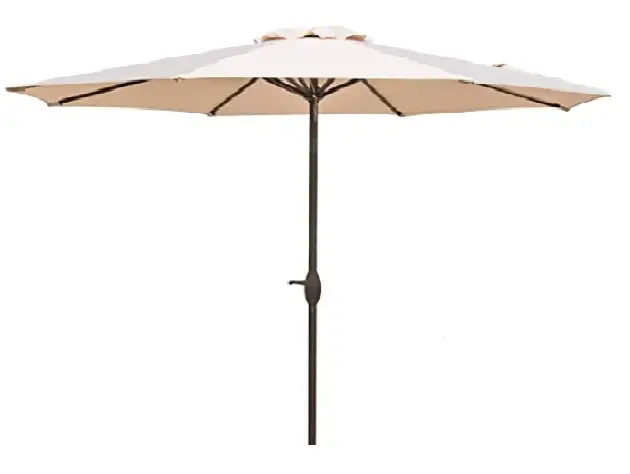

Atleisure Umb-m78858 9ft Crank And Easy Tilt Market Umbrella User Manual

Atleisure UMB-M78858 9ft Crank and Easy Tilt Market Umbrella User Manual

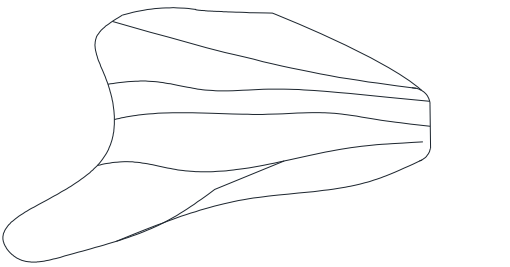

Package Contents

PART	DESCRIPTION	PICTURE	QTY(PC)

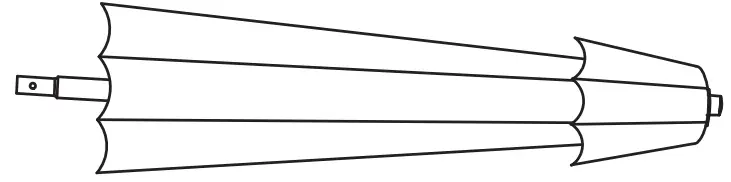

A	Umbrella Frame with Canopy		1
B	Bottom Pole		1
C	Finial		1

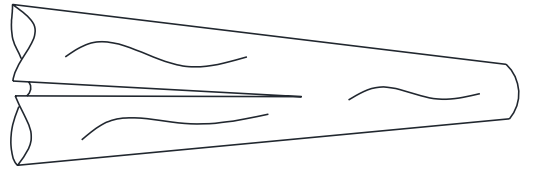

D	Removable Cover		1
E	Extra Canopy		1

No hardware required for assembly.

Warnings & Cautions

• Always take the umbrella down when not in use.
• Keep children away from umbrella during assembly to avoid injury.
• To prevent damage to the canopy, open the umbrella facing the opposite direction that the wind is blowing.

Note: We recommend that you insert the umbrella into an umbrella base or table (not included) for securing the umbrella.

Note: If the crank becomes too hard to crank, check to see if the rope has come off the pulley. If you continue to turn the crank, the rope or crank handle could break.

IMPORTANT:
Do not use this umbrella during periods of high winds and rain. Failure to d

Preparation

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product or return to the place of purchase. Contact our customer service toll free at 1-855-880-7205 for replacement parts or further instructions.

Estimated Assembly Time: 10 minutes
Tools required for Assembly: No tools required

Set-Up & Operation

Take all parts out of the box. If any parts are missing. Call our Customer Care Service toll free at 1-855-880-7205.

Note:
We recommend that you insert the umbrella into an umbrella base or table (not included) for securing the umbrella.

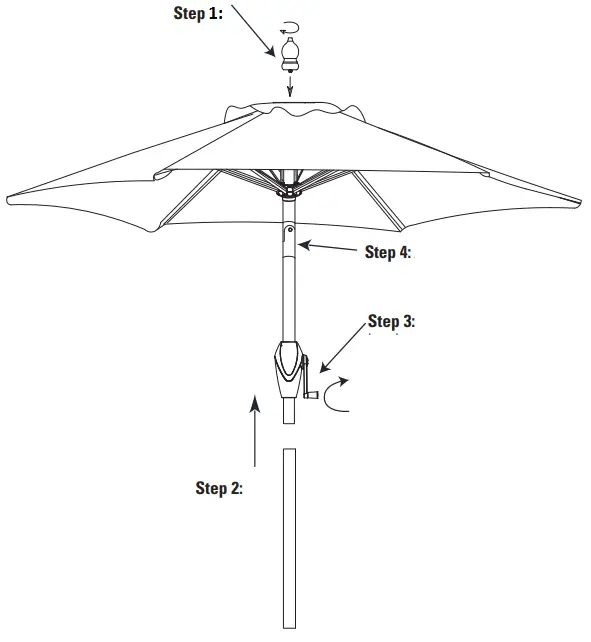

1. Step 1:
   Attach the finial on the umbrella top (if unattached) by screwing the finial onto the threaded screw-in adapter on the umbrella top. Twist until secure but, do not over tighten.
2. Step 2:
   To assemble the two pole pieces together: Insert the bottom pole into the upper pole while pressing the snap button on the upper pole until the snap button locks into position.
3. Step 3:
   Turn the crank handle in clockwise direction to open the umbrella canopy, opposite direction to close the canopy.
   TO CLOSE THE UMBRELL A IT MUST BE IN THE UPRIGHT POSITION.
   Turn the crank handle in the clockwise direction and it will automatically tilt the umbrella to an angle. It will automatically come back to original position if turning the crank handle in the counterclockwise direction.
4. Step 4:   AutoTilt


We recommend that you stand and secure the umbrella to an umbrella base that is no less than 50 lbs (not included)As  shown.

Care & Maintenance

CANOPY CARE INSTRUCTIONS

Simply clean the umbrella canopy with soft brush and mild detergent.

• DO NOT machine wash or dry.
• DO NOT iron.
• AIR DRY the canopy thoroughly before storing for extended period of time.
• Make sure the canopy is completely open during drying process to prevent shrinkage.

Note:
Placement of the umbrella over or near a swimming pool can cause premature fading of the canopy. This is not covered under our warranty

HOW TO CHANGE CANOPY INSTRUCTIONS

1. Remove your umbrella from the table or stand.
2. Unscrew finial from the top of the umbrella.
3. Take the canopy off each one of the ribs.
4. Replace new canopy back onto each one of the ribs.
5. Attach the finial to the top of the umbrella.
6. Place umbrella back into the table or stand.

Warranty

90 DAY WARRANTY

This product is covered under a manufacturer’s 90-day warranty from date of purchase against defects in materials and workmanship. This warranty does not cover damage due to neglect, abuse or weather related damage. For full warranty disclosure, email us at [email protected], call toll free at 1-855-880-7205 or send mail to 1040 Boulevard SE Ste. B, Atlanta GA 30312.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Filing a Claim

If you are within your warranty, to file a claim you must have your receipt and pictures of your damaged umbrella and send to ATLeisure at [email protected], or by mail to 1040 Boulevard SE Ste. B, Atlanta GA 30312.

Replacement Parts

For replacement parts, call our customer service department at 1-855-880-7205, 8:00am-5:00pm., EST, Monday-Friday

DESCRIPTION	PICTURE	RE-ORDER NO.
Finial		FNL-38S-BRZ-T
Bottom Pole (Snap in 38mm)		UMB-M78858-BMP

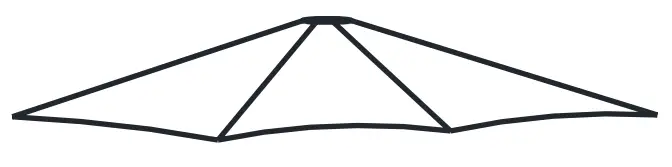

Canopy		CAN-M78858-CAN- REDSTR, NAVSTR, TANSTR, SAGSTR, YELSTR, DIASTR

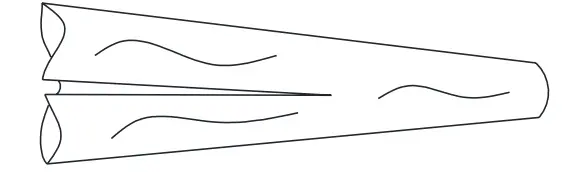

CRV		UMB-M78858-CVR- RED, NAV, TAN, SAG, YEL, DIA

Support

www.atleisure.com
ATLeisure LLC
1040 Boulevard SE, Suite B
Atlanta, Georgia 30312
Customer Service Toll Free 1-855-880-7205
8am- 5pm Eastern Time, Monday through Friday.
