INGRID CRS-X Light Mountain Crankset
INGRID CRS-X Light Mountain Crankset
IMPORTANT NOTICE
This manual is intended primarily for use by professional bicycle mechanics. Users who are not professionally trained for bicycle assembly should not attempt to install the components If any pat of the information on the manual is unclear to you, do not proceed with the installation. Instead, contact your dealer or a local bicycle shop for their assistance.
Make sure to read all instruction manuals included with the product. You can find all the manuals and specs on our website http:/ingrid.bike
MAINTENANCE
This product is not guaranteed against natural wear and deterioration from normal use and aging.
!! PERIODICALLY CHECK THE TIGHTENING. INCORRECT TIGHTENING CAN CAUSE MALFUNCTIONS OR BREAKAGE
BOTTOM BRACKET SPECIFICATION
OUR CRANKSET SYSTEM IS DESIGNED WITH AN ASYMMETRY OF +2.5 mm ON DRIVE SIDE

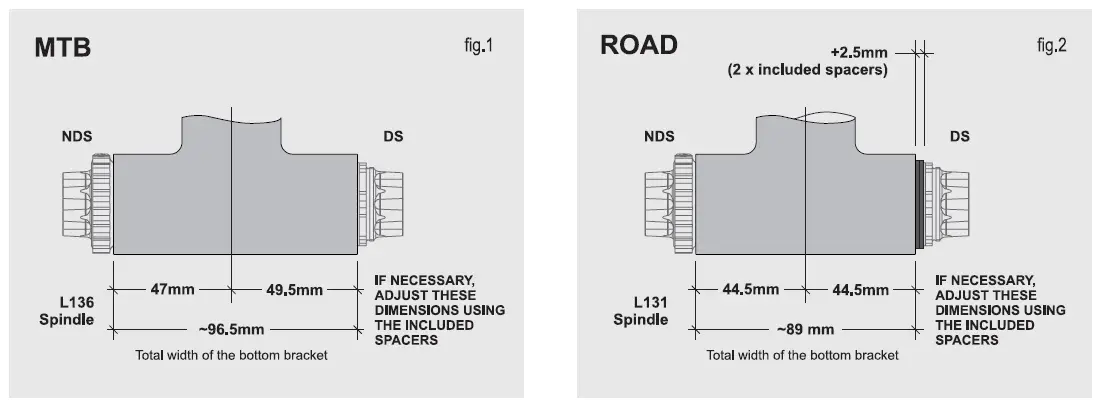

The common MTB frames/BB cups are asymmetrical and that provides the necessary configuration (fig.1)
The common ROAD frames/BB Cups are symmetrical.
In this case, add 2.5 mm on the drive side (fig.2)
VERIFY THAT THE FRAME/BB CUPS COMPLY WITH THE REQUIRED DIMENSIONS FOR OUR SPINDLES

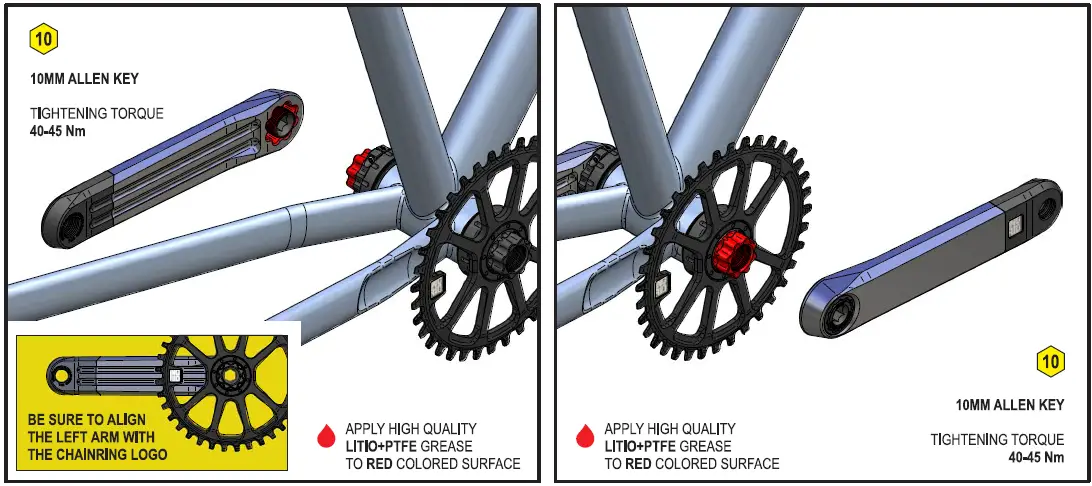

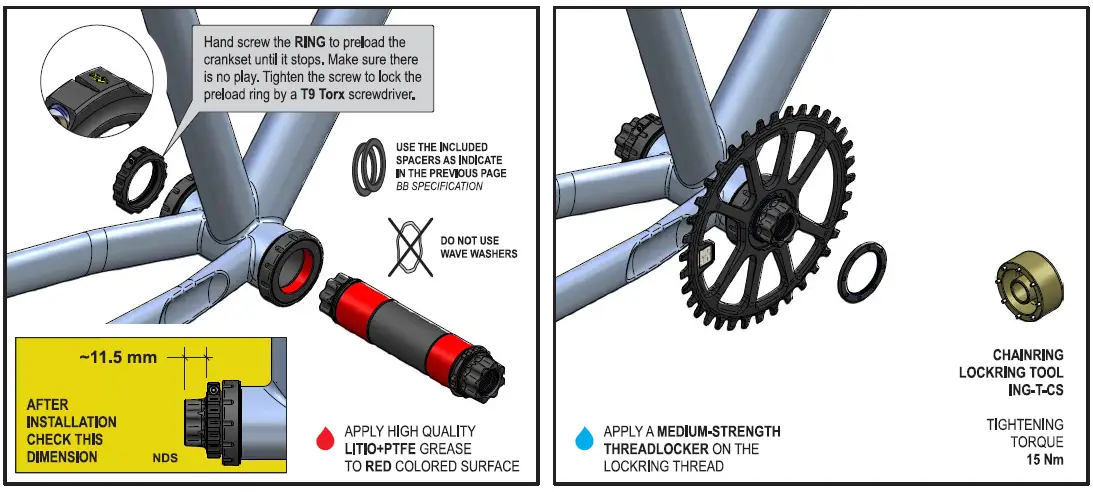

CRANCKSET ASSEMBLY

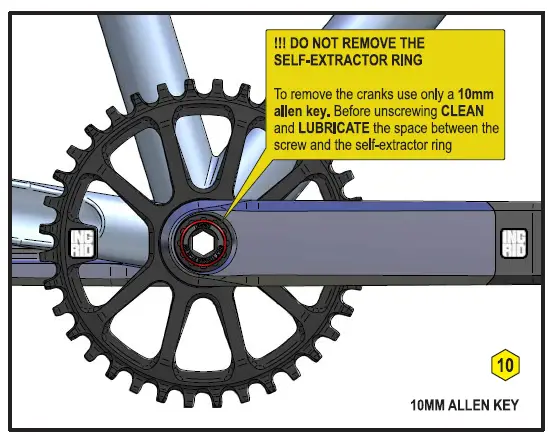

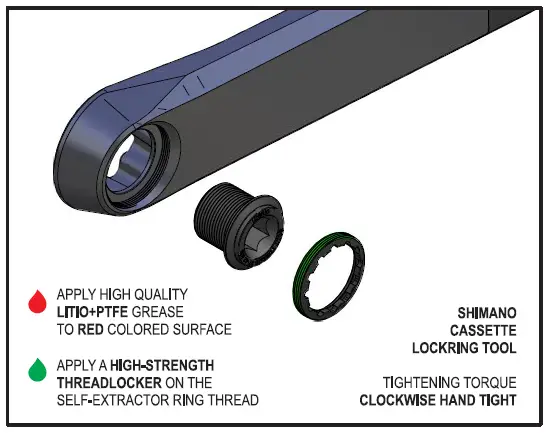

SELF-EXTRACTOR RING and SCREW REPLACE
