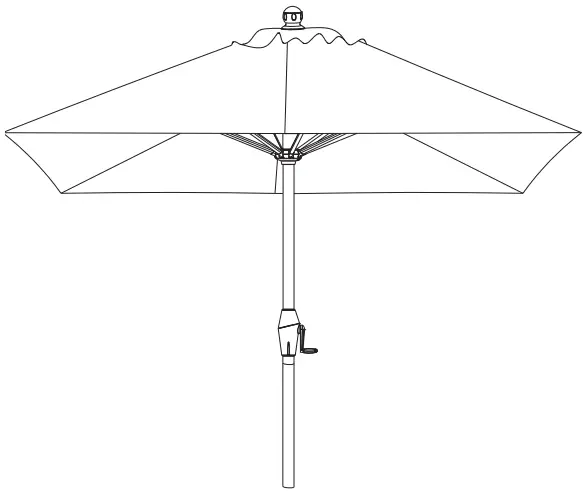

seasons SENTRY UMB-822120 10 Inch Square Market Umbrella

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For assistance with use, parts, or customer service, please contact:

ATLeisure, LLC
US Toll Free 1-855-880-7205 (English)
8:00am – 5:00pm, Monday through Friday, Eastern Standard Time
www.atleisure.com · Email: [email protected]
DO NOT RETURN TO STORE

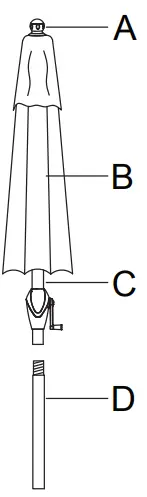

Package Contents

Please lay out all parts prior to assembly to make sure all parts are present.

Part	Description	Quantity
A	Finial	1
B	Canopy	1
C	Umbrella Frame	1
D	Bottom Pole	1

Assembly and Use

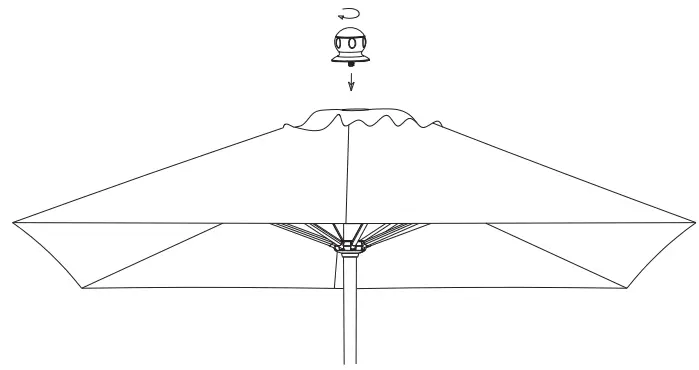

Step 1: If not attached, align ﬁnial (A) to threading on top of umbrella frame (C) and turn clockwise (to right) to lock into place. Do not over-tighten.

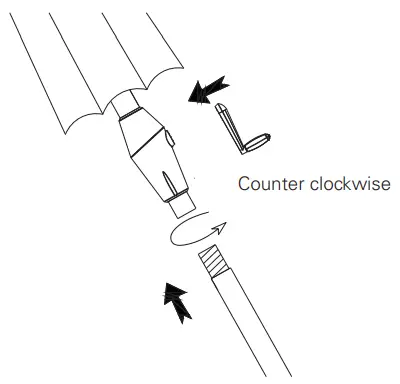

Step 2: Attach bottom pole (D) to umbrella frame (C), then tighten in counter clockwise direction.
Step 3: Turn crank handle in clockwise direction (to right) until canopy is fully opened. Turn crank handle in opposite direction to close canopy and secure with attached strap.

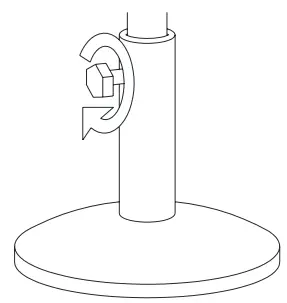

Step 4: Insert umbrella into a heavy umbrella base no less than 50 lbs (not included). Tighten locking nut on side of base to safely secure umbrella.

Care and Maintenance

See enclosed Sunbrella® care and cleaning label sewn into interior side of cano py.

Warnings and Cautions

DANGER : Keep children out of the assembly area during assembly.
WARNING: Read the entire instructions before beginning and follow the steps outlined. Failure to assemble and install as instructed could result in the umbrella tipping over, causing personal injury and/or property damage.
WARNING: Do not use this umbrella during periods of high winds and rain. Failure to do so may result in personal injury and/or damage.
CAUTION: Assemble and use umbrella on ﬂat surfaces. Keep umbrella away from glass tabletops during windy conditions to prevent breakage.
INFORMATION: Recommend inserting the umbrella into an umbrella base (not included) to secure umbrella in upright position.
INFORMATION: Close the umbrella and use the canopy ties when umbrella is not in use.
INFORMATION: Schematics in this manual are for assembly and operation illustration only. They may differ from the umbrella’s actual appearance.

Replacement Parts

Part	Description	Re-order No.
A	Finial	FNL-822120-A FINIAL
B	Canopy – Mushroom, Indigo, Pebble, Dove	CAN-822120-B-MU CANOPY CAN-822120-B-IN CANOPY CAN-822120-B-PE CANOPY CAN-822120-B-DOVE-MLR
D	Bottom Pole	BMP-822120-D

www.atleisure.com · Email: [email protected] ATLANTA, GEORGIA, USA
US Toll Free 1-855-880-7205 (English)
Canada Toll Free 1-888-692-1033 (French)
8:00am-5:00pm, Monday to Friday, Eastern Standard Time
