Seasons Sentry Umb-633130m 7’ X 10’ Rectangle Market Umbrella User Manual (+ PDF)

Home » Blog » Seasons Sentry Umb-633130m 7’ X 10’ Rectangle Market Umbrella User Manual

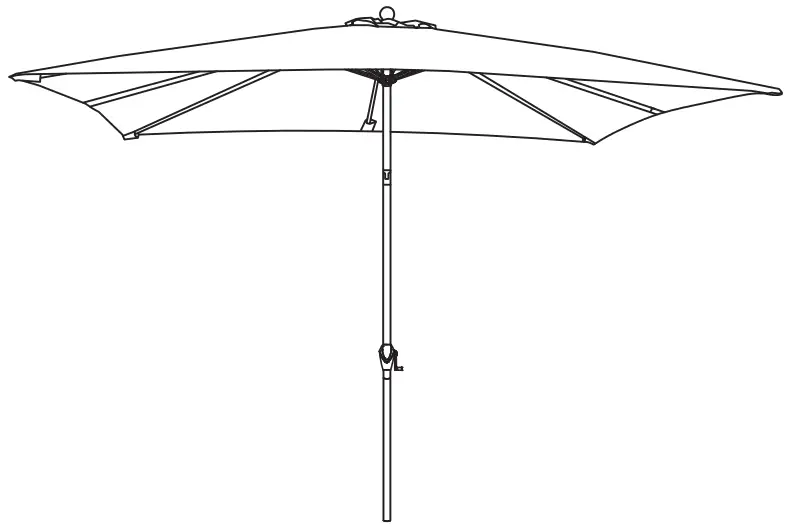

7’ x 10’ Rectangle Market Umbrella
Assembly, Care & Use Manual

ITM. / ART. 1902389, 1902372, 2127081,
2127267, 645528, 2127279
Model: # UMB-633130M, UMB-633130I, UMB-633130G,
UMB-633130P, UMB-633130C, UMB-633130D

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

Contents hide

1 Package Contents

2 Assembly and Use

3 Care and Maintenance

4 Warnings and Cautions

5 Replacement Parts

6 Documents / Resources

6.1 References

7 Related Posts

Package Contents

Please lay out all parts prior to assembly to make sure all parts are present.

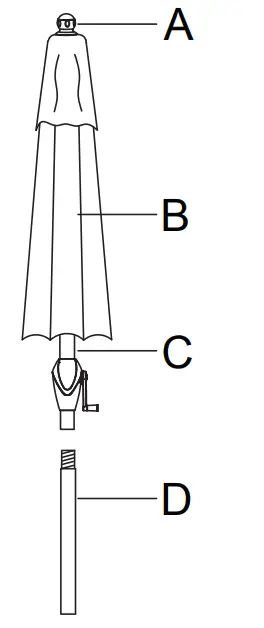

Part	Description	Quantity
A	Finial	1
B	Canopy	1
C	Umbrella Frame	1
D	Bottom Pole	1

Assembly and Use

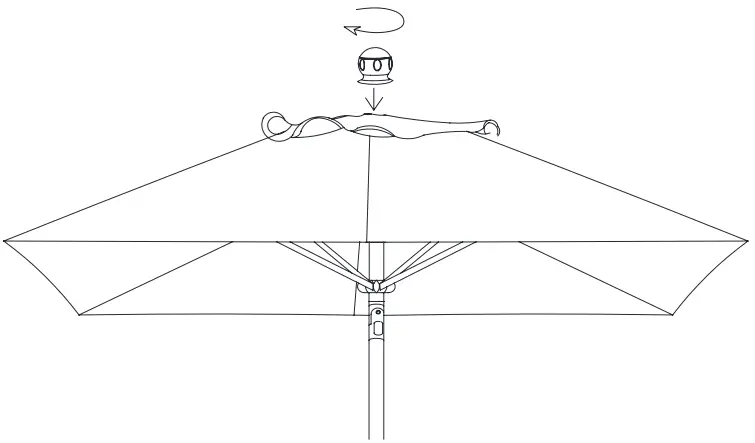

Step 1: If not attached, align ﬁnial (A) to threading on top of umbrella frame (C) and turn clockwise (to right) to lock into place. Do not over-tighten.

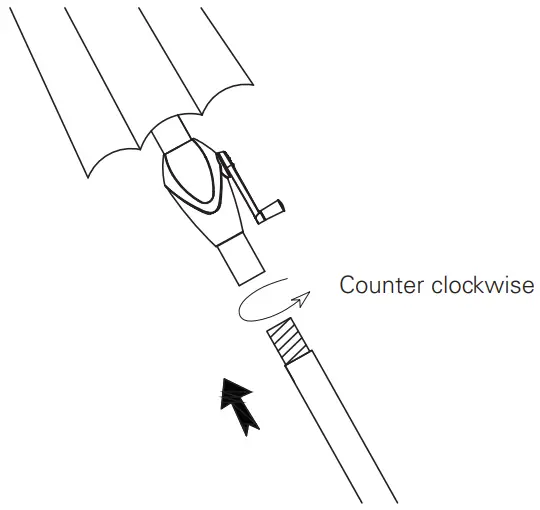

Step 2: Attach bottom pole (D) to umbrella frame (C), then tighten in counter clockwise direction.

Step 3: Turn crank handle in clockwise direction (to right) until canopy is fully opened. Turn crank handle in opposite direction to close canopy and secure with attached strap. To close the umbrella, it must be in the upright position.
You can tilt the umbrella to the right or left by pressing the tilt button to release the umbrella top. Release the button to maintain desired angle.

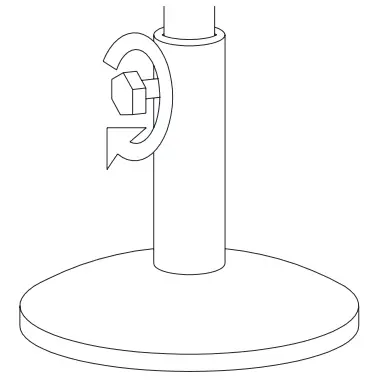

Step 4: Insert umbrella into a heavy umbrella base no less than 50 lbs (not included). Tighten locking nut on side of base to safely secure umbrella.

Care and Maintenance

See enclosed Sunbrella® care and cleaning label sewn into interior side of canopy.

Warnings and Cautions

	DANGER : Keep children out of the assembly area during assembly.
	WARNING: Read the entire instructions before beginning and follow the steps outlined. Failure to assemble and install as instructed could result in the umbrella tipping over, causing personal injury and/or property damage.
	WARNING: Do not use this umbrella during periods of high winds and rain. Failure to do so may result in personal injury and/or damage.
	CAUTION: Assemble and use umbrella on ﬂat surfaces. Keep umbrella away from glass tabletops during windy conditions to prevent breakage.
	INFORMATION: Recommend inserting the umbrella into an umbrella base (not included) to secure umbrella in upright position.
	INFORMATION: Close the umbrella and use the canopy ties when umbrella is not in use.
	INFORMATION: Schematics in this manual are for assembly and operation illustration only. They may differ from the umbrella’s actual appearance.

Replacement Parts

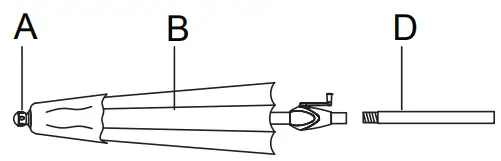

Part	Description	Re-order No.
A	Finial	FNL-633130-A
B	Canopy – Mushroom, Indigo, Pebble, Graphite, Cherry, Dove	CAN-633130-B-MU CAN-633130-B-IN CAN-633130-B-PEB CAN-633130-B-GRAPH CAN-633130-B-CHERRY CAN-633130-B-DOVE
D	Bottom Pole	BMP-633130-C

For assistance with use, parts, or customer service, please contact:
ATLeisure, LLC
US Toll Free 1-855-880-7205 (English)
Canada Toll Free 1-888-692-1033 (French)
8:00am – 5:00pm, Monday through Friday, Eastern Standard Time
www.atleisure.com · Email: [email protected]
DO NOT RETURN TO STORE
For outdoor domestic use only. Not for commercial use.
Designed in USA Made in China
